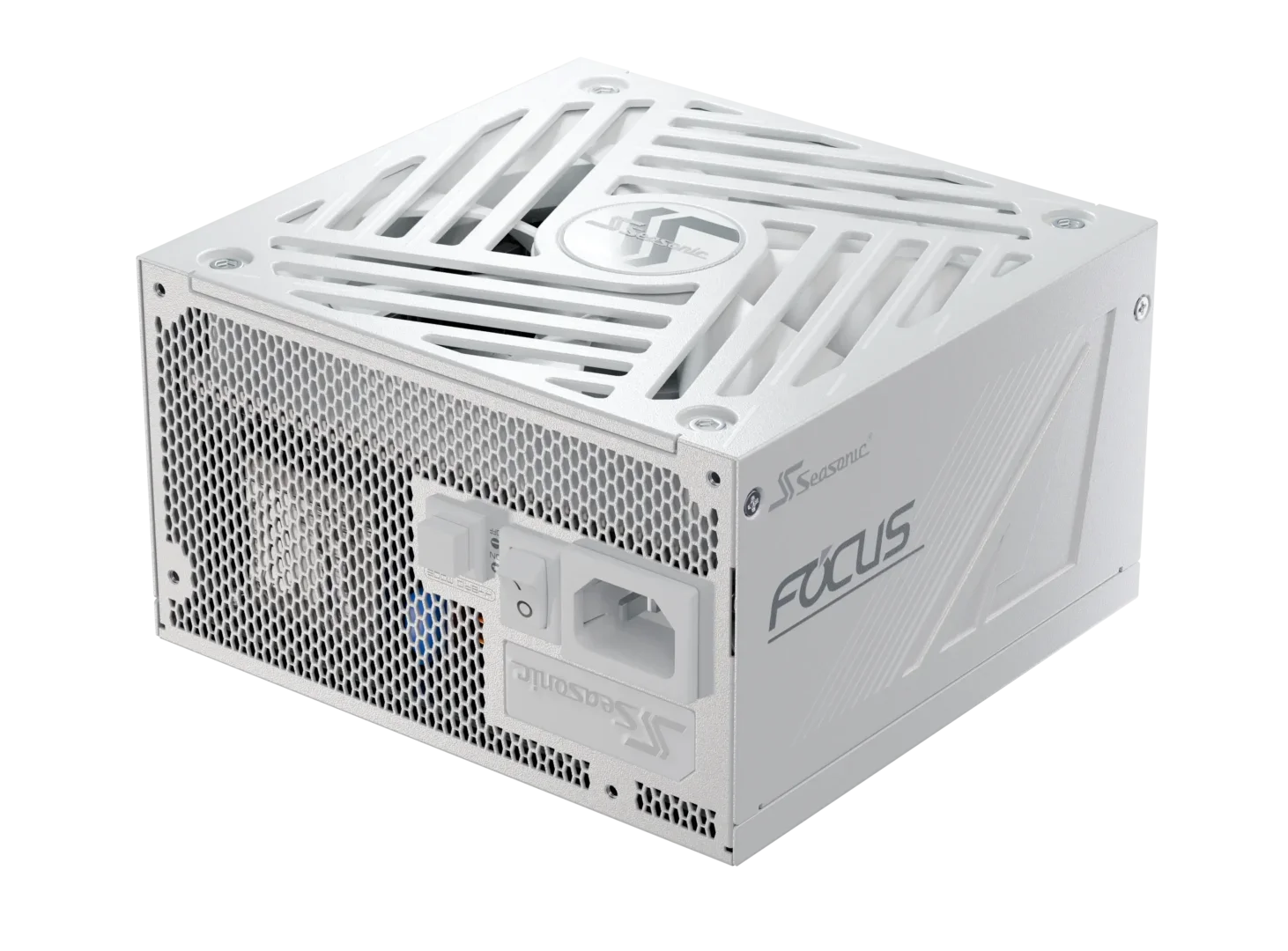

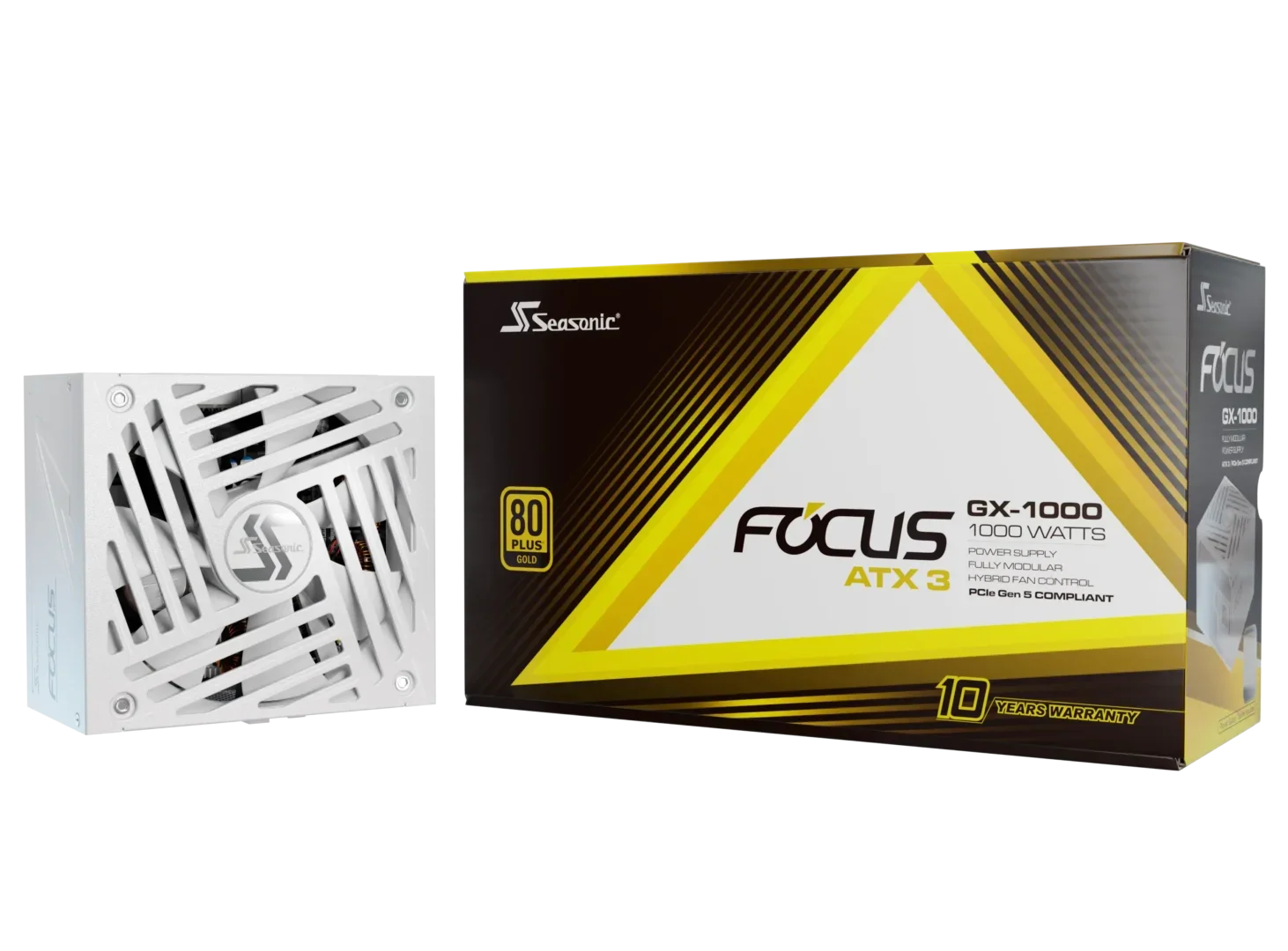

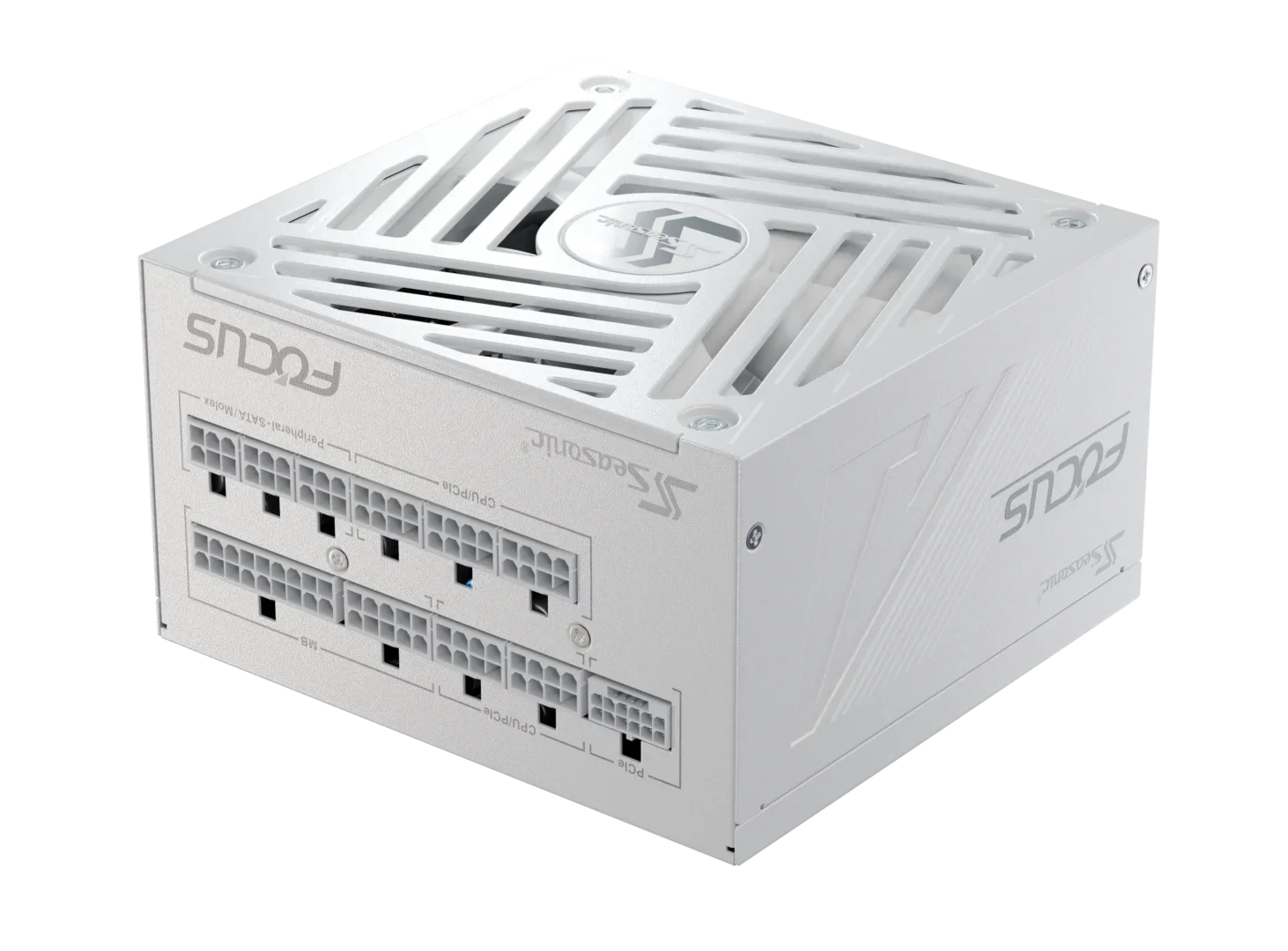

Seasonic Focus GX-1000 V4 White 1000W Fully-Modular 80 PLUS Gold ATX 3.1 PSU

The Seasonic Focus GX-1000 V4 White is a 1000W fully-modular power supply built for high-power graphics cards and processors. Compliant with ATX 3.1 and PCIe 5.1 standards, it combines 80 PLUS Gold efficiency with a striking white finish and a compact 140mm depth.

Key Features

• 1000W total continuous power output
• 80 PLUS Gold efficiency
• ATX 3.1 and PCIe 5.1 compliant

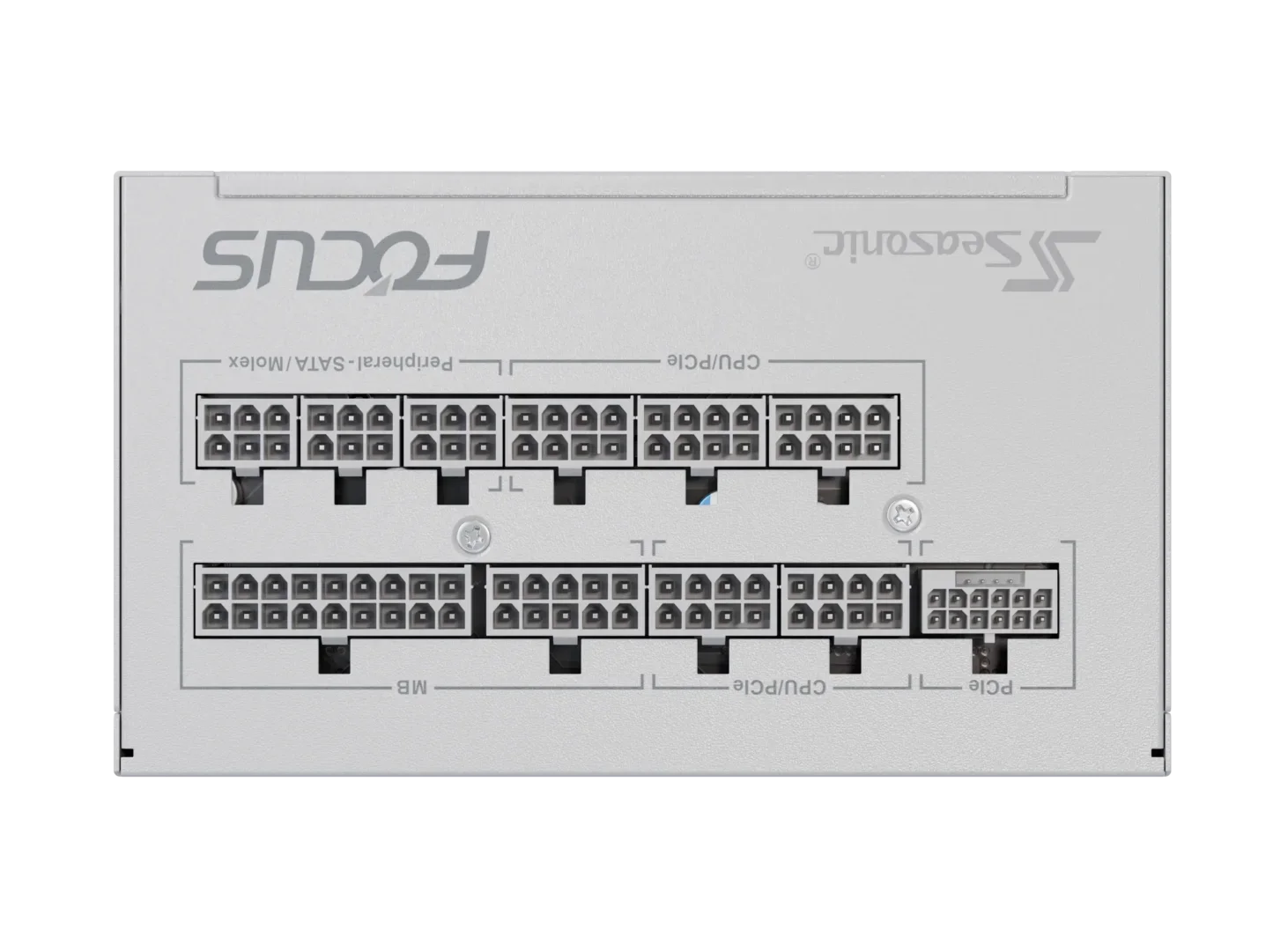

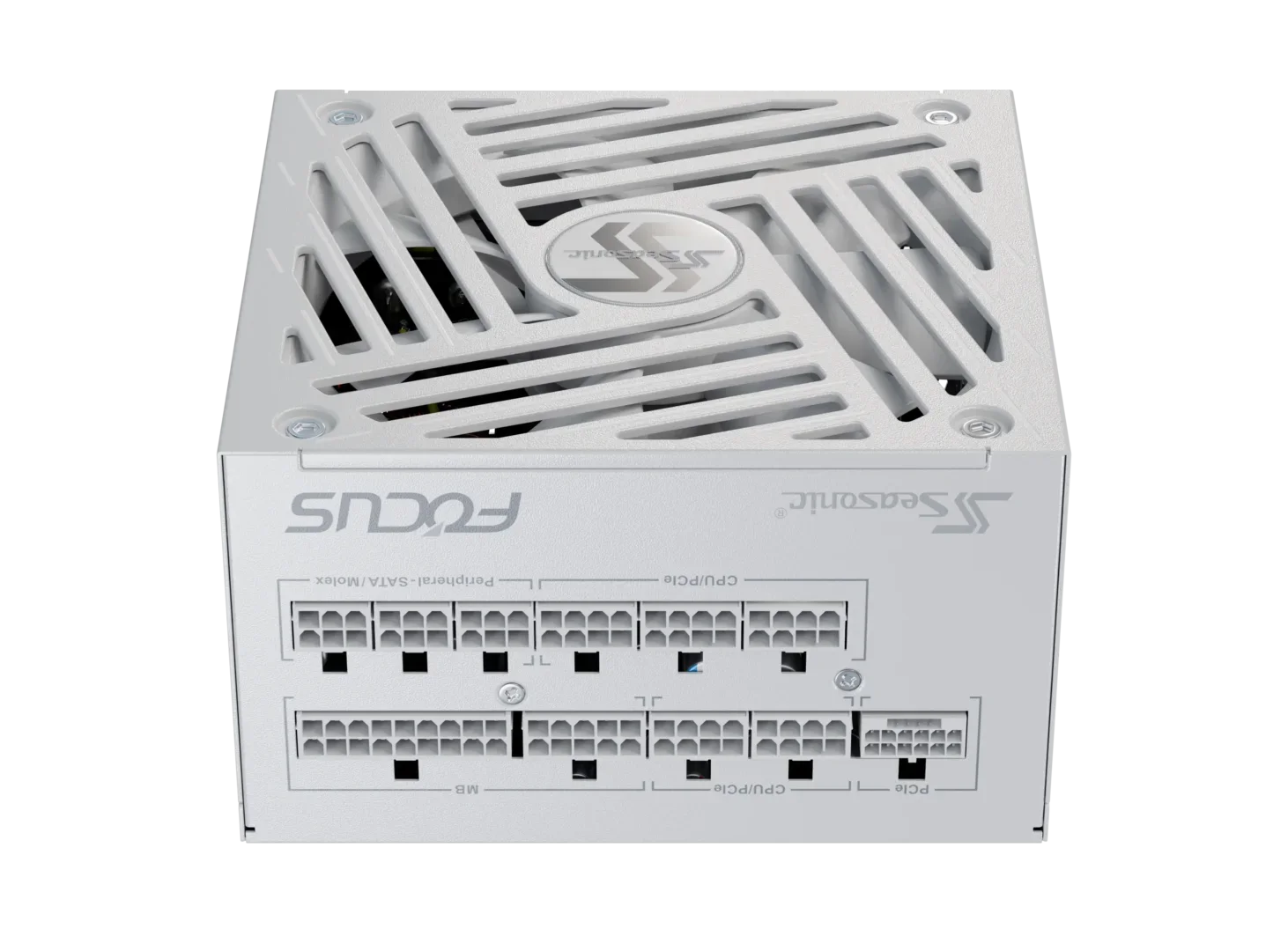

• Fully modular design with individual white cables in a braided pattern

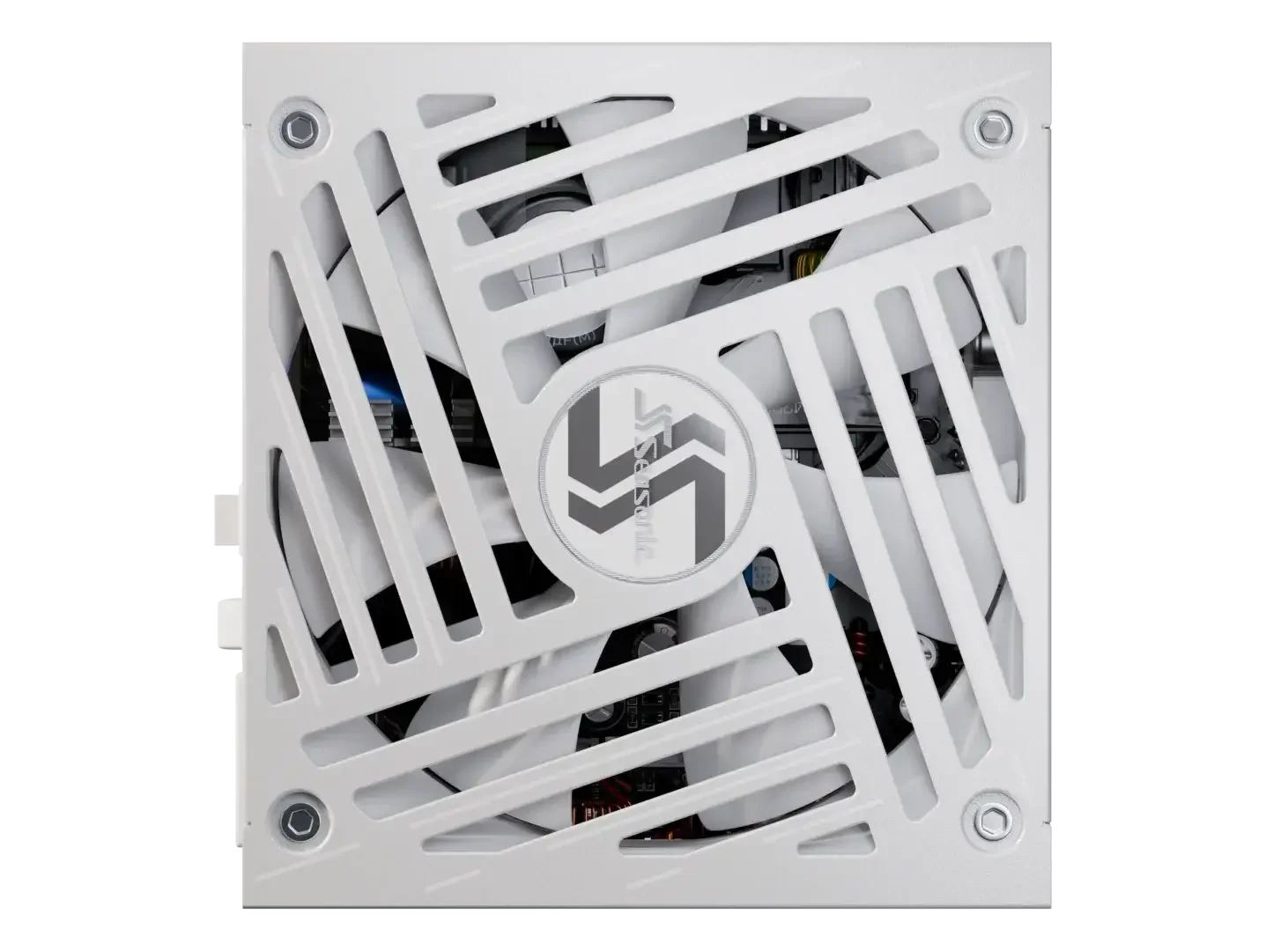

• 135mm fan with Digital Hybrid Fan Control and Fluid Dynamic Bearing
• OptiSink technology
• Compact 140mm depth
• Includes a 12V-2x6 cable
• Full range AC input

Specifications

• Form factor: ATX/EPS
• Fan life expectancy: 50,000 hours at 40 C, 15% - 65% RH
• Operating temperature: 0 - 50 C
• MTBF at 25 C (excluding fan): 100,000 hours
• Protection: OCP, OPP, OTP, OVP, SCP, UVP
• AC input: 100 V - 240 V, 13 - 6.5 A, 50 Hz - 60 Hz
• DC output: +3.3 V 25 A, +5 V 25 A, +12 V 83 A, -12 V 0.3 A, +5 VSB 3 A
• Maximum power: 125 W (+3.3 V and +5 V combined), 996 W (+12 V), 3.6 W (-12 V), 15 W (+5 VSB)
• Safety and EMC: BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV
• Environmental compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Warranty: 10 years
