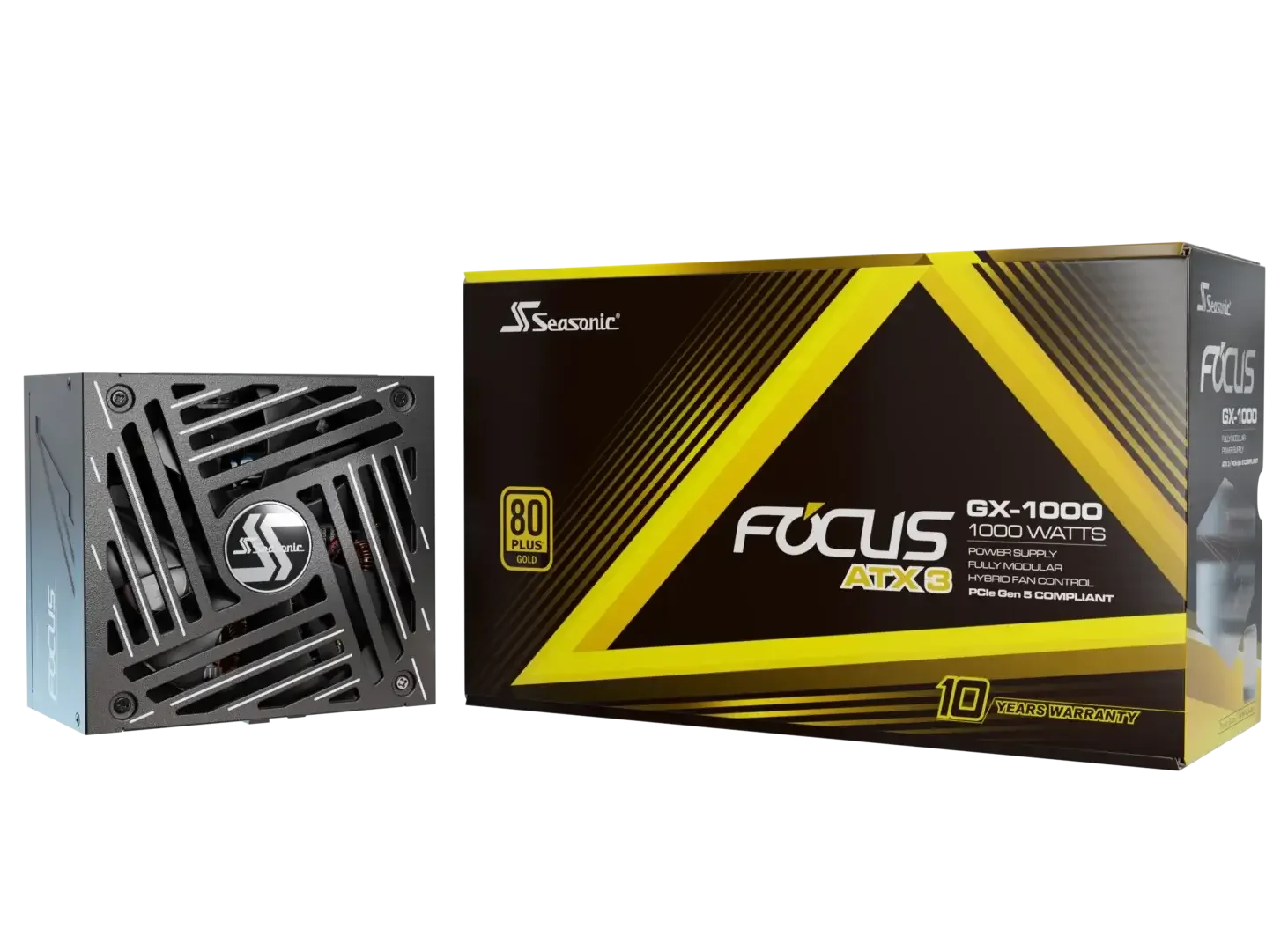

Seasonic Focus GX-1000 V4 1000W Fully-Modular 80 PLUS Gold ATX 3.1 PSU

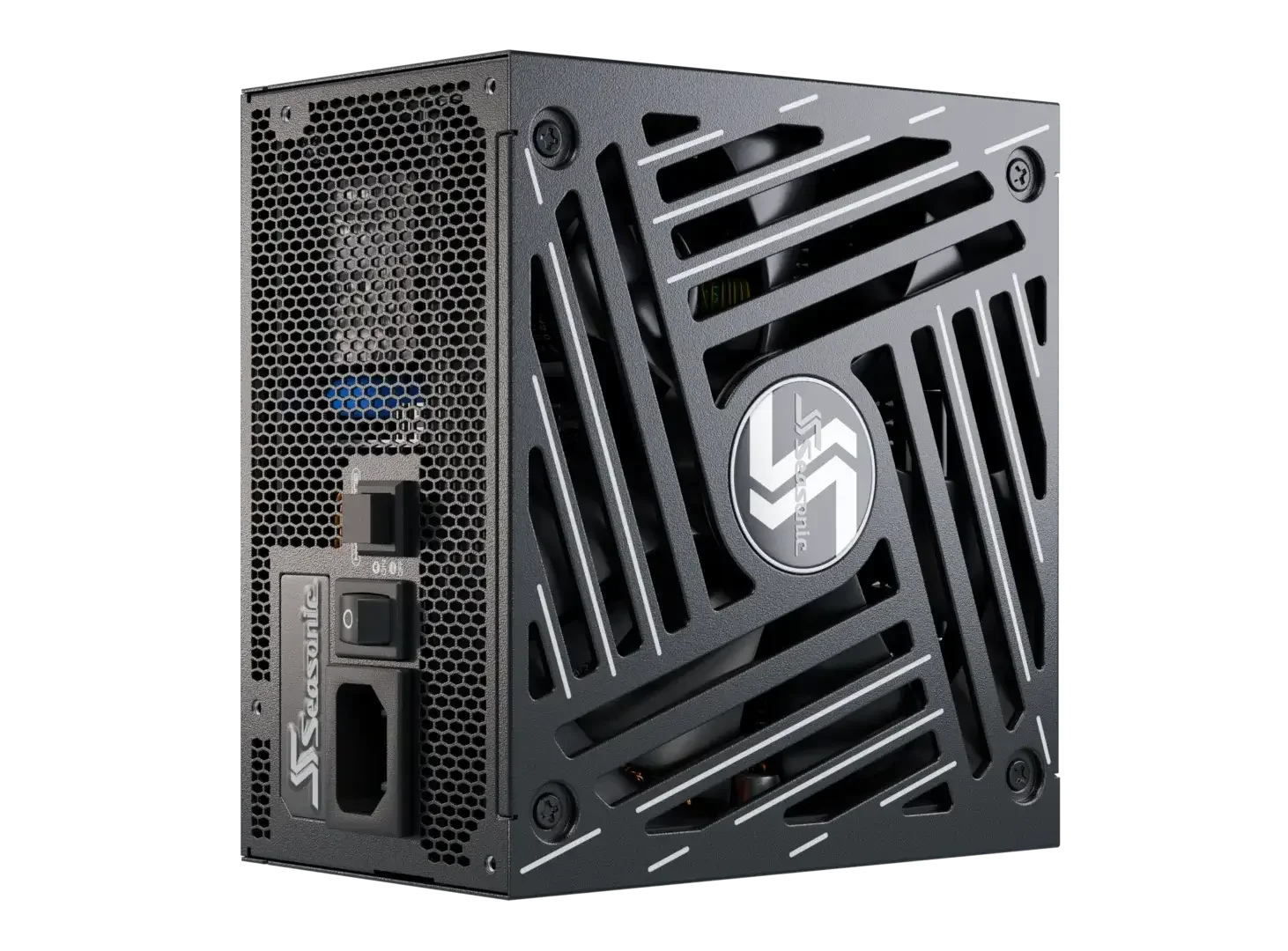

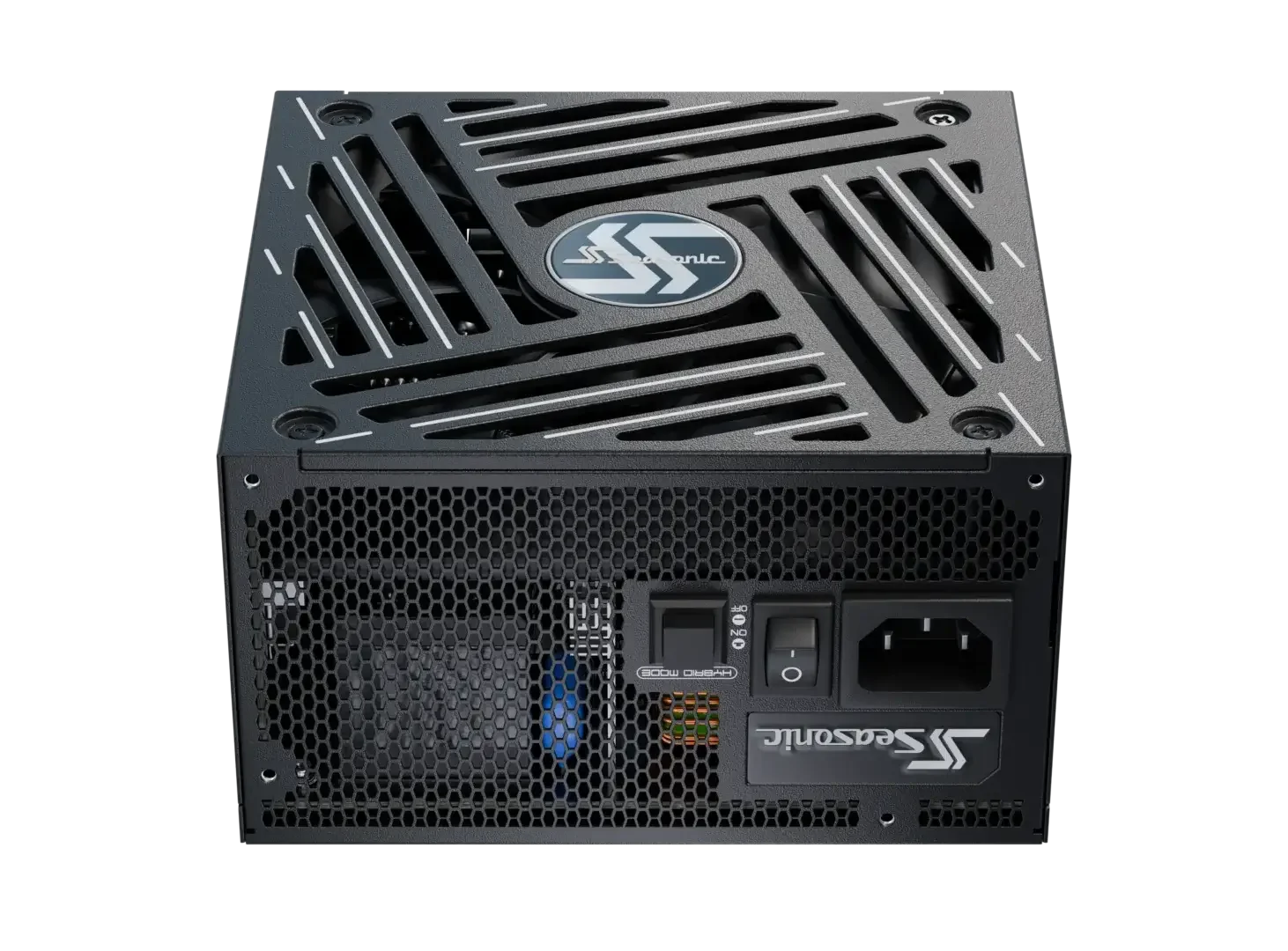

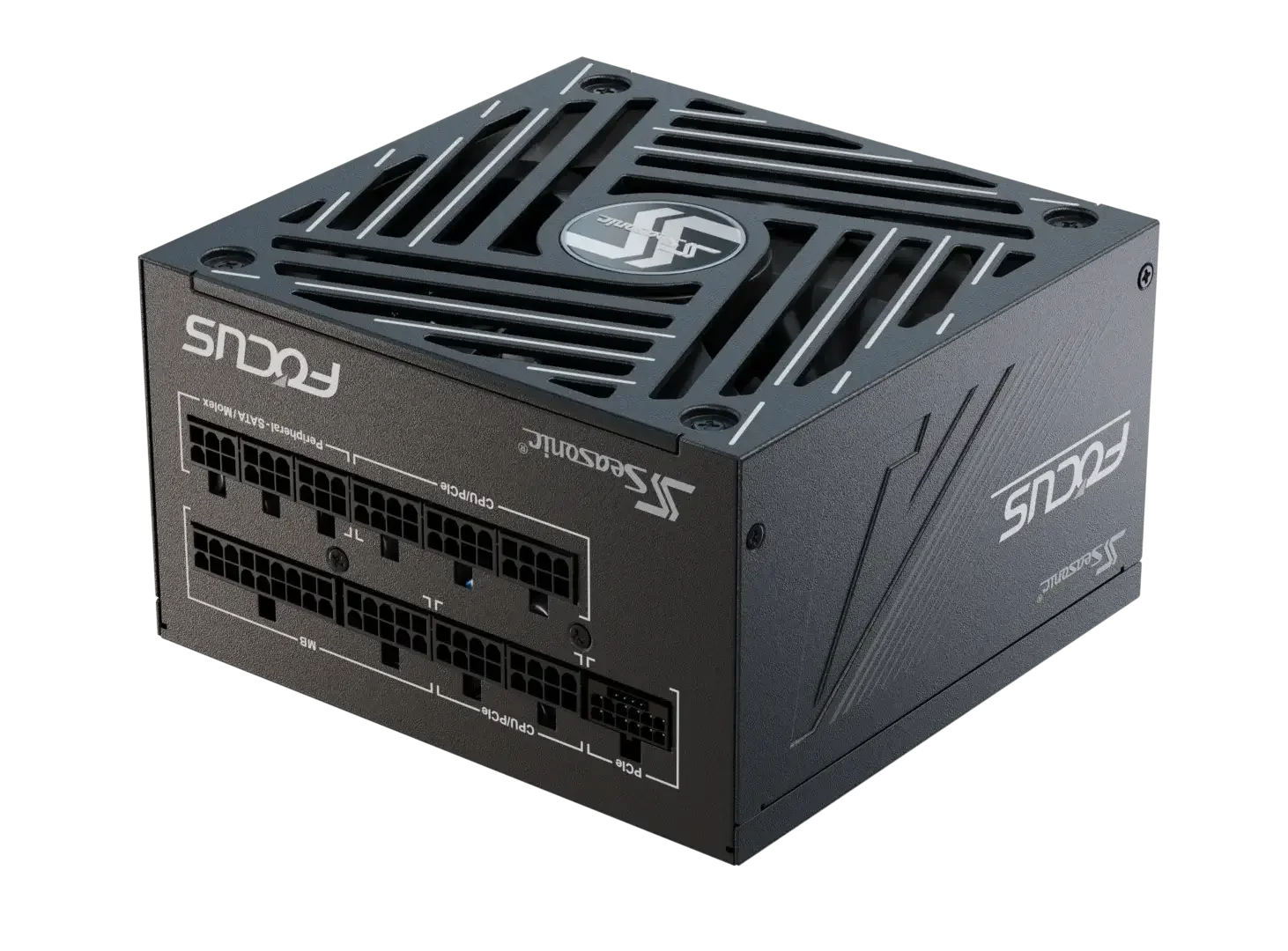

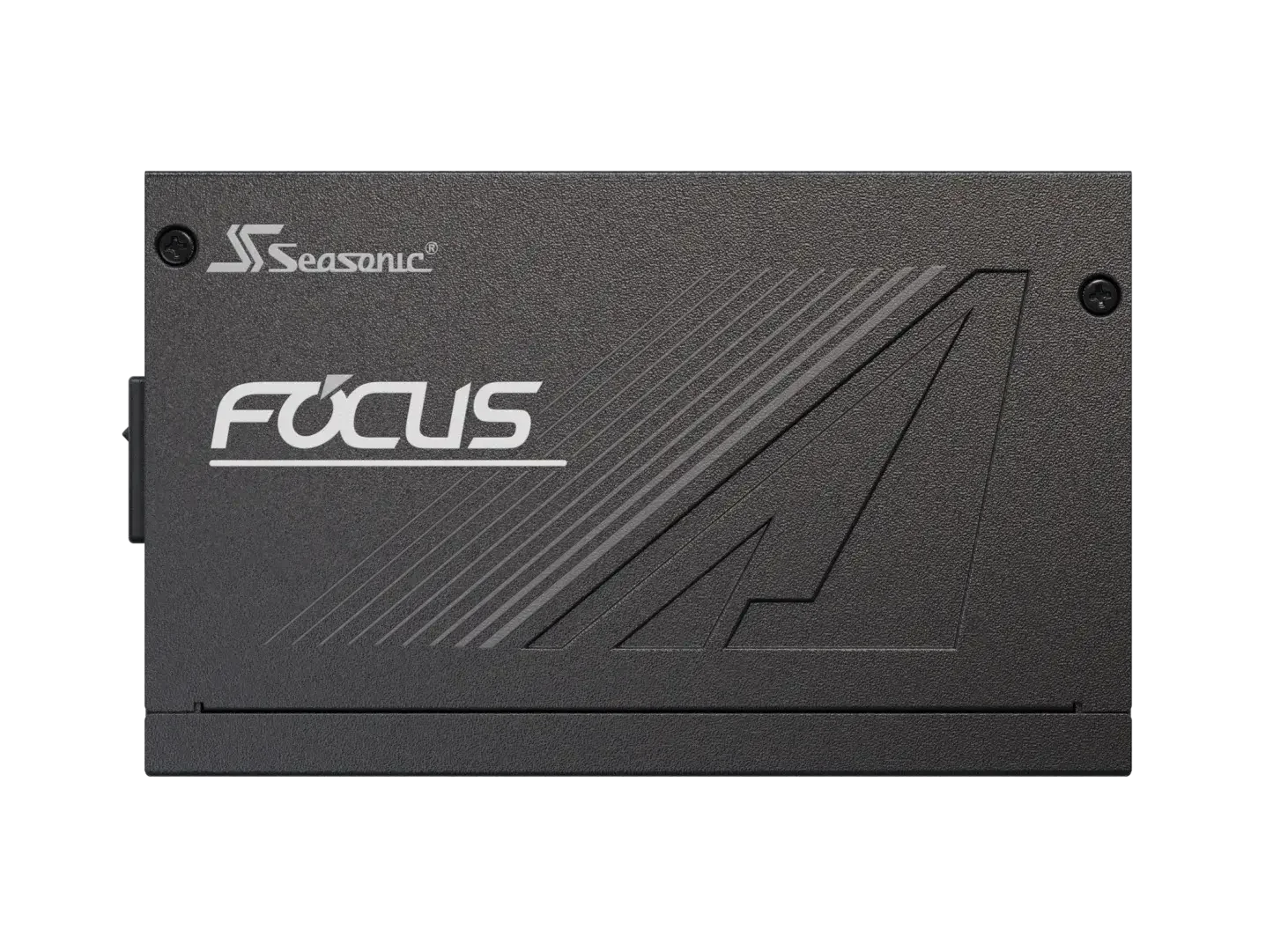

The Seasonic Focus GX-1000 V4 is a 1000W fully-modular power supply built to ATX 3.1 and PCIe 5.1 standards, making it a strong match for the latest high-power graphics cards and processors. Its compact 140mm-deep chassis, 135mm fan and OptiSink technology help deliver reliable, efficient power in a space-conscious build.

Key Features

• 1000W total continuous power output
• 80 PLUS Gold efficiency
• Complies with ATX 3.1 and PCIe 5.1 standards

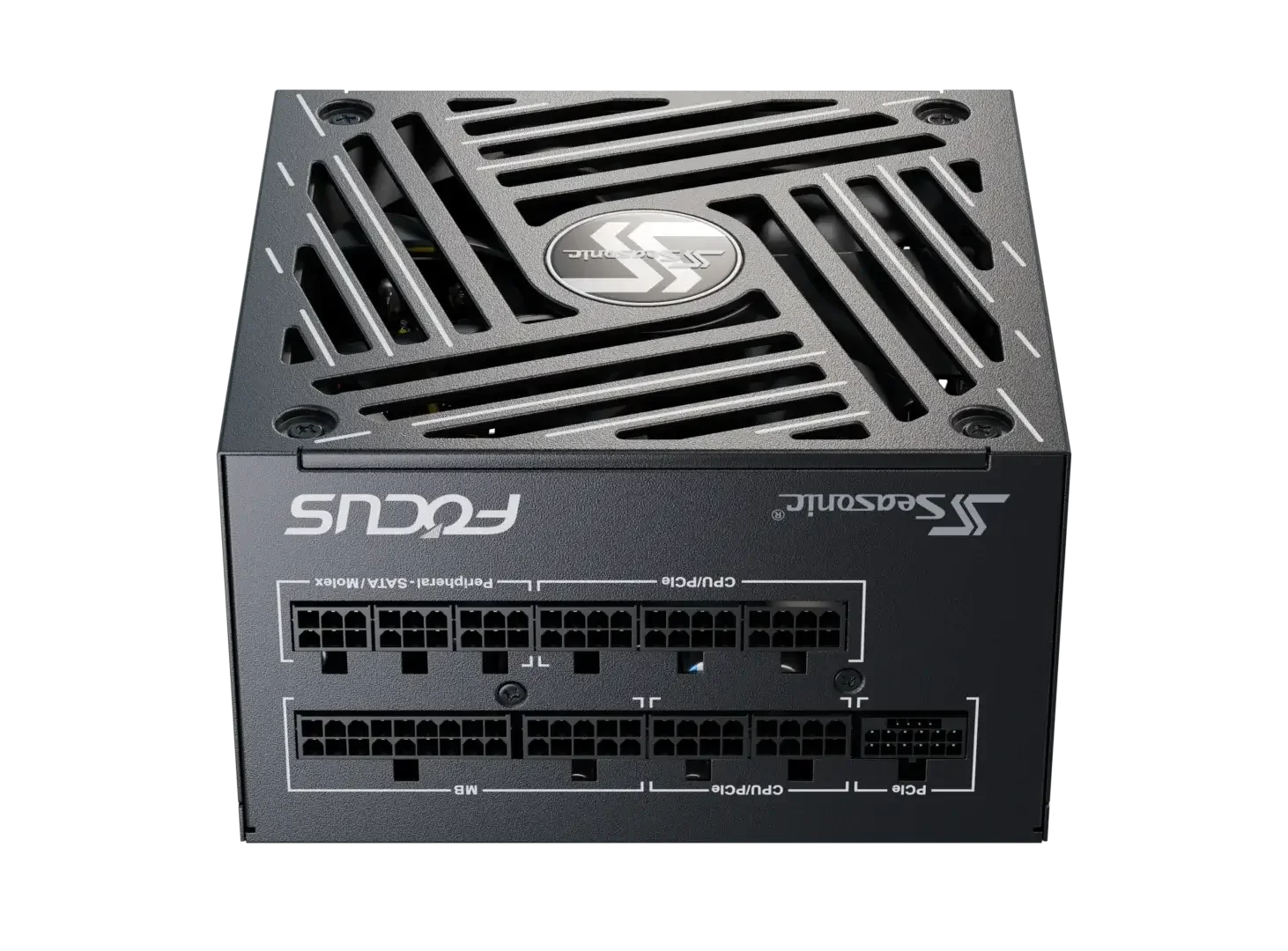

• Fully modular design with individual black cables in a braided pattern
• Includes a 12V-2x6 cable

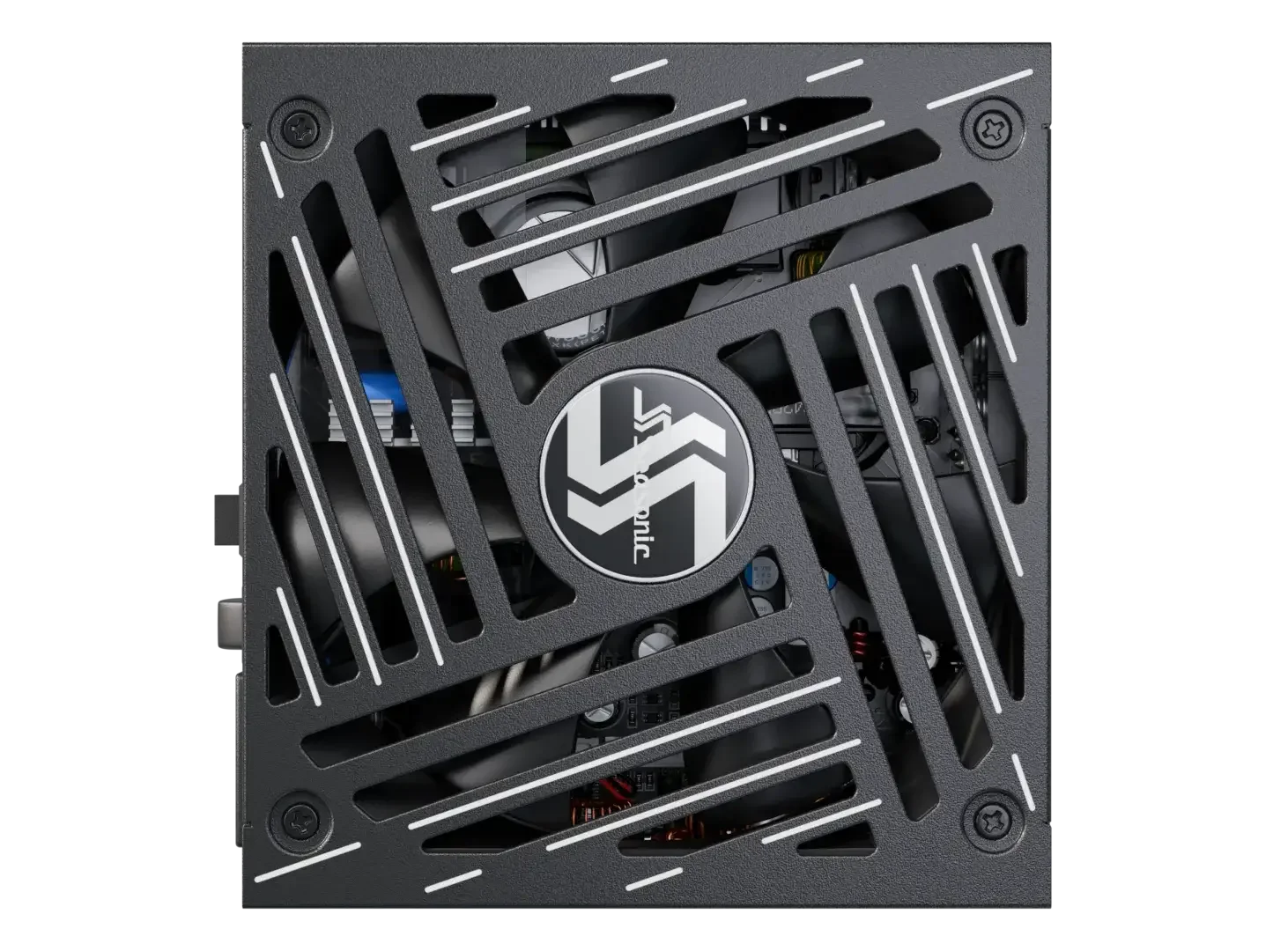

• 135mm fan with Digital Hybrid Fan Control and Fluid Dynamic Bearing

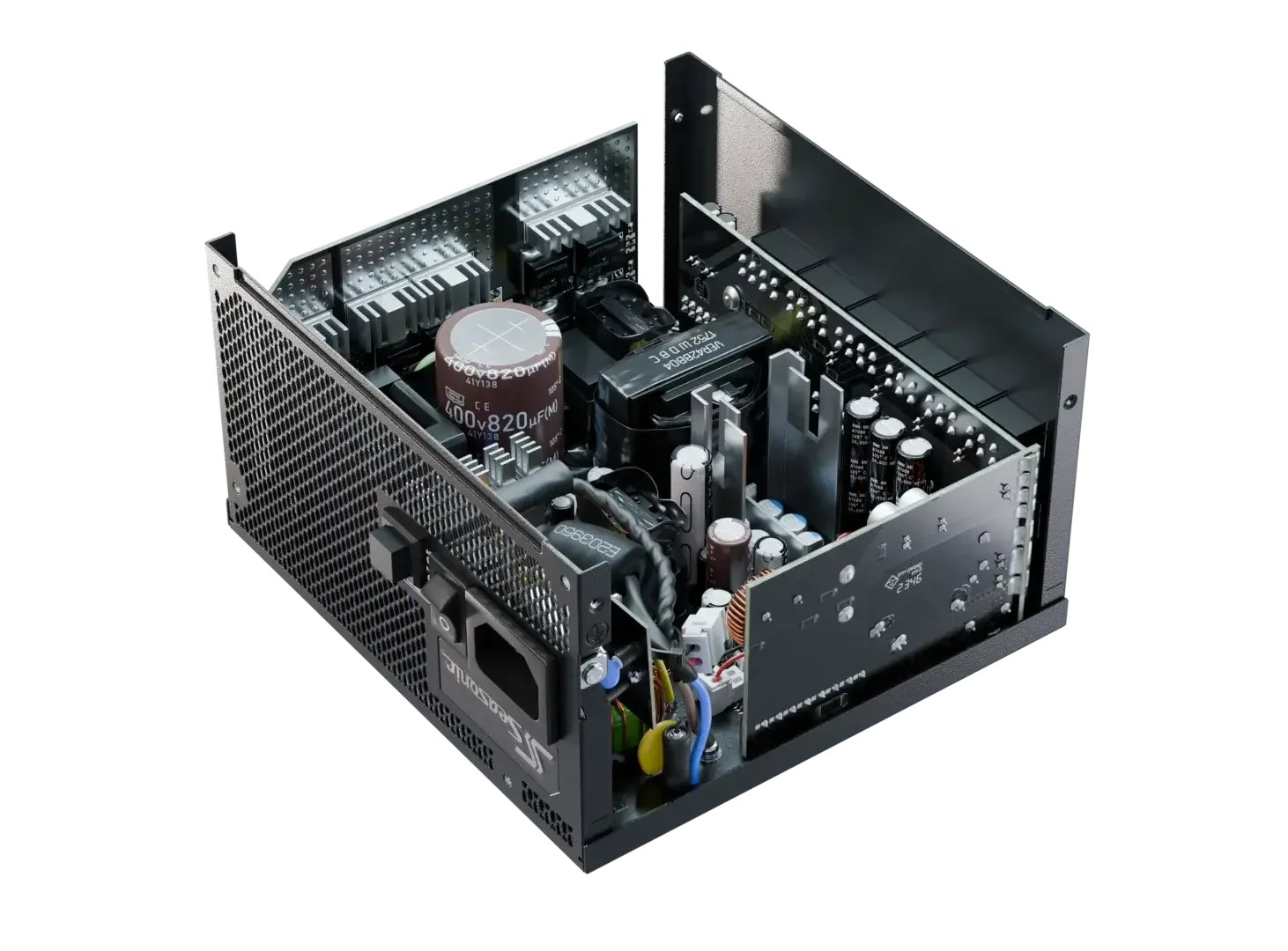

• OptiSink technology
• Compact 140mm depth
• Full range AC input
• Protections: OCP, OPP, OTP, OVP, SCP, UVP

Specifications

• Model: SRP-FGX102-A5A32SF
• Form factor: ATX/EPS
• 80 PLUS: Gold
• Cybenetics efficiency level: TBA
• Cybenetics noise level: TBA
• Fan size: 135mm
• Fan control: Digital Hybrid Fan Control
• Fan bearing: Fluid Dynamic Bearing
• Fan life expectancy: 50,000 hours at 40 C, 15% - 65% RH

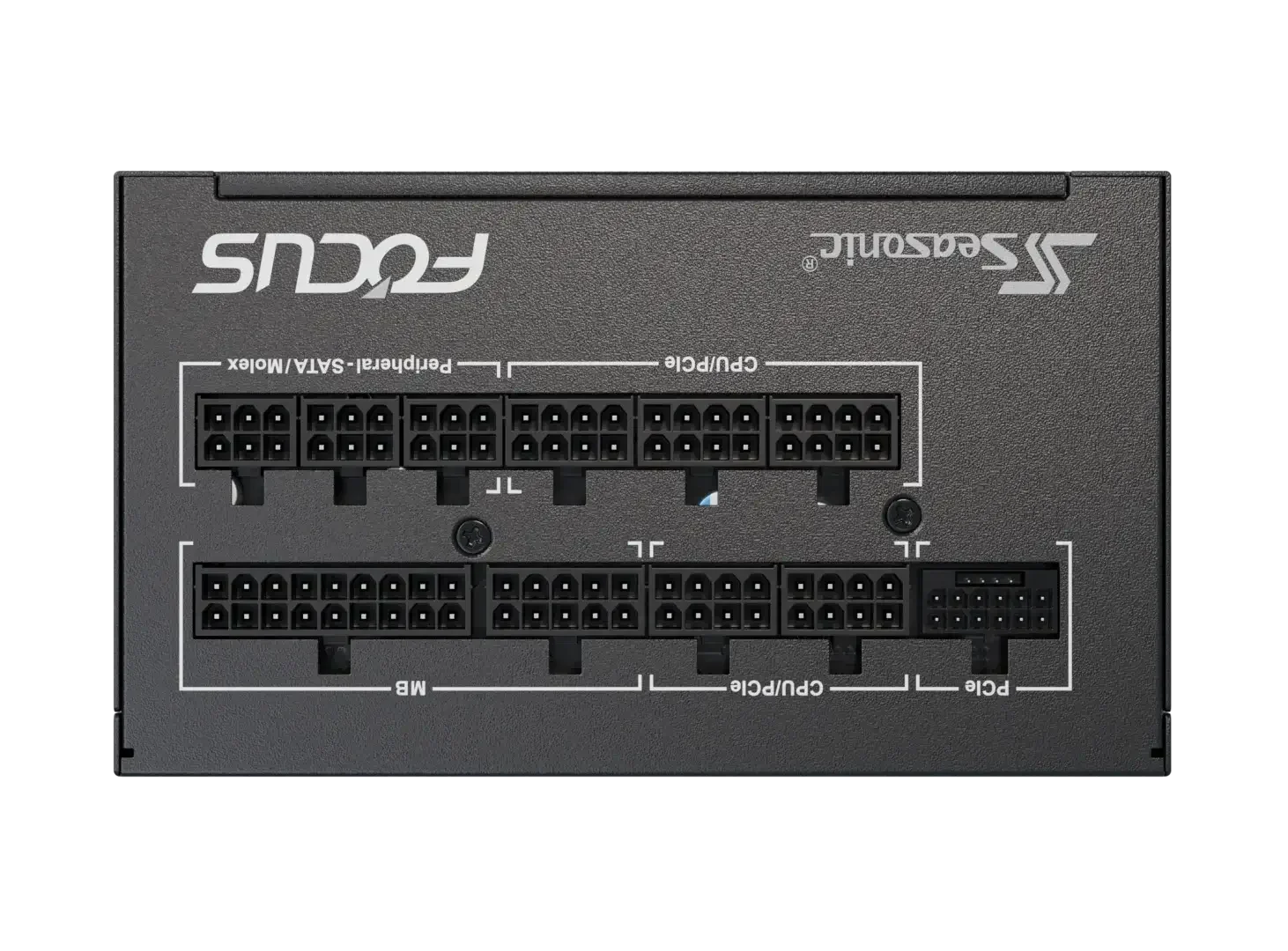

• Modularity: Fully modular
• Cable type: Individual black cables with braided pattern
• Operating temperature: 0 - 50 C
• MTBF at 25 C, excluding fan: 100,000 hours
• AC input: 100 V - 240 V, 13 - 6.5 A, 50 Hz - 60 Hz
• DC output: +3.3 V 25 A, +5 V 25 A, +12 V 83 A, -12 V 0.3 A, +5 VSB 3 A
• Maximum power: 125 W (+3.3 V and +5 V combined), 996 W (+12 V), 3.6 W (-12 V), 15 W (+5 VSB)
• Total continuous power: 1000 W
• Safety and EMC: CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
• Environmental compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
• Warranty: 10 years
