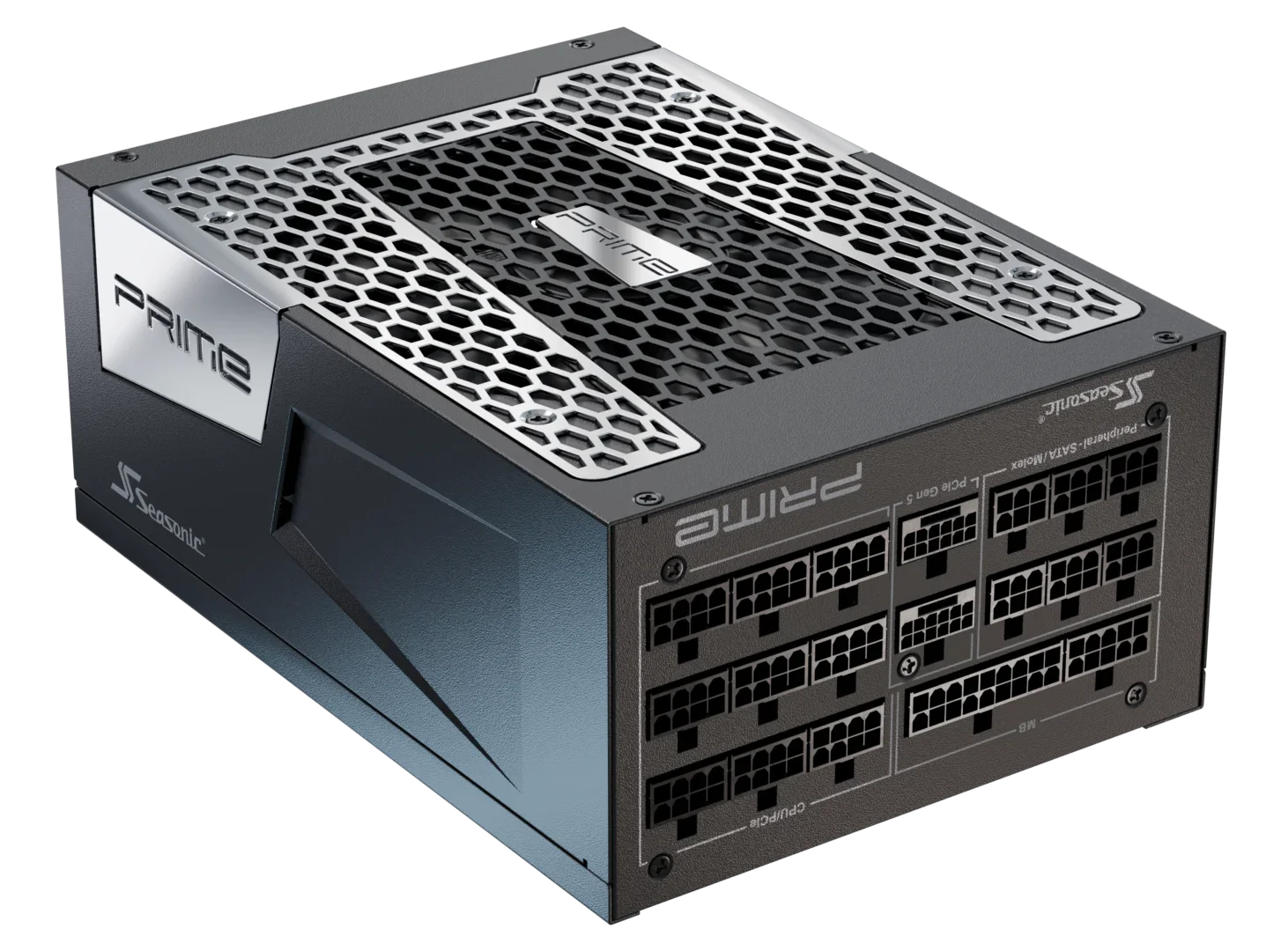

Seasonic Prime PX-2200 2200W Fully Modular 80 PLUS Platinum ATX 3.1 PCIe 5.1 PSU

The Seasonic Prime PX-2200 is a 2200W fully modular ATX 3.1 and PCIe 5.1 power supply built for extremely demanding systems. With 80 PLUS Platinum efficiency and a robust single 12V rail, it can safely power high-power workloads such as artificial intelligence setups and up to four RTX 4090 graphics cards.

Key Features

• 2200W total continuous power output
• 80 PLUS Platinum efficiency
• ATX 3.1 and PCIe 5.1 compliant
• Fully modular design with individual black cables in a braided pattern

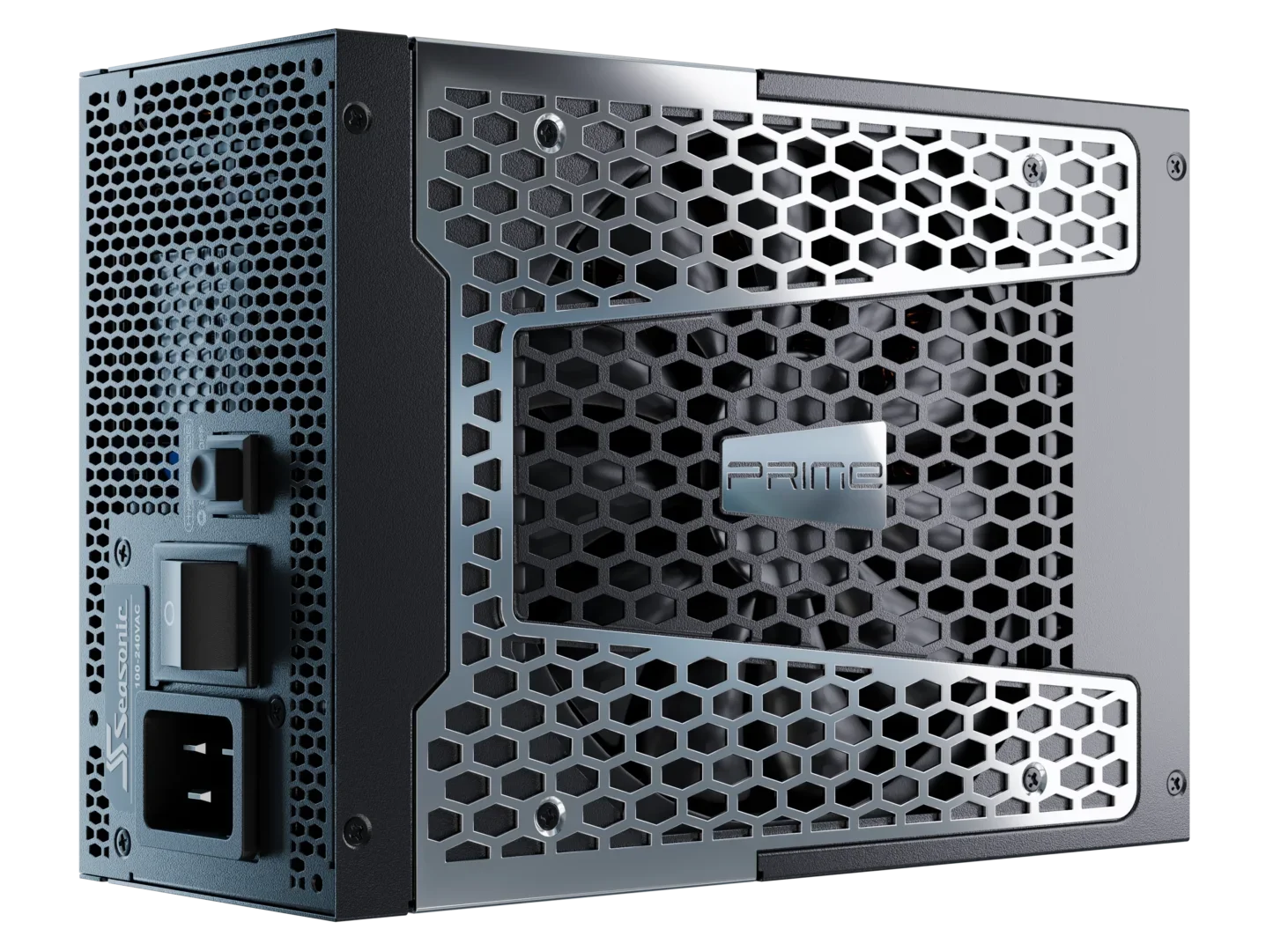

• 135 mm fan with digital hybrid fan control and fluid dynamic bearing
• Comprehensive protection: OPP, OVP, UVP, OCP, OTP, SCP
• Capable of powering up to four RTX 4090 graphics cards

Specifications

• Form factor: ATX/EPS
• Fan size: 135 mm
• Fan life expectancy: 50,000 hours at 40 C, 15% - 65% RH
• Operating temperature: 0 - 50 C
• MTBF: 100,000 hours at 25 C (excluding fan)
• AC input: 200 V - 240 V, 15 A, 50 Hz - 60 Hz
• DC output rails: +3.3 V (25 A), +5 V (25 A), +12 V (183.3 A), -12 V (0.5 A), +5 VSB (3 A)
• Maximum power: 125 W (+3.3 V and +5 V combined), 2200 W (+12 V), 6 W (-12 V), 15 W (+5 VSB)
• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 12 years
