Della Francesca 90cm Frameless Diamond Shower Screen with Nickel U-Brackets, SS Hinges & Round Knob Handle

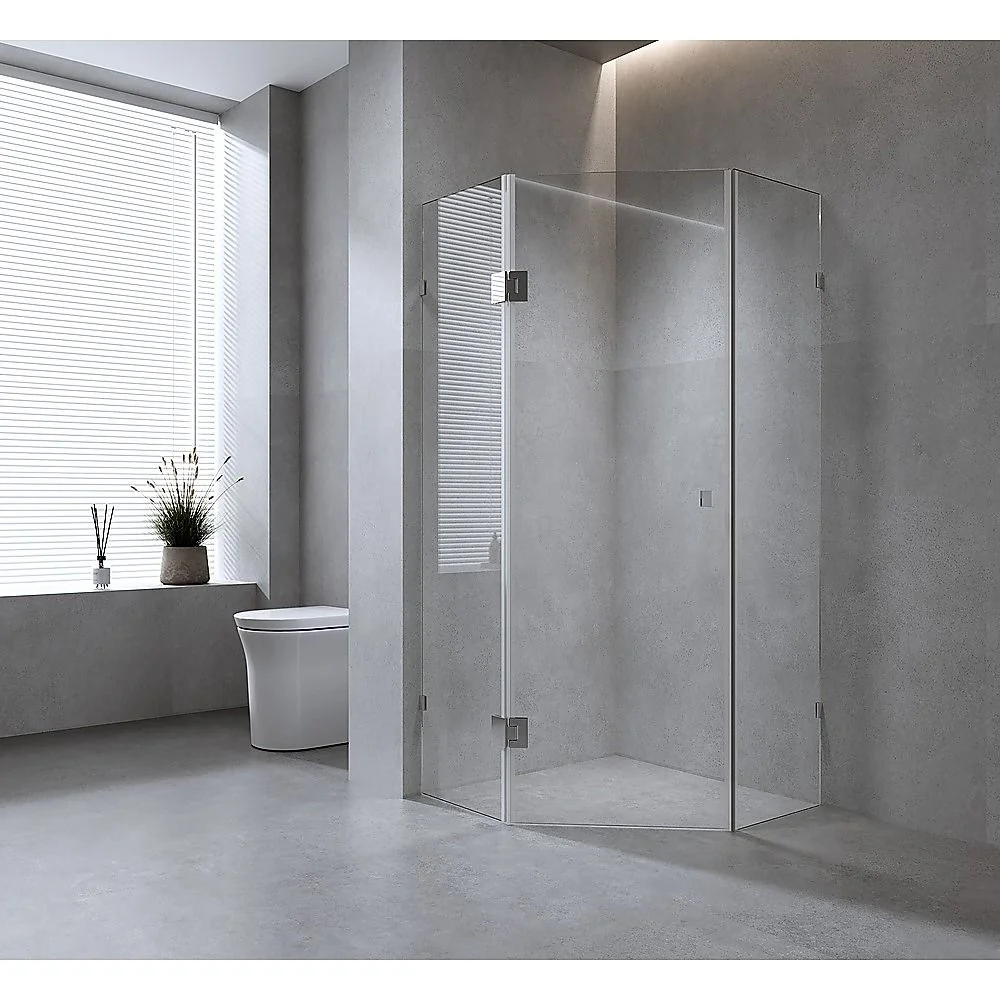

The Della Francesca 90cm frameless diamond shower screen brings a striking angled corner design to your bathroom while making efficient use of the space. Built from 10mm tempered safety glass with brushed nickel hardware, it pairs a clean frameless look with smooth dual-action hinges.

Key Features

• Diamond corner configuration creates an elegant centrepiece and maximises usable shower space
• Frameless design removes hard-to-clean channels and corners
• 10mm tempered glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees

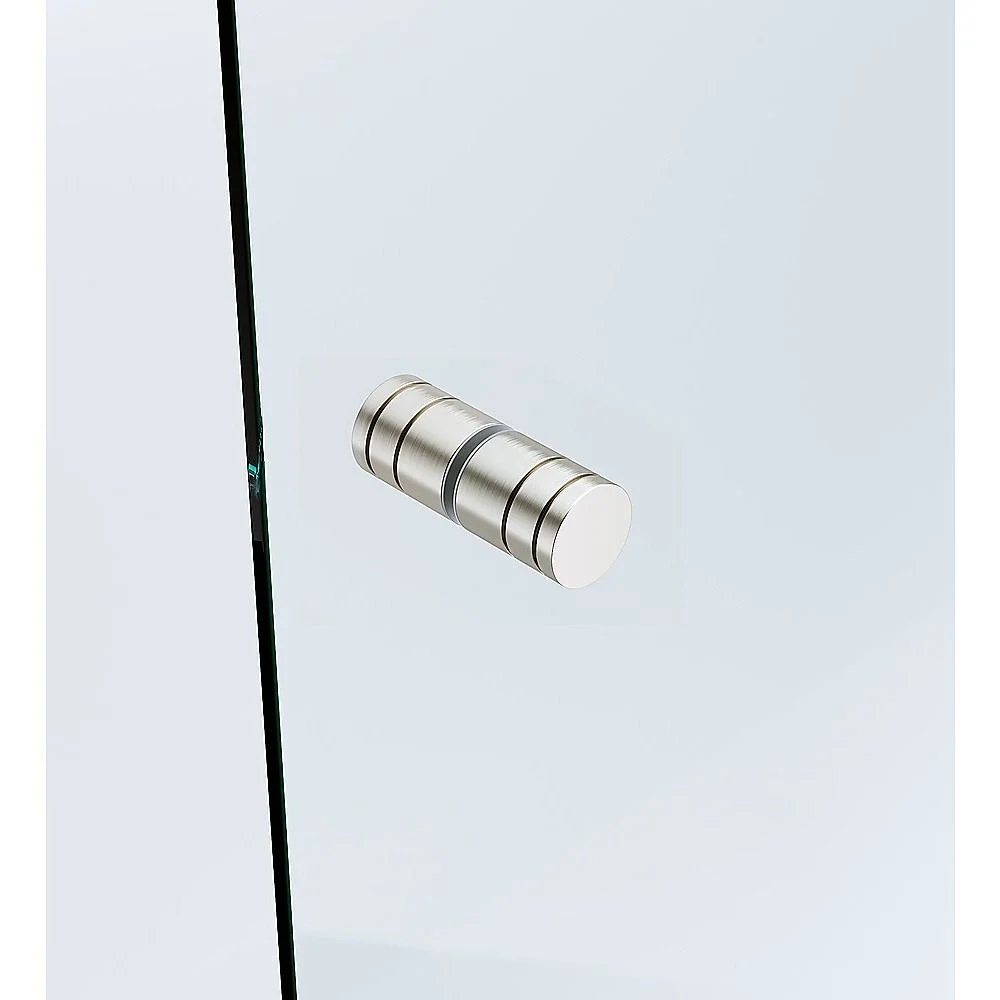

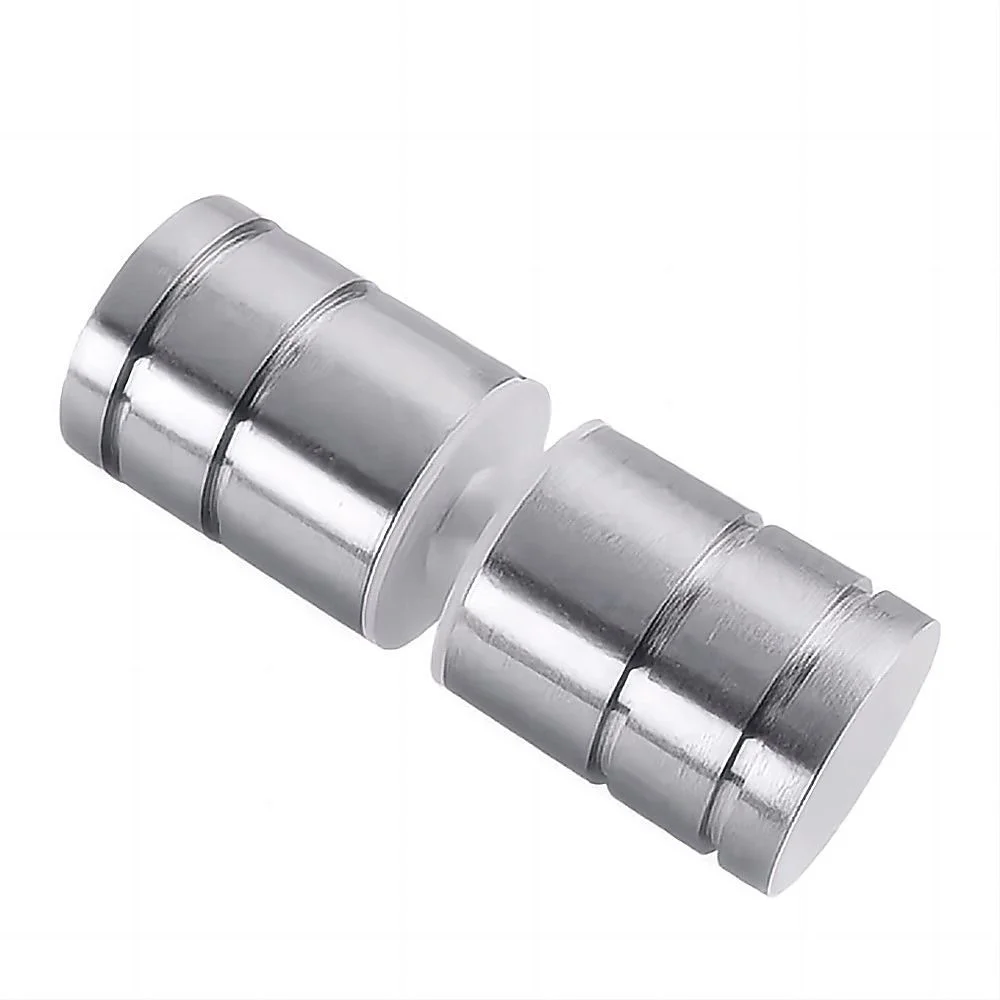

• Solid brass round knob handle with two circular grooves, comfortable to touch and resistant to rust and corrosion
• Glass-to-wall or floor U-brackets with concealed fixing for a streamlined finish
• U-brackets require no glass drilling; two compression screws secure the panel
• Slimline 2mm rear wall on U-brackets minimises the gap for a neater silicone joint
• Handle includes plastic gaskets for added protection

Specifications

• Size: 90cm
• Colour: Nickel
• Bracket type: U-Brackets
• Handle type: Round Knob

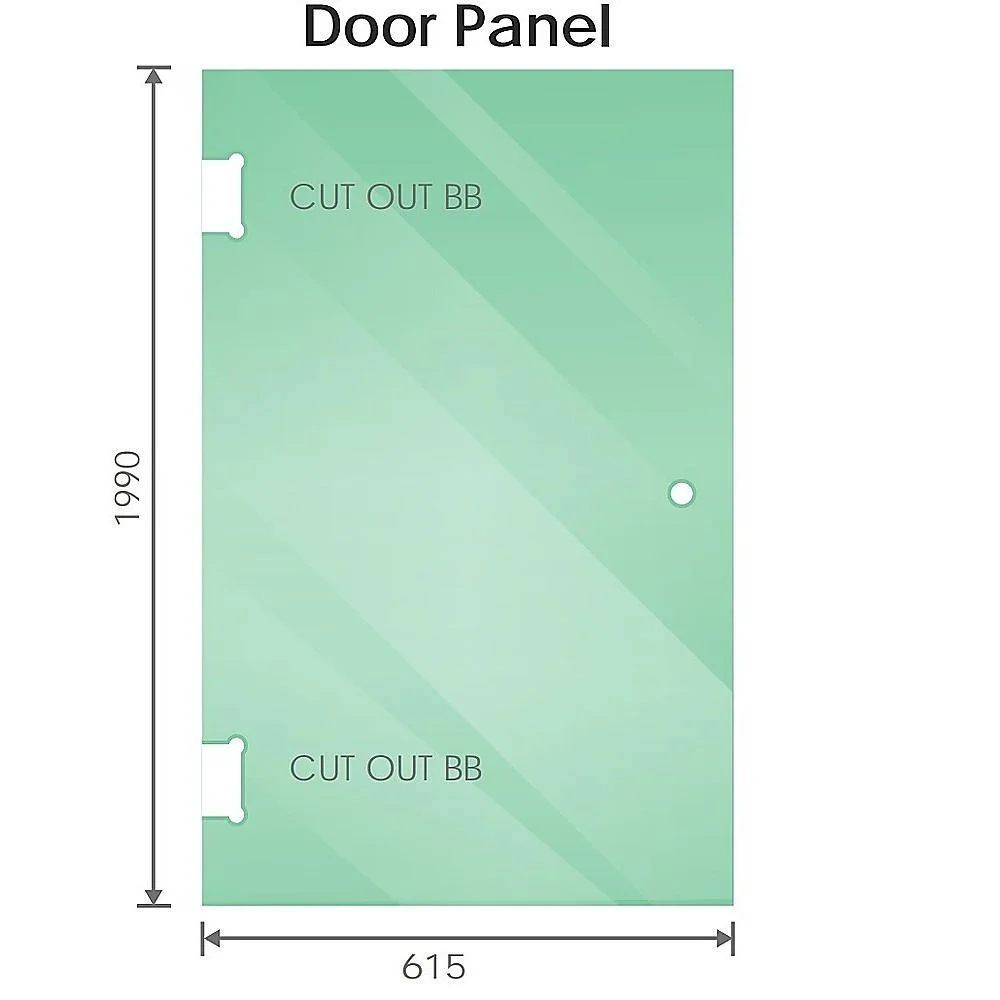

• Door panel: 615 x 1990mm

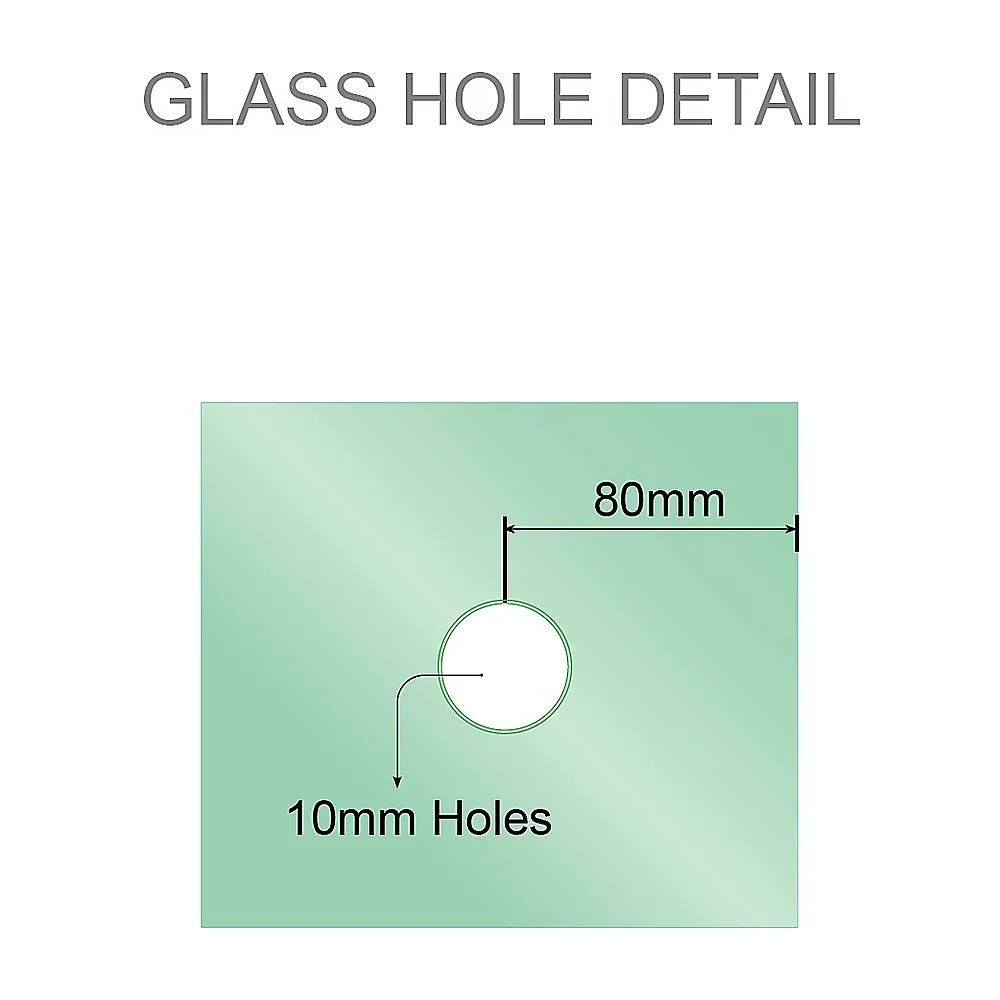

• Door handle hole: 10mm

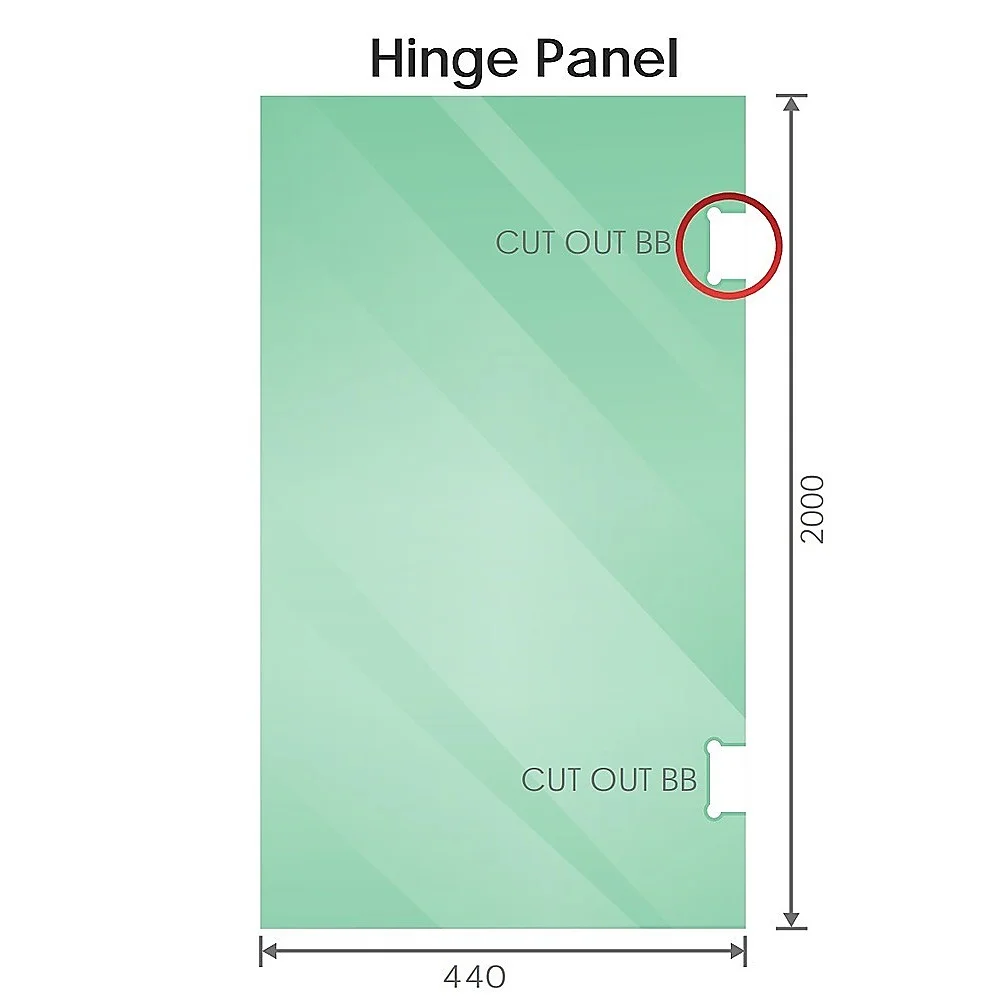

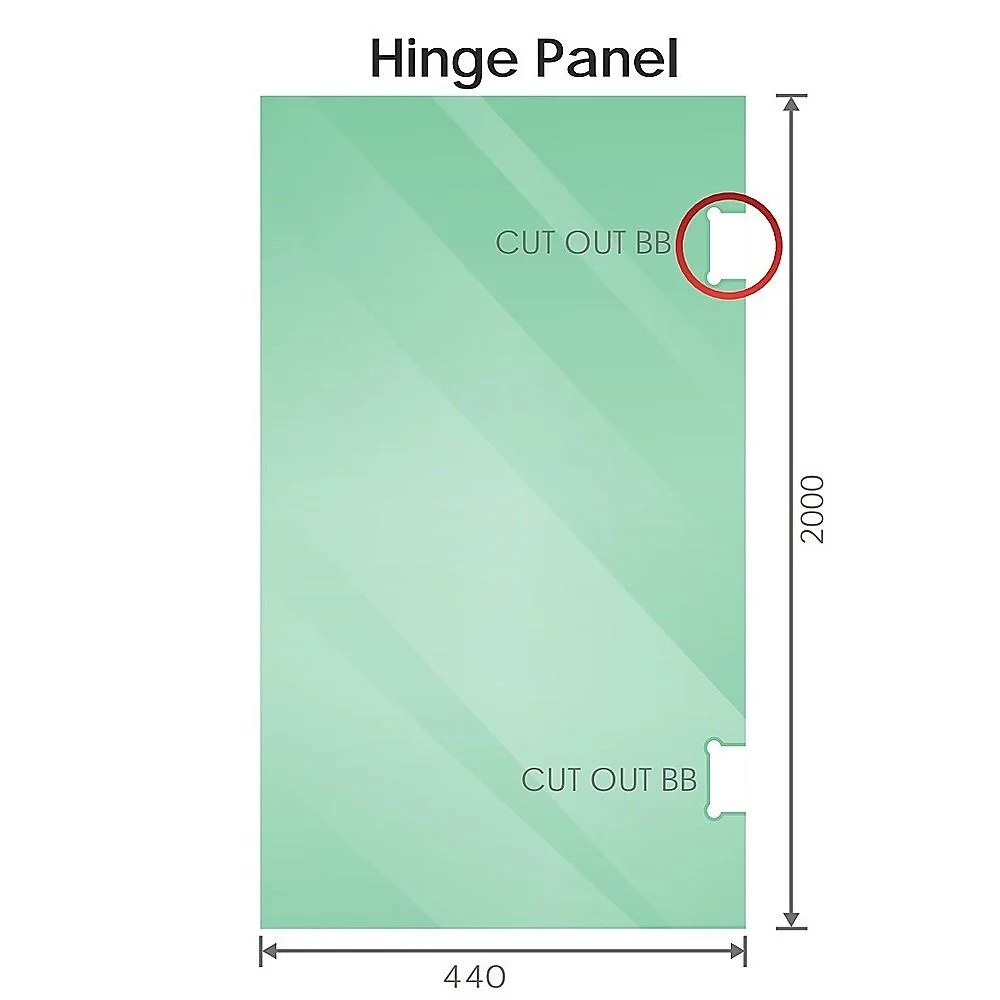

• Hinged panel: 440 x 2000mm

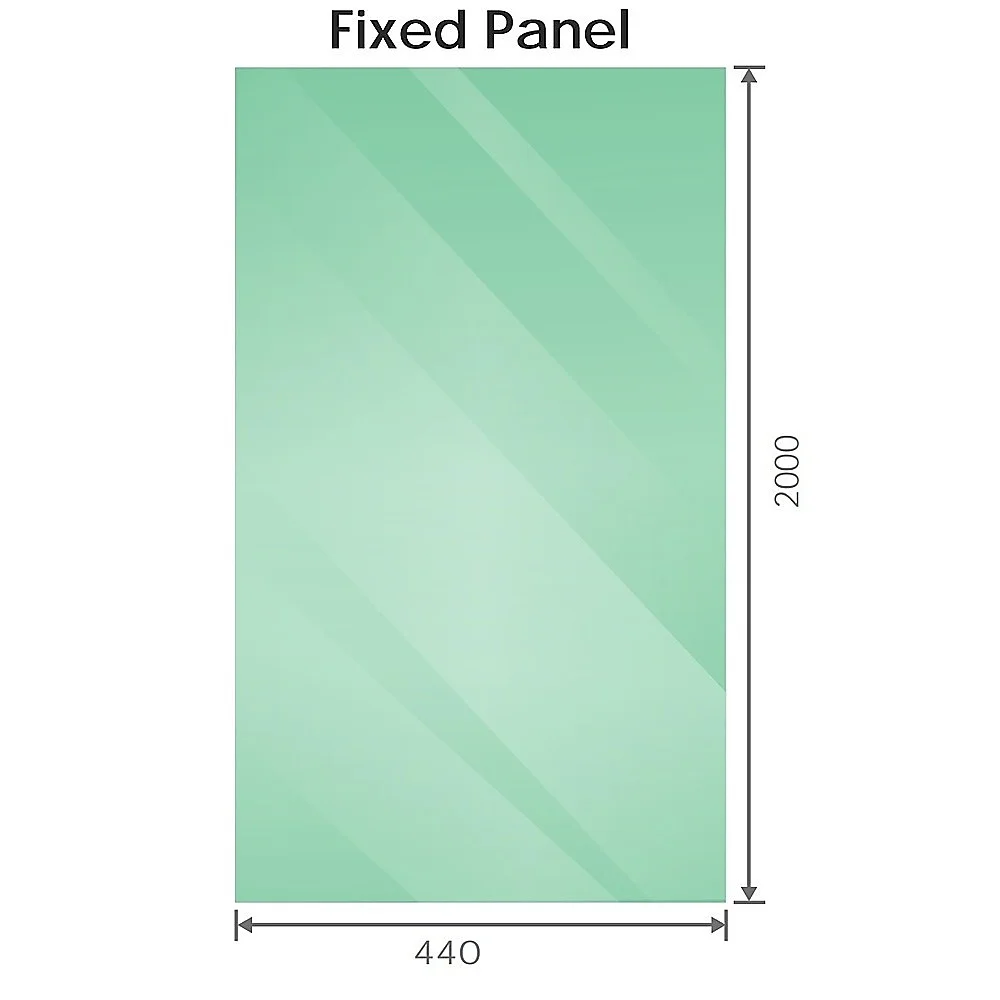

• Fixed panel: 440 x 2000mm
• Glass thickness: 10mm (AS-NZS2208 standard)

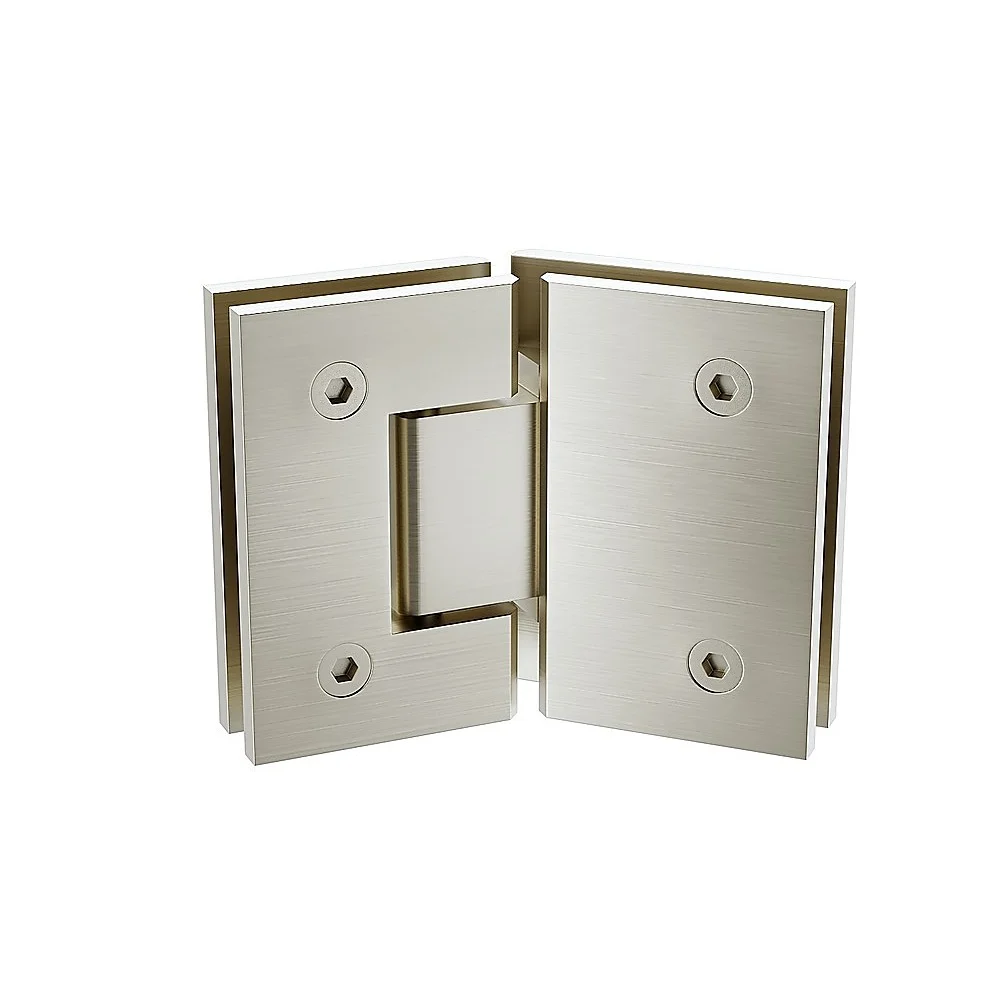

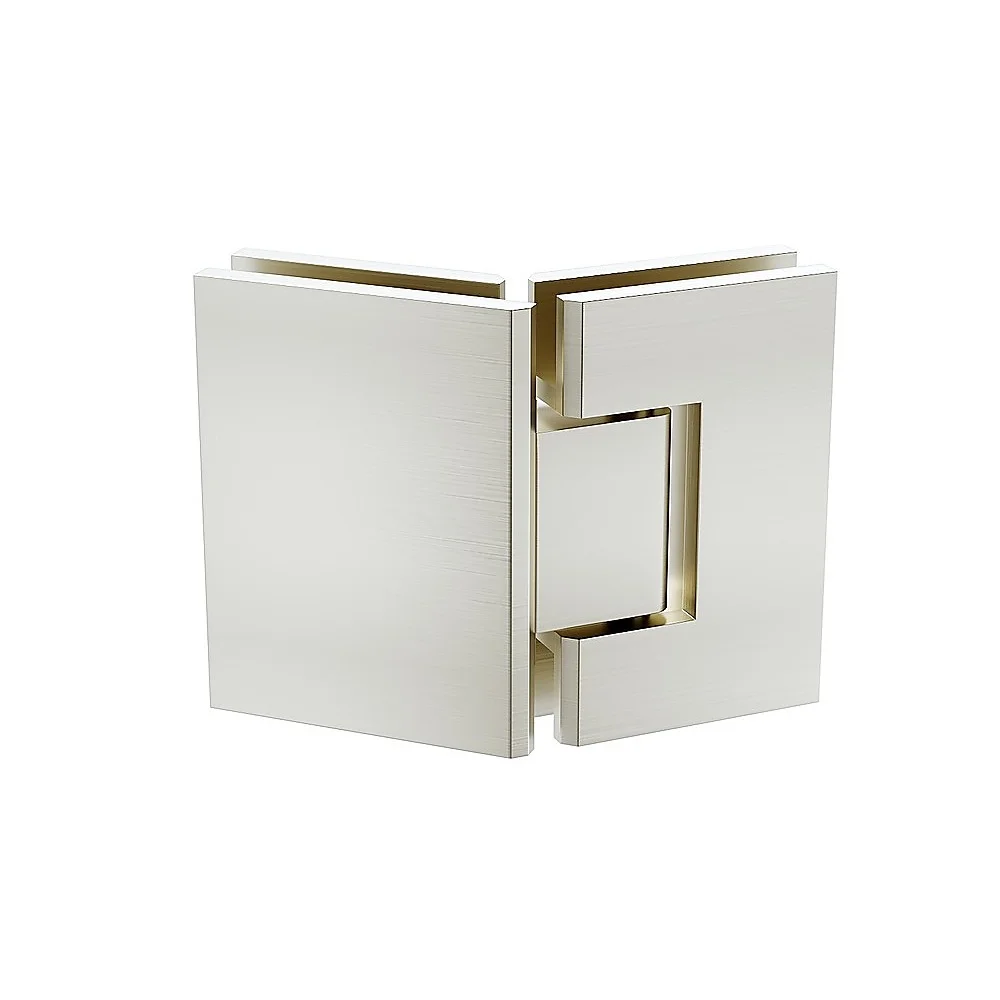

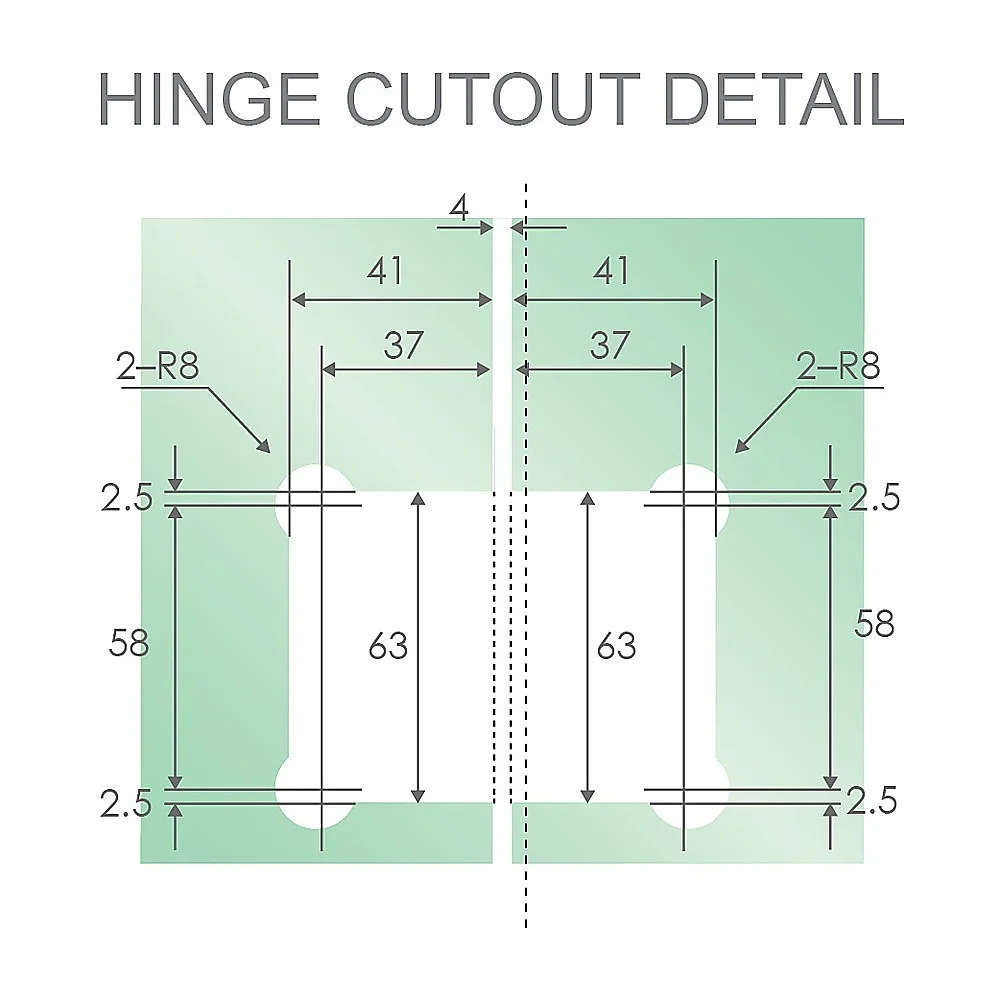

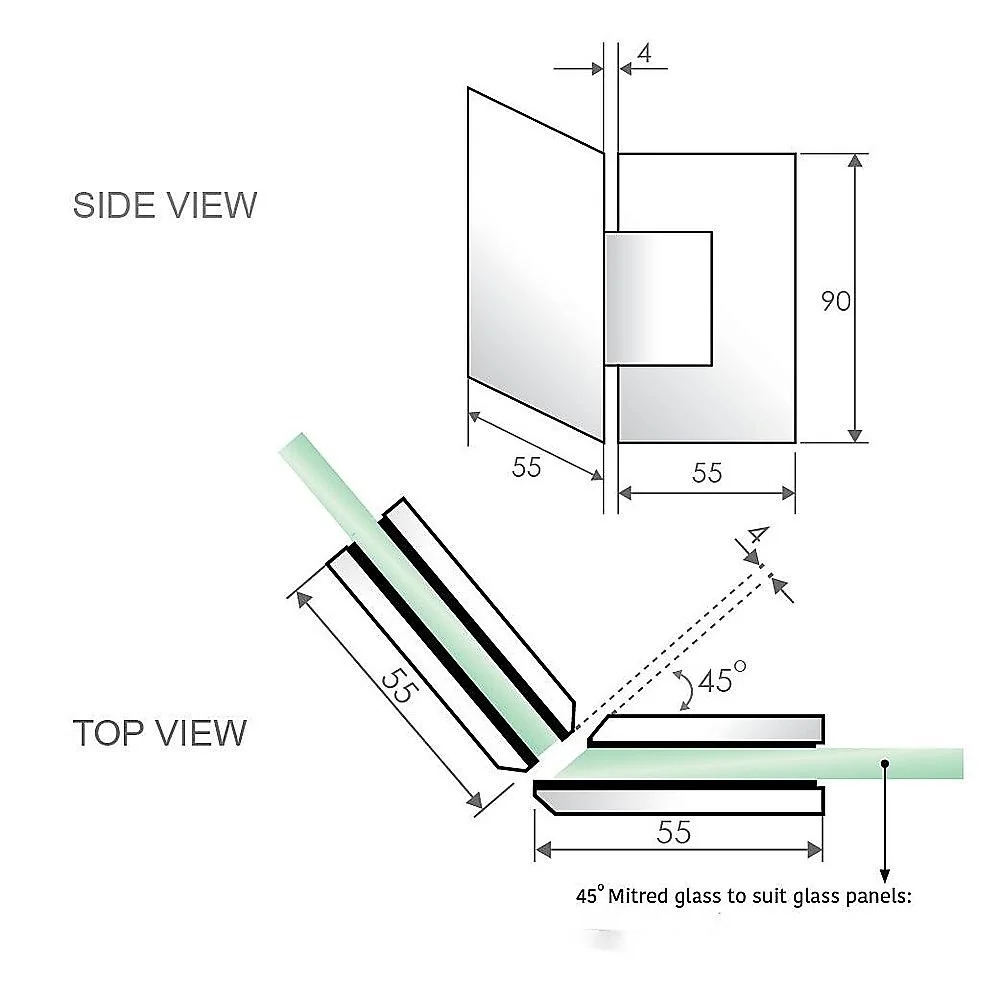

• Hinge: glass-to-glass 135 degrees, stainless steel, brushed nickel, for 10mm glass, maximum weight 45kg

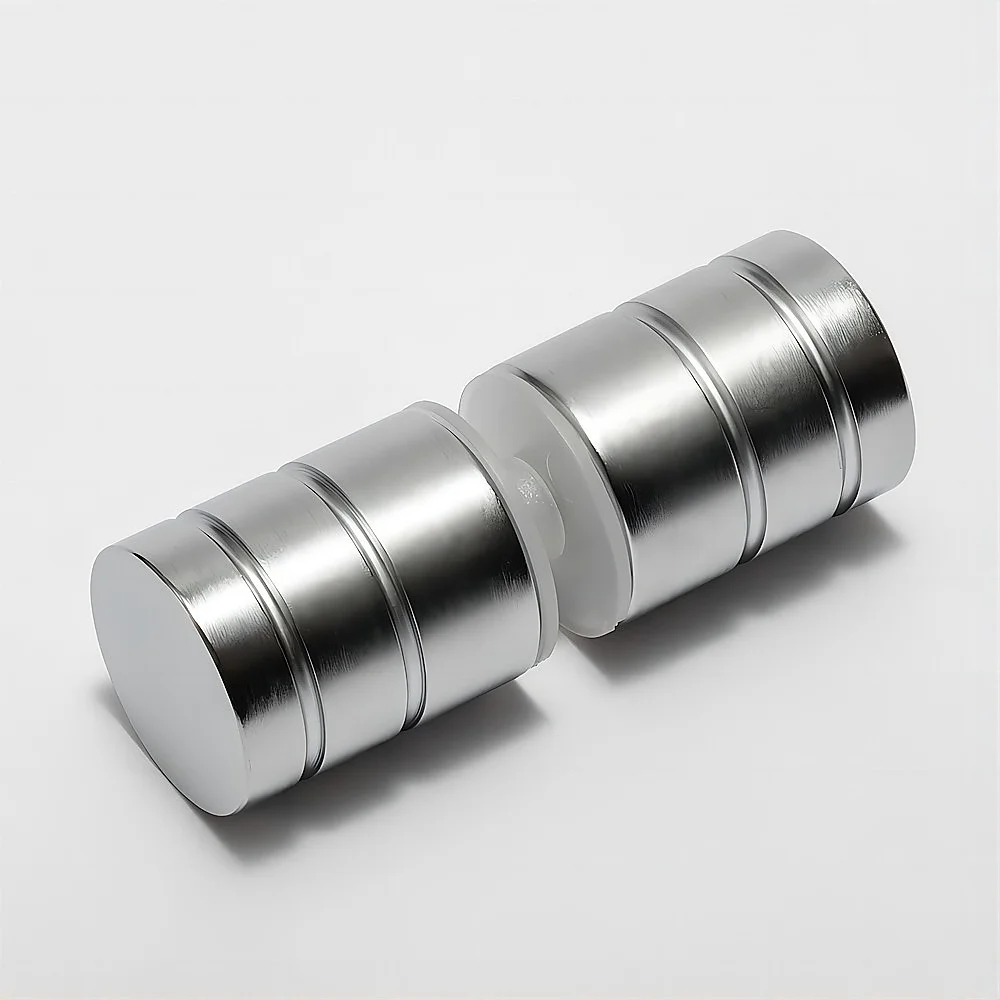

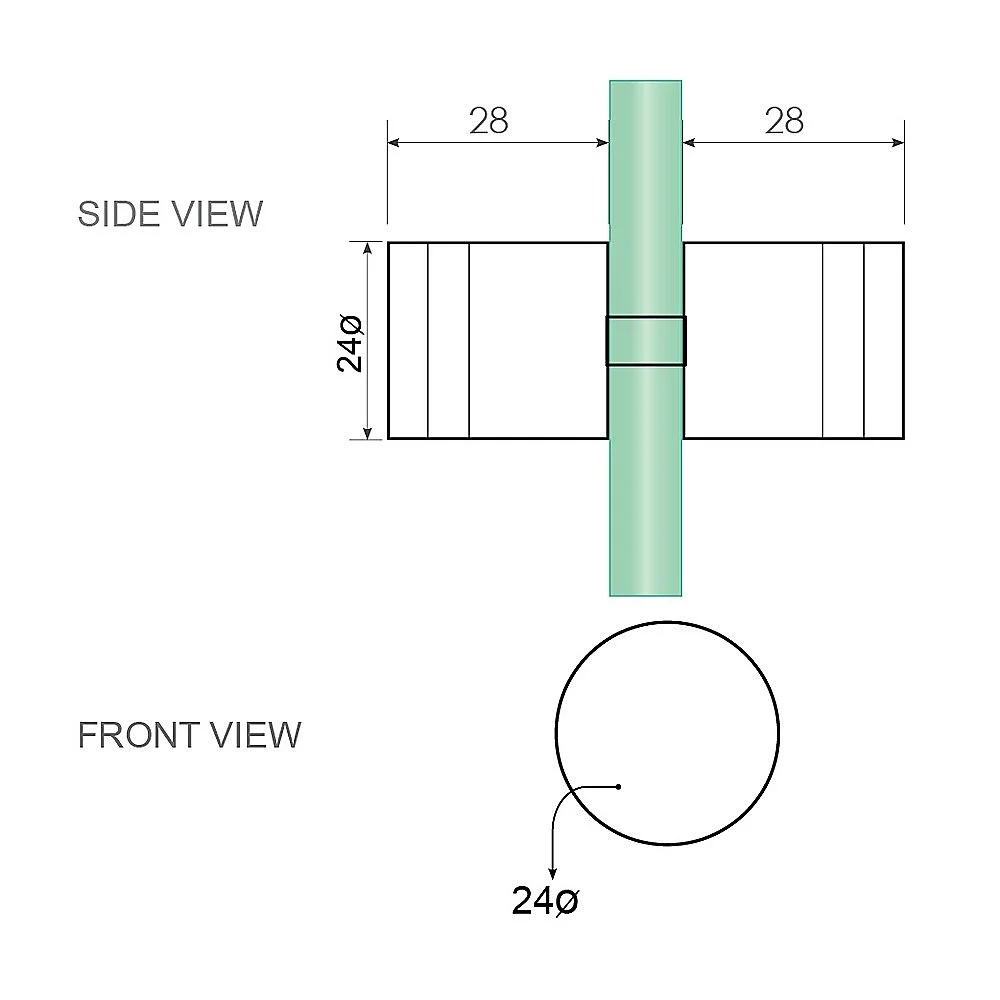

• Handle: slimline 24mm double pull knob, solid brass, brushed nickel, suits 6mm, 8mm, 10mm and 12mm thick glass

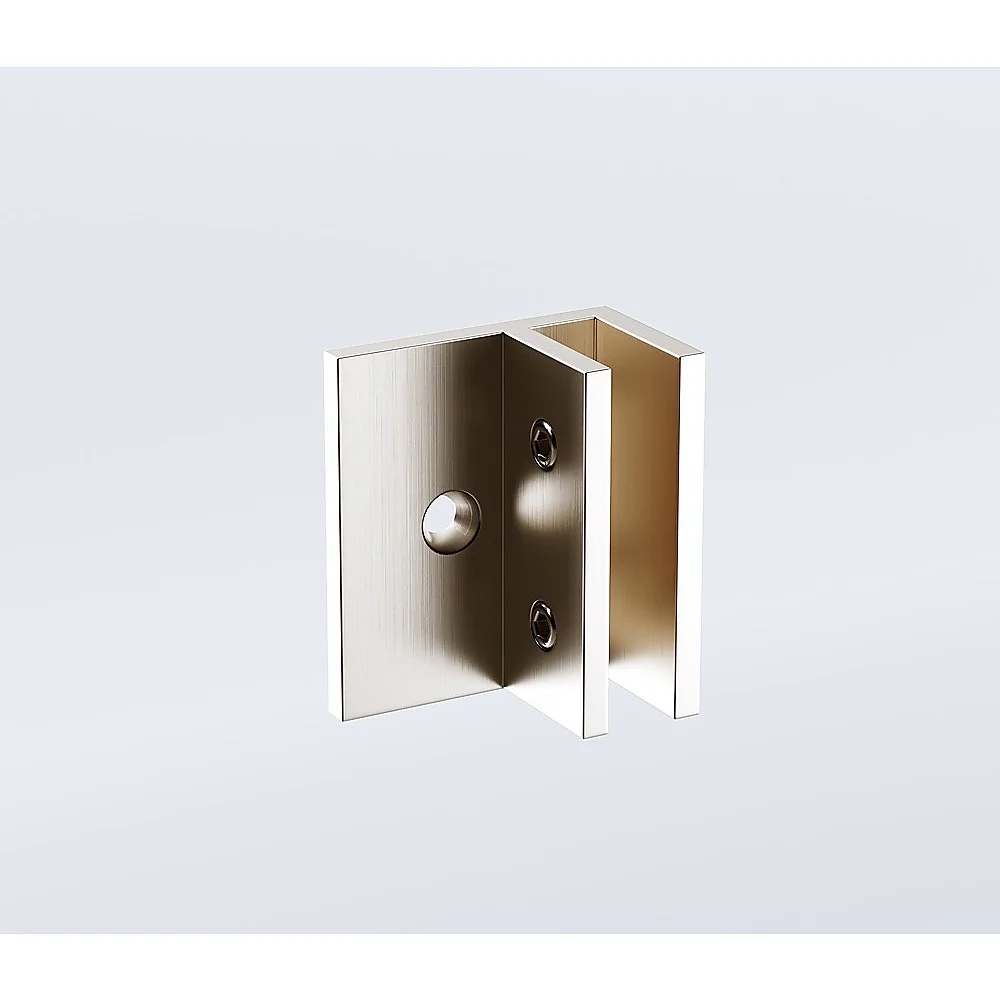

• U-bracket: for 10mm glass, solid brass with brushed nickel finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 440mm clear glass fixed panel
• 1 x 440mm clear glass hinged panel
• 1 x 135 degree glass-to-glass stainless steel square shower hinge in brushed nickel
• 1 x 24mm brass shower door round handle in brushed nickel
• 4 x 10mm glass-to-wall/floor U-brackets in brushed nickel

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories and are for illustrative purposes only; only the indicated accessories in the specified colour are included.
