Della Francesca 100cm Frameless Diamond Shower Screen Gunmetal U-Brackets SS Hinges

The Della Francesca 100cm frameless diamond shower screen brings a striking architectural centrepiece to your bathroom while making the most of your shower space. Built from 10mm AS-NZS2208 tempered safety glass with brushed gunmetal hardware, it pairs a diamond corner configuration with smooth dual-action hinges and a solid brass double pull handle.

Key Features

• Frameless diamond corner configuration creates visual interest and maximises usable shower space
• 10mm AS-NZS2208 standard tempered glass for clarity and durability
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from the 25 degree position and swing at 67.5 degrees in both directions
• Solid brass double pull handle with a smooth brushed gunmetal finish, resistant to rust and corrosion

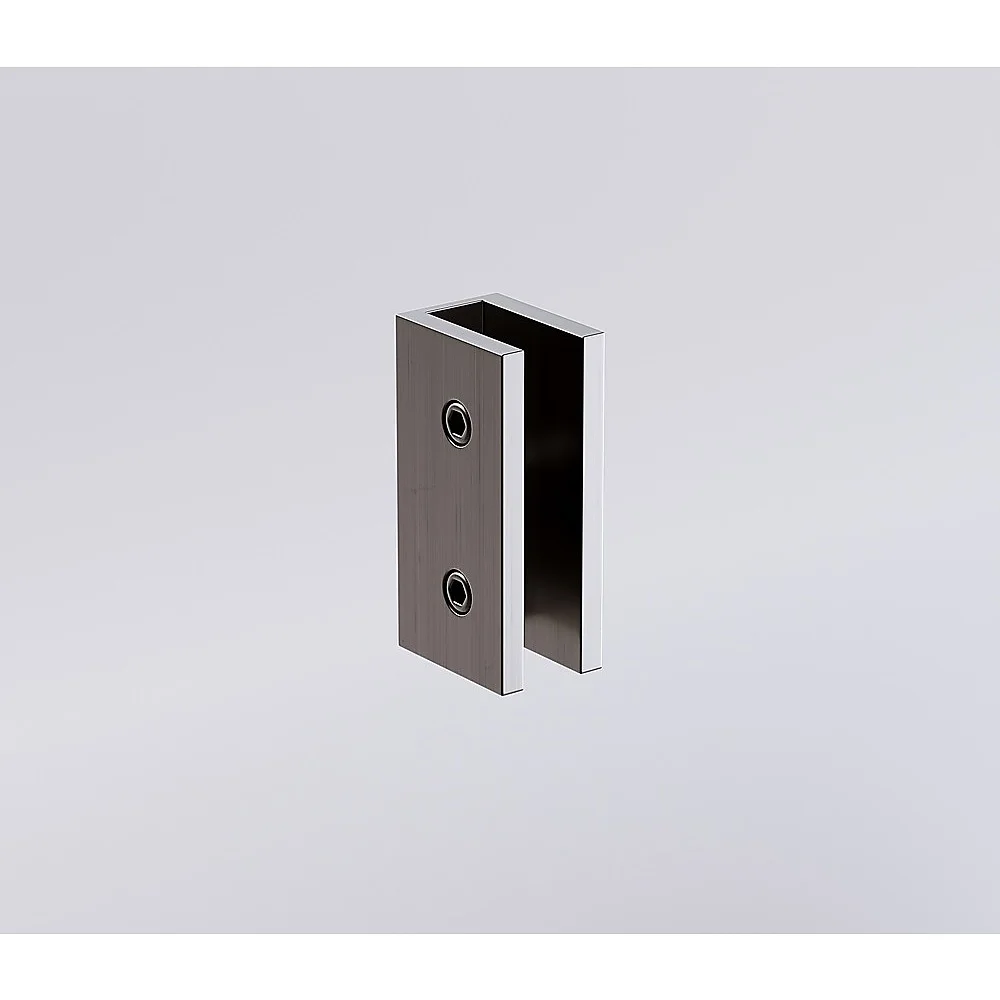

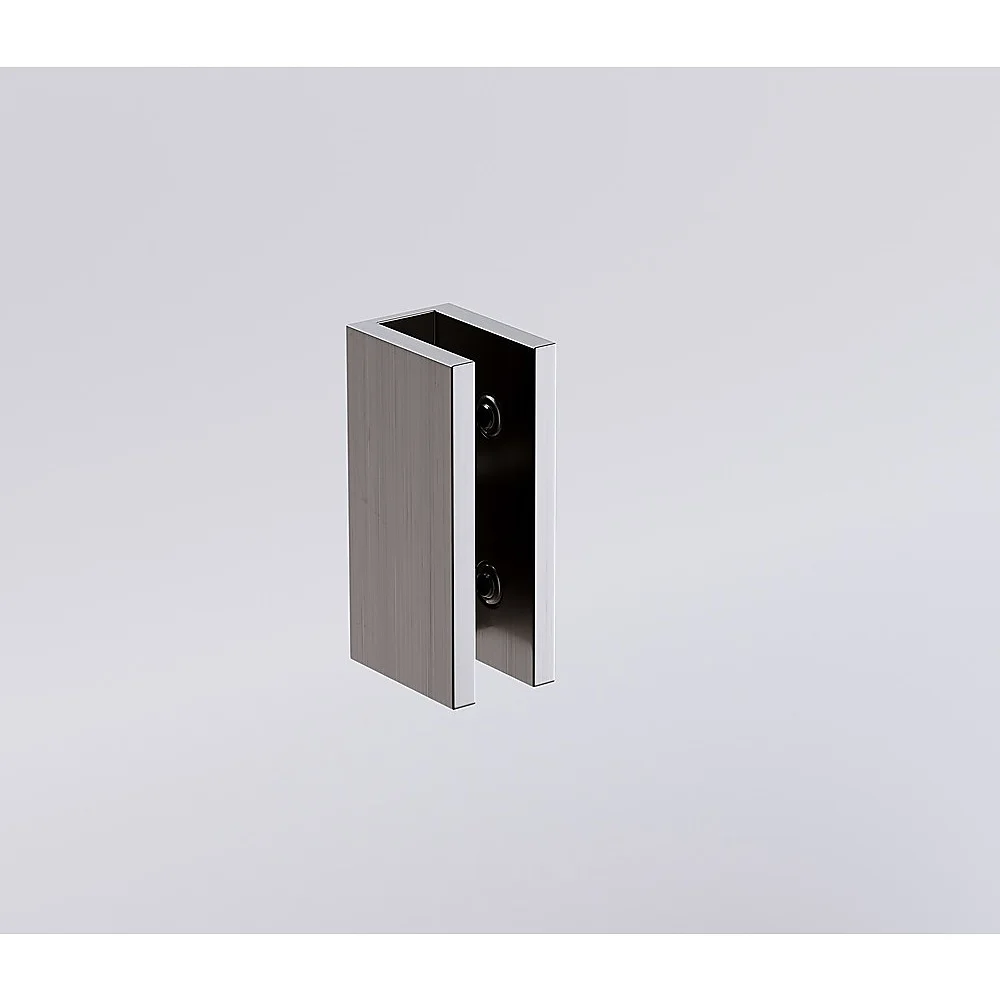

• Glass-to-wall or floor U-brackets with concealed fixing for a clean, streamlined finish
• U-brackets require no glass drilling, secured by two compression/friction screws
• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint
• Frameless design eliminates hard-to-clean channels and corners

Specifications

• Size: 100cm
• Colour: Gunmetal
• Bracket type: U-brackets
• Handle type: Square double pull

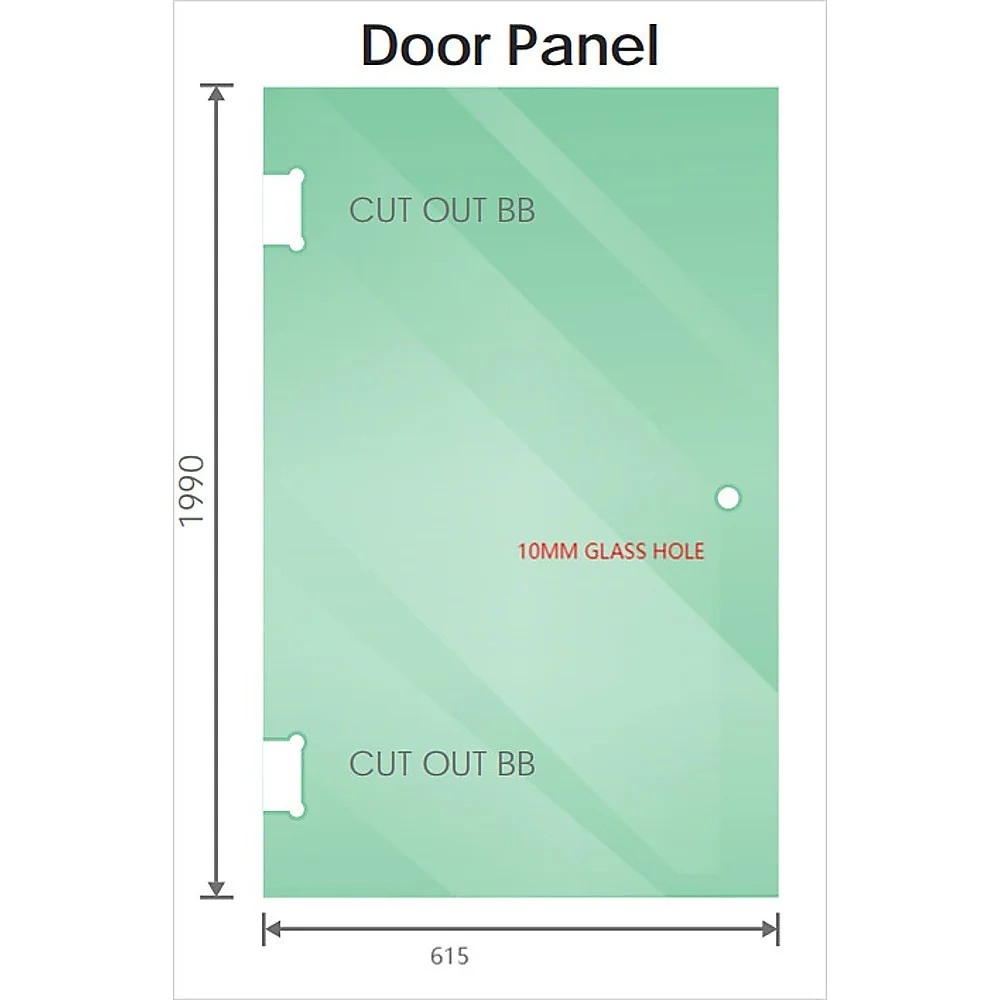

• Door panel: 615 x 1990mm, 10mm glass

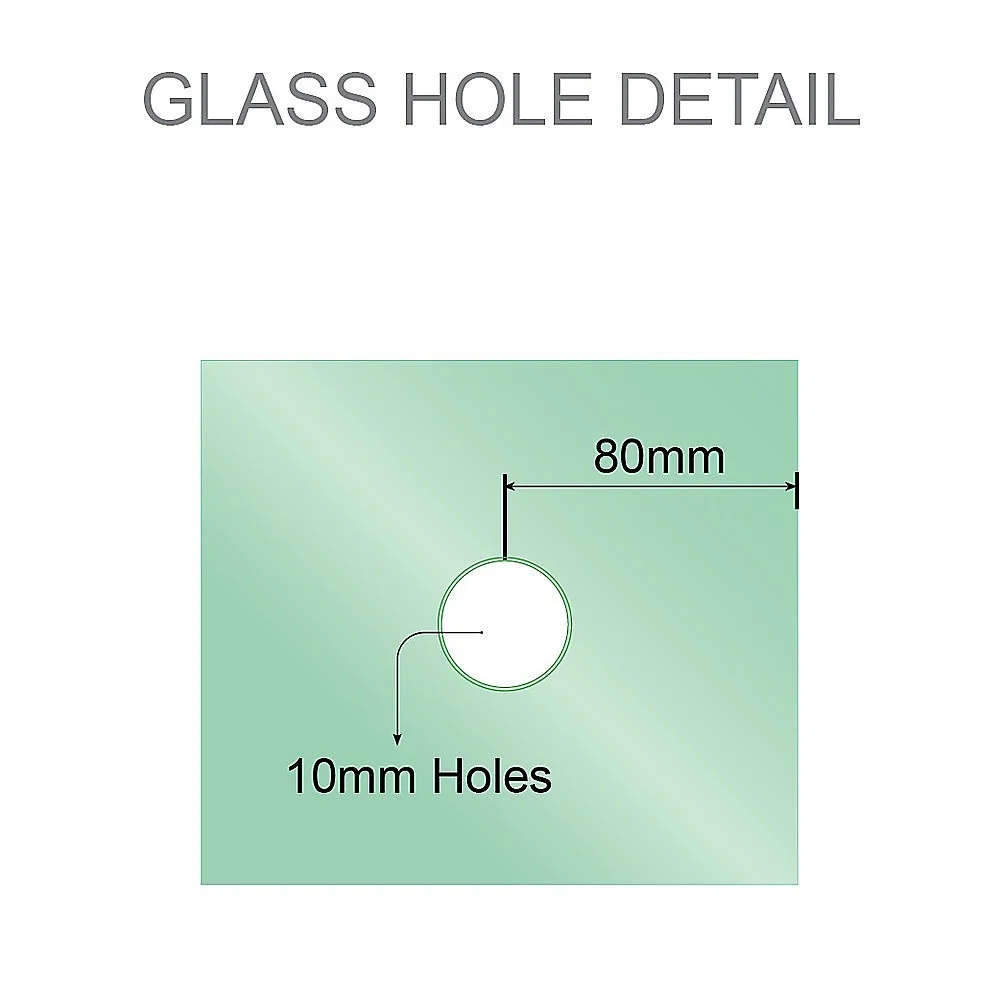

• Door handle hole: 10mm

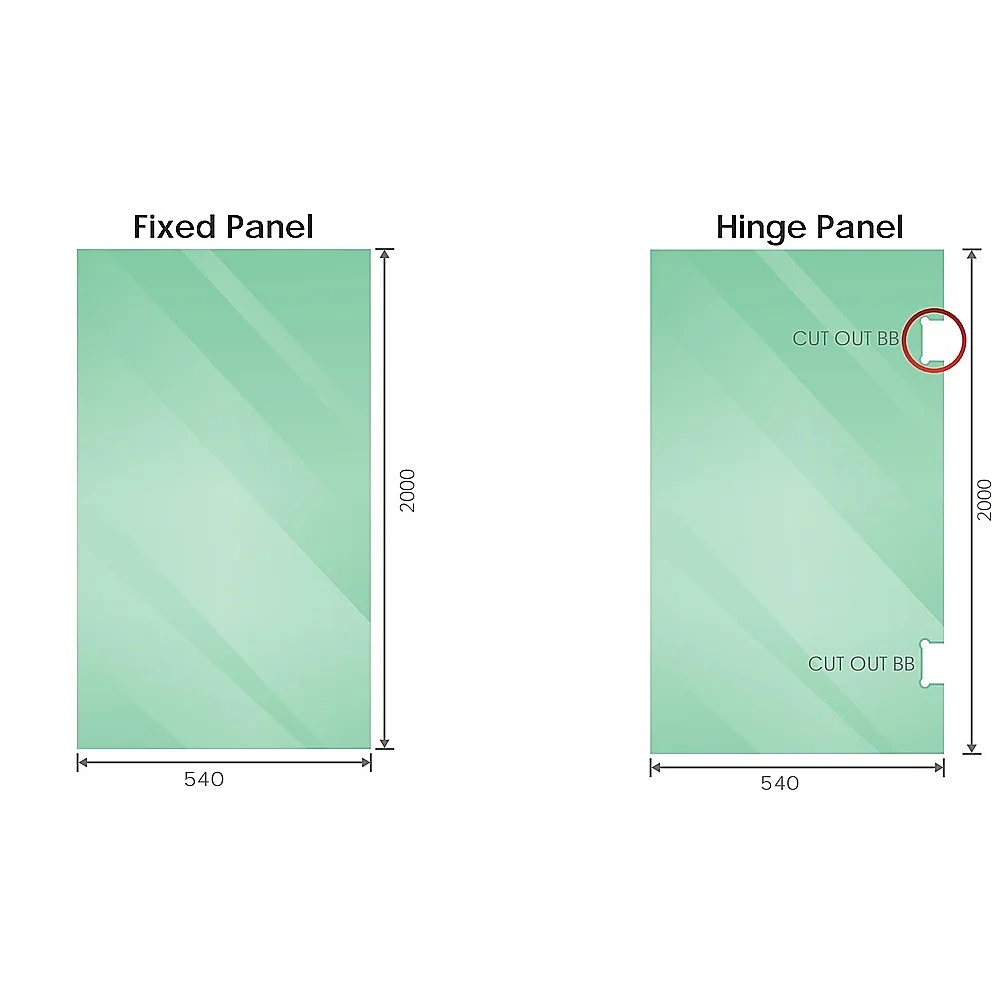

• Hinged panel: 540 x 2000mm, 10mm glass
• Fixed panel: 540 x 2000mm, 10mm glass

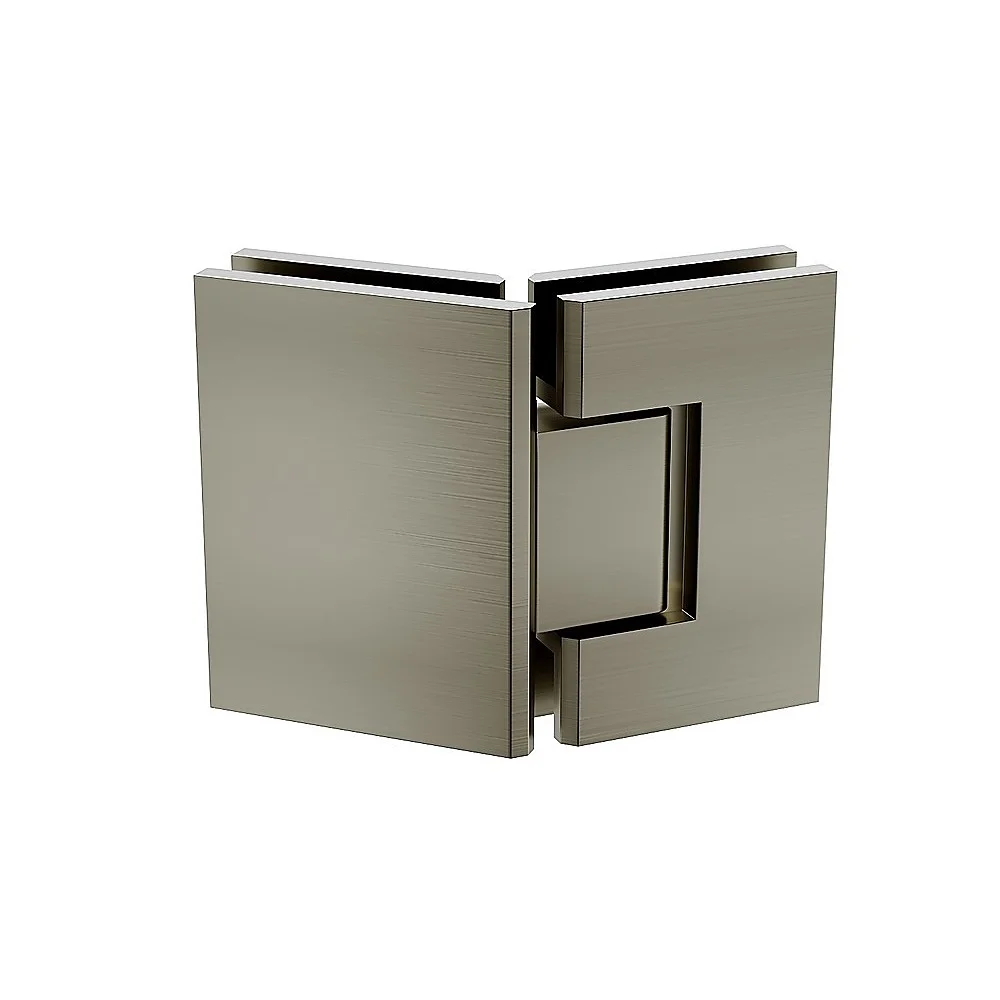

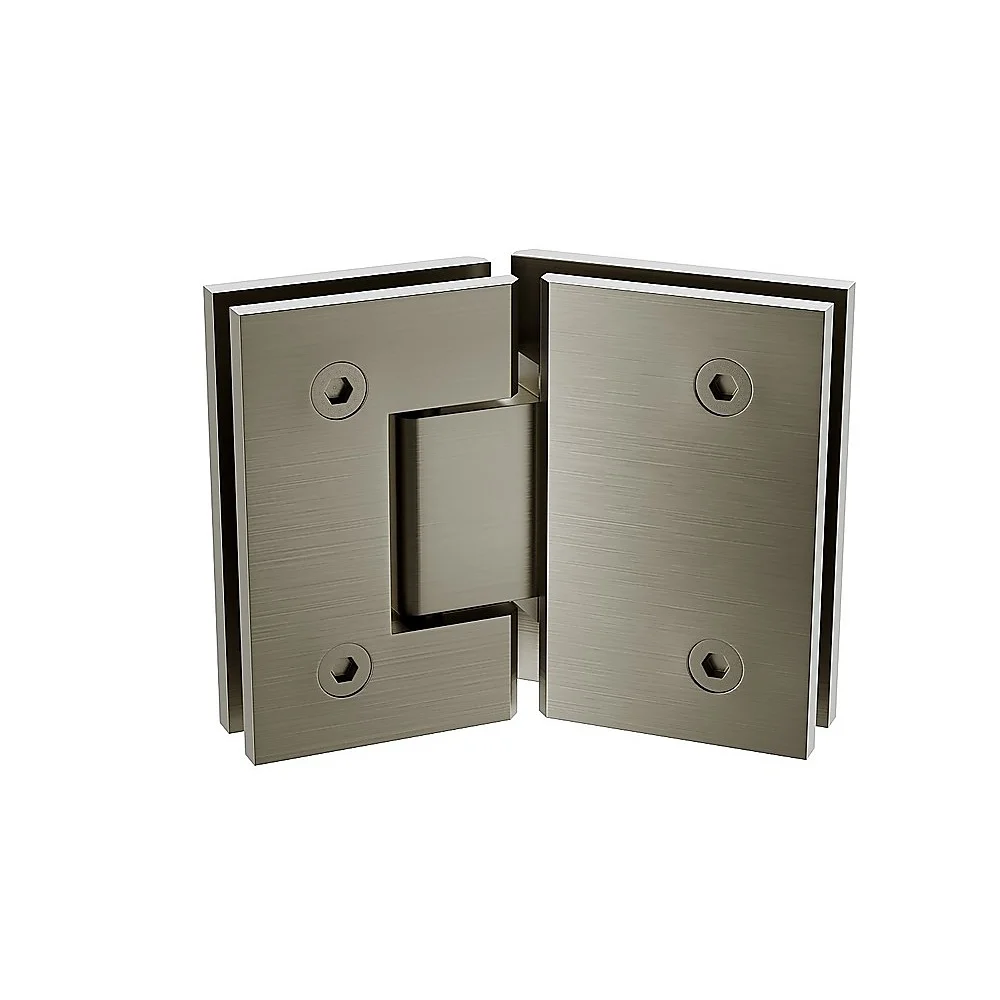

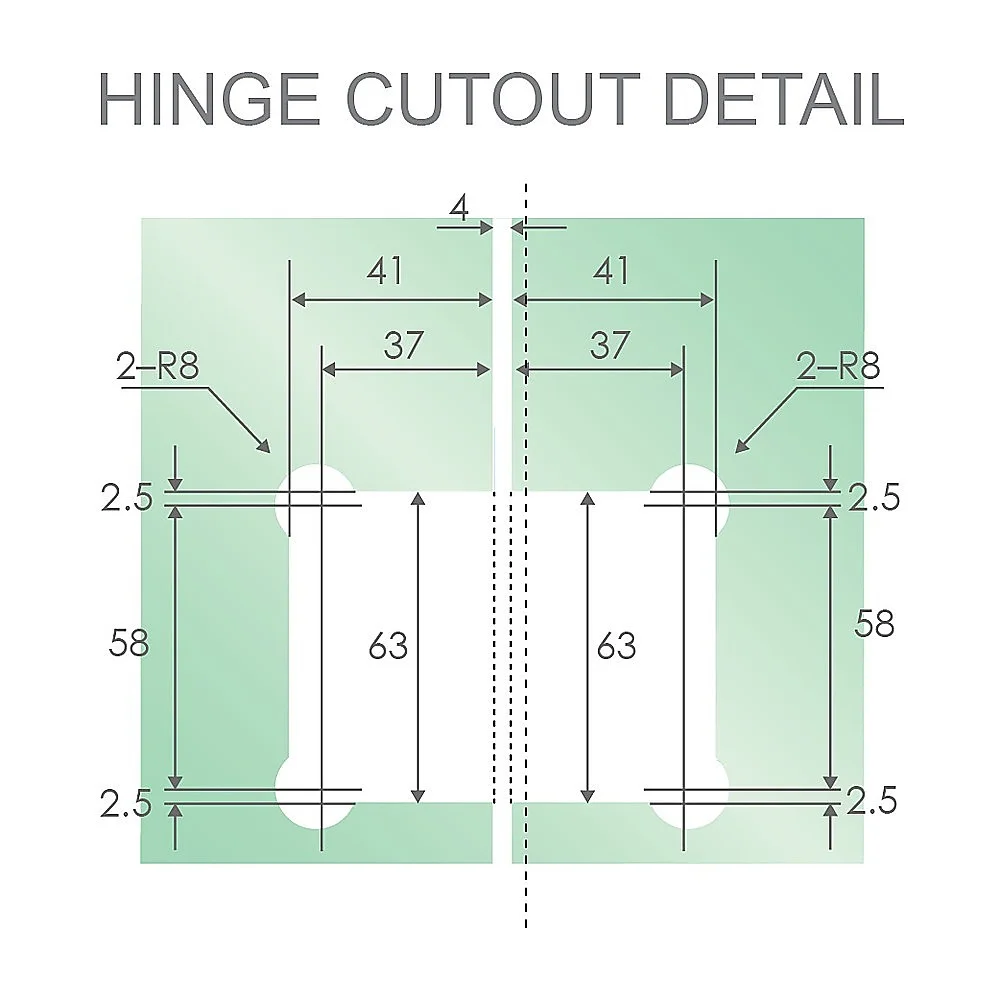

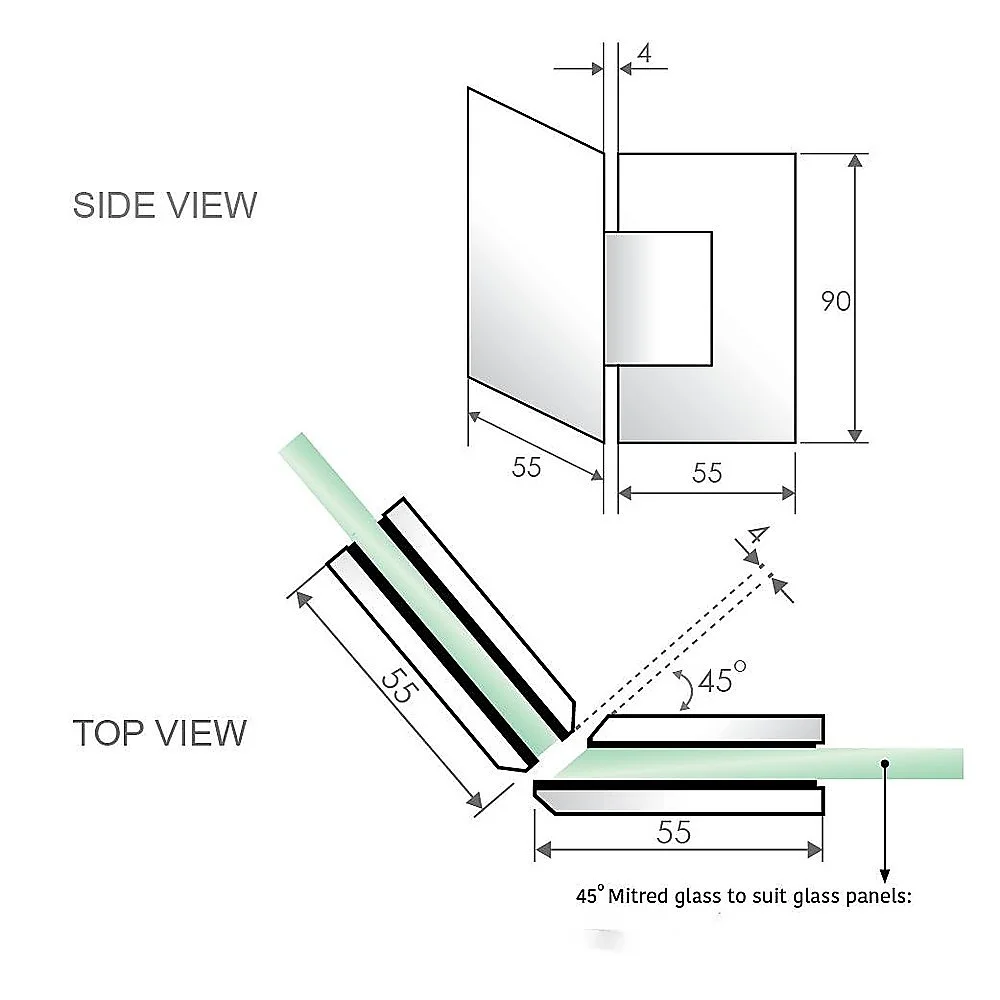

• Hinge: 135 degree glass-to-glass, stainless steel, for 10mm glass, maximum weight 45kg, brushed gunmetal finish

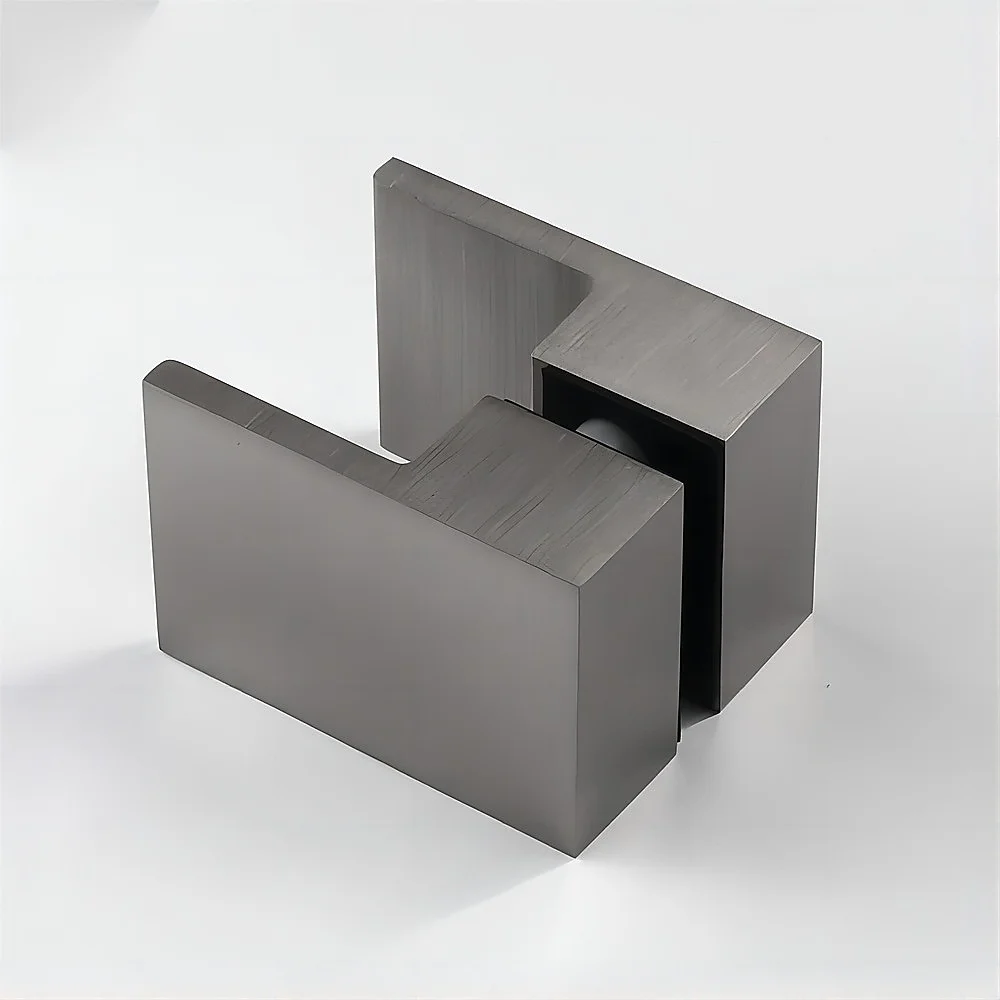

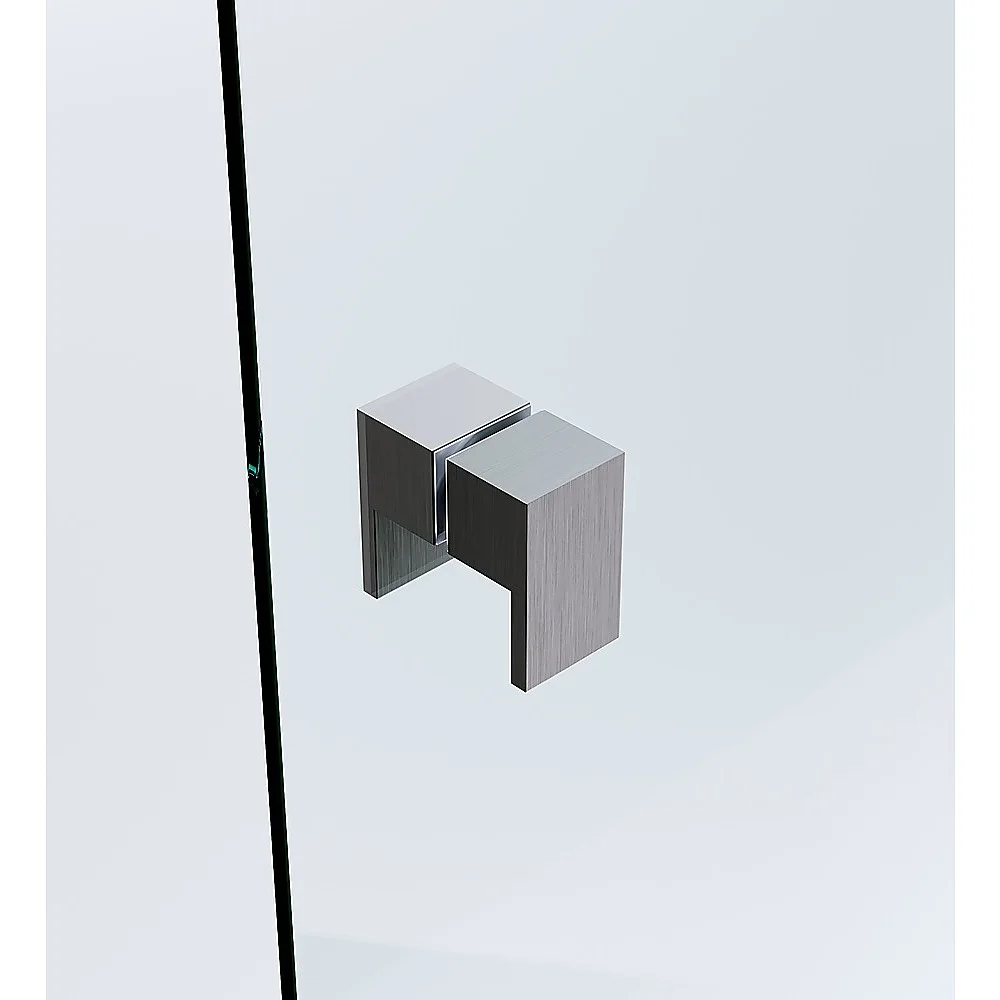

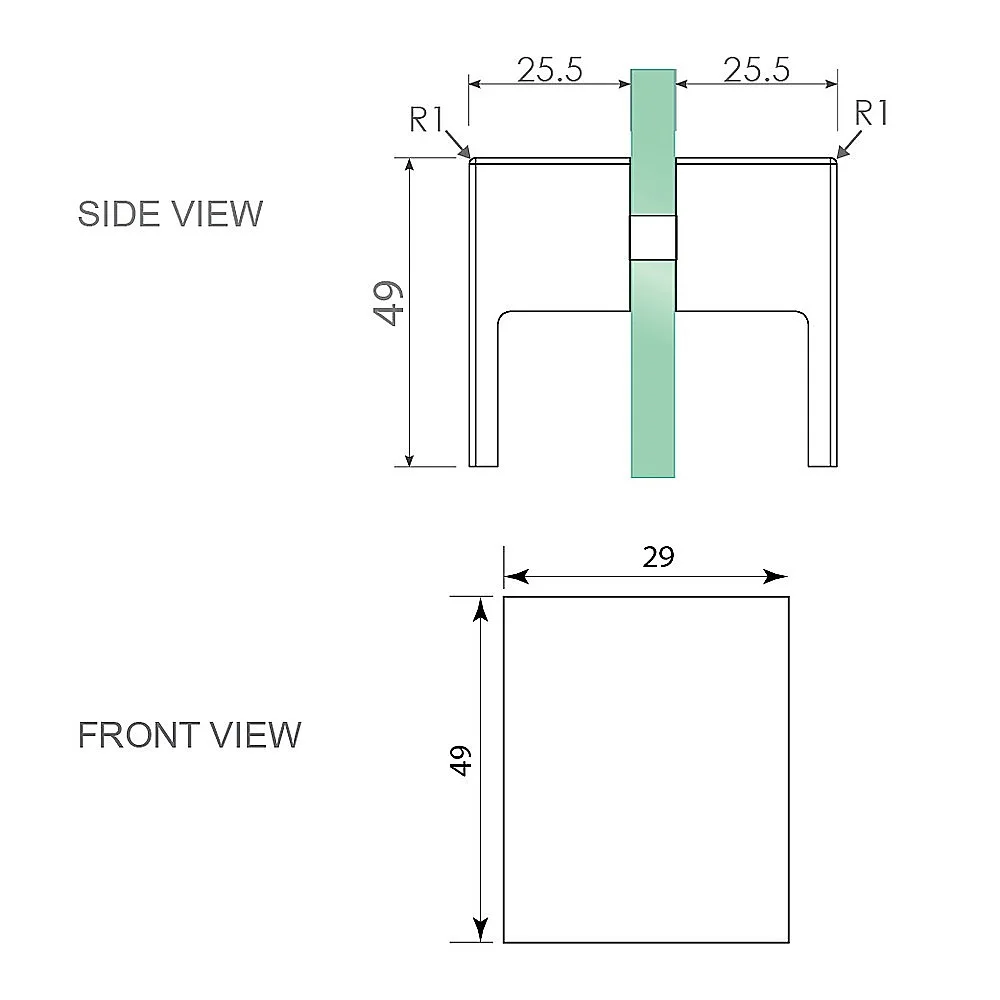

• Handle: 49mm x 25mm double pull knob, solid brass, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed gunmetal finish

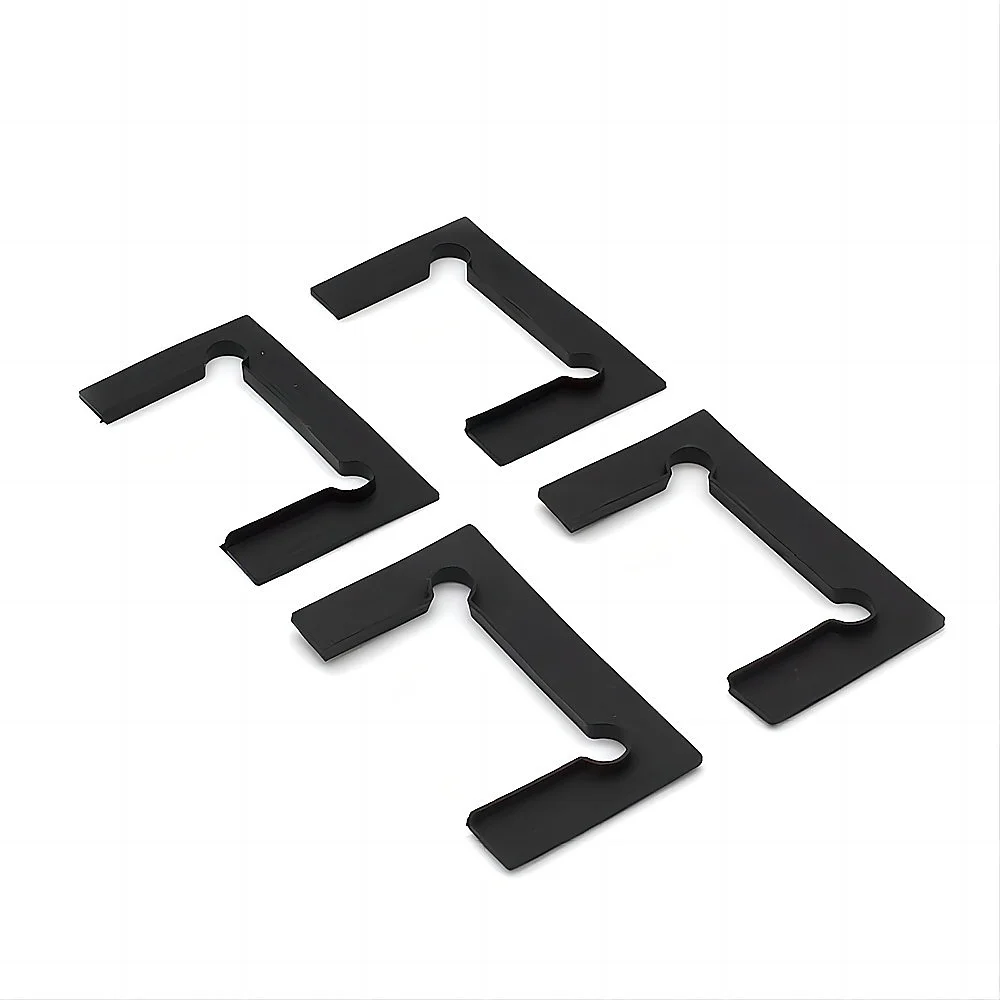

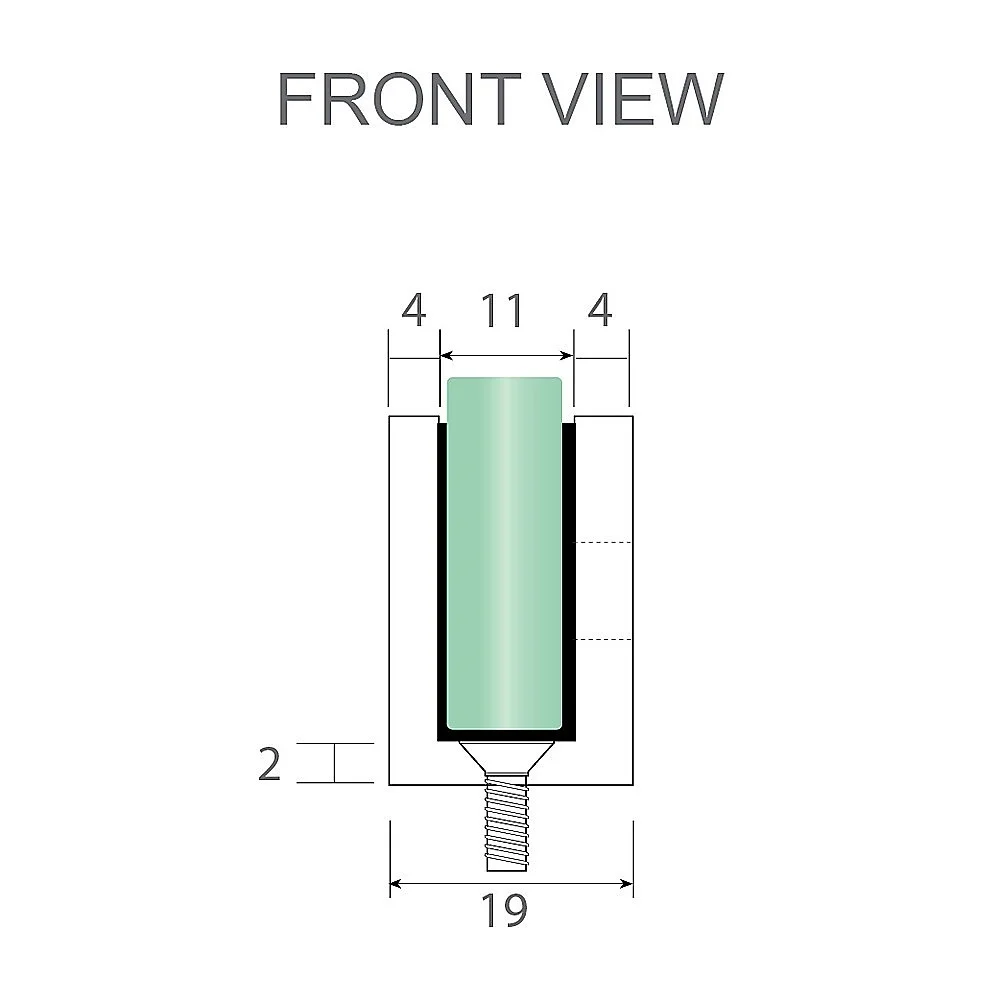

• U-bracket: 10mm glass-to-wall/floor, solid brass, brushed gunmetal finish, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed and hinged panel set for diamond shower screen
• 1 x 135 degree glass-to-glass stainless steel square shower hinge in brushed gunmetal
• 1 x 25mm brass shower door double pull handle in brushed gunmetal
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gunmetal

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories and are for illustrative purposes only; only the indicated accessories in the specified colour are included.
