Randy & Travis Machinery Double Swing Gate Opener 24V DC 500kg per Gate

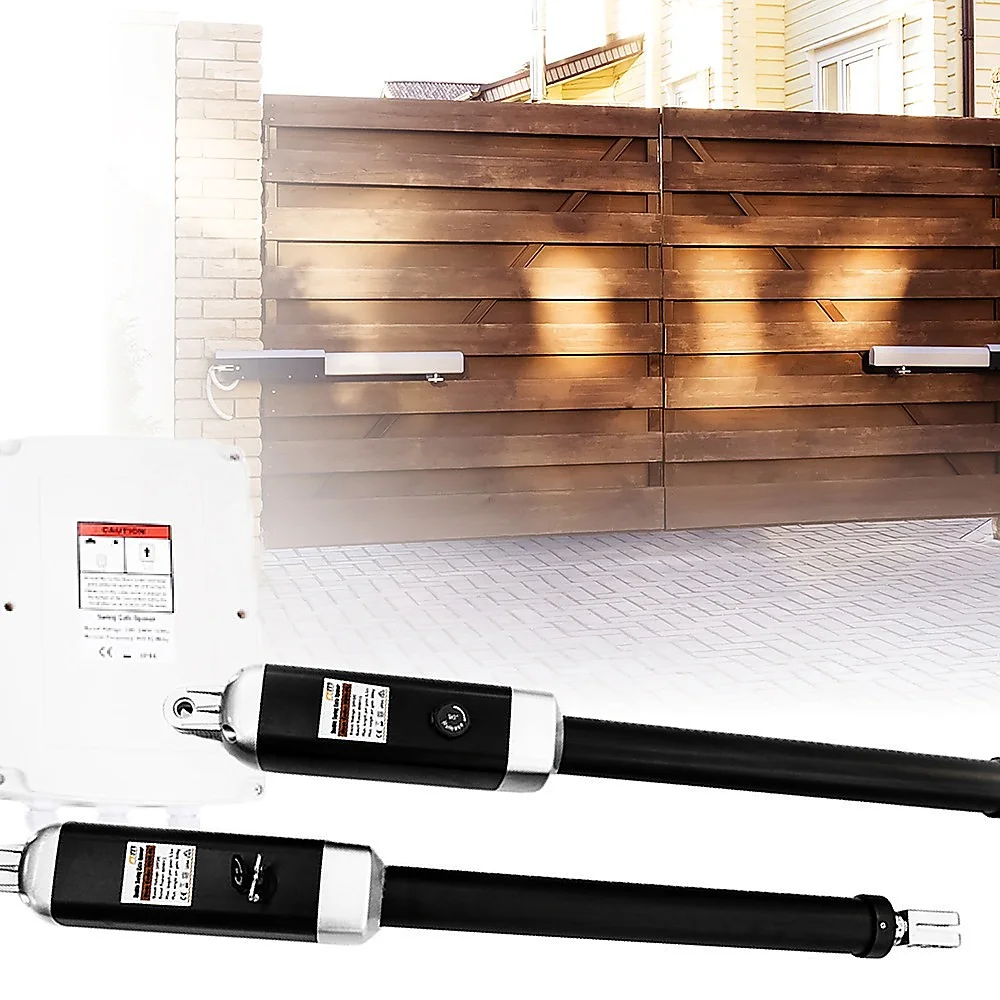

Secure your property with this double swing gate opener from Randy & Travis Machinery, a 24V DC system that automates dual gates weighing up to 500kg each. The aluminium alloy actuator delivers soft, smooth and silent operation, with obstruction detection and manual release for peace of mind.

Key Features

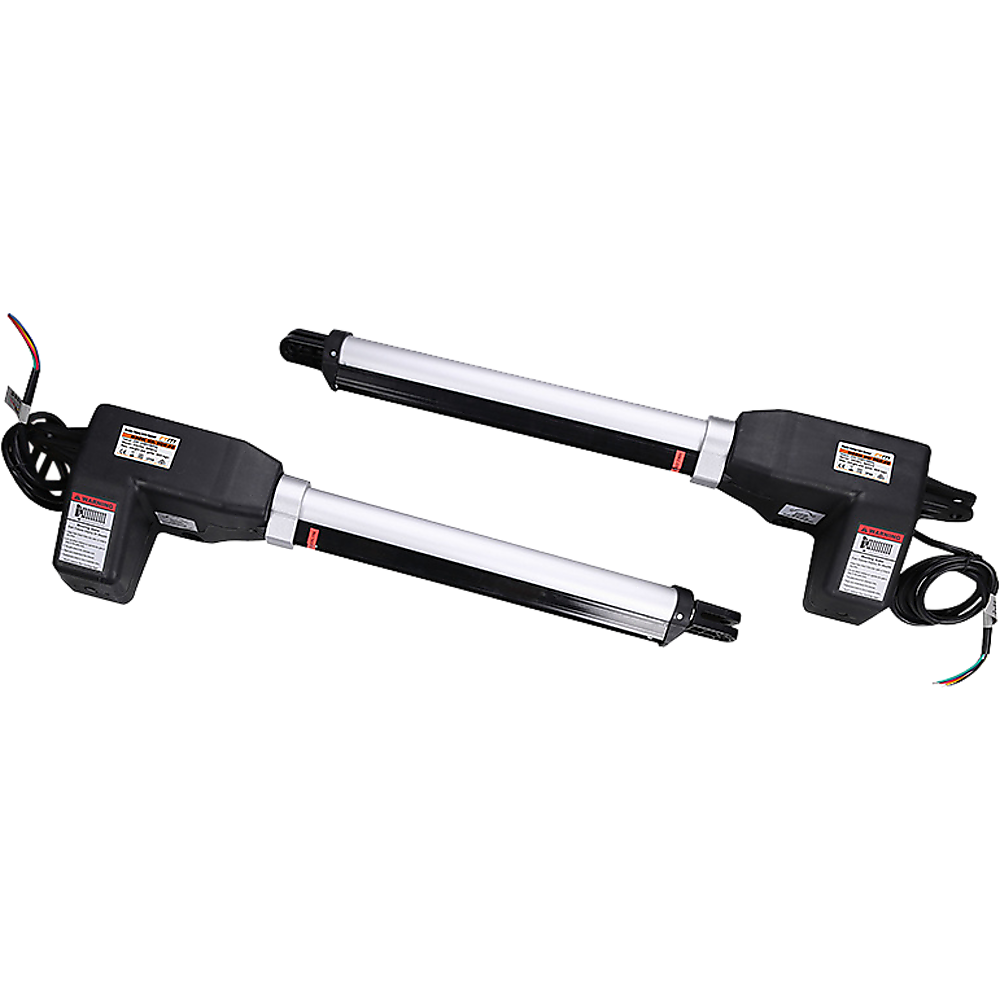

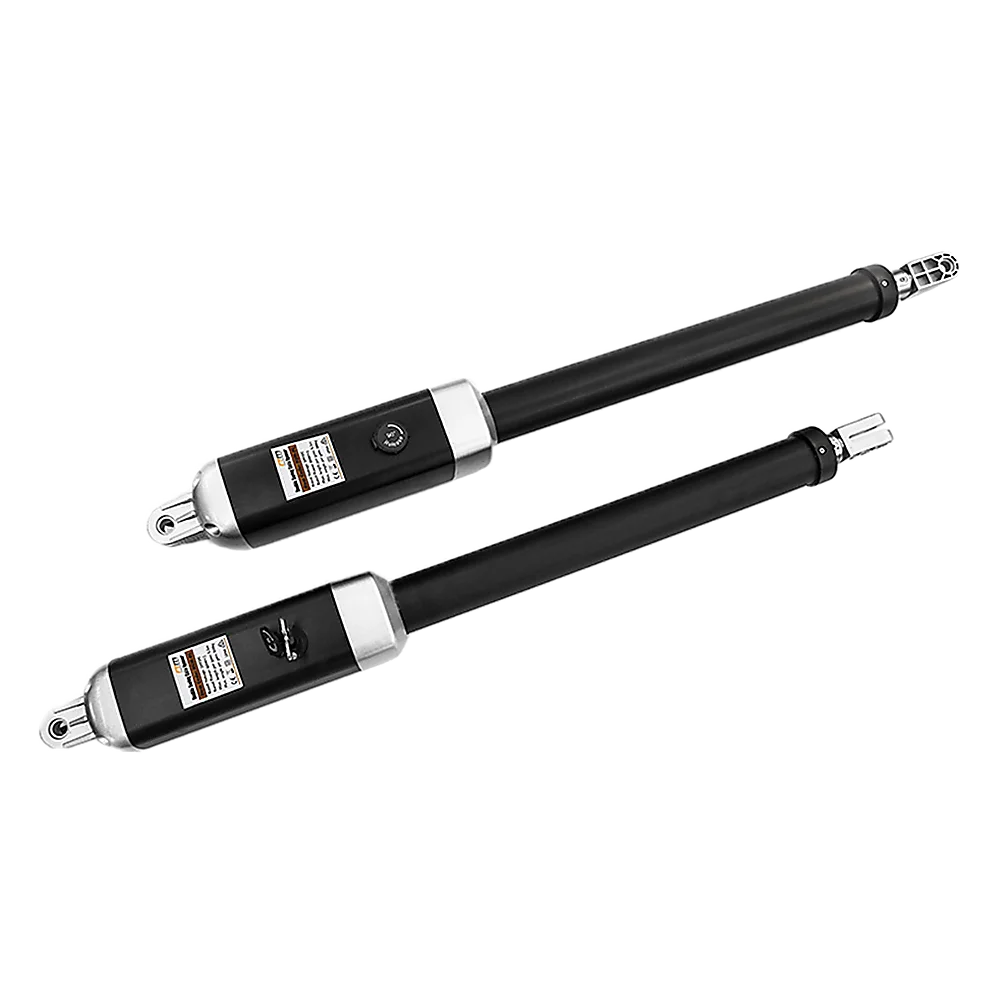

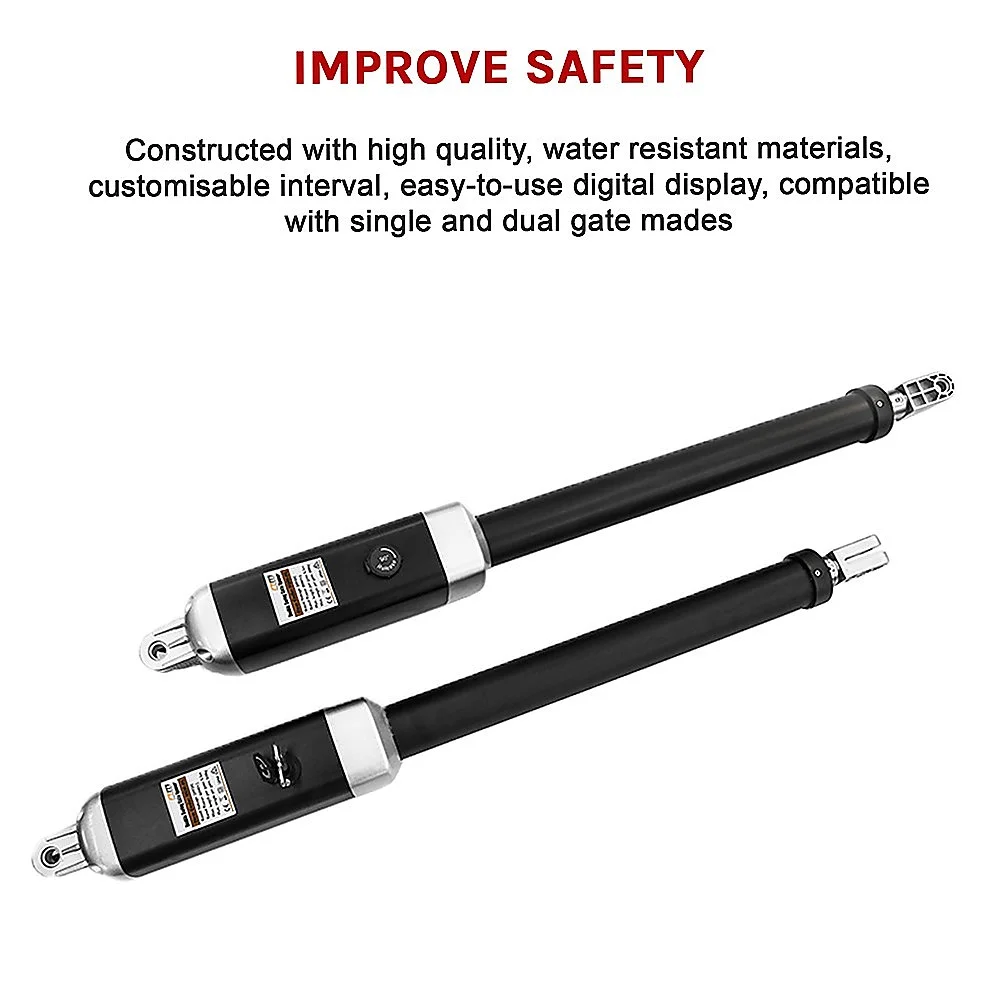

• Aluminium alloy actuator with a powerful motor inside

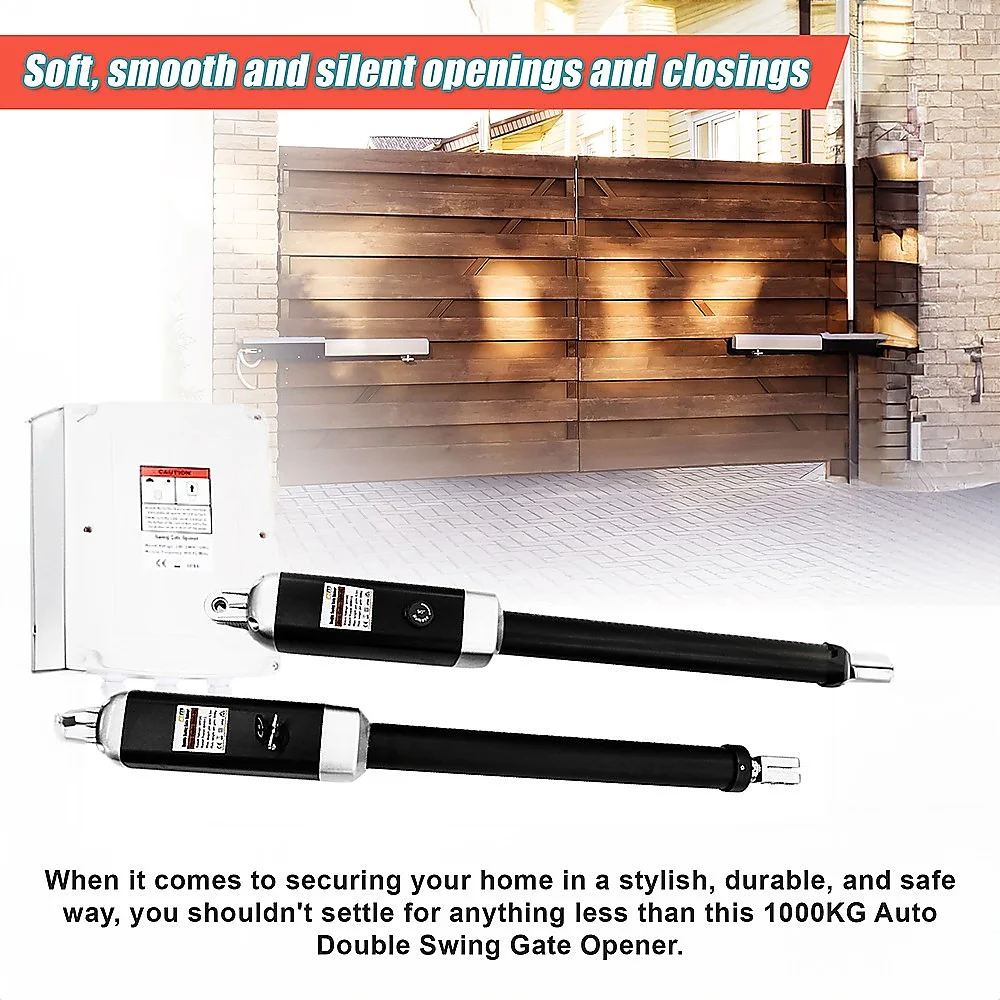

• Soft, smooth and silent openings and closings
• Stop and reverse mode in case of obstruction (customisable sensitivity)
• Can operate in dual gate or single gate modes
• Customisable interval between opening of master gate and slave gate
• Auto-close fully adjustable between 0 and 99 seconds
• Over-current protection
• Manual operation in case of power failure
• 3 x remote controls (battery: A27 12V) with 30m operation range
• 4-button operation: close, open, stop and pedestrian open
• Easy-to-use digital control board with status and menu settings
• Waterproof and dust-proof control box
• Full user manual and all installation hardware included
• Gates are NOT included

Specifications

• Voltage: 24V DC
• Gate limit type: electromagnetism limit
• Speed of actuator: 16mm/s

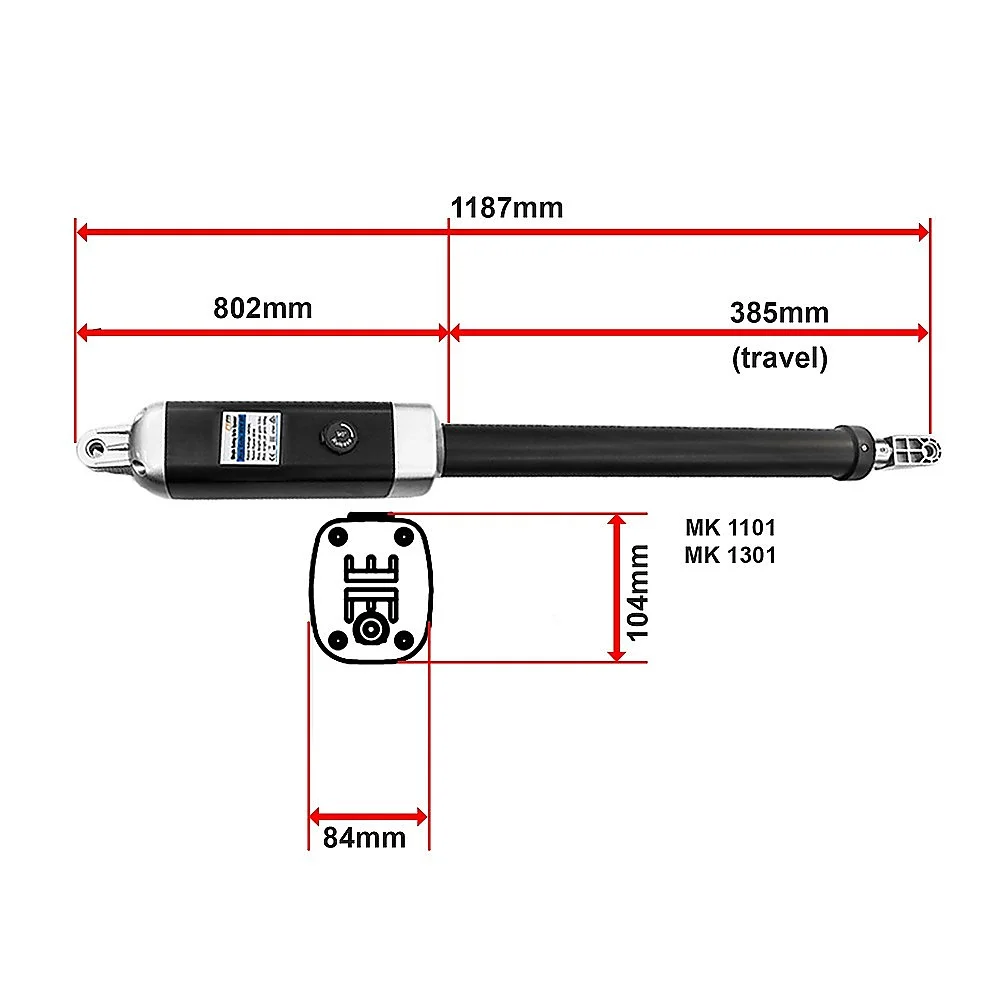

• Max piston travel: 385mm

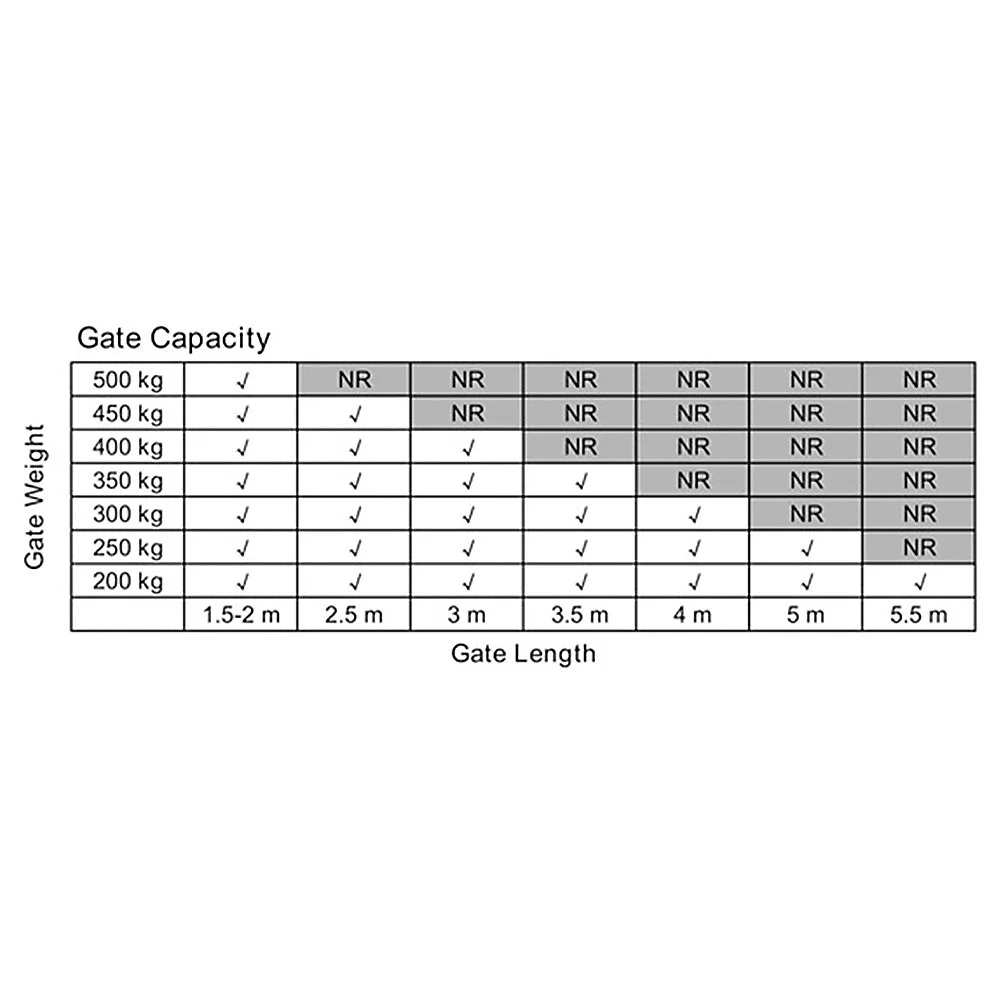

• Maximum weight capacity of each gate: 500kg
• Maximum width of each gate: 5.5m (supporting a 200kg gate)
• 90 degree time of rotation: 8 to 15 seconds
• Maximum opening angle: 0 to 110 degrees
• Operating temperature: -25C to +55C
• Protection class: IP44
• CE/EMC approval model

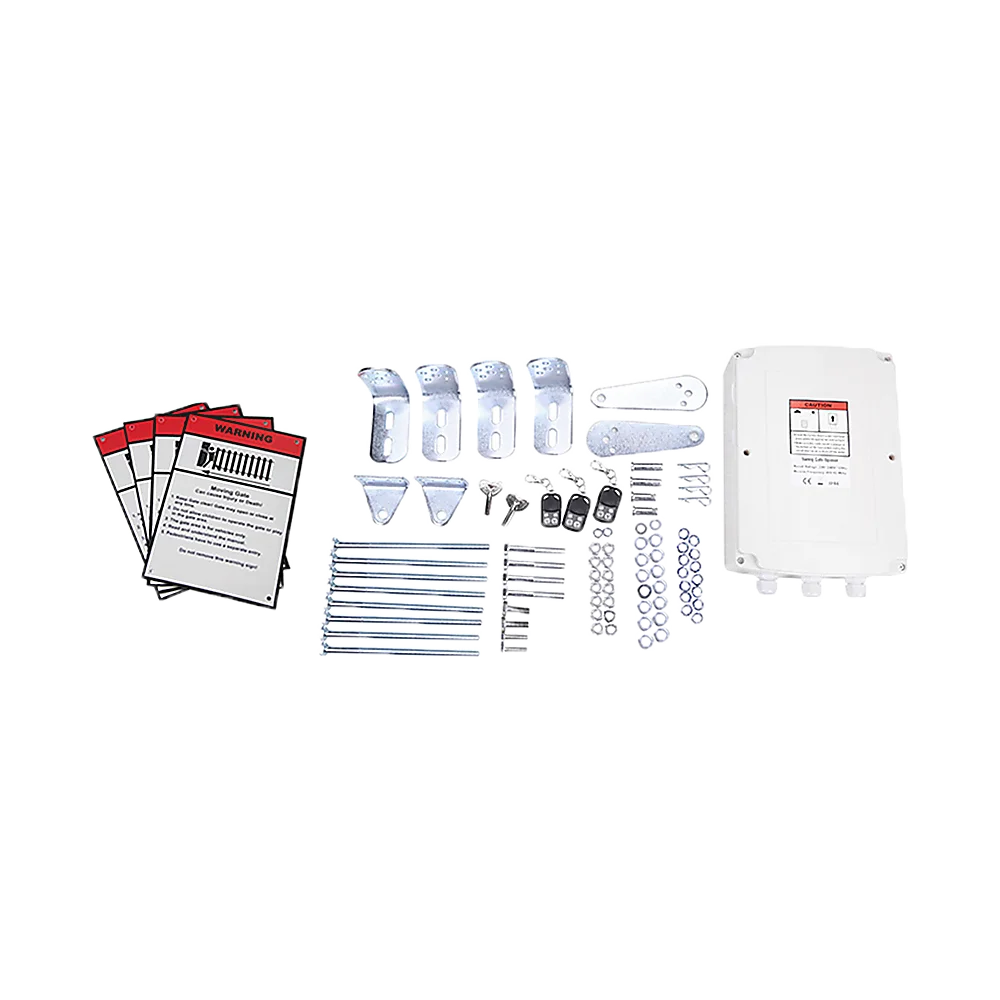

What's in the Box

• Double swing gate opener kit
• 3 x remote controls
• Control box
• Installation hardware
• Full user manual

Note: A licensed electrician must complete the assembly.
