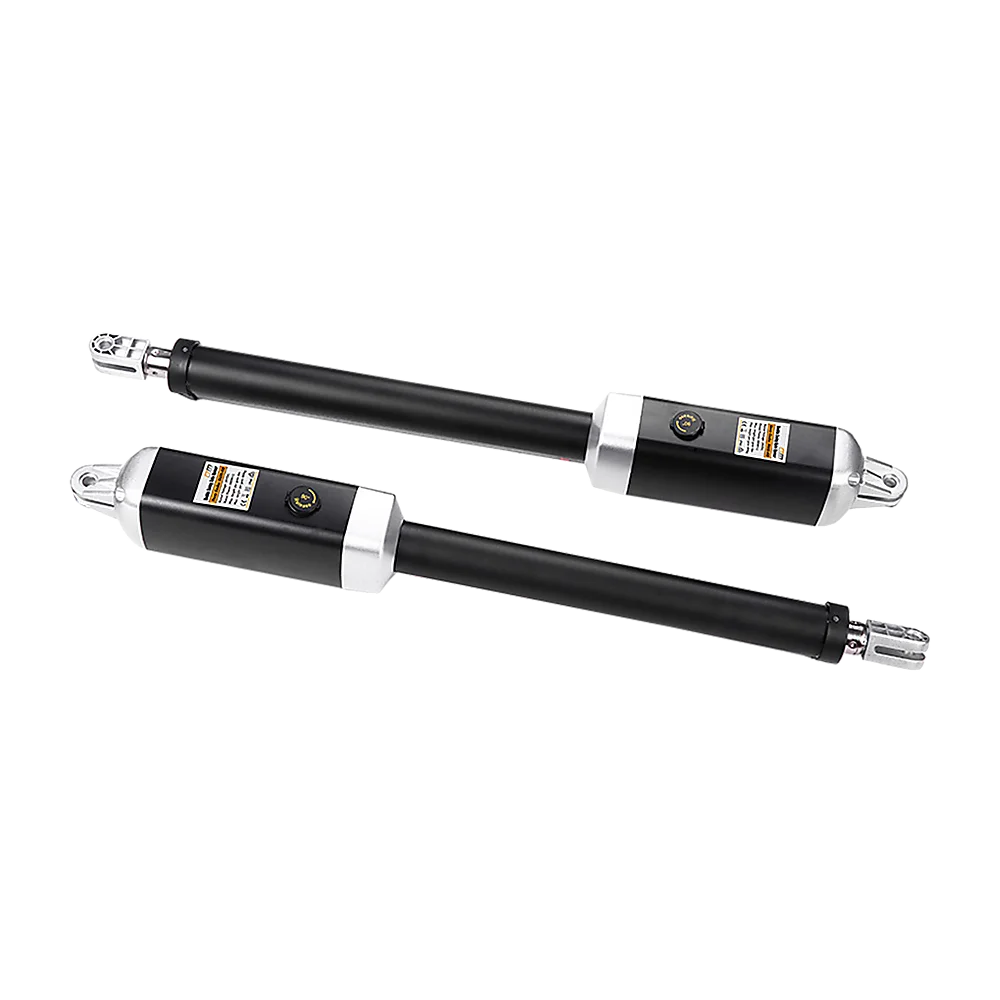

Randy & Travis Machinery Double Swing Gate Opener 1200kg with 20W Solar Kit

The Randy & Travis Machinery Double Swing Gate Opener is a dual-motor kit for automating heavy residential and commercial swing gates, handling up to 1200kg combined across two gates. It includes a 20W solar panel kit with backup batteries for energy-smart operation.

Key Features

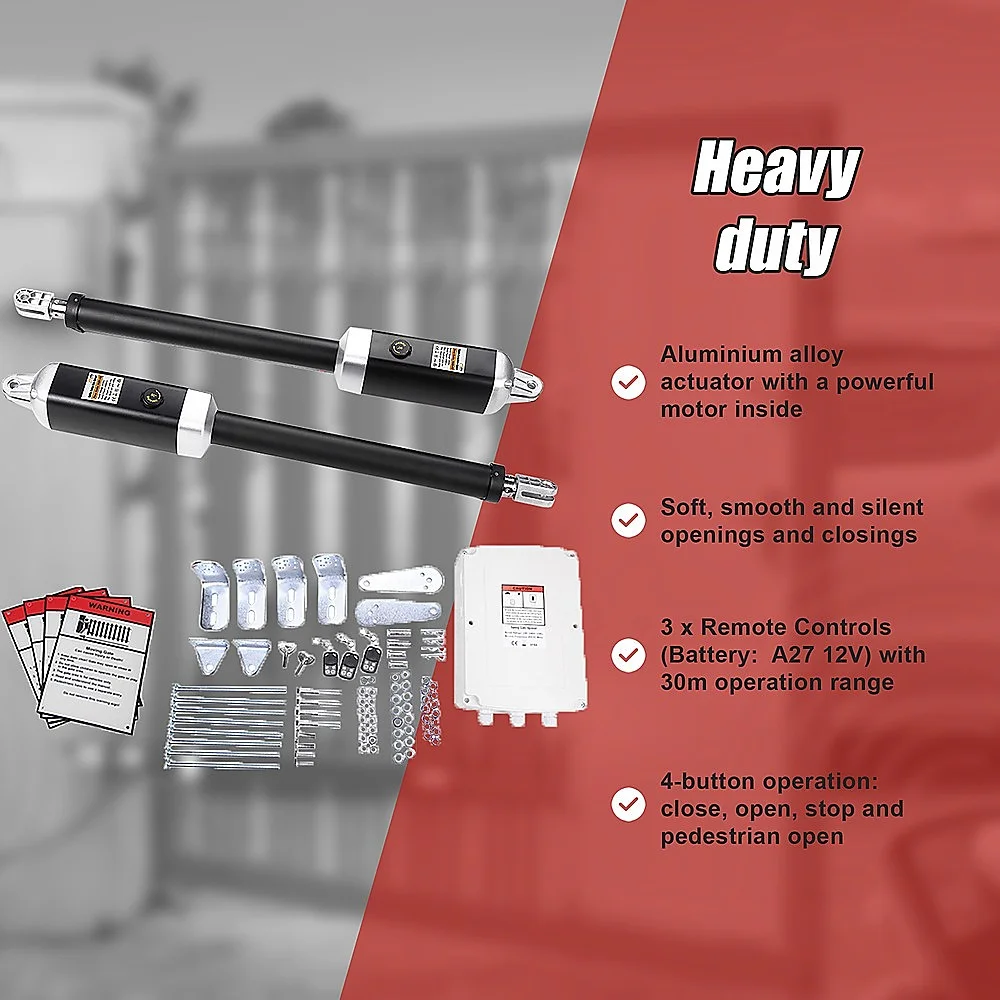

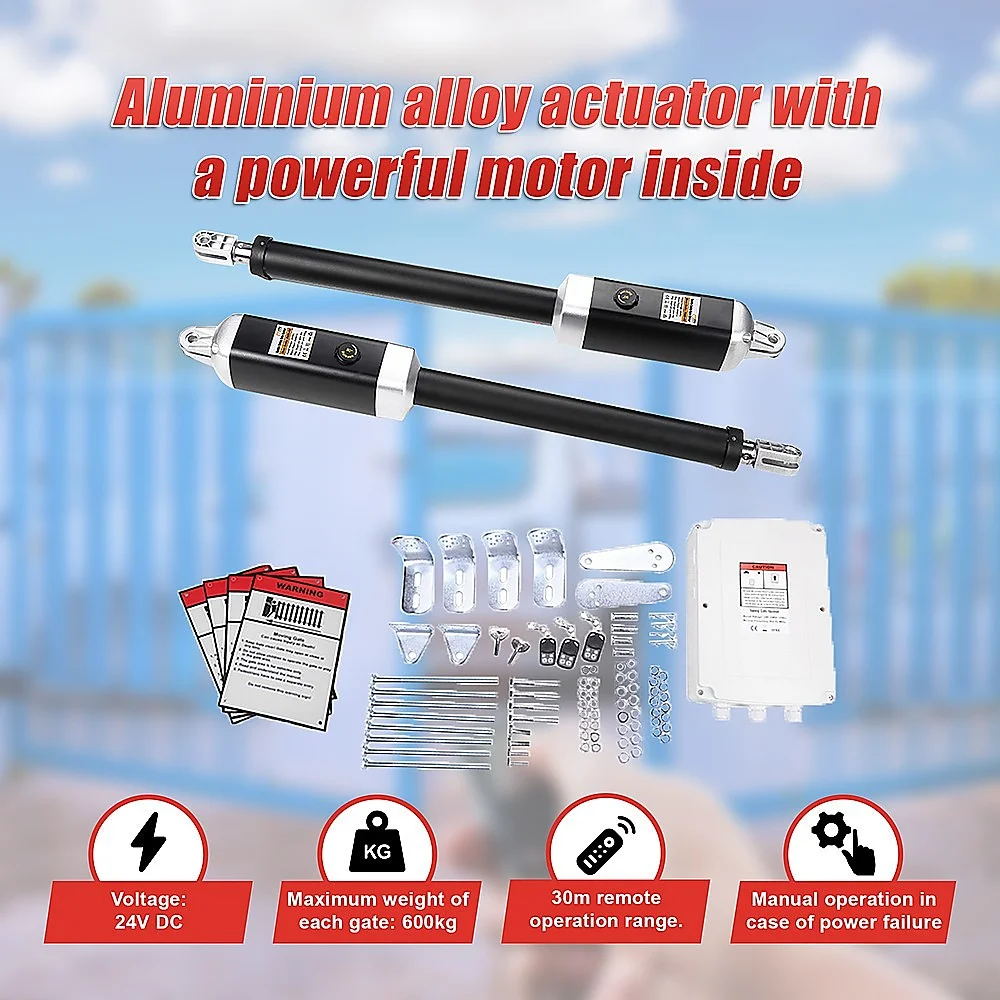

• Two energy-smart 24V DC motors in aluminium alloy actuators with powerful motors inside
• Soft, smooth and silent openings and closings
• Stop and reverse mode in case of obstruction with customisable sensitivity
• Operates in dual gate or single gate modes
• Customisable interval between opening of master gate and slave gate
• Auto-close fully adjustable between 0 and 99 seconds
• Overcurrent protection
• Alarm for openings and closings
• Manual operation in case of power failure
• Easy-to-use digital control board with status and menu settings
• Waterproof and dust-proof control box
• Intelligent Positioning System gate limit

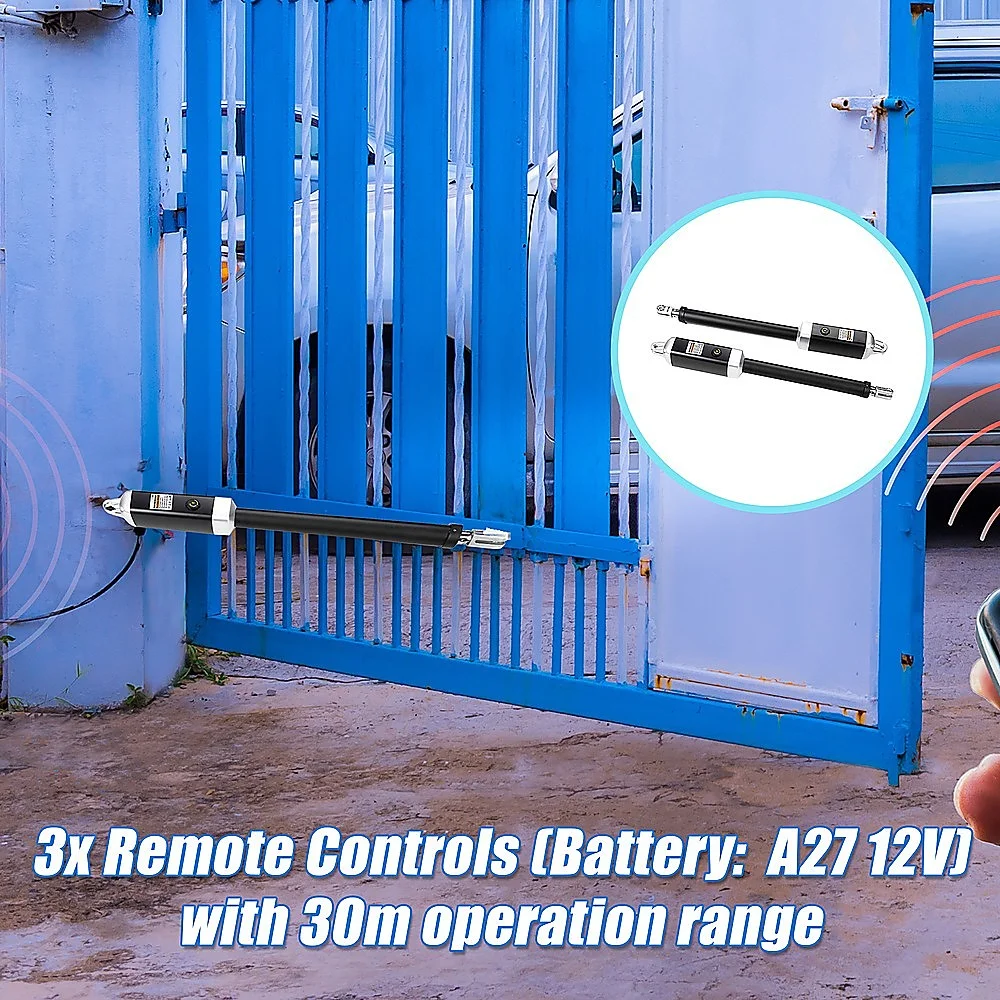

• 3 remote controls with 30m operation range and 4-button operation: close, open, stop and pedestrian open

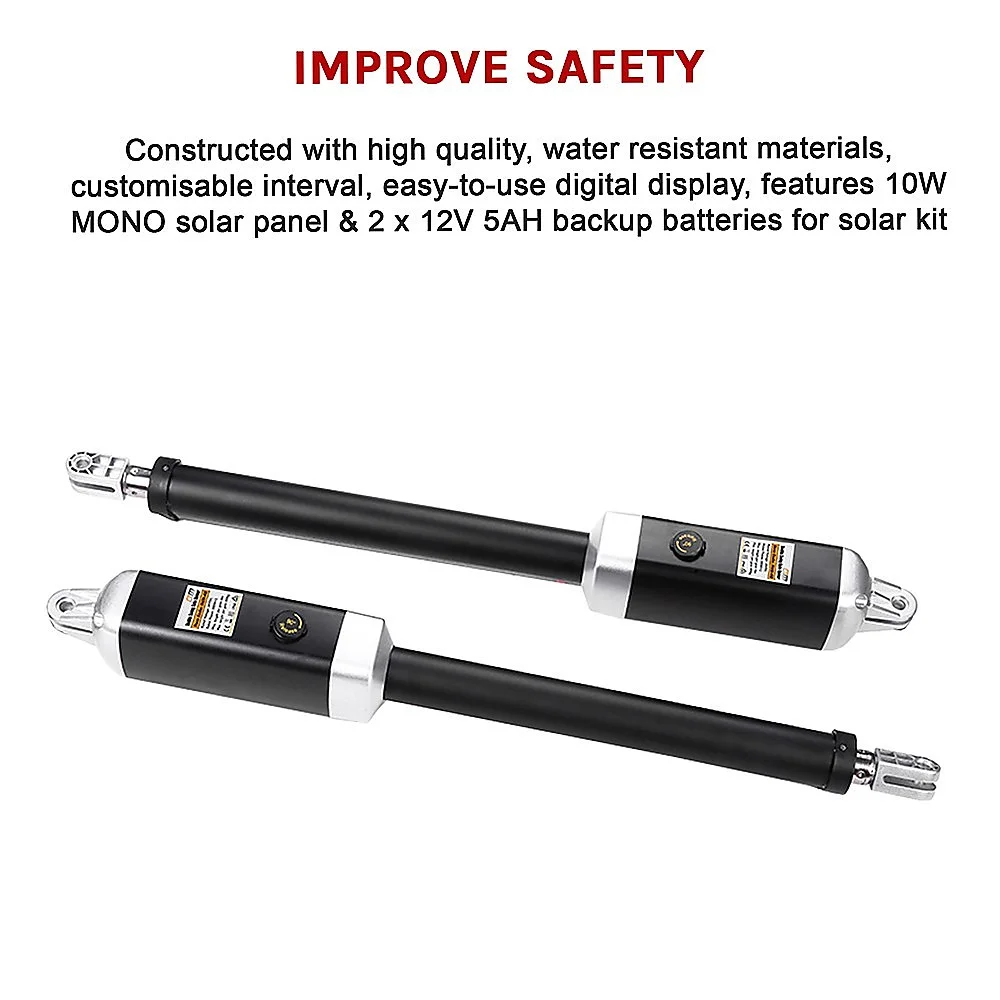

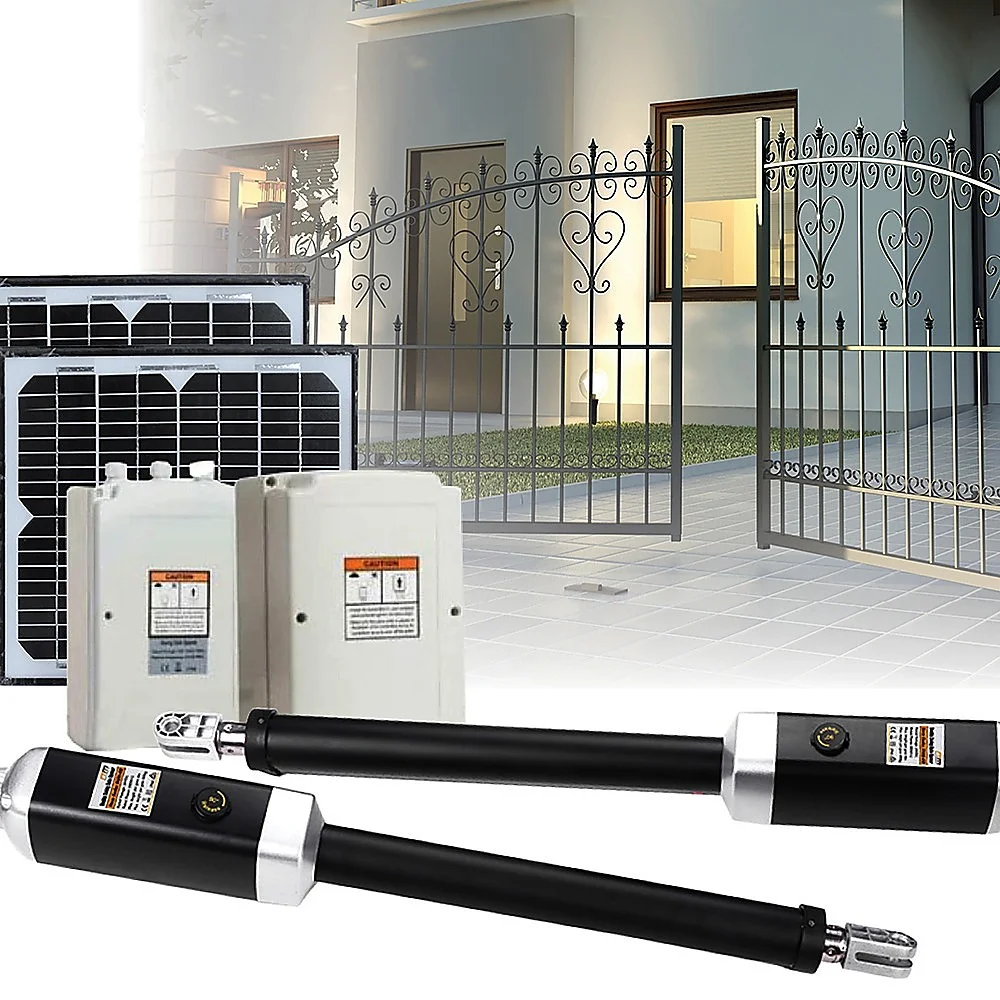

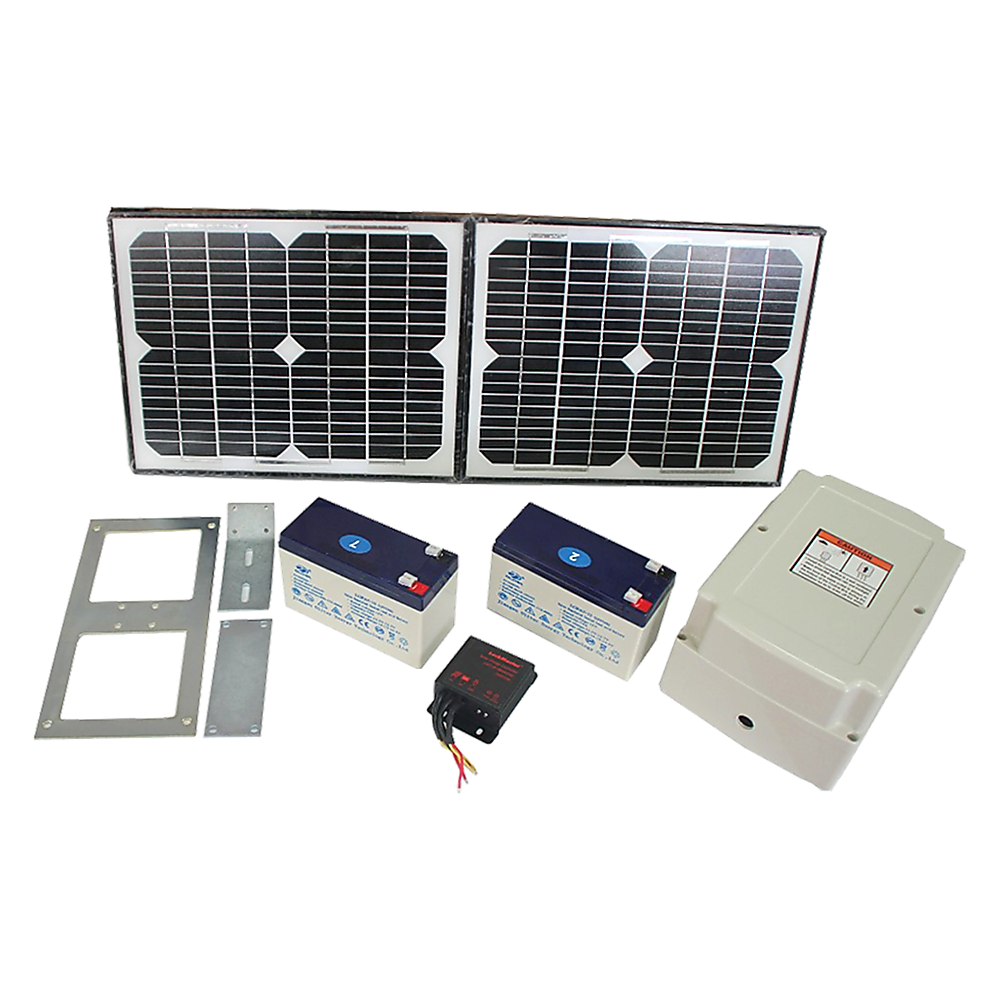

• 20W solar panel kit with backup batteries

Specifications

• Voltage: 24V DC
• Gate limit type: Intelligent Positioning System
• Speed of actuator: 16mm/s

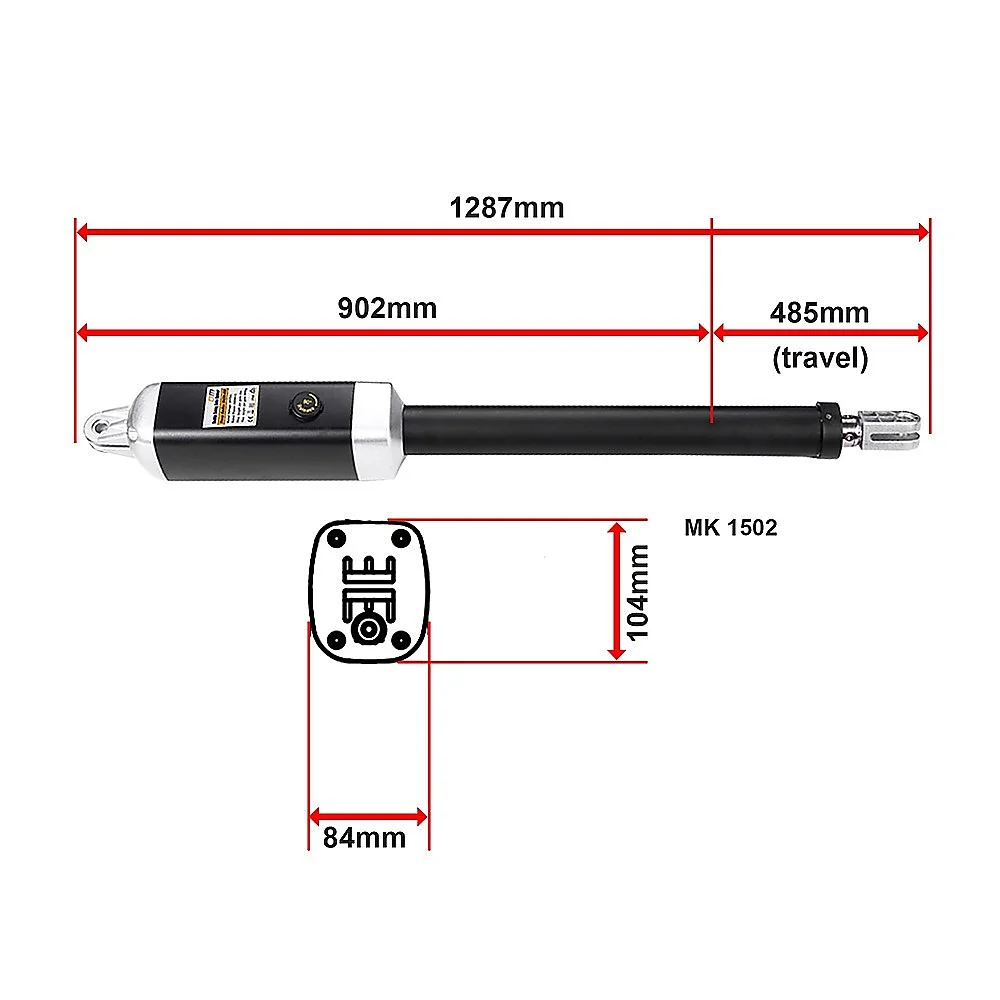

• Max piston travel: 480mm

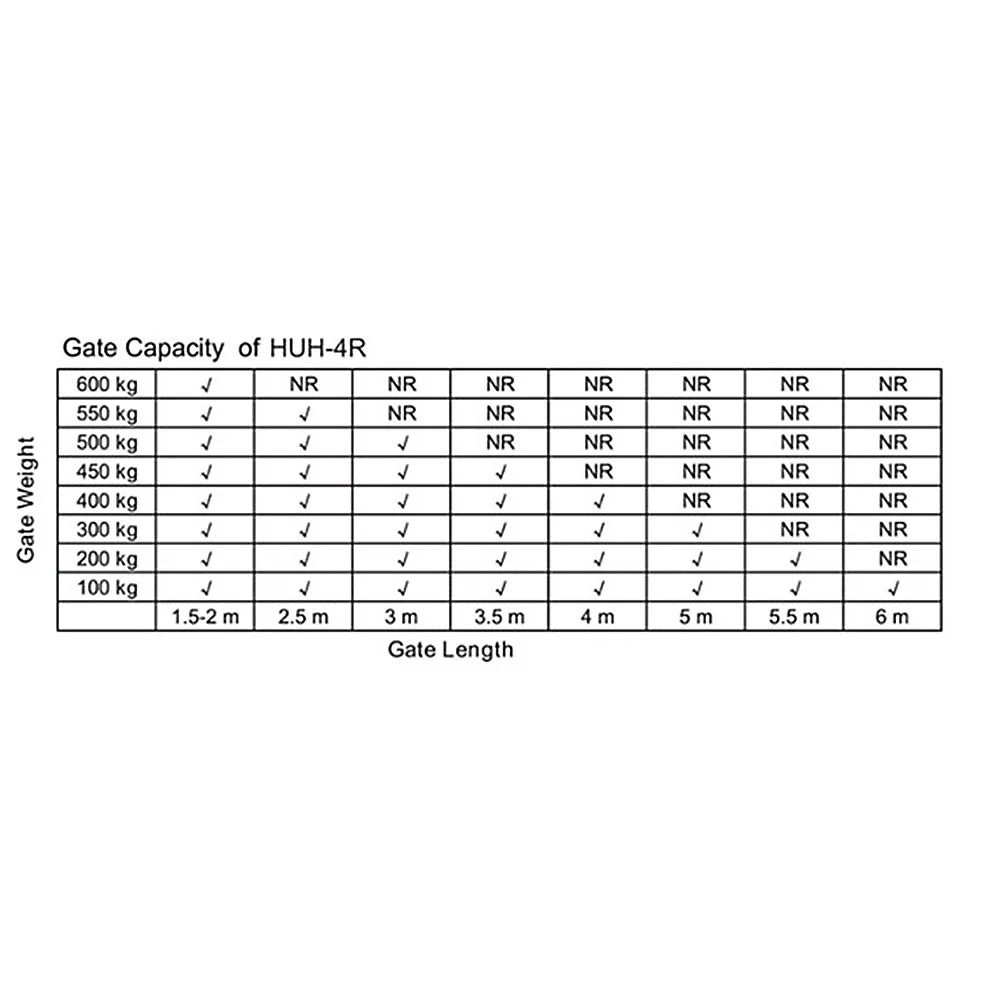

• Maximum weight of each gate: 600kg
• Maximum width of each gate: 6.0m (supporting a 100kg gate)
• 90 degree time of rotation: 8-12 seconds
• Maximum opening angle: 0 to 110 degrees
• Operating temperature: -25C to +55C
• Protection class: IP44
• CE/EMC approval model
• Item Code: HUH-4R + HUH-SW-20-SOLAR

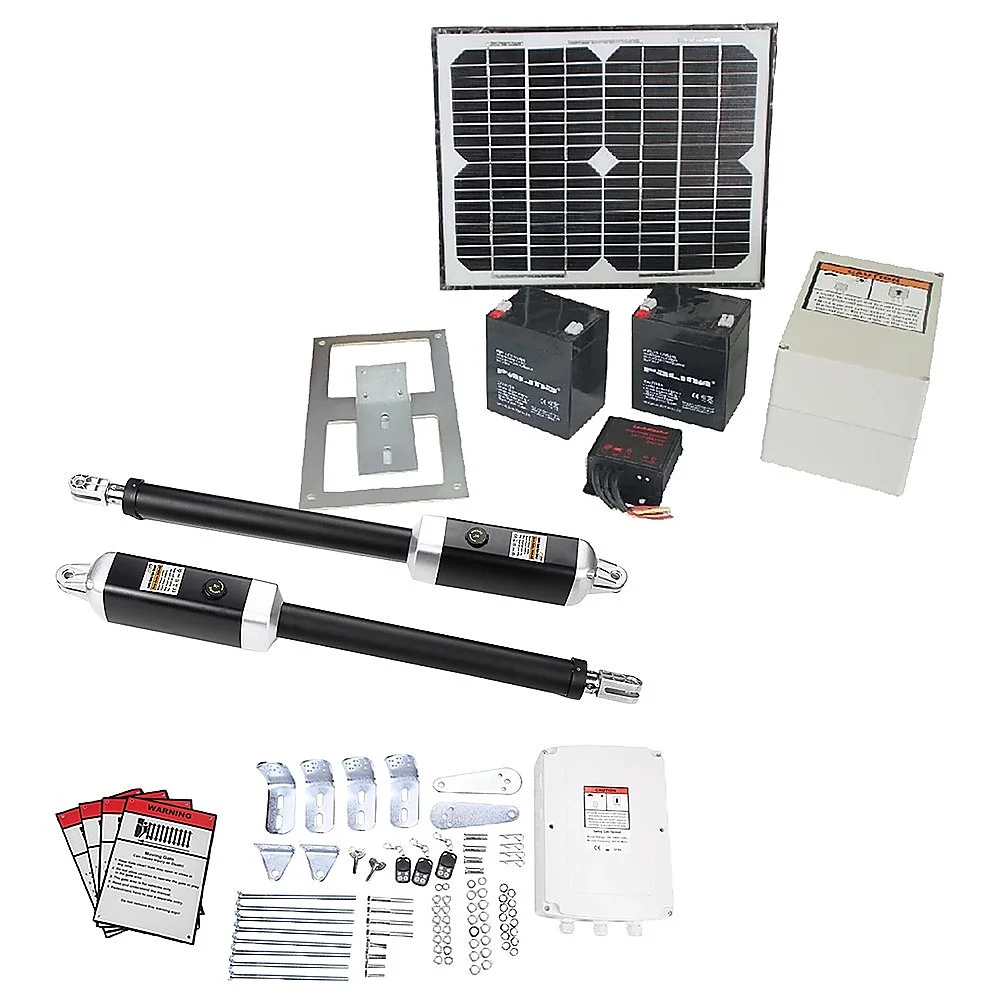

What's in the Box

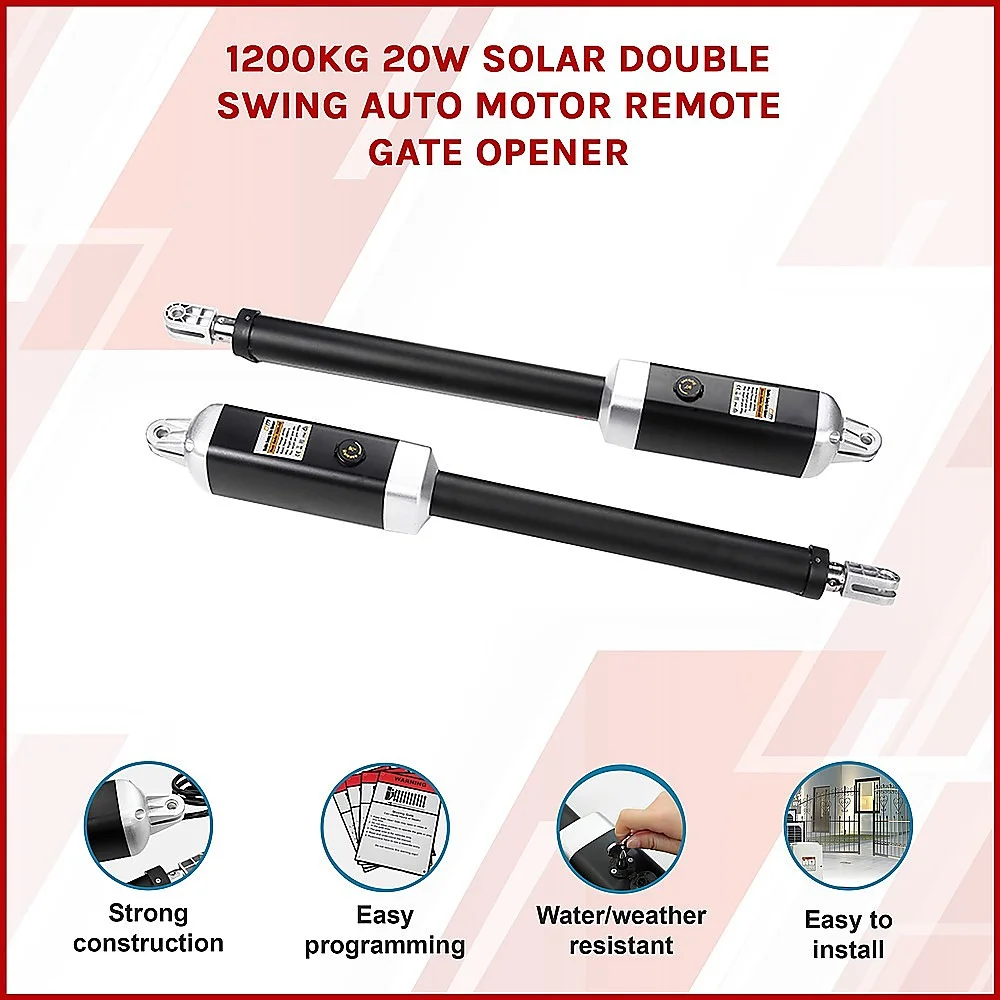

• 2 x 24V DC motors with aluminium alloy actuators
• 3 x Remote controls (battery: A27 12V)
• 2 x 12V 7.2AH backup batteries for solar kit
• 2 x 10W mono solar panels for solar kit
• Waterproof and dust-proof control box

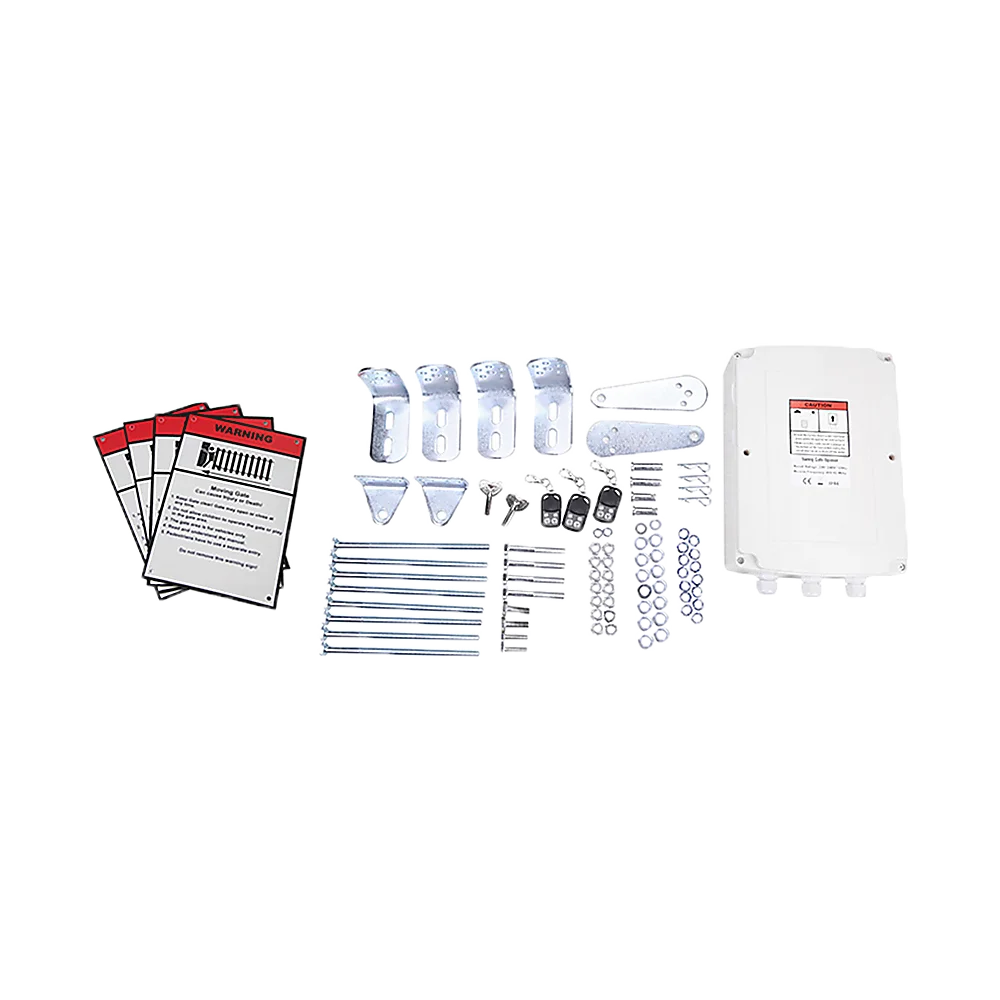

• Full installation hardware
• Full user manual

Note: Assembly must be done by a licensed electrician. Gates are not included.
