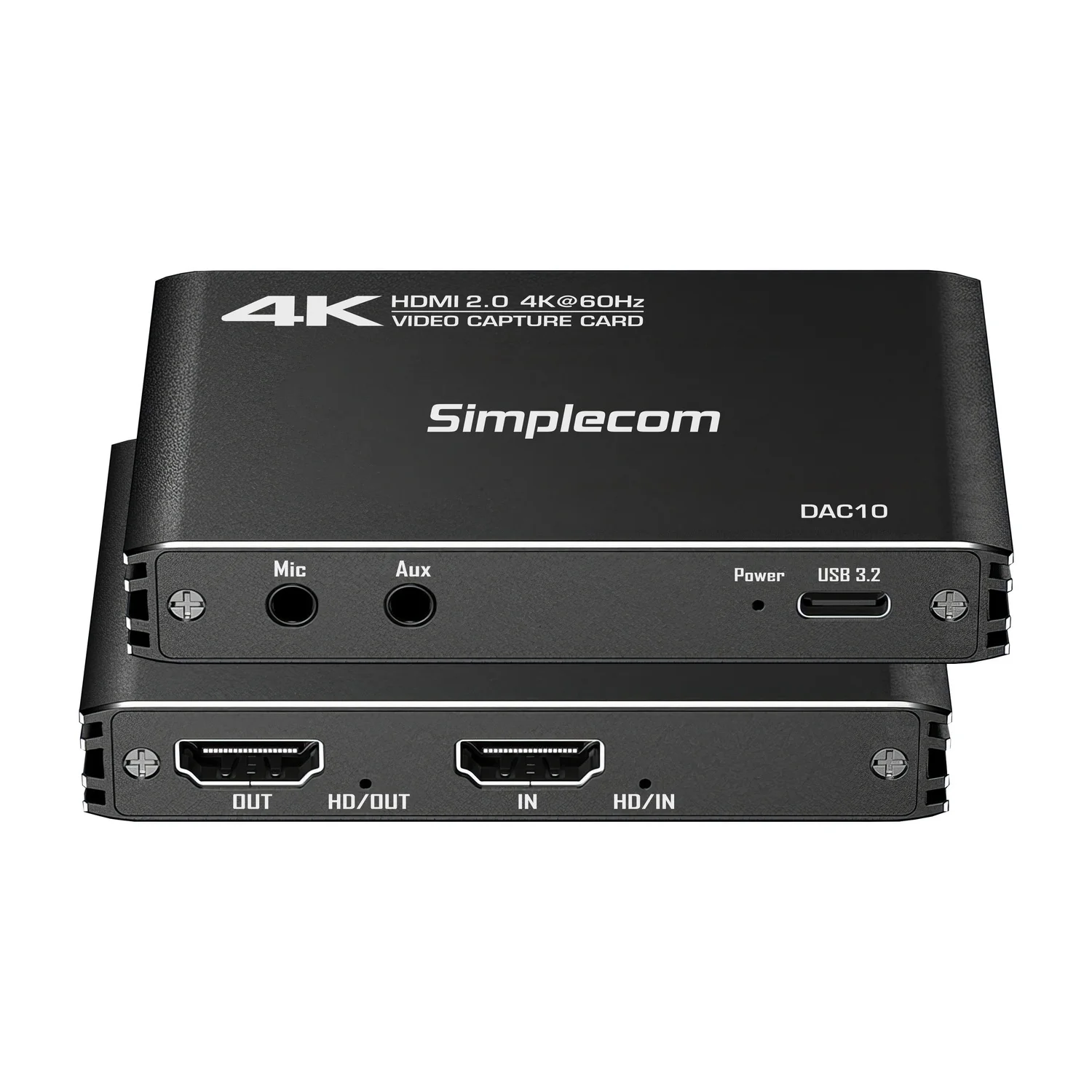

Simplecom DAC10 HDMI 2.0 to USB 4K 60FPS Video Capture Card with VRR Passthrough

The Simplecom DAC10 is an HDMI 2.0 to USB video capture card that lets gamers, streamers and content creators record and stream in true 4K at 60FPS. With HDMI passthrough, VRR support and dedicated mic and headphone jacks, it delivers smooth, ultra-low latency capture for gameplay, cameras and video conferencing.

Key Features

• True 4K 60FPS HDMI 2.0 to USB video capture card
• Capture or stream up to 4K@60Hz, 2K@144Hz and 1080p@240Hz

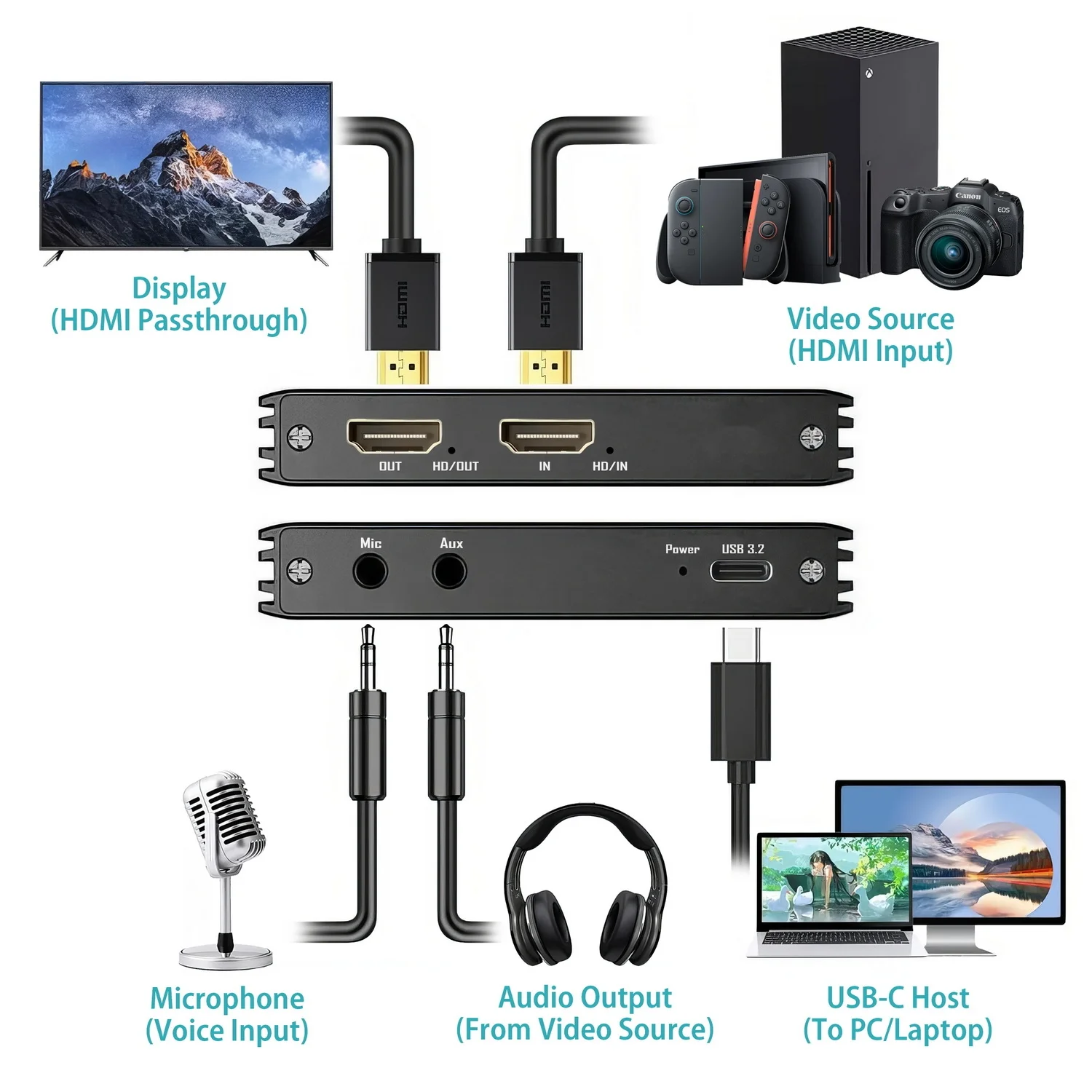

• HDMI passthrough up to 4K@60Hz, 2K@144Hz and 1080p@240Hz
• 3.5mm microphone jack for commentary input while recording or streaming
• 3.5mm AUX output for monitoring audio from the video source
• VRR (Variable Refresh Rate) technology for a smooth gaming experience
• USB 3.2 Gen 2 host interface with data transfer rates up to 10Gbps
• USB-C and USB-A combo cable for use with different computers
• Compliant with UVC (USB Video Class) and UAC (USB Audio Class)
• Compatible with most mainstream capture software such as VLC and OBS

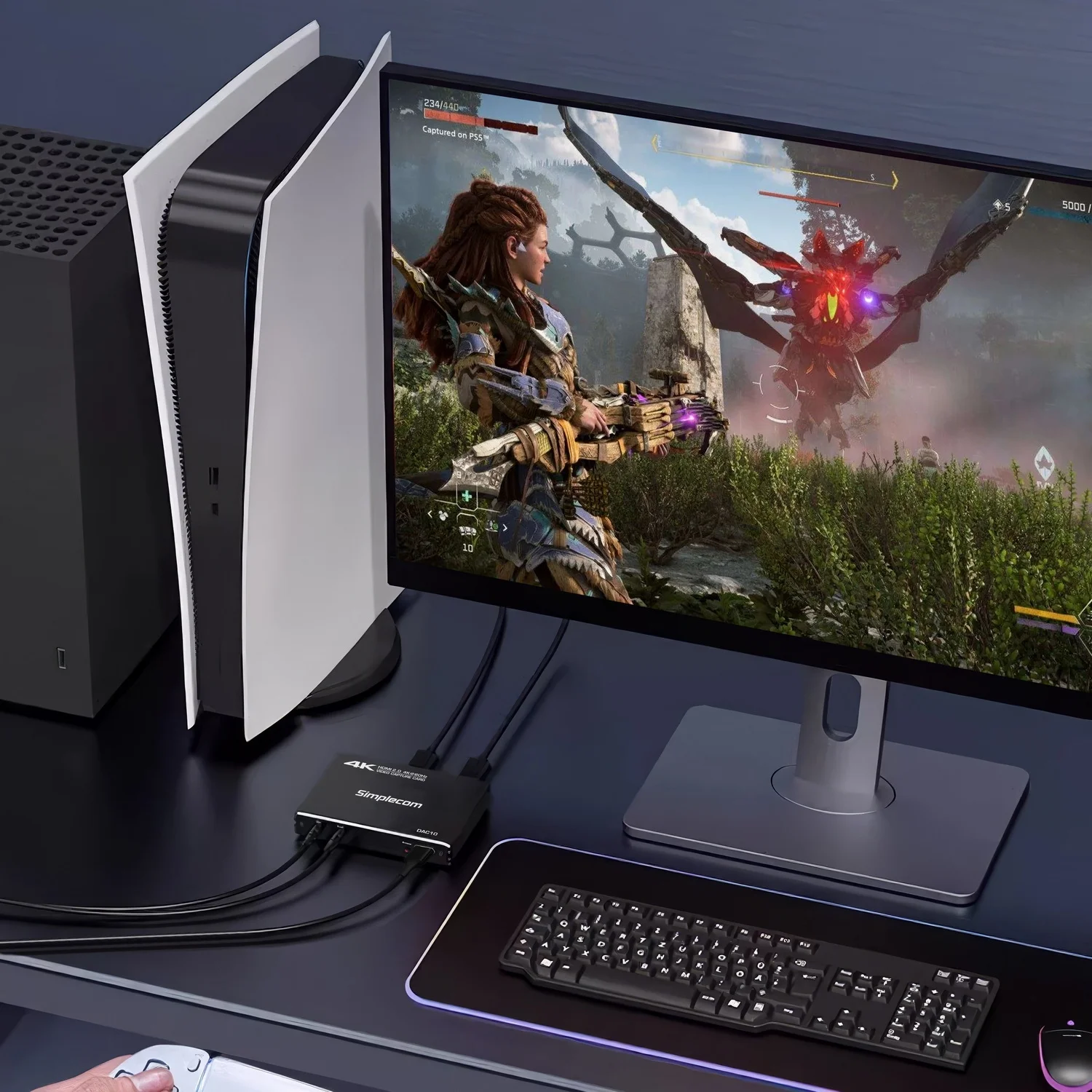

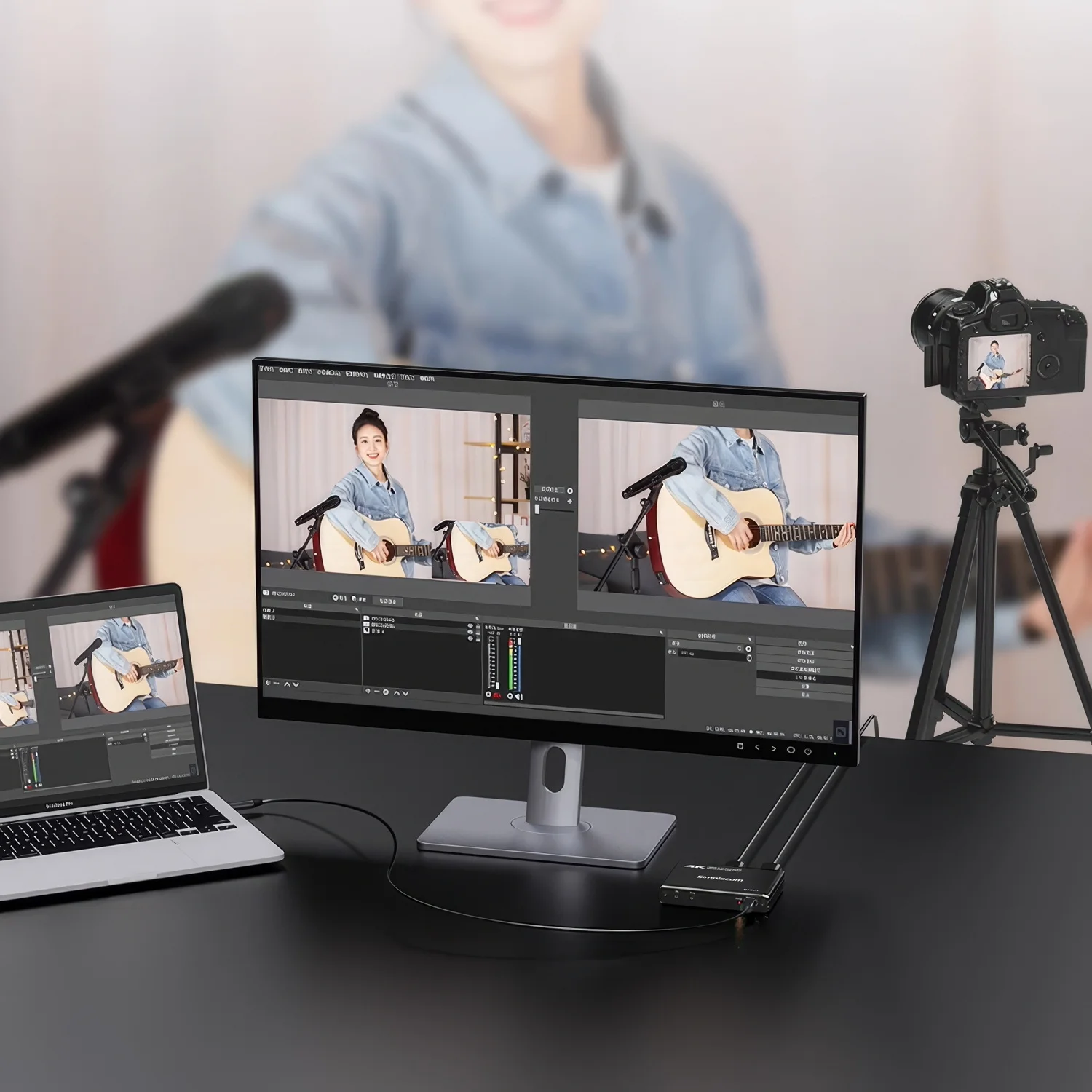

• Ideal for recording or streaming from game consoles, cameras, video players and more
• Powered by the USB host, no external power supply required
• Plug and play, no driver installation required

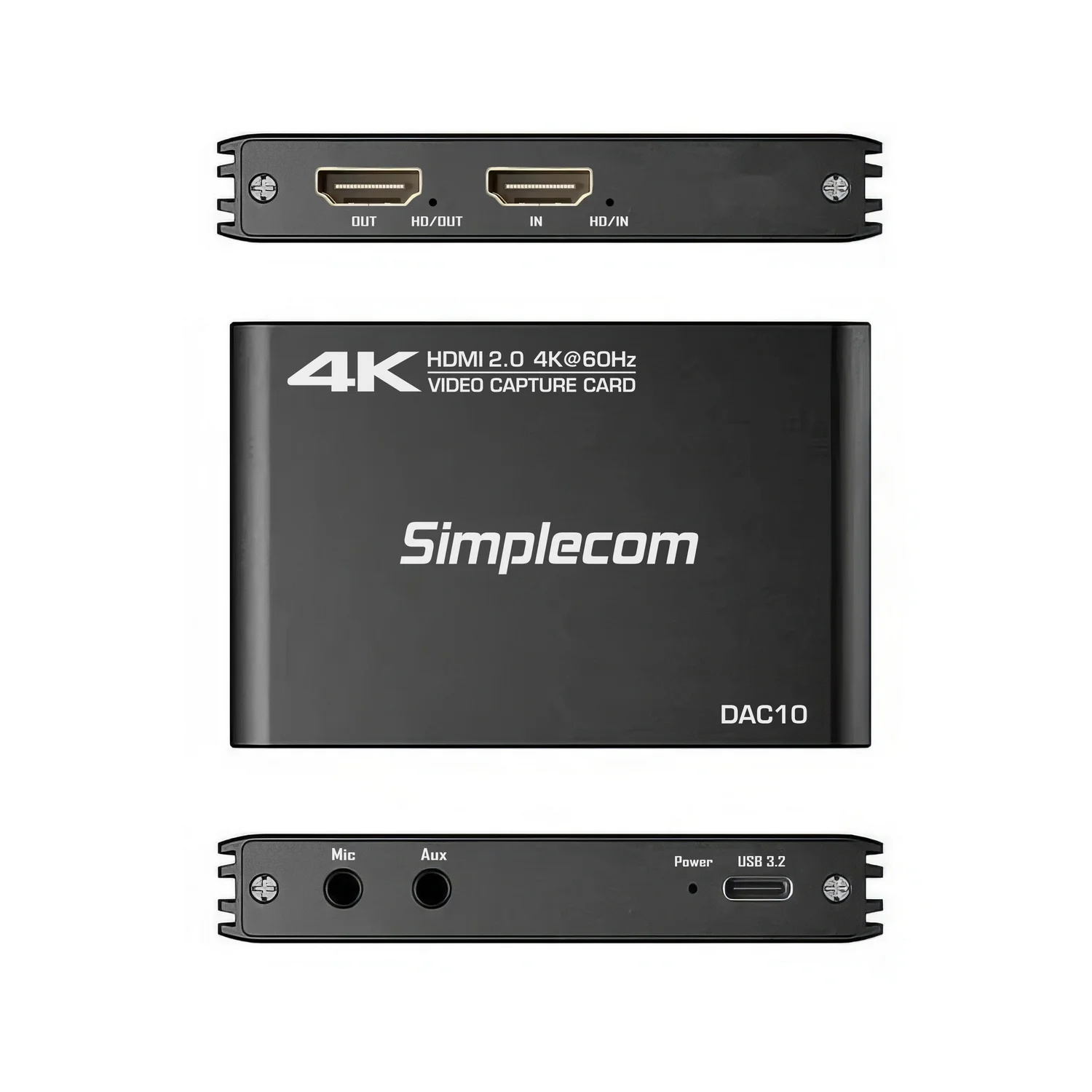

• Durable aluminium alloy housing
• Works with Windows 10 or later and macOS 10.12 or later

Specifications

• Host Interface: USB-C USB 3.2 Gen 2 10Gbps (plug and play, UVC)
• HDMI Input: HDMI 2.0 (unencrypted), backward compatible
• HDMI Output (Passthrough): HDMI 2.0 (HDR10 and VRR supported)
• Mic Input: 3.5mm Line In (3-Pole)
• AUX Output: 3.5mm Line Out (3-Pole)
• Video Format Support: MJPEG, YUY2, NV12, I420
• Resolution and Frame Rate by Video Format: MJPEG up to 4K@60Hz, 2K@144Hz, 1080p@240Hz; YUY2 (4:2:2) up to 2K@60Hz, 1080p@60Hz; NV12 (4:2:0) up to 4K@30Hz, 2K@60Hz, 1080p@120Hz; I420 (4:2:0) up to 4K@30Hz, 2K@60Hz, 1080p@120Hz
• Audio Format Support: LPCM
• HDCP Support: HDCP2.3 Passthrough
• Operating Temperature Range: -10C to 55C
• Housing Material: Aluminium alloy
• Dimensions: 9.2 x 6.3 x 1.5cm (L x W x H)
• Weight: 81g approx.
• Compatible Recording Software: OBS, PotPlayer, VLC, vMix and more
• Operating System Support: Windows 10 or later, macOS 10.12 or later

System Requirements

• Minimum PC requirements for 4K@60Hz (MJPEG format recording): CPU: Intel Core i7 10th Gen or AMD Ryzen 7 3000 series; GPU: Nvidia GeForce GTX 1650 or equivalent Intel/AMD GPU; RAM: dual-channel 16GB
• Minimum PC requirements for 4K@30Hz recording: CPU: Intel Core i5 7th Gen or AMD Ryzen 5 1000 series; GPU: Nvidia GeForce GTX 1050Ti or equivalent Intel/AMD GPU; RAM: dual-channel 8GB

What's in the Box

• 4K USB Video Capture Card

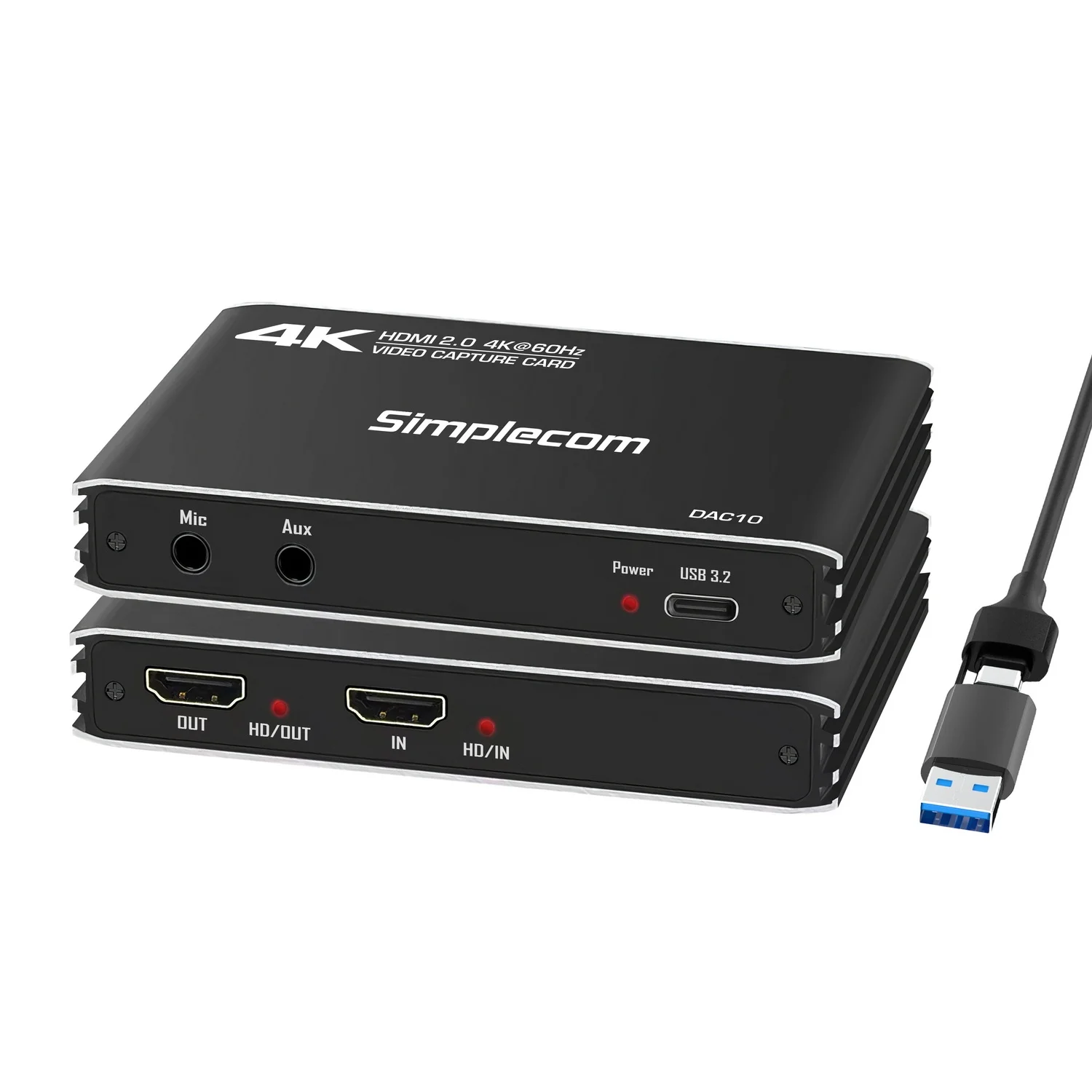

• USB-C to USB-C and USB-A combo cable
• HDMI cable

Important Notes

• Connect the device to a USB 3.0 or USB 3.2 (5Gbps/10Gbps) port on your computer. USB 2.0 ports are not supported.
• For optimal video capture quality, use the original USB-C cable included in the box, or a USB-C cable that supports 5Gbps or 10Gbps data transfer. Some USB-C cables only support USB 2.0 speeds and are not suitable for this device.
• For stable high-resolution video transmission, use High-Speed HDMI cables with 18Gbps bandwidth. HDMI cables should be shorter than 3 metres to ensure a reliable connection.
• Video recording quality depends not only on resolution and frame rate but also on the bitrate setting. To achieve good quality video at high resolutions, increase the bitrate in your software settings accordingly.
