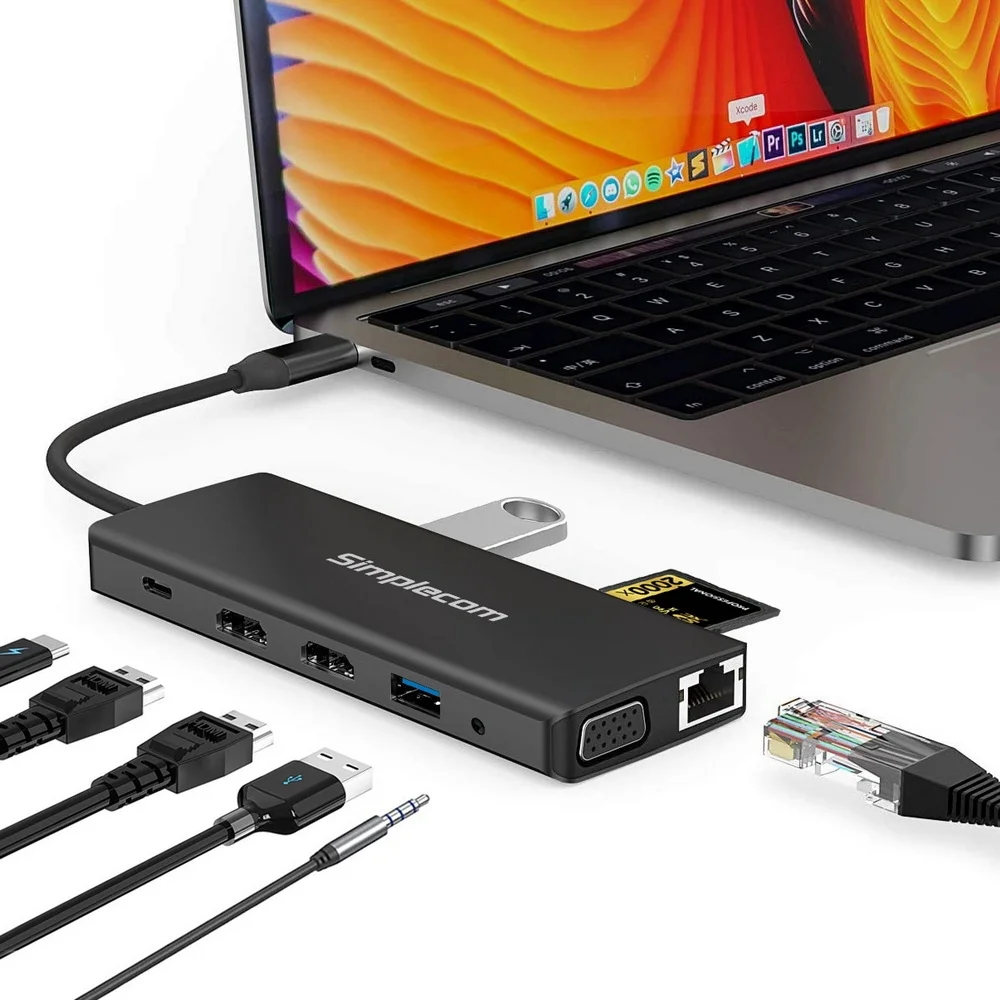

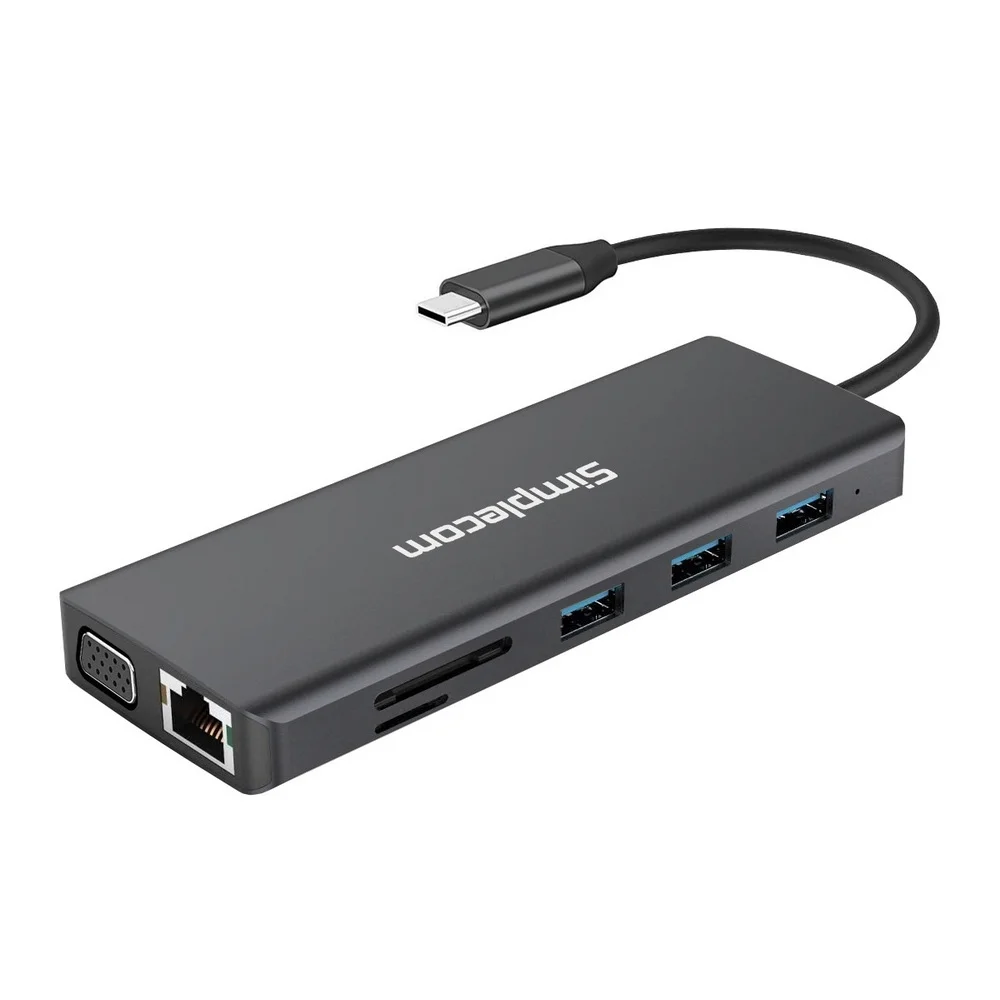

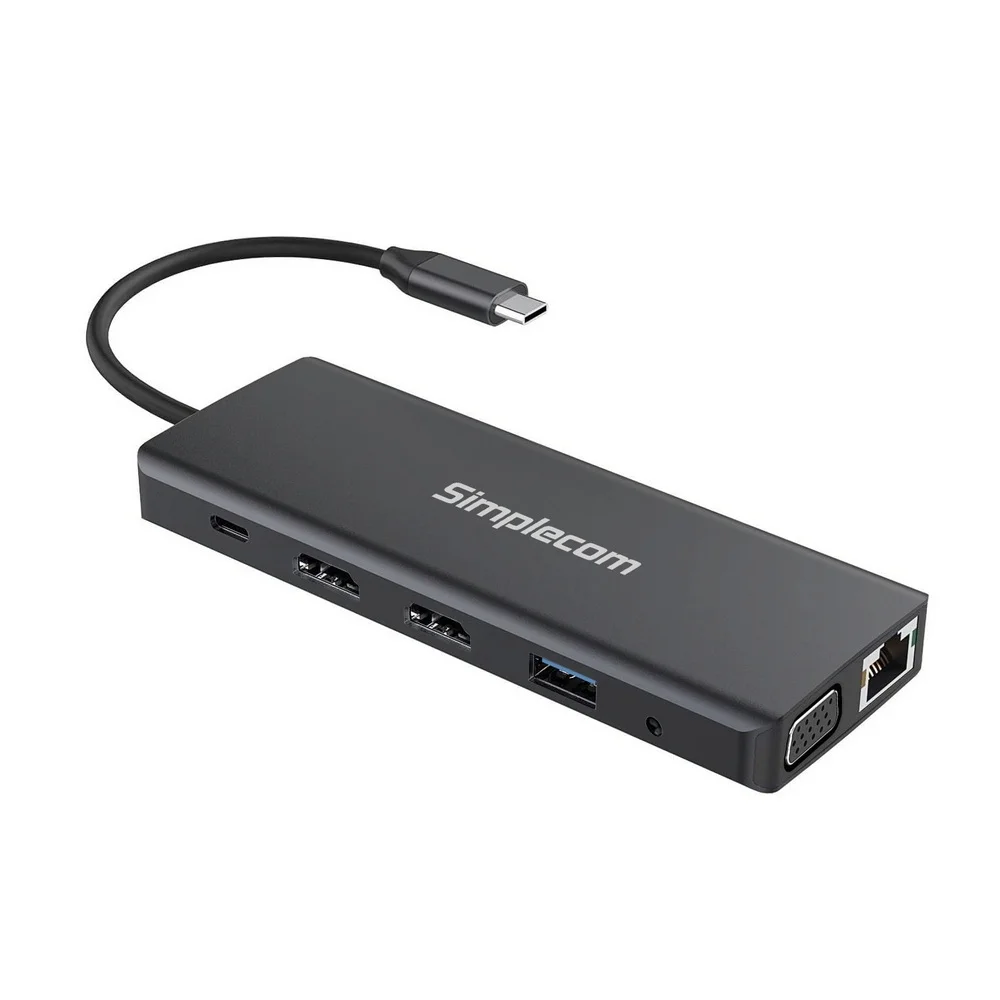

Simplecom CHN612 USB-C 12-in-1 Docking Station Dual HDMI + VGA Gigabit LAN

Turn a single USB-C port into a full 12-port workstation with the Simplecom CHN612 USB-C 12-in-1 Multiport Docking Station. With dual HDMI plus VGA triple video outputs, Gigabit Ethernet and a 4-port USB hub, it expands your laptop's connectivity for greater productivity and convenience.

Key Features

• 12-in-1 USB-C multiport adapter expands one USB-C port into 12 ports
• Dual HDMI plus VGA triple video outputs with MST support
• Single HDMI supports up to 4K@30Hz; dual HDMI supports up to 1080p@60Hz on each external monitor
• Mirror or Extended mode support (maximum 2 extended displays)
• 3x SuperSpeed USB-A ports at up to 5Gbps and 1x HiSpeed USB-A port at 480Mbps
• Gigabit Ethernet with connection speeds up to 1000Mbps
• SD and microSD card reader slots
• USB-C PD port supports PD2.0 charging up to 100W
• 3.5mm audio jack for headphones or speakers
• Durable aluminium alloy housing for heat dissipation and stable performance
• Lightweight and compact for travelling
• Plug and play, no driver software required

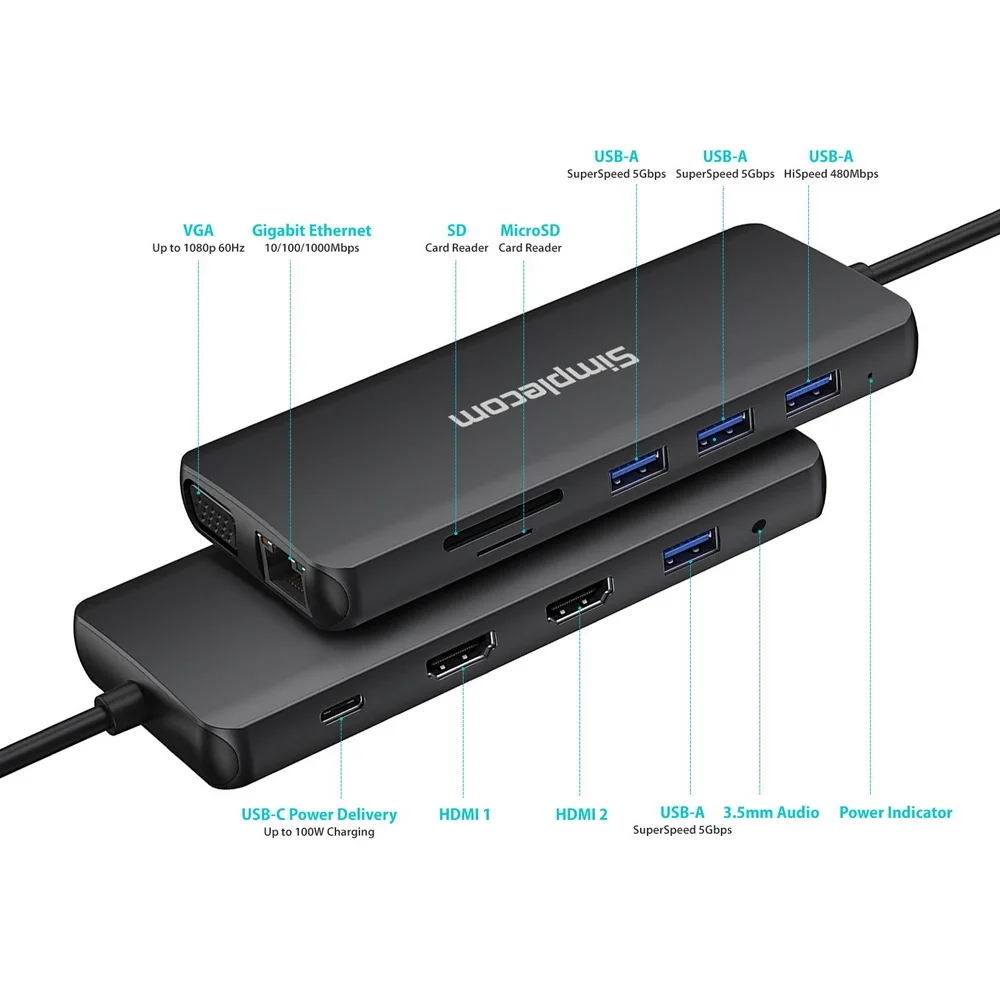

Specifications

• USB Hub: 4x USB-A Female (3x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps)
• Video Output: 2x HDMI, VGA
• HDMI Resolution: single HDMI up to 4K@30Hz; dual HDMI up to 1920x1080@60Hz on each external monitor
• VGA Resolution: up to 1080p@60Hz
• MST Support: Yes (Windows systems only)
• RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
• Card Reader: SD and MicroSD (HighSpeed 480Mbps)
• PD Charging: USB-C Female (charging only), up to 100W
• 3.5mm Audio Jack: Yes
• Operation Temperature: 0 - 45C
• Dimensions: 120 x 55 x 16 mm
• Cable Length: 15 cm (11.8 in.)
• Weight: 100 g
• Housing: Aluminium Alloy

System Requirements

• Available USB-C port on PC, Mac, phone or tablet with DisplayPort Alternate Mode support
• Operating system: Windows 8 or above, MacOS 10.9 or above

What's in the Box

• 1 x Simplecom CHN612 USB-C 12-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display Gigabit LAN

Important Note

• Before purchasing, confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer and do not support video output.
• The USB-C Female port is for PD charging only, not for data transfer.
• Connect a power delivery adapter when using high powered devices.
• Not recommended for charging iPad, tablet or other high power USB devices.
• MST is for Windows systems only; MacOS does not support MST.
