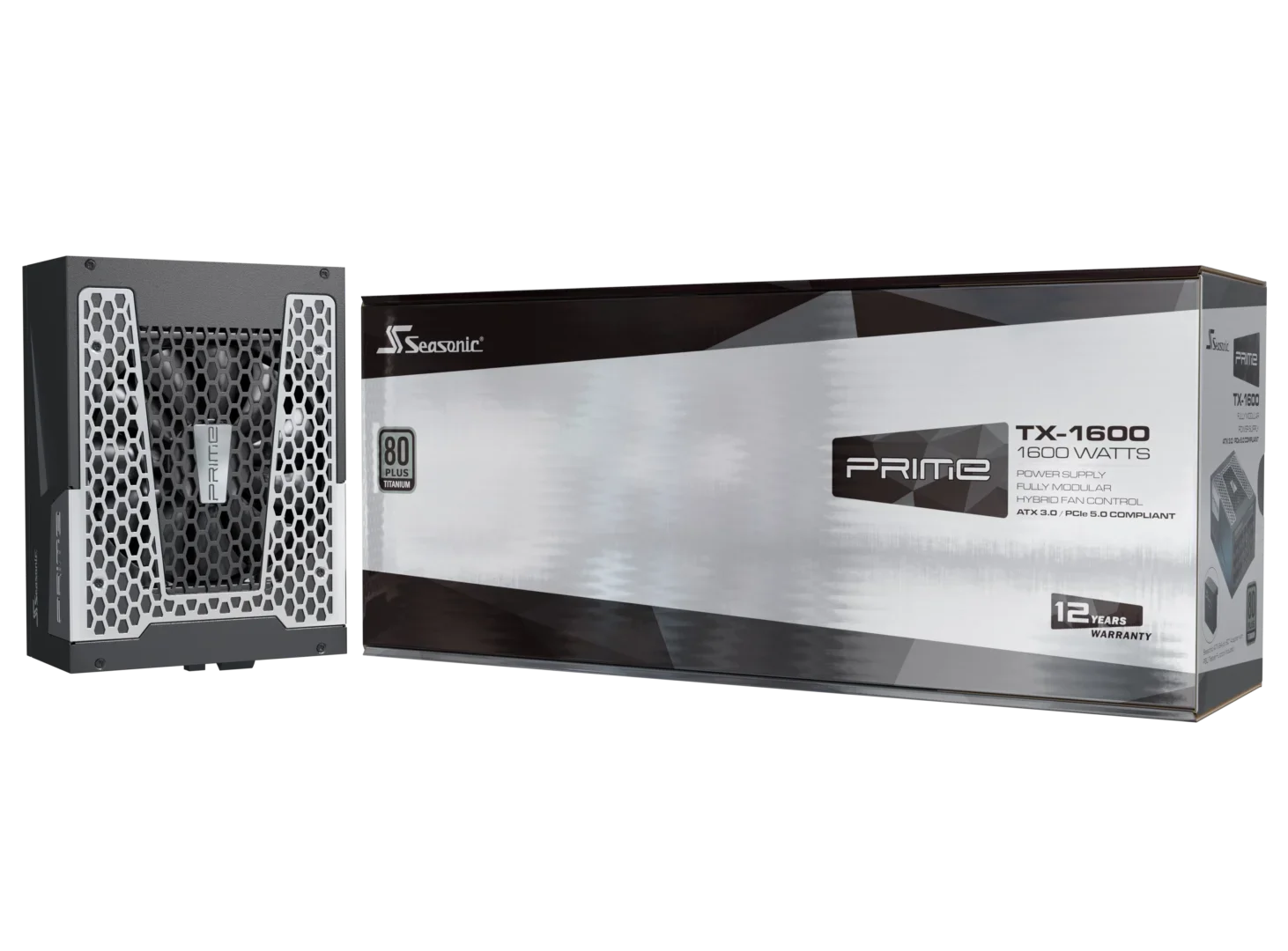

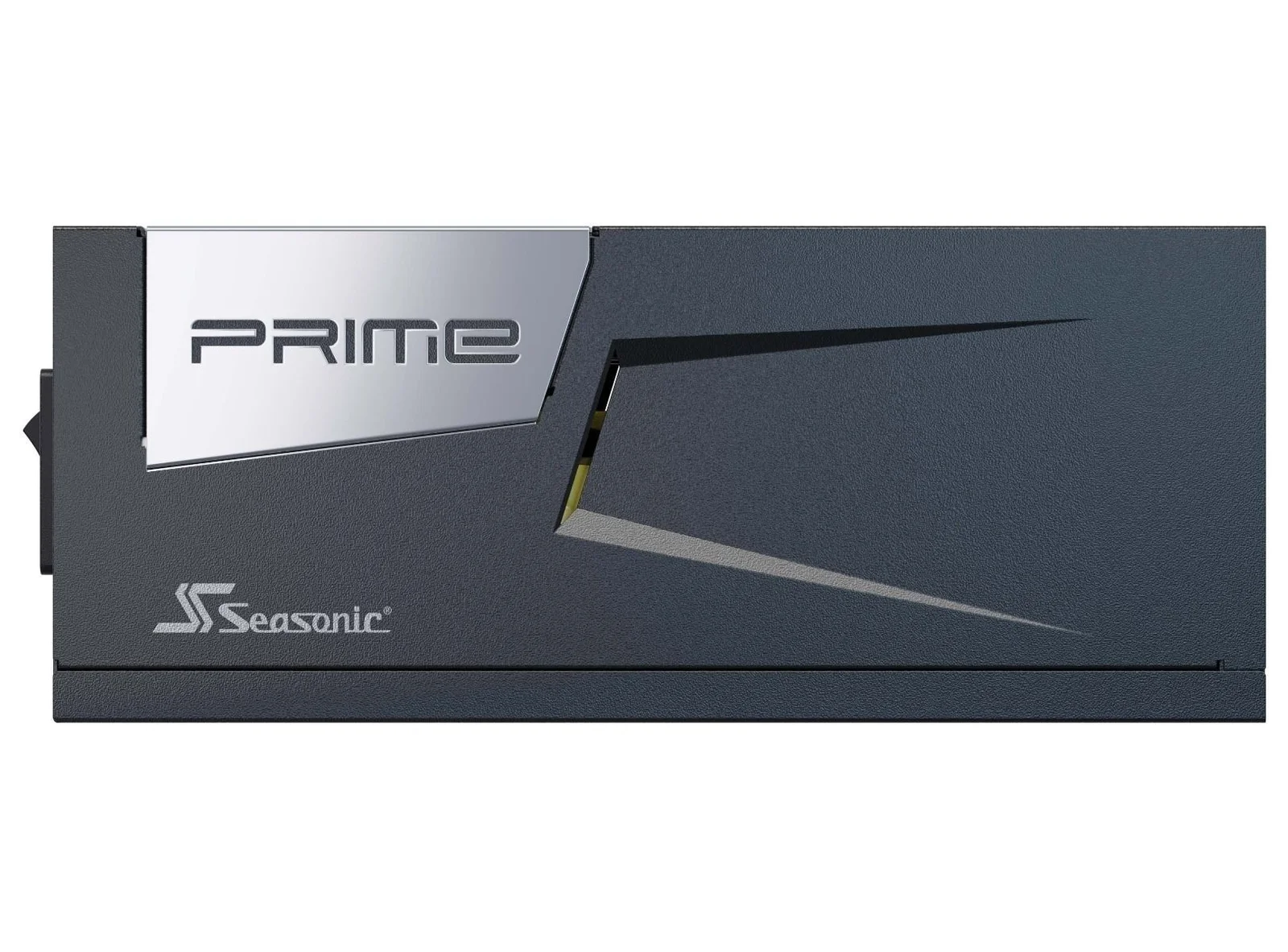

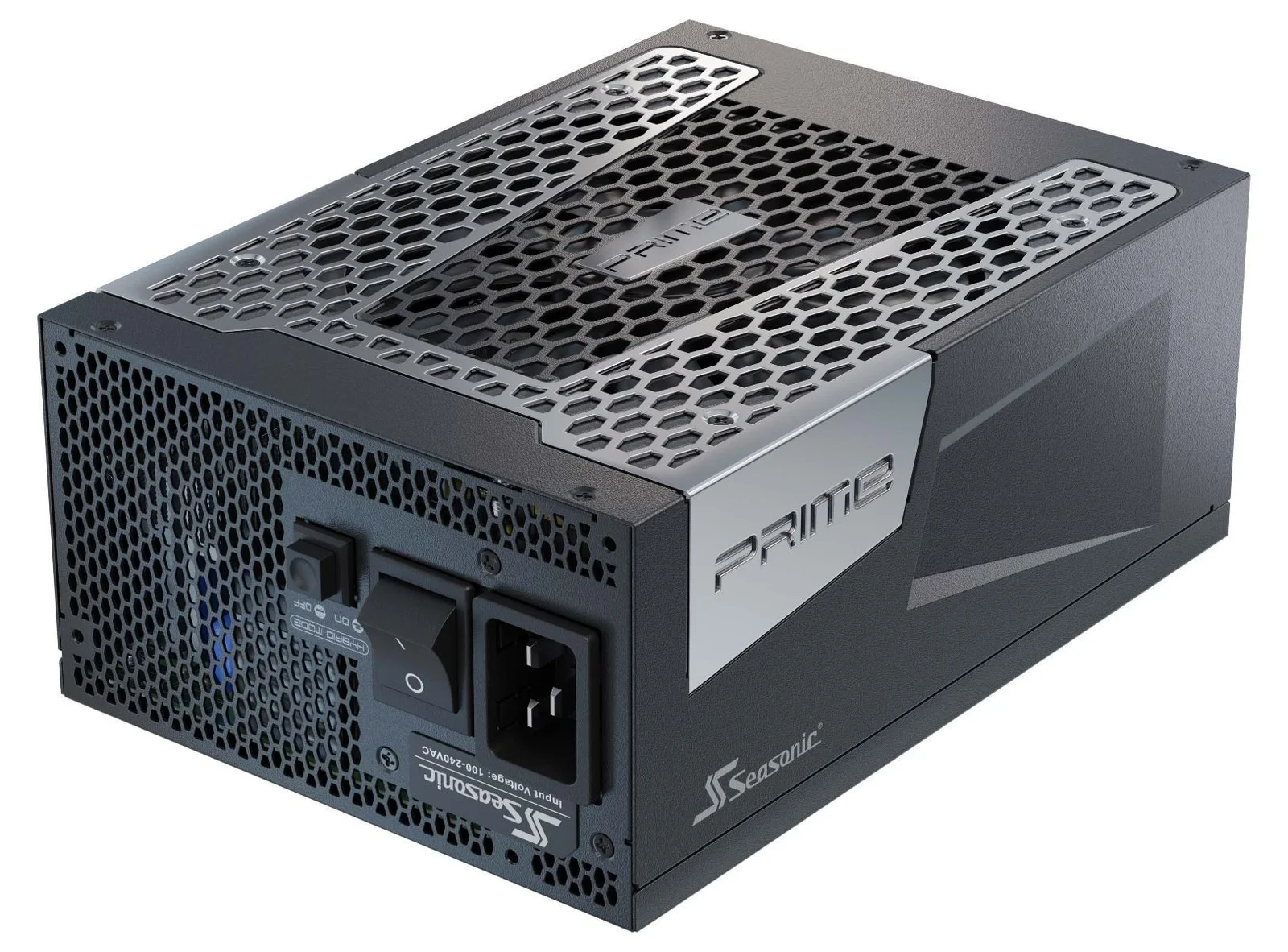

Seasonic PRIME TX-1600 1600W Titanium ATX 3.1 Fully Modular PSU SSR-1600TR2

PRIME TX ATX 3.1
The Seasonic PRIME TX ATX 3.1 Series is built on top of all the great features of PRIME TX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12V-2??6 connectors, Digital Fan Control, and 105??C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market.

Technical Specifications
80PLUS		Titanium
Cybenetics Efficiency Level		Titanium
Cybenetics Noise Level		Lambda A
Form Factor		ATX/EPS
Dimensions		210 mm (L) x 150 mm (W) x 86 mm (H)

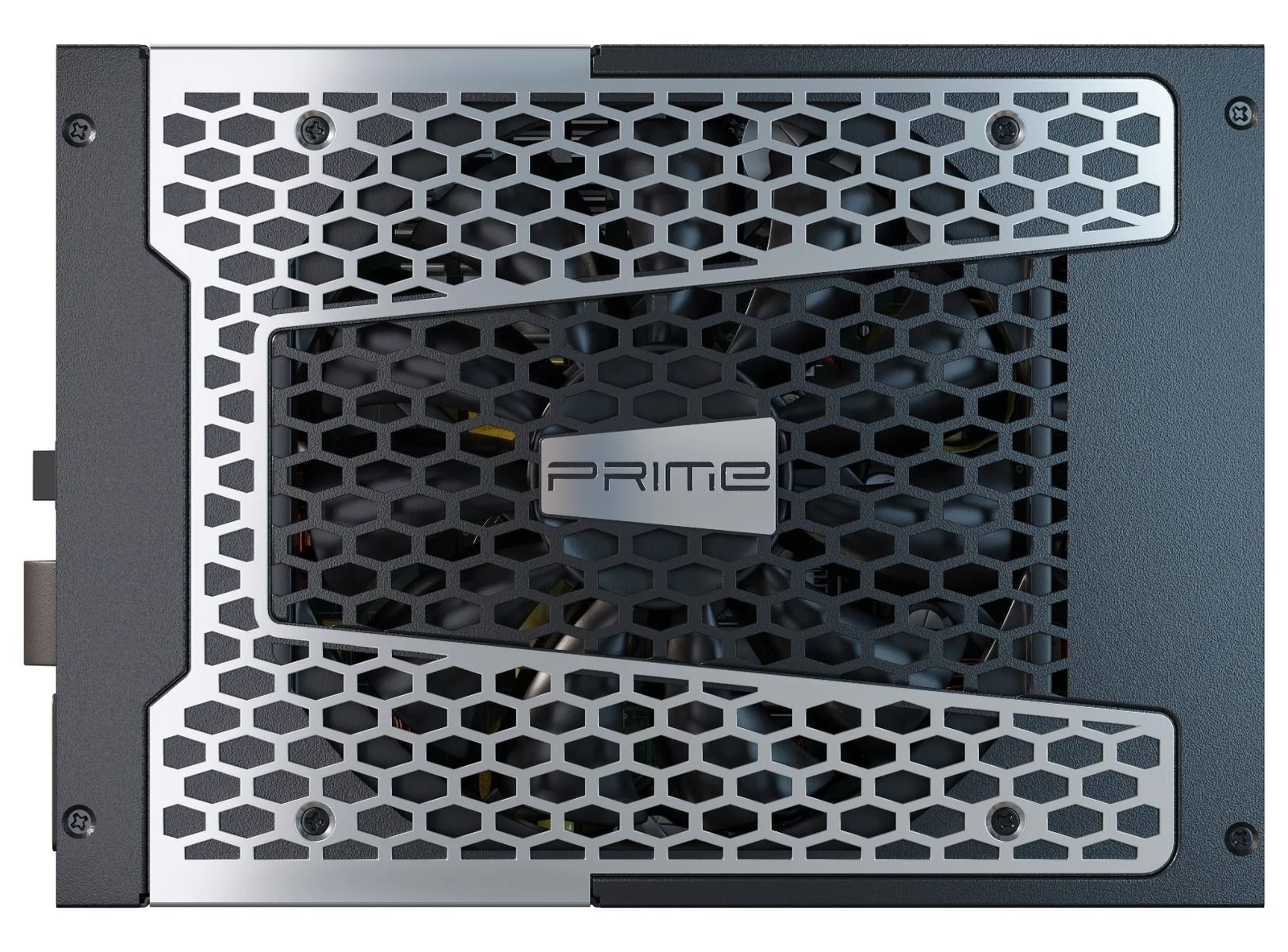

Fan Information	Fan Size	135 mm
	Fan Control	Digital Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 C, 15 % - 65 % RH

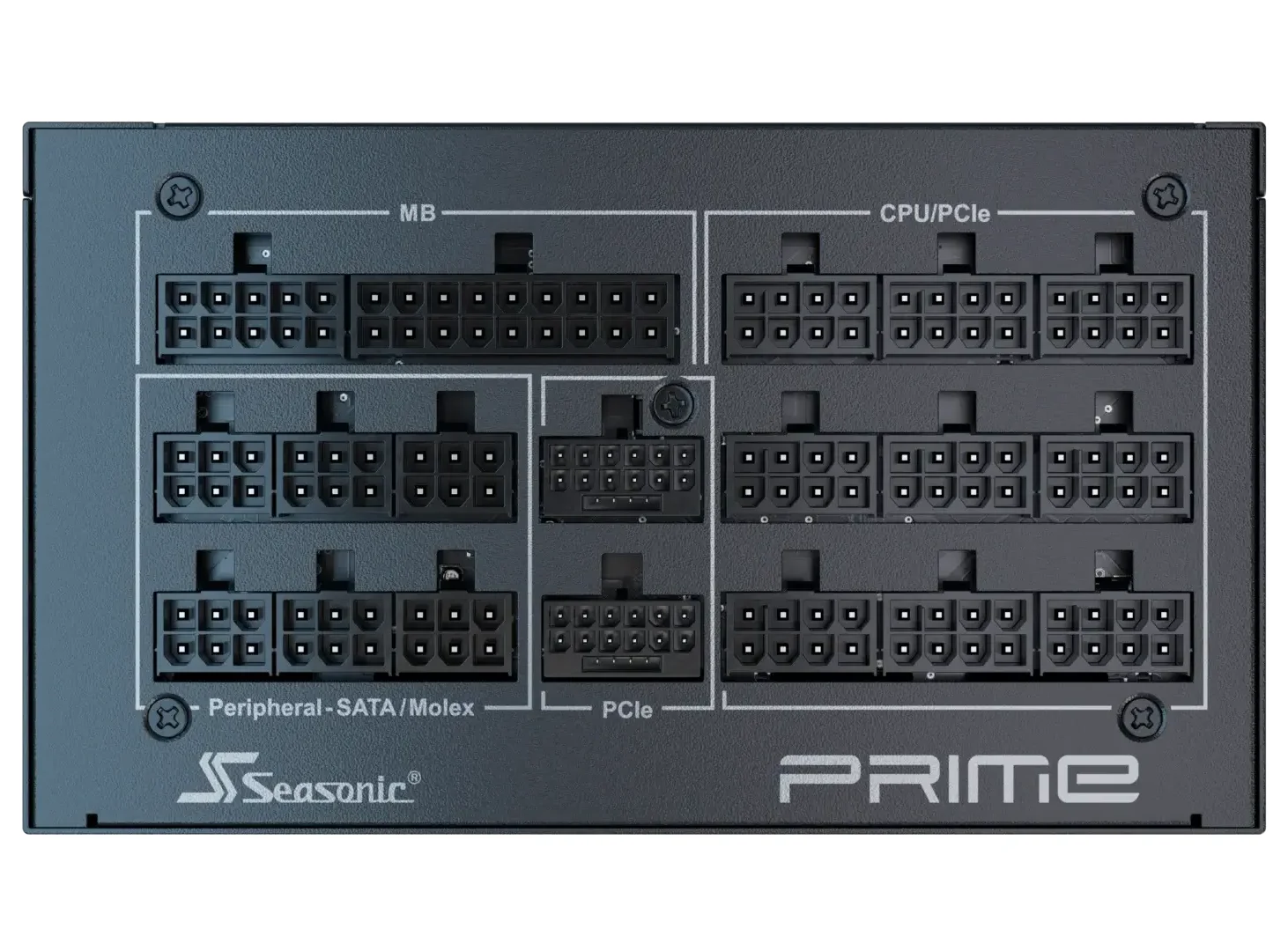

Cable Information	Modularity	Fully Modular
	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 C
	MTBF @ 25 C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		12 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 15 - 10 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	133.3 A	0.5 A	3 A
		125 W		1600 W	6 W	15 W
	Total Continuous Power	1600 W
