KAIWEETS HT206D Digital Clamp Meter True-RMS 6000 Counts AC/DC Current Multimeter

The KAIWEETS HT206D digital clamp meter is a true-RMS multimeter for measuring AC/DC current, voltage, temperature, capacitance, resistance, diodes, continuity and duty cycle. Auto-ranging operation and a two-colour backlit LCD make it a practical tester for labs, factories and household electrical work.

Key Features

• True-RMS measurement for accurate readings on non-linear loads
• LowZ low input impedance helps prevent false readings due to ghost voltage
• Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformers

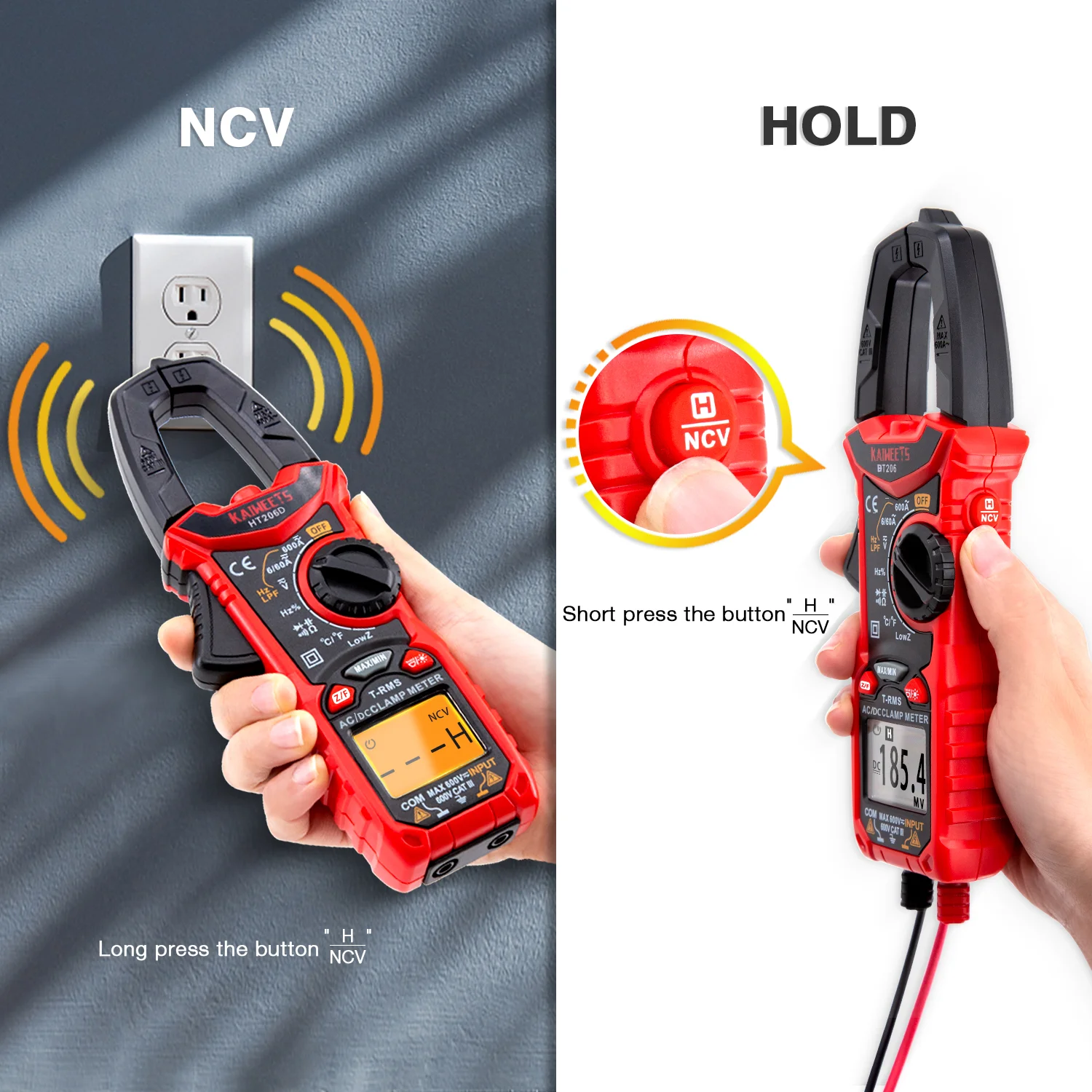

• NCV non-contact voltage detection checks electrical status through EM field intensity without touching wires
• Two-colour backlit LCD display turns red as a warning when voltage is above 80V or current is above 3A
• Built-in LED flashlight
• Temperature measurement for liquids and air conditioning ports with included K-Type thermocouple
• Low battery indication and auto power off after 15 minutes of inactivity

Specifications

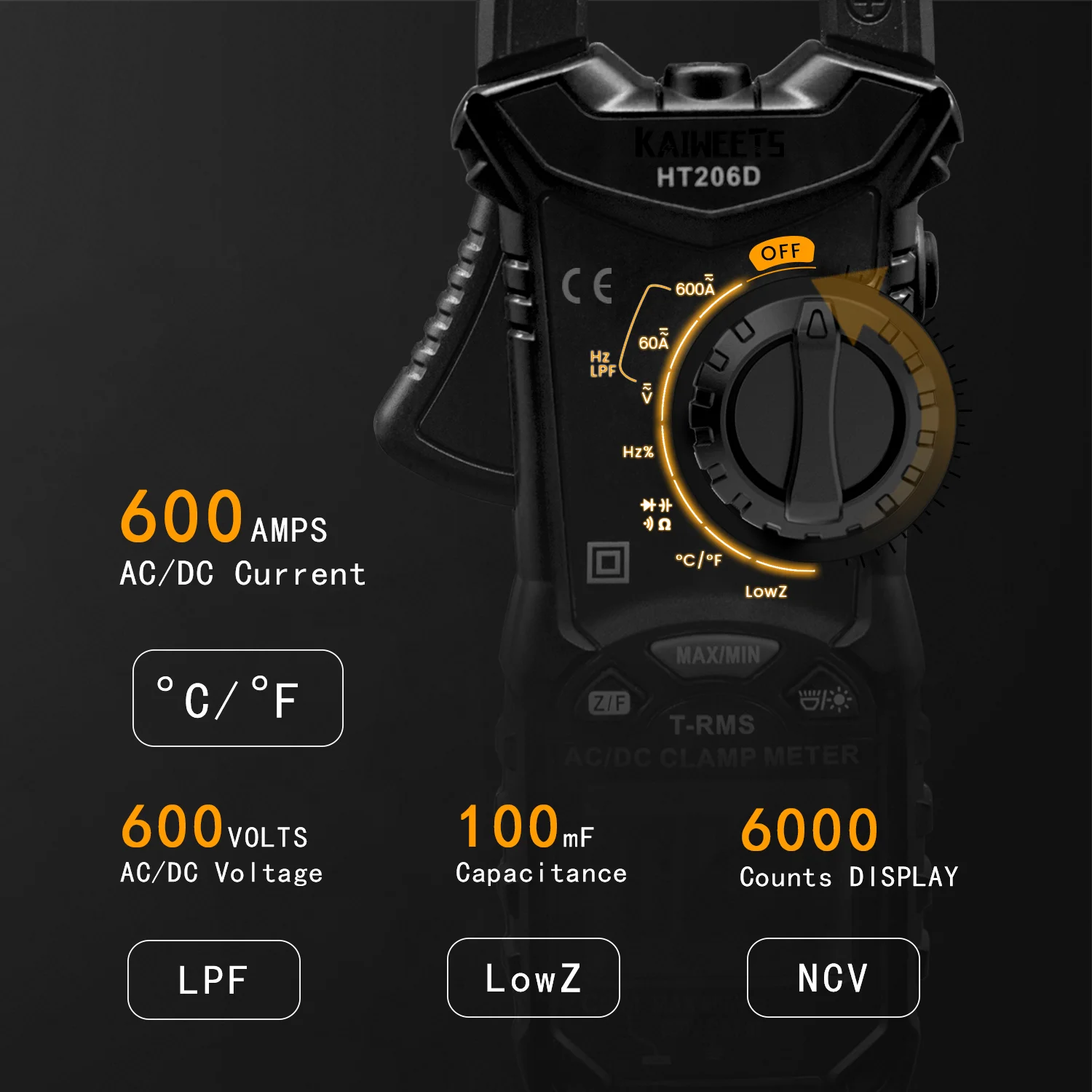

• Measures AC/DC current, AC/DC voltage, frequency or duty cycle, resistance, capacitance, diodes and continuity
• 6000 counts
• Auto-ranging
• Safety standard: IEC 61010-1, CAT III 600V
• Double insulation

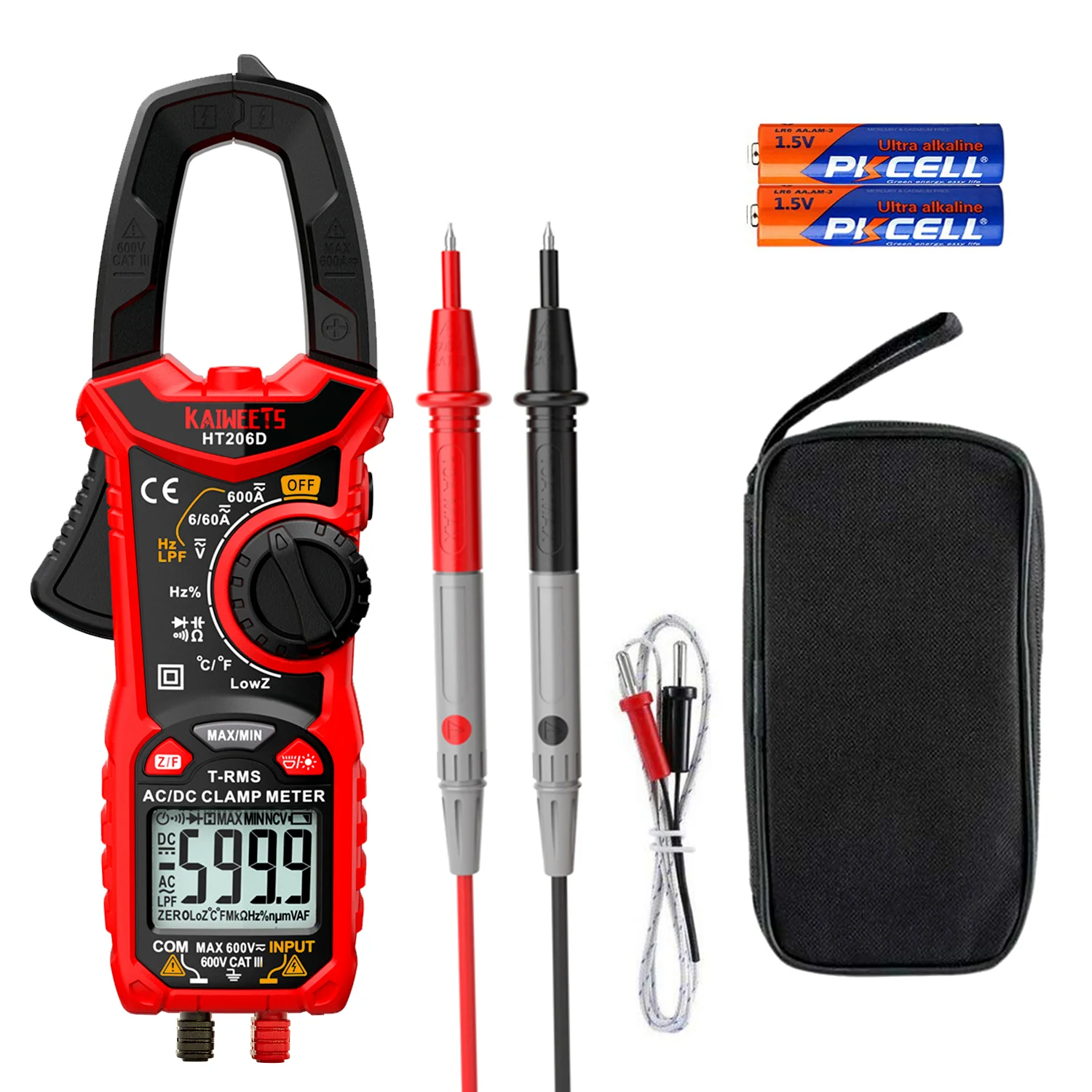

What's in the Box

• K-Type Thermocouple

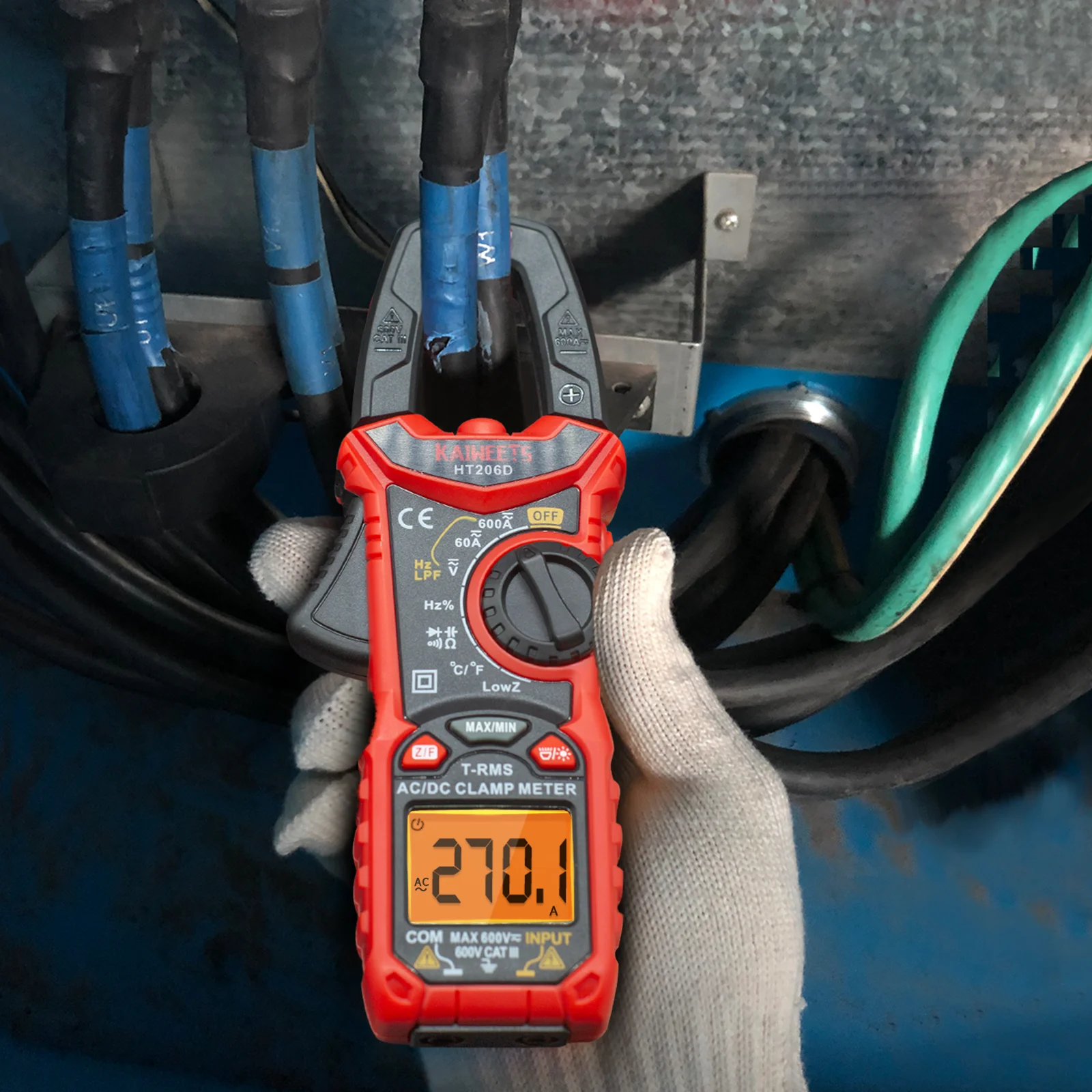

To measure current, clamp the meter around one of the wires rather than the whole power cord.
