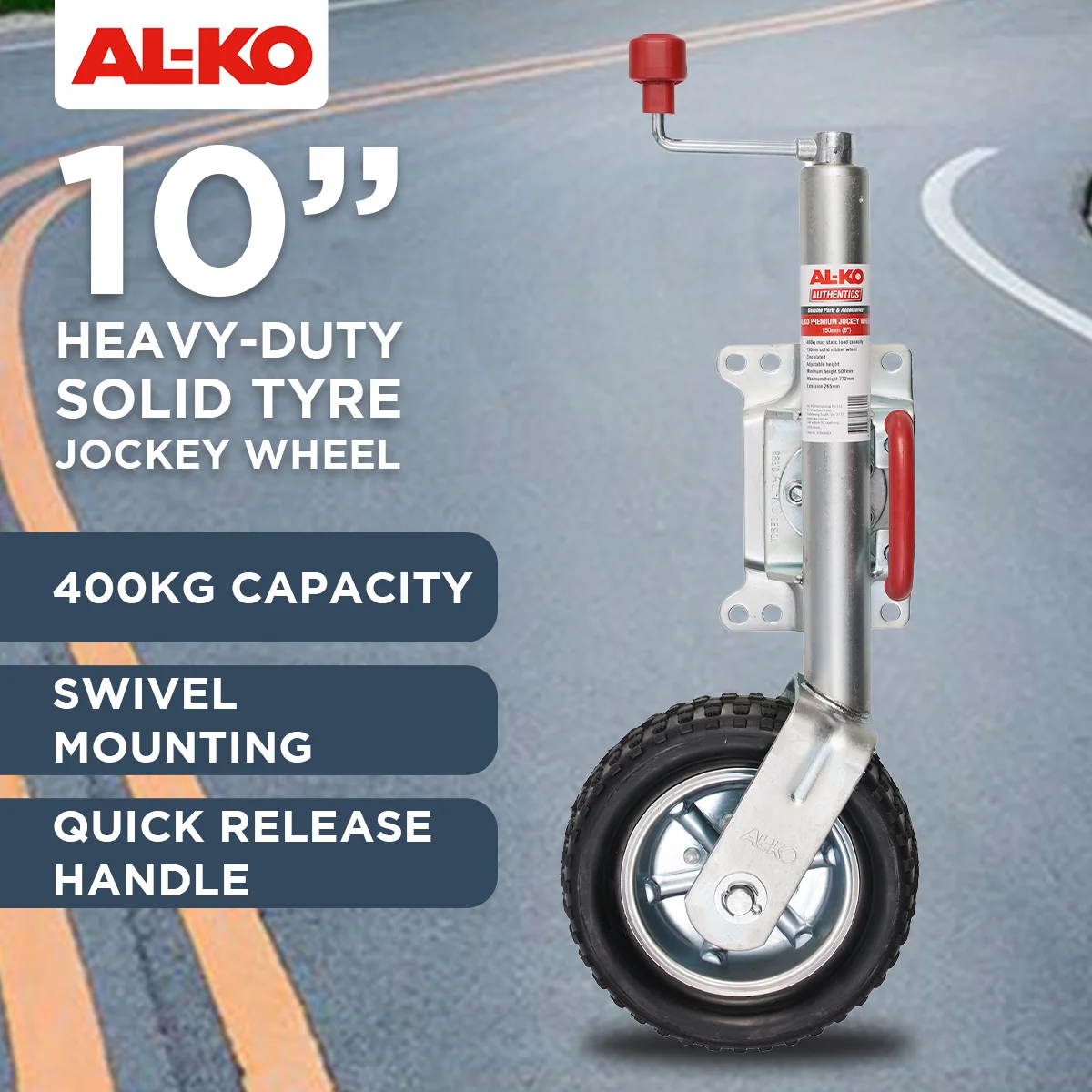

AL-KO 10 Inch Heavy-Duty Solid Tyre Swivel Jockey Wheel 400kg

The AL-KO 10 inch heavy-duty swivel jockey wheel makes coupling and uncoupling your trailer or caravan quicker and easier, with a swing mount that stores the wheel horizontally so it never needs removing. Built for serious touring, it combines a 400kg static weight capacity with a solid rubber tyre that handles soft or uneven ground.

Key Features

• 400kg static weight capacity for heavy-duty use

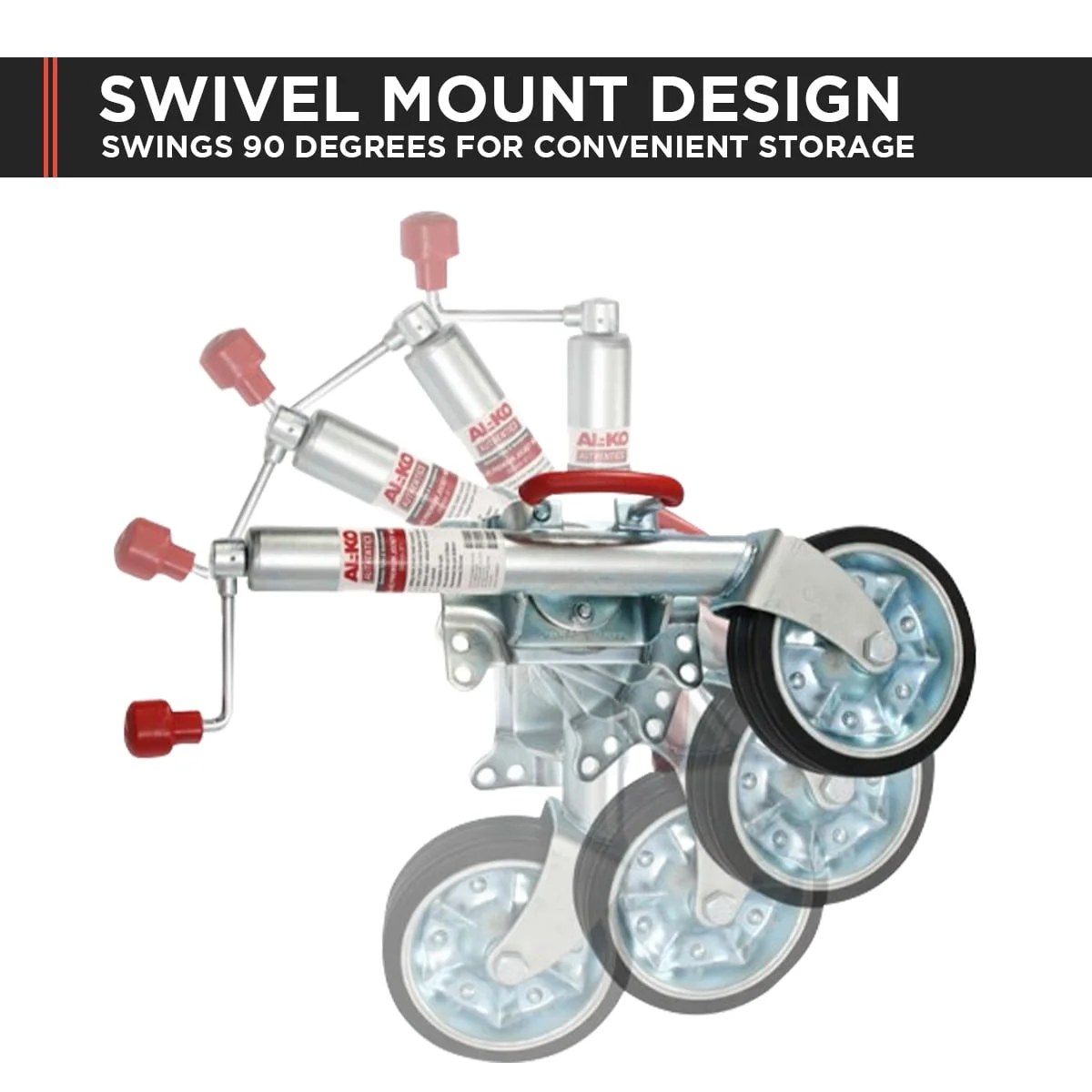

• Convenient swivel mount swings the shaft into a horizontal position for storage
• Quick-release handle

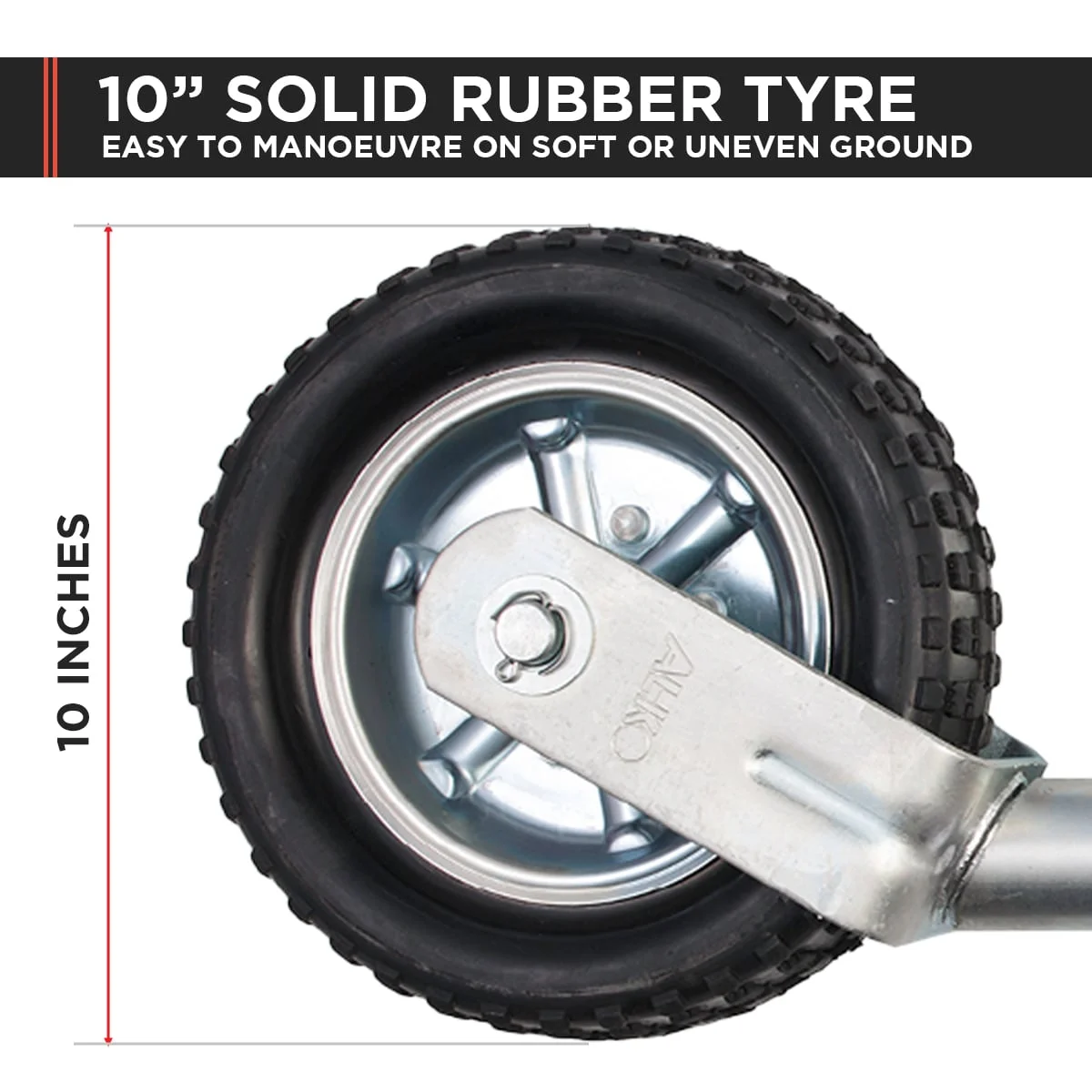

• 10-inch solid rubber tyre suited to a variety of surfaces, including soft or uneven ground

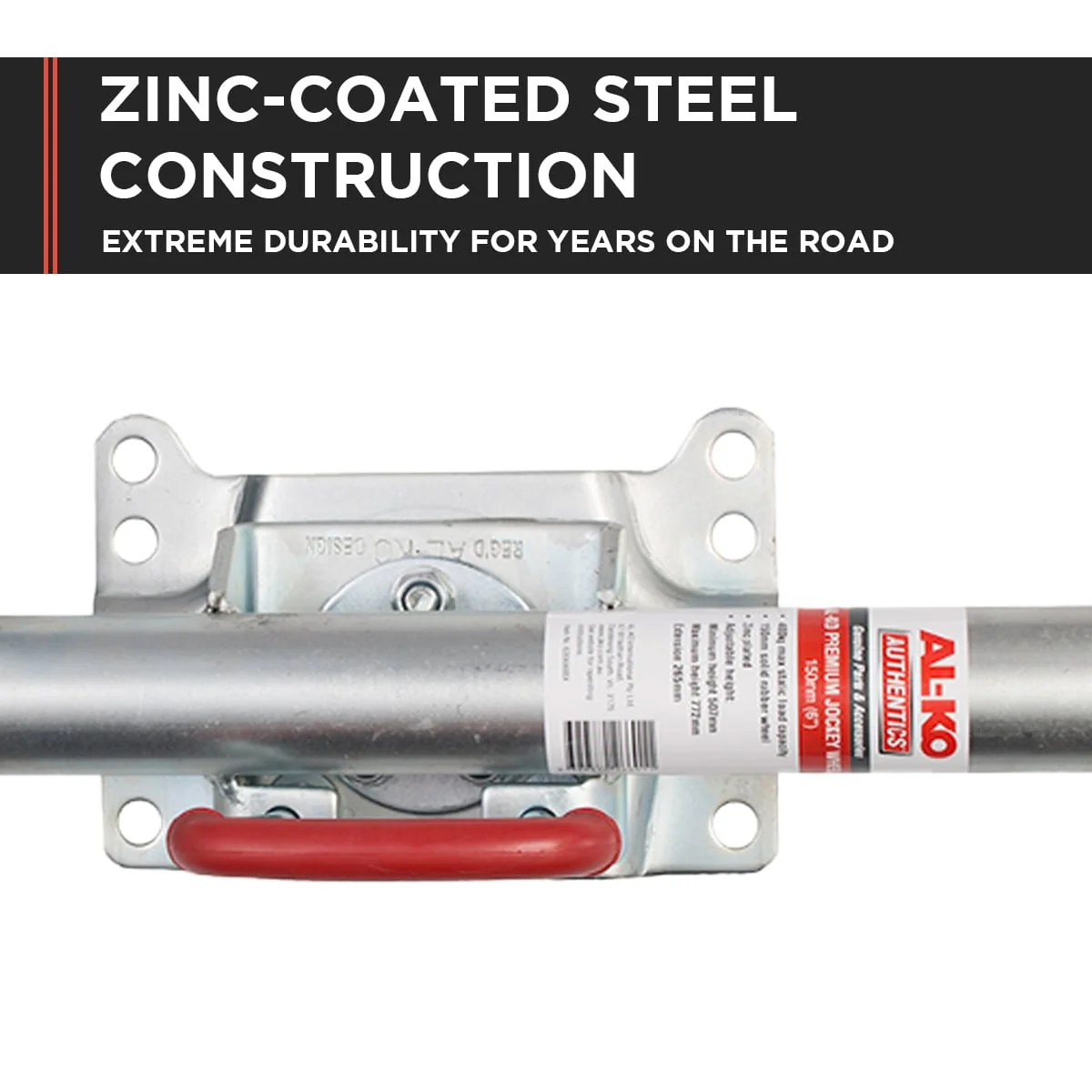

• Zinc-coated shaft for corrosion resistance
• Bolt-on swivel bracket for easy installation on your drawbar (U-bolts not included)

Specifications

• Brand: AL-KO
• Type: Swivel
• Maximum weight capacity: 400kg (static)
• Frame: Steel
• Wheel size: 10 inch (250mm)
• Tyre: Solid rubber
• Tube outside diameter: 48mm

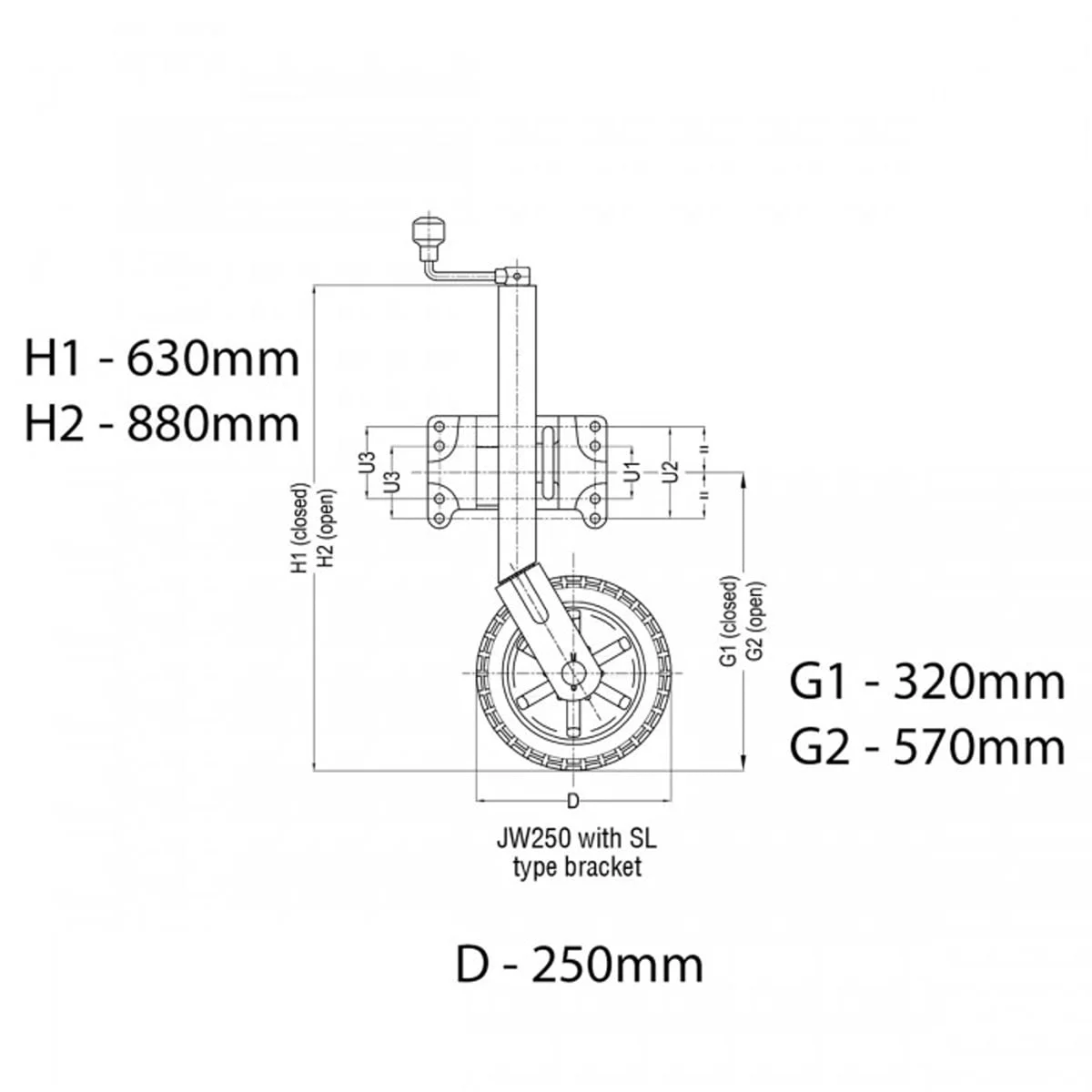

• Closed height (H1): 630mm
• Open height (H2): 880mm
• Maximum extension: 250mm
• Lift range: 320mm to 570mm between the ground and the centre of your drawbar
• Width: 185mm
• Weight: 11kg

What's in the Box

• 1 x AL-KO 10 inch jockey wheel
