Della Francesca 90cm Frameless Diamond Shower Screen with Gold U-Brackets

The Della Francesca 90cm Frameless Diamond Shower Screen brings a striking diamond corner configuration to your bathroom, maximising usable shower space while showcasing your tiles through crystal-clear tempered glass. Brushed gold U-brackets, hinges and a square knob handle complete a sleek, contemporary look.

Key Features

• Diamond corner configuration adds architectural flair and optimises shower space
• Frameless design removes hard-to-clean channels and corners
• 10mm tempered glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual-action opening inwards and outwards
• Hinges self-close from the 25-degree position
• Solid brass square knob handle resists rust and corrosion

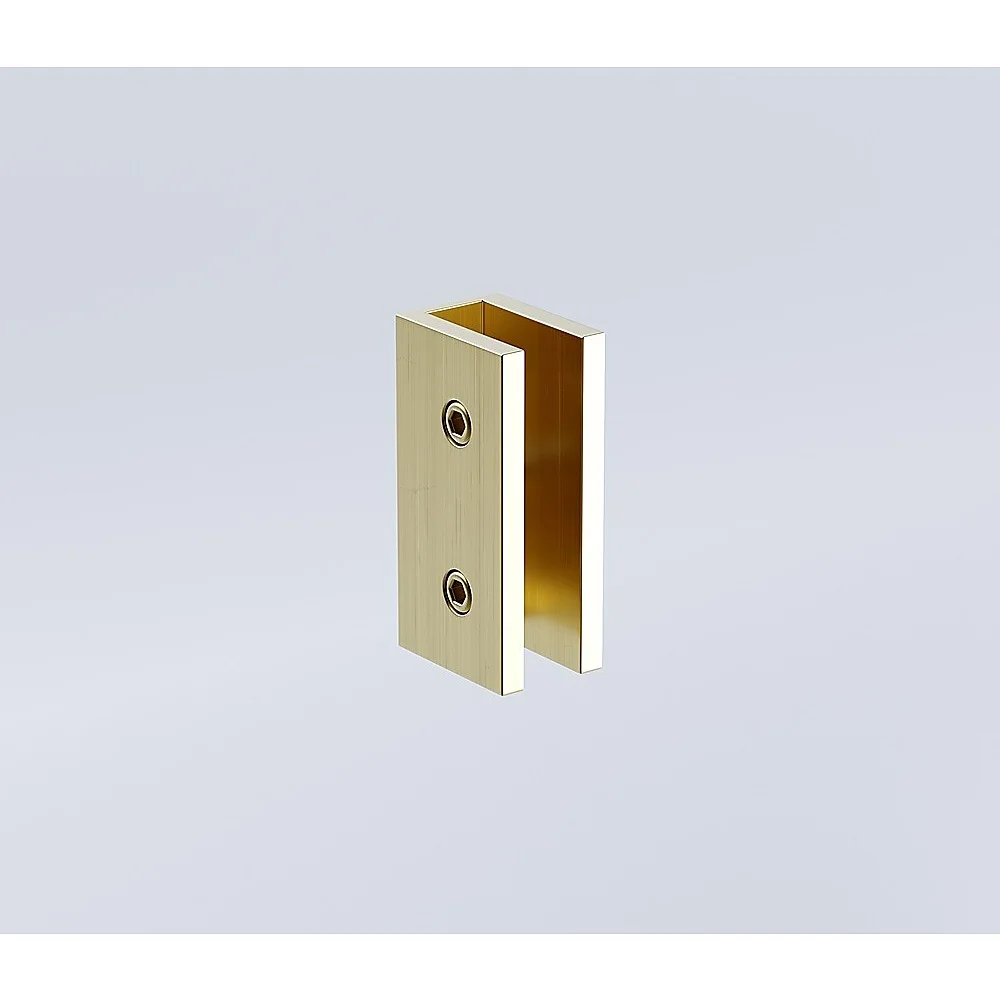

• Glass-to-wall or floor U-brackets with concealed fixing for a streamlined finish
• U-brackets require no glass drilling, secured by compression screws
• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint

Specifications

• Size: 90cm
• Colour: Gold
• Bracket type: U-brackets
• Handle type: Square knob
• Door panel: 615 x 1990mm, 10mm glass

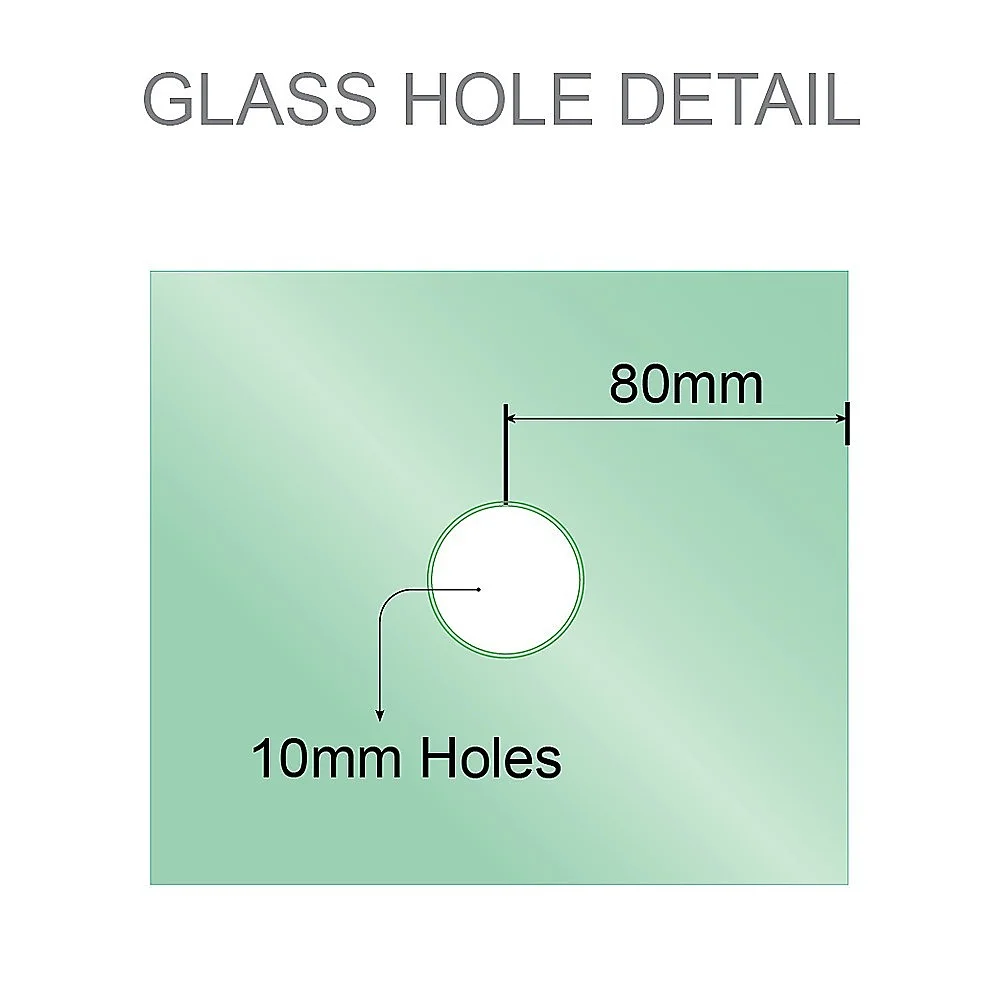

• Door handle hole: 10mm
• Hinged panel: 440 x 2000mm, 10mm glass
• Fixed panel: 440 x 2000mm, 10mm glass

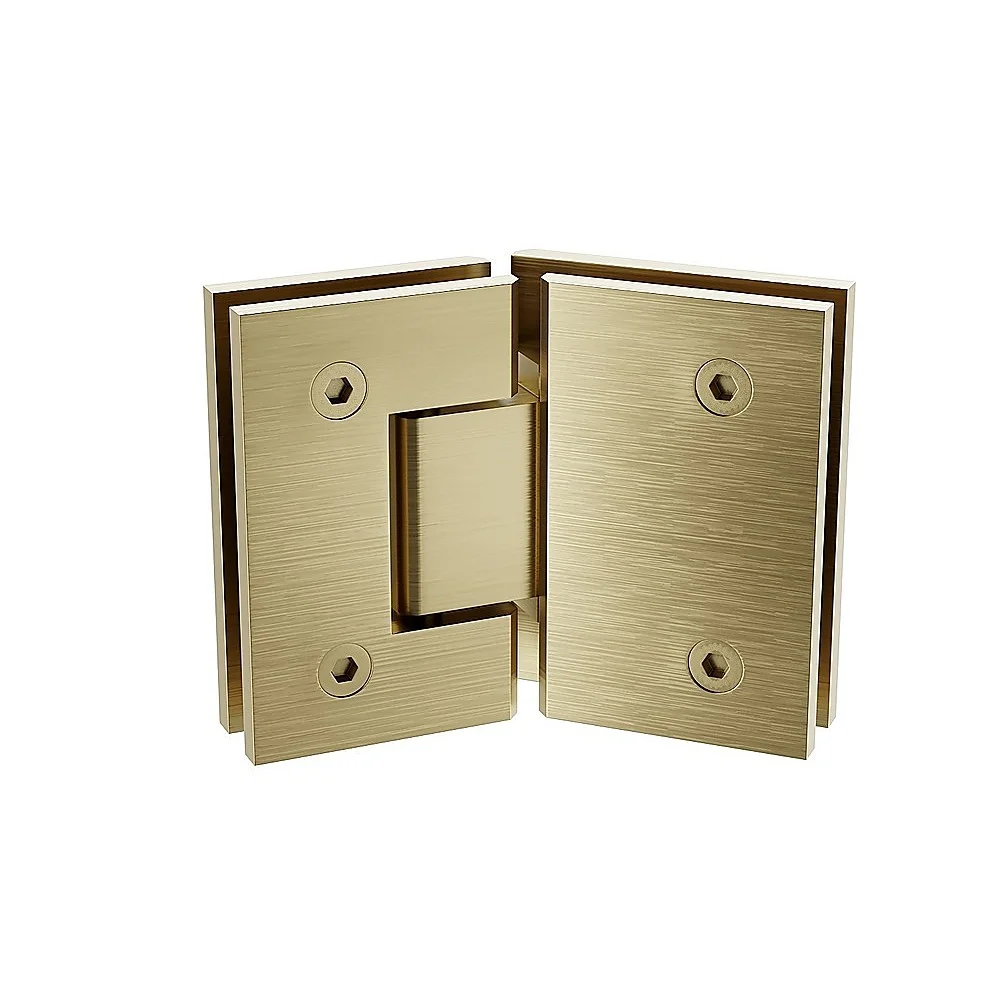

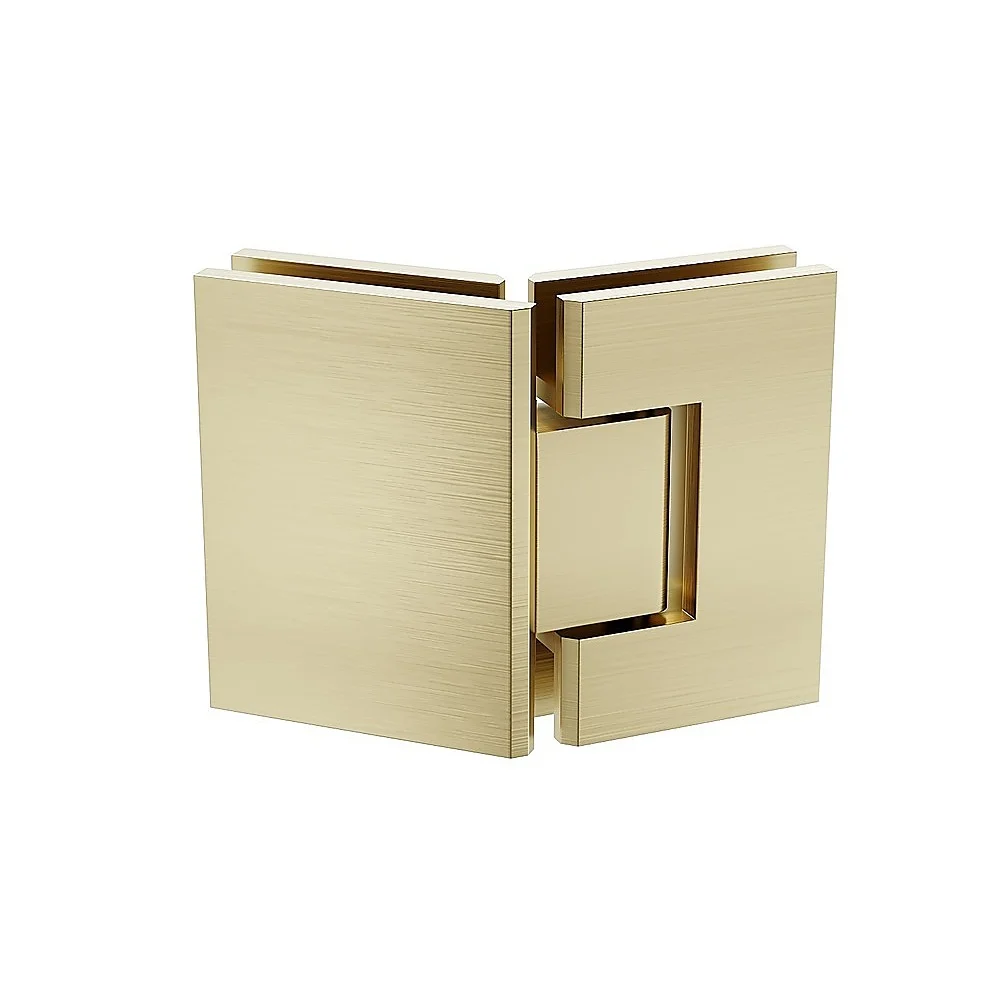

• Hinge: 135-degree glass-to-glass, stainless steel, brushed gold, for 10mm glass, maximum weight 45kg

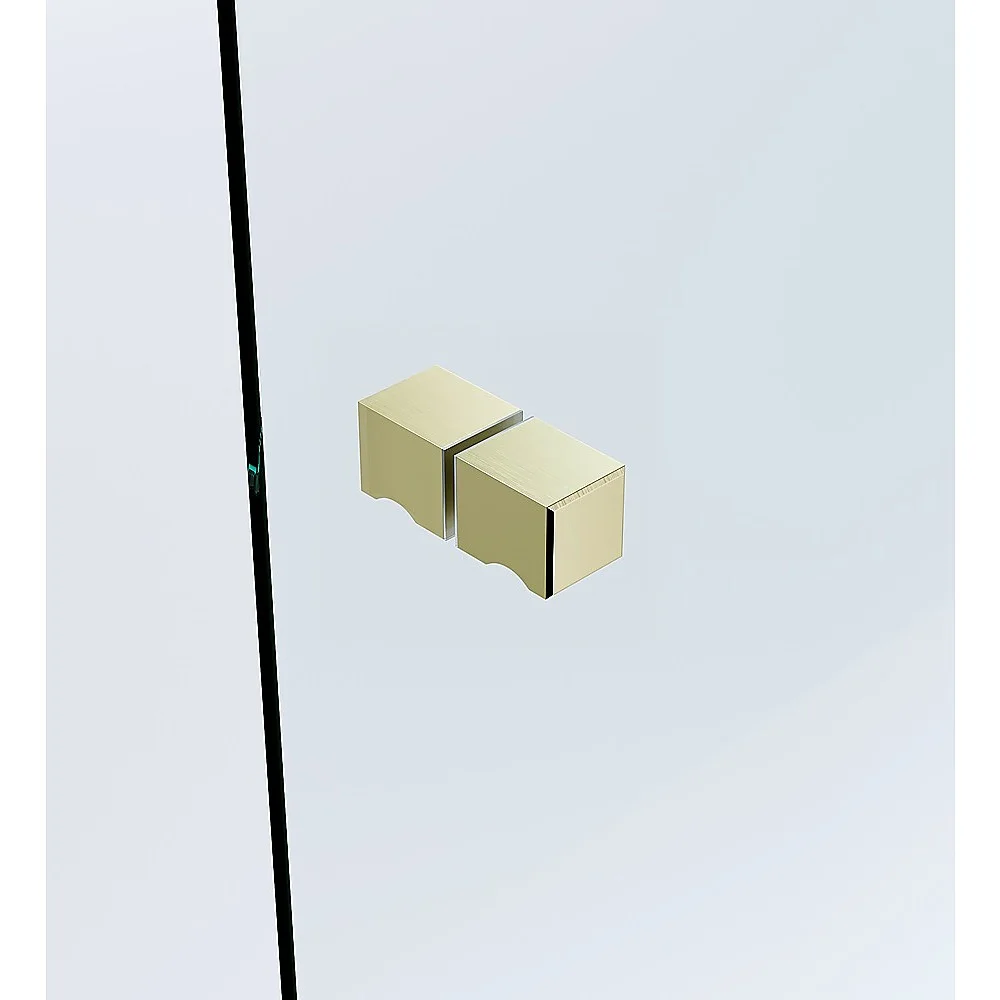

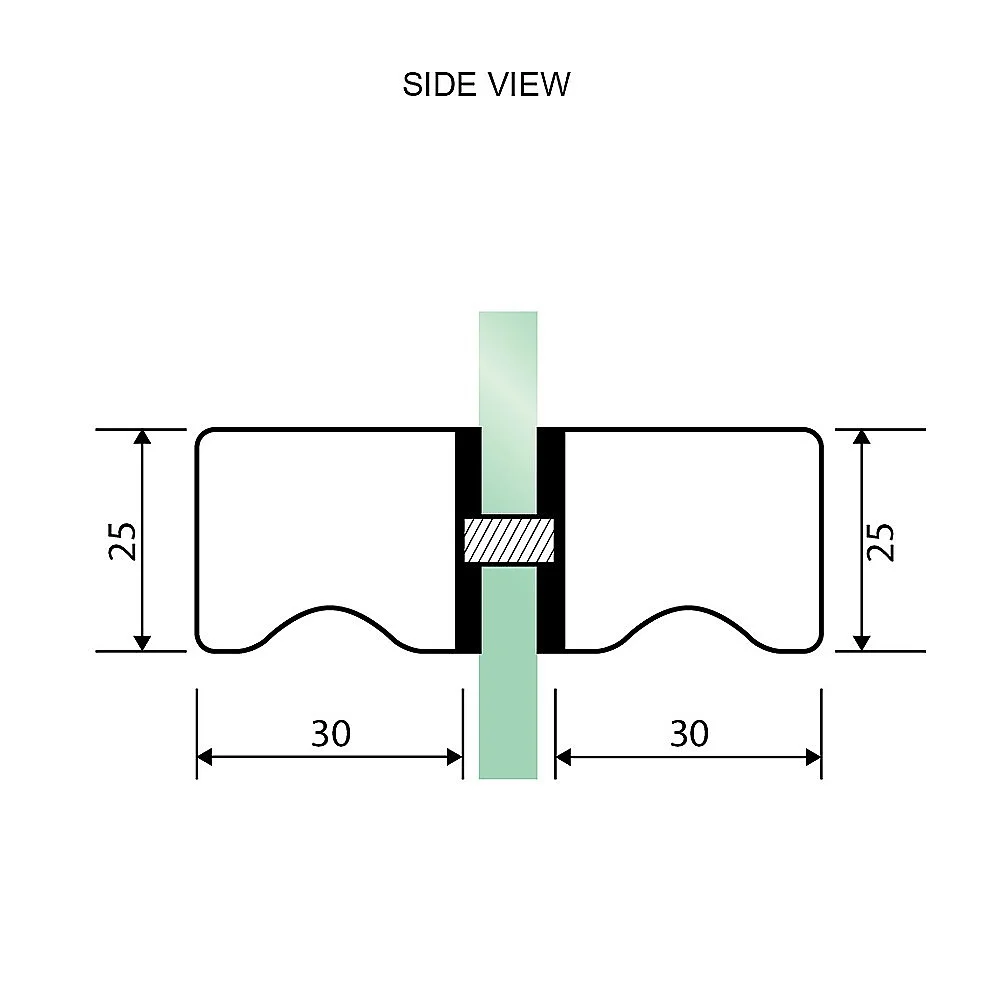

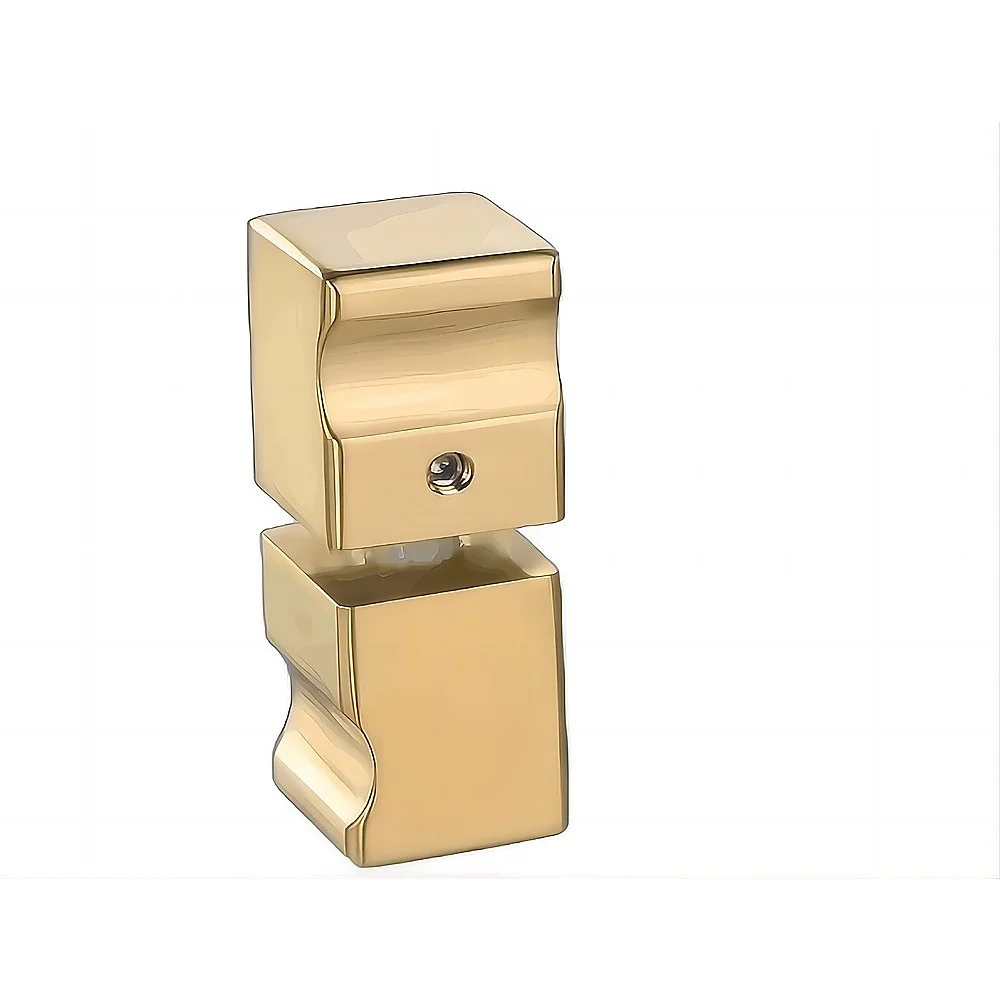

• Handle: 25mm brass knob button pull, suits 6mm, 8mm, 10mm and 12mm thick glass, brushed gold

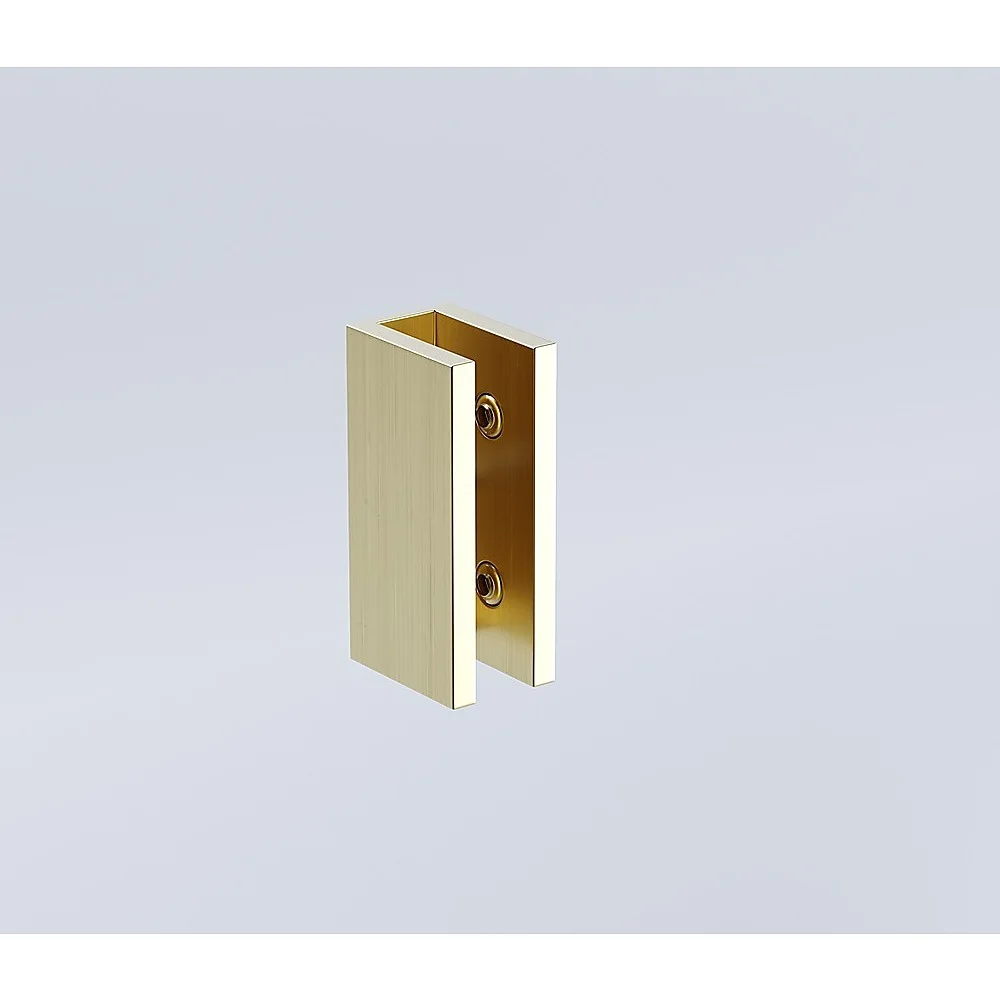

• U-bracket: for 10mm glass, solid brass, brushed gold, supplied with 1 fixing screw and clear gaskets

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the indicated accessories in the specified colour are included.

What's in the Box

• 1 x 61 x 199cm frameless door panel
• 1 x 440mm clear glass fixed panel
• 1 x 440mm clear glass hinged panel
• 1 x 135-degree glass-to-glass stainless steel square shower hinge in brushed gold
• 1 x 25mm brass square knob handle in brushed gold
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gold
• Fixing screw and clear gaskets for brackets
• Plastic gaskets for handle
