Della Francesca 90cm Frameless Diamond Shower Screen Brushed Gold U-Brackets

Create a striking centrepiece in your bathroom with the Della Francesca 90cm frameless diamond shower screen, complete with brushed gold U-brackets, stainless steel hinges and a square double pull handle. The diamond corner configuration maximises usable shower space while adding architectural flair, and the frameless glass keeps the look clean and easy to maintain.

Key Features

• Diamond corner configuration creates visual interest and maximises usable shower space
• Frameless design eliminates hard-to-clean channels and corners
• 10mm tempered glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action opening inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees
• Solid brass double pull handle resists rust and corrosion
• Glass-to-wall or floor U-brackets with concealed fixing design
• U-brackets require no glass drilling, secured by two compression/friction screws
• Slimline 2mm rear wall on U-brackets minimises the gap for a neater silicone joint
• Brushed gold finish across brackets and handle

Specifications

• Size: 90cm
• Colour: Gold
• Bracket type: U-Brackets
• Handle type: Square double pull
• Door panel: 615 x 1990mm, 10mm glass

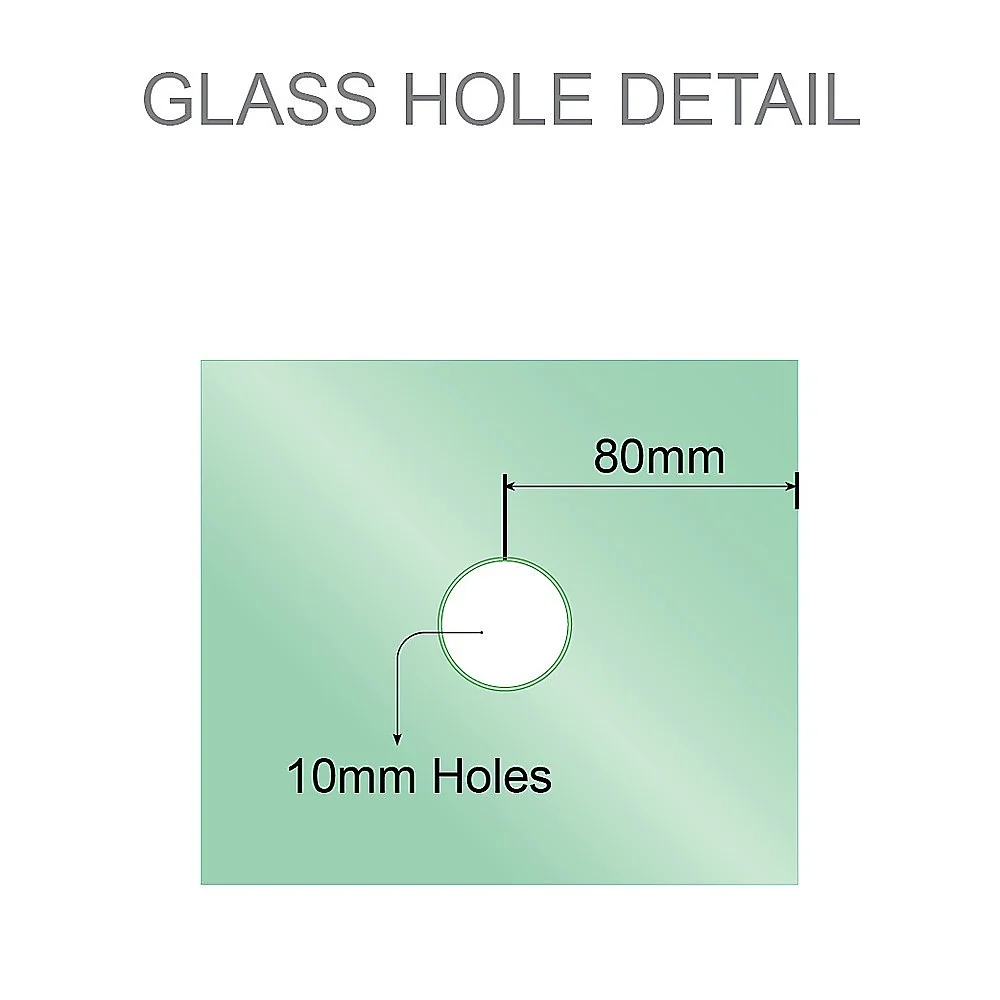

• Door handle hole: 10mm

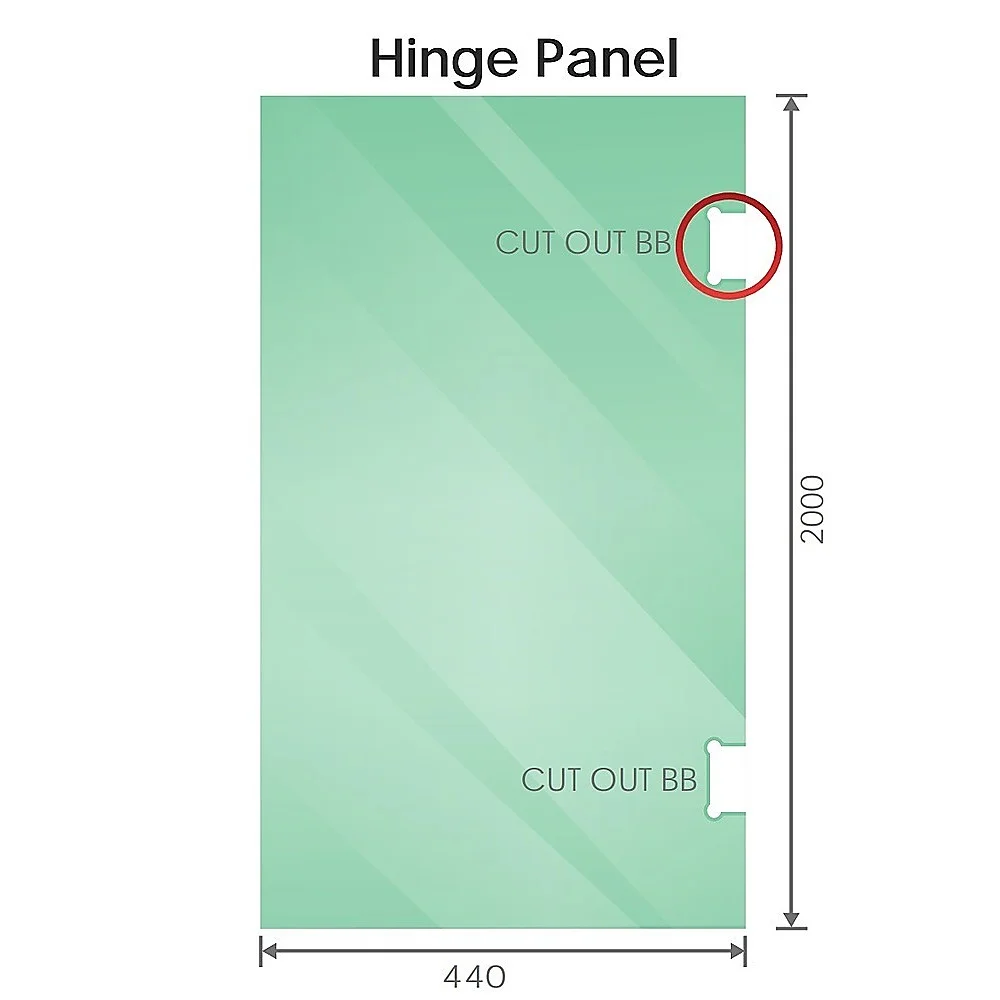

• Hinged panel: 440 x 2000mm, 10mm glass
• Fixed panel: 440 x 2000mm, 10mm glass
• Hinge glass thickness: 10mm
• Hinge maximum weight: 45kg
• Hinge finish: Brushed gold

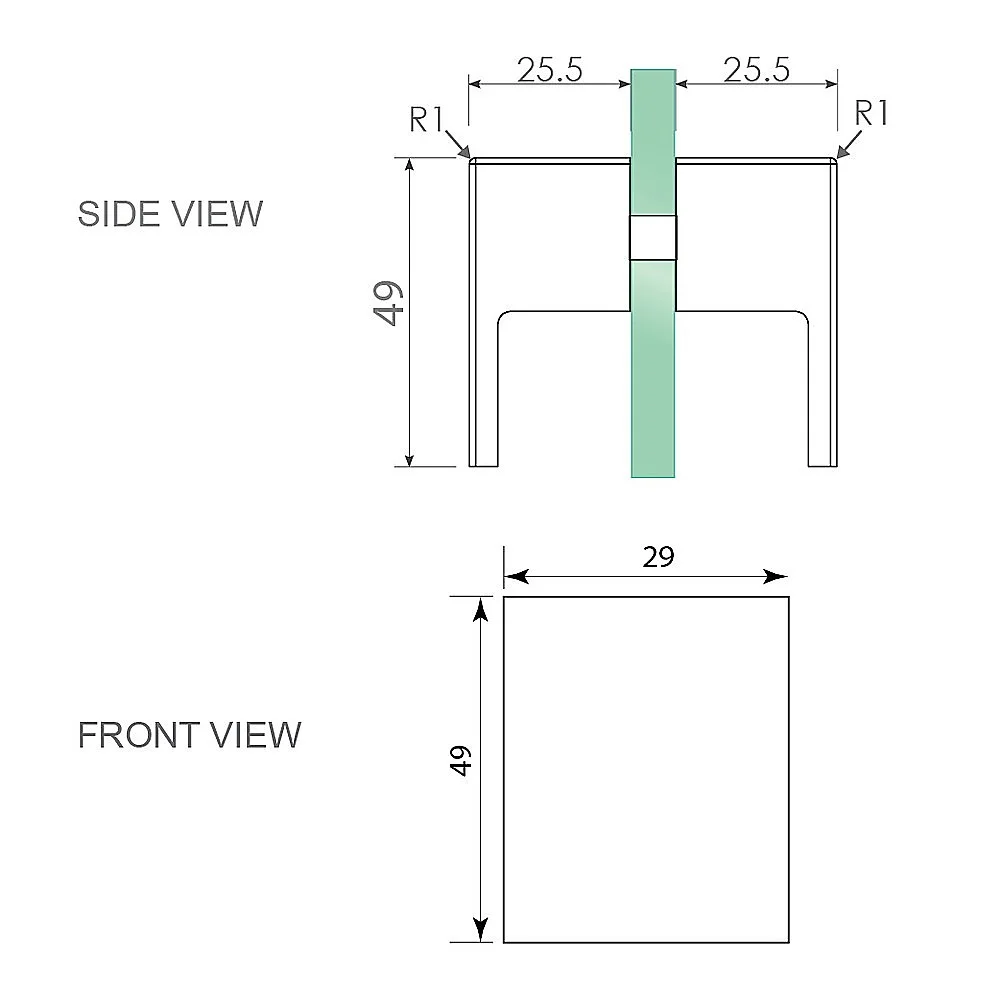

• Handle: 49mm x 25mm double pull knob, solid brass
• Handle suits 6mm, 8mm, 10mm and 12mm thick glass
• Handle finish: Brushed gold
• U-bracket suits 10mm glass, solid brass, brushed gold finish
• U-bracket fixings: 1 fixing screw and clear gaskets included

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 440mm clear glass fixed and hinged panel set for diamond shower screen

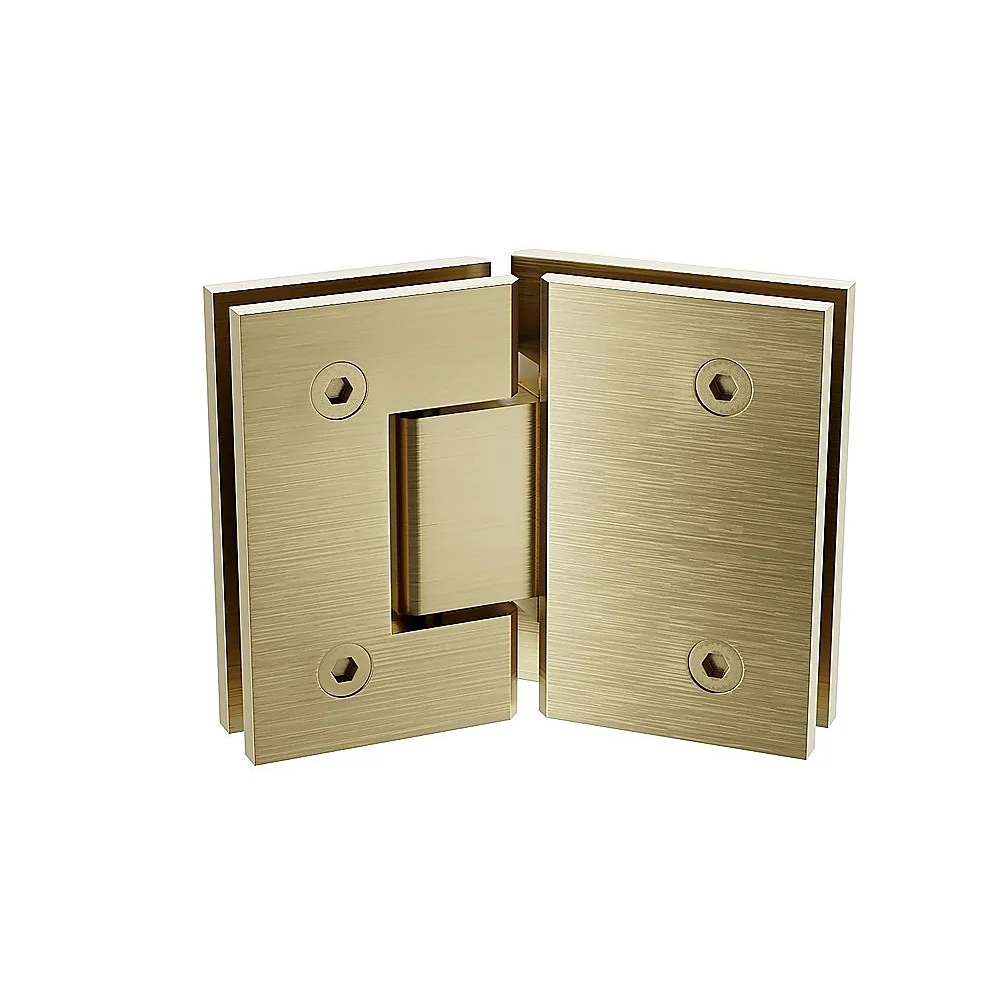

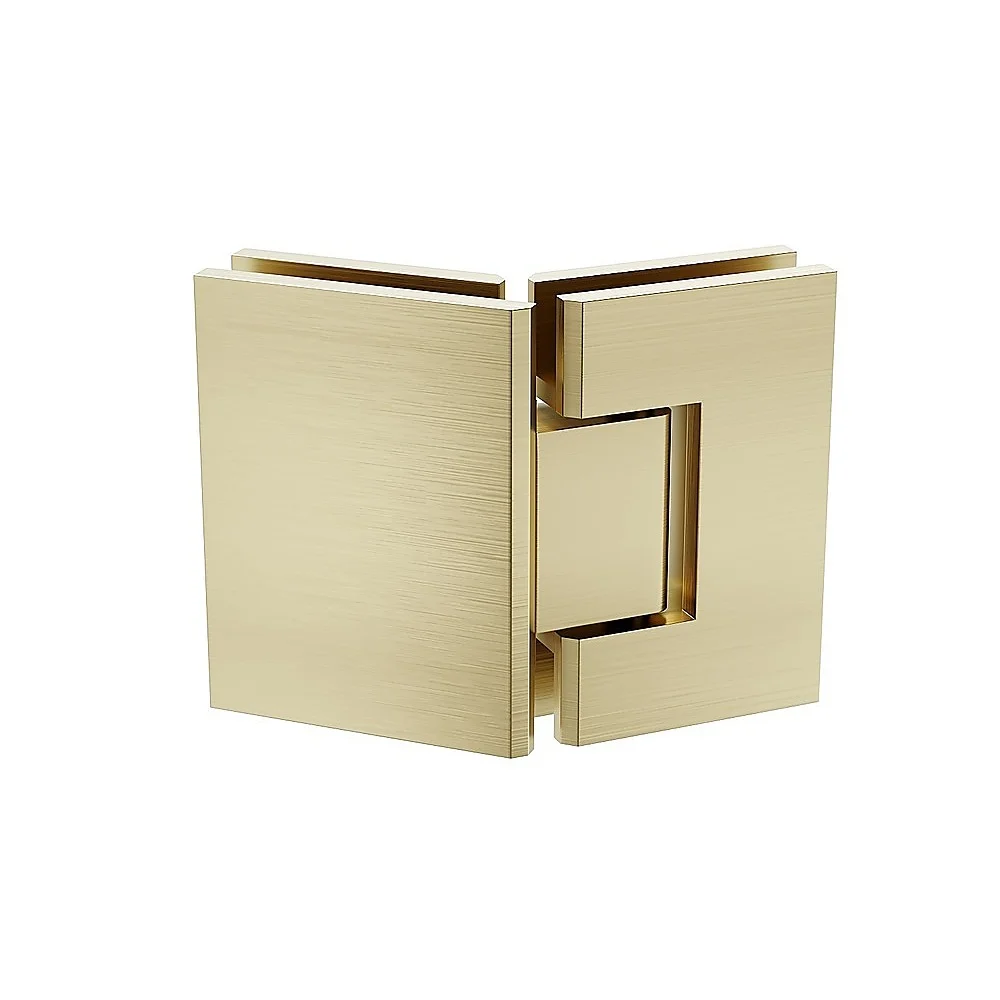

• 1 x 135-degree glass-to-glass square shower hinge in brushed gold

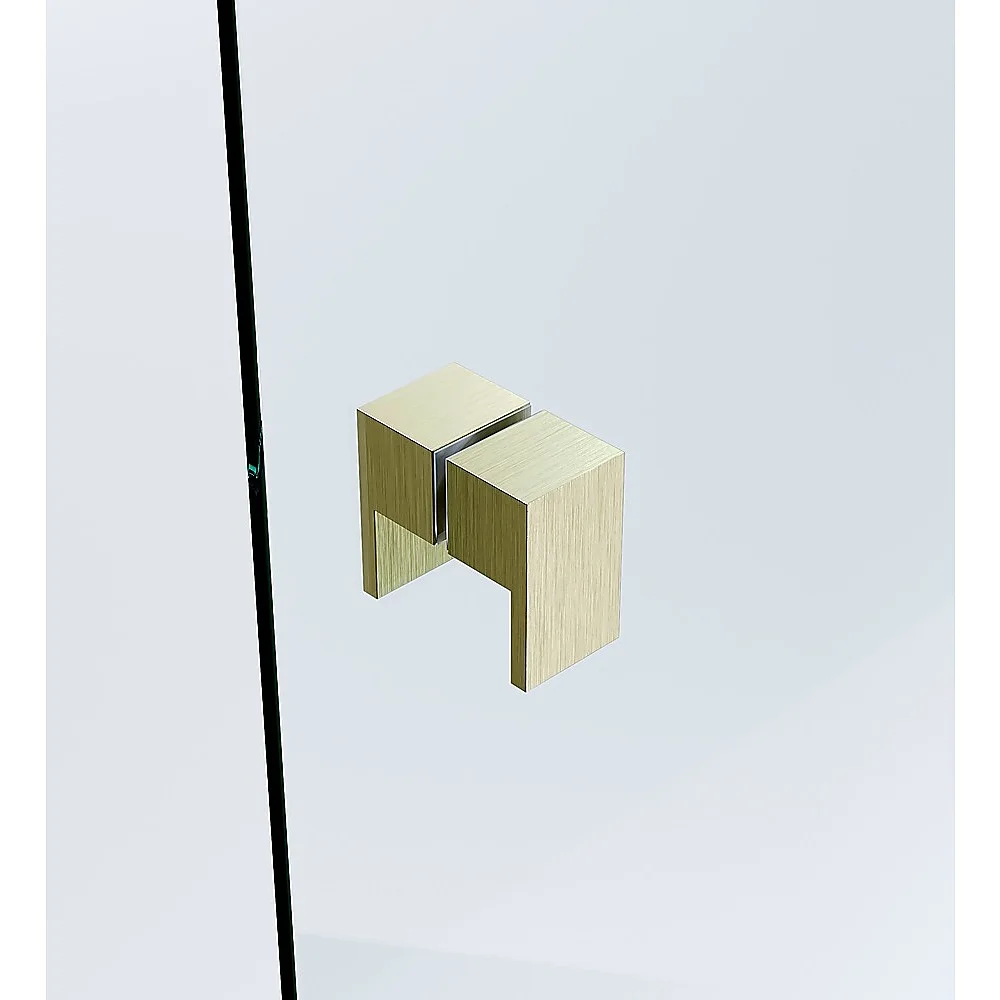

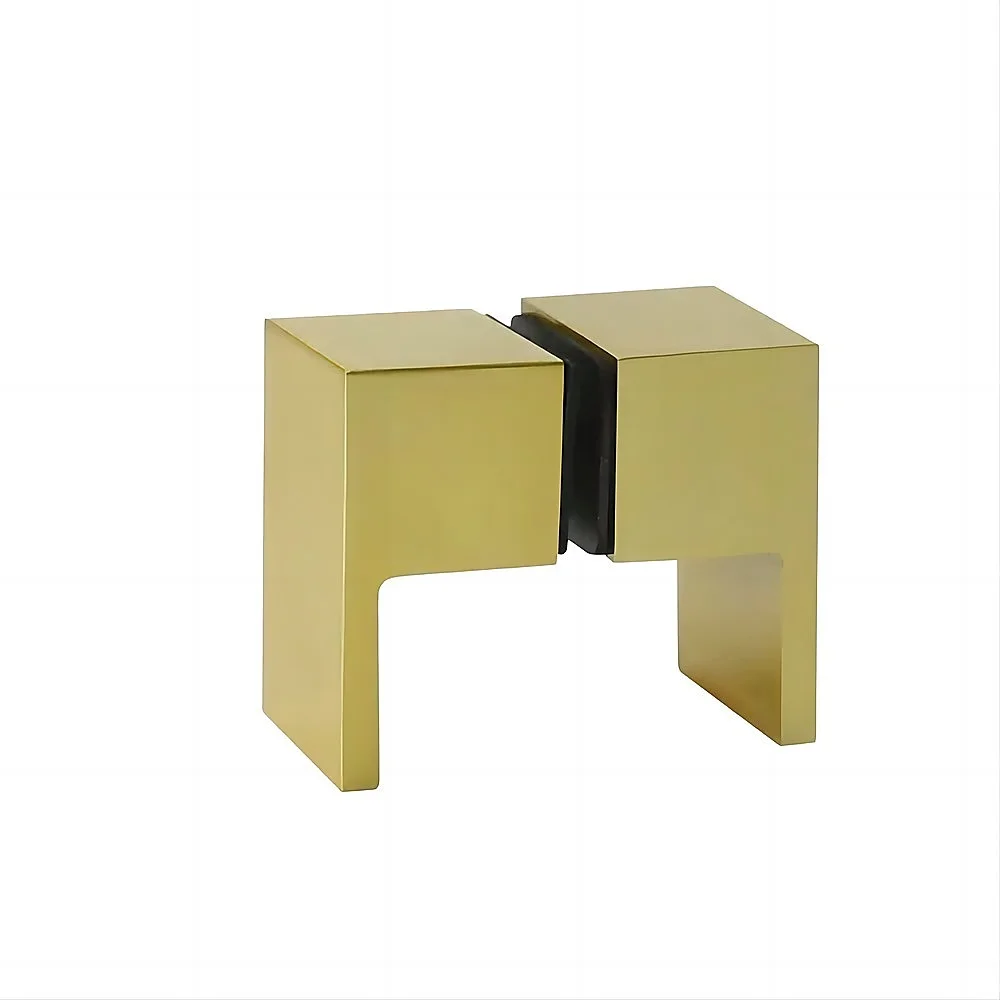

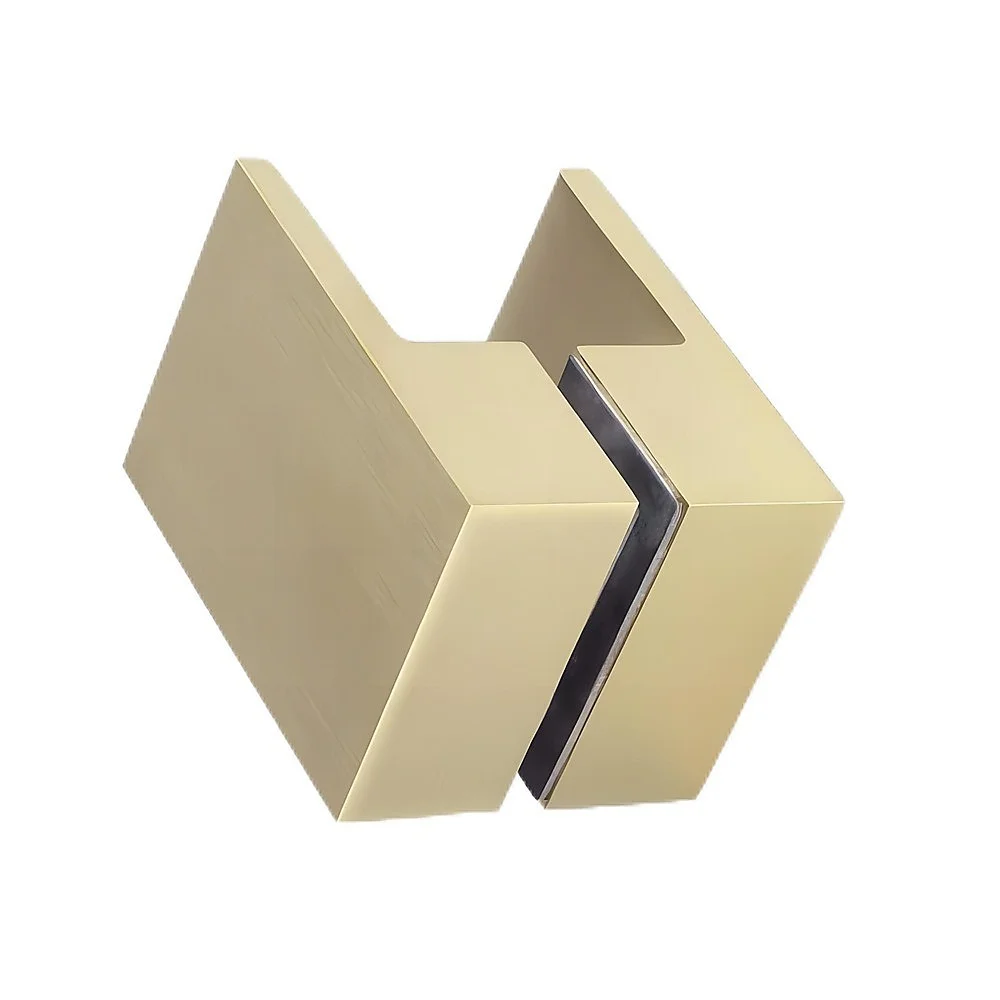

• 1 x 25mm brass shower door double pull handle in brushed gold

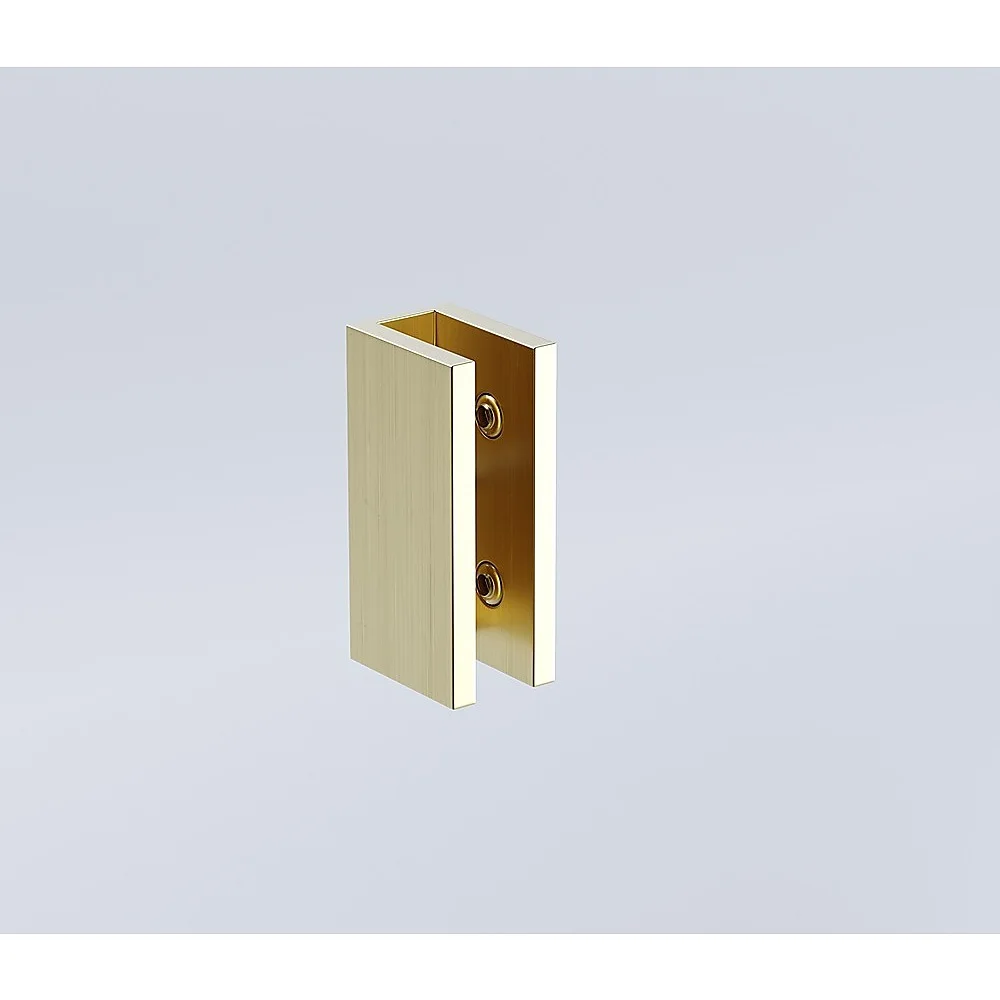

• 4 x 10mm glass-to-wall/floor U-brackets in brushed gold

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories and colours specified above are included.
