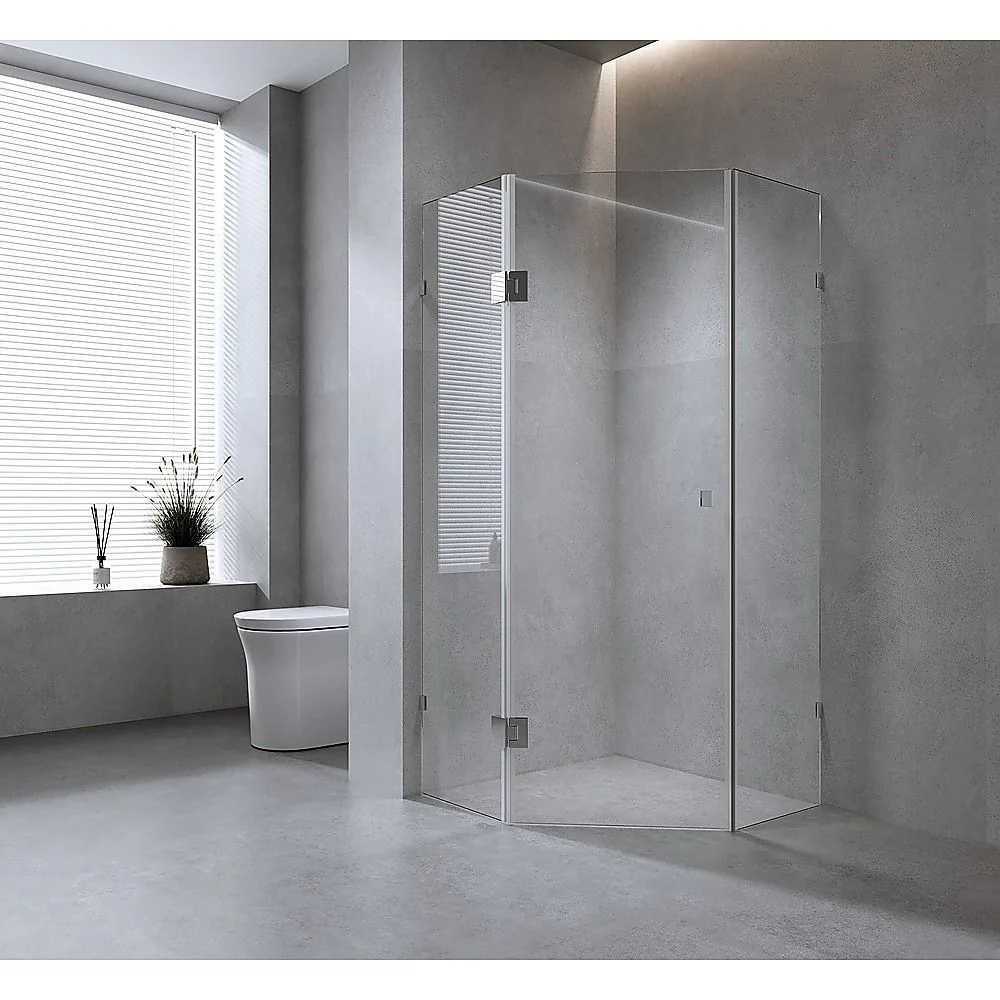

Della Francesca 100cm Frameless Diamond Shower Screen with Brushed Gold U-Brackets & Brass Hinges

The Della Francesca 100cm Frameless Diamond Shower Screen creates an elegant diamond corner enclosure that opens up bathroom space while adding a striking focal point. Crafted from 10mm tempered safety glass and finished with brushed gold brass hardware, it pairs a minimalist frameless look with durable, corrosion-resistant fittings.

Key Features

• Frameless diamond corner configuration maximises space and adds architectural interest

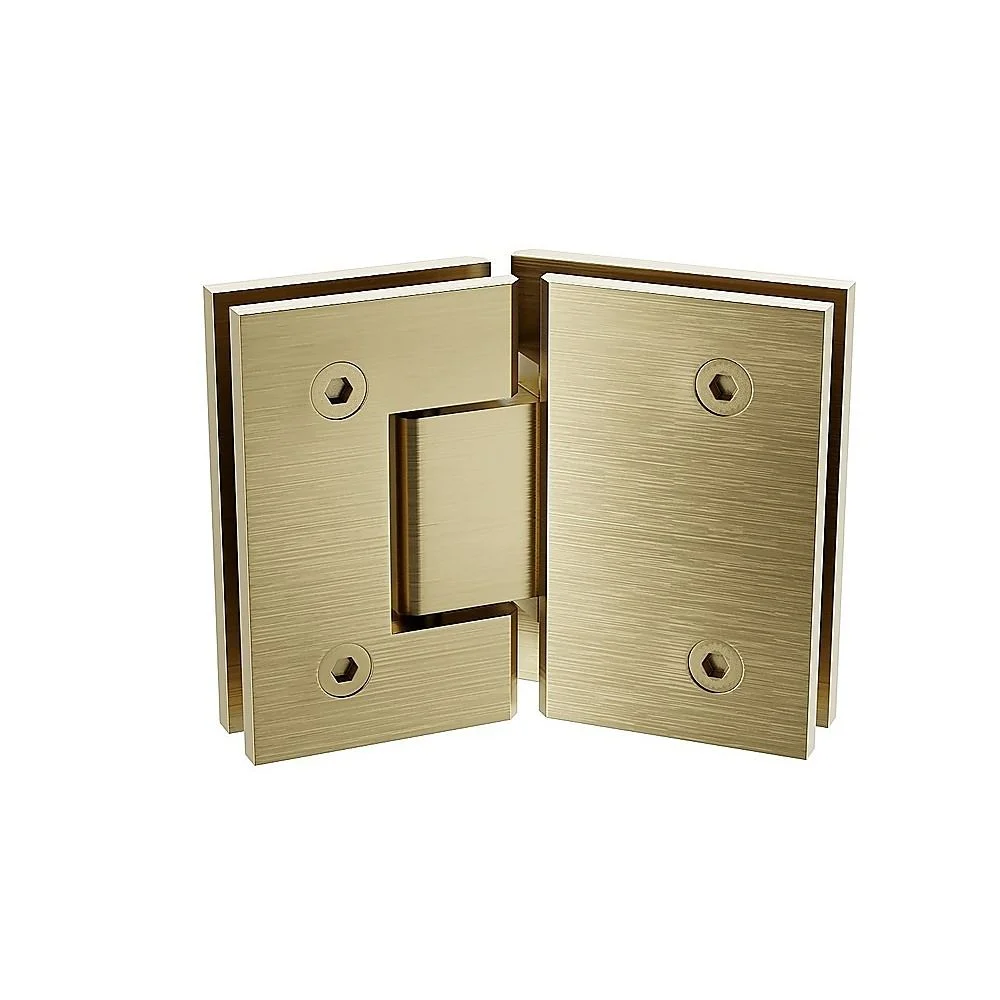

• Solid brass hinges with squared edges and dual-action operation that opens inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees
• 10mm tempered safety glass meeting AS-NZS2208 standard
• Concealed-fixing U-brackets secure fixed glass panels to wall or floor without a support leg
• U-brackets require no glass drilling, using two compression screws for quick installation

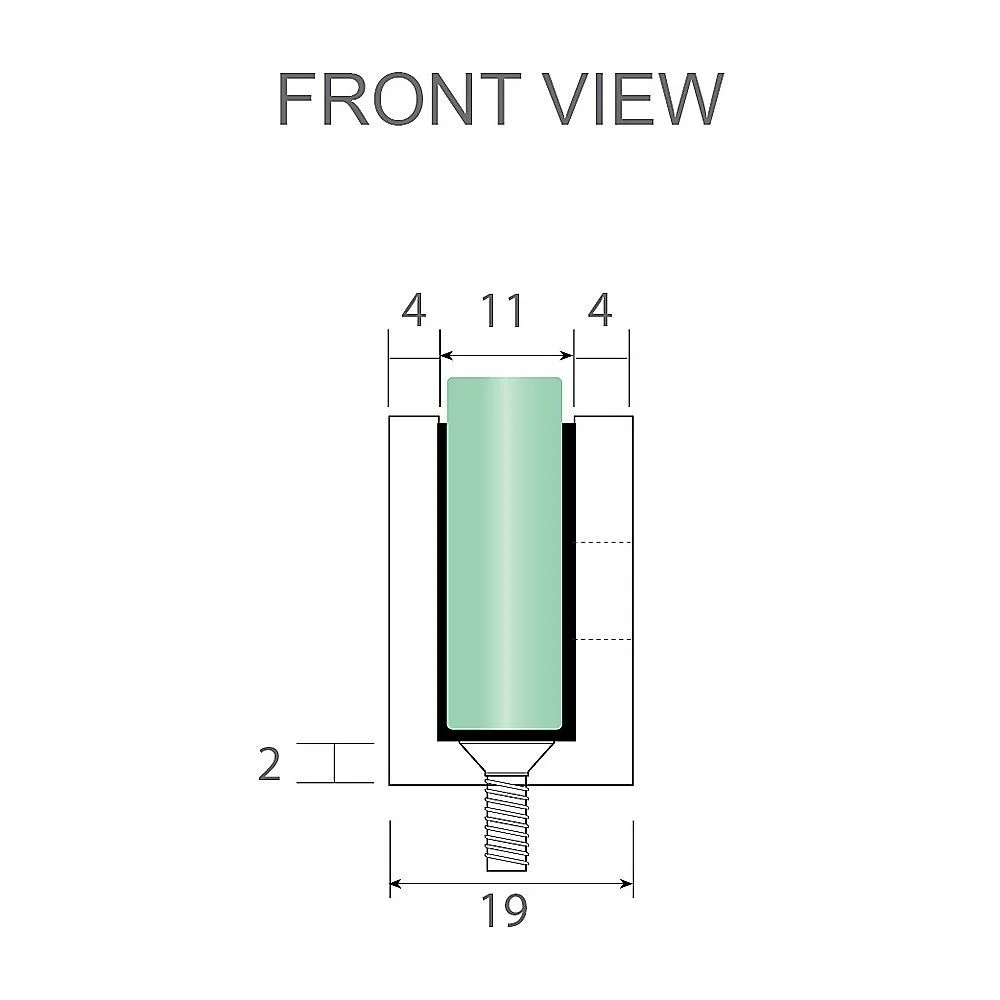

• Slimline 2mm rear wall on brackets minimises the gap for a neater silicone joint

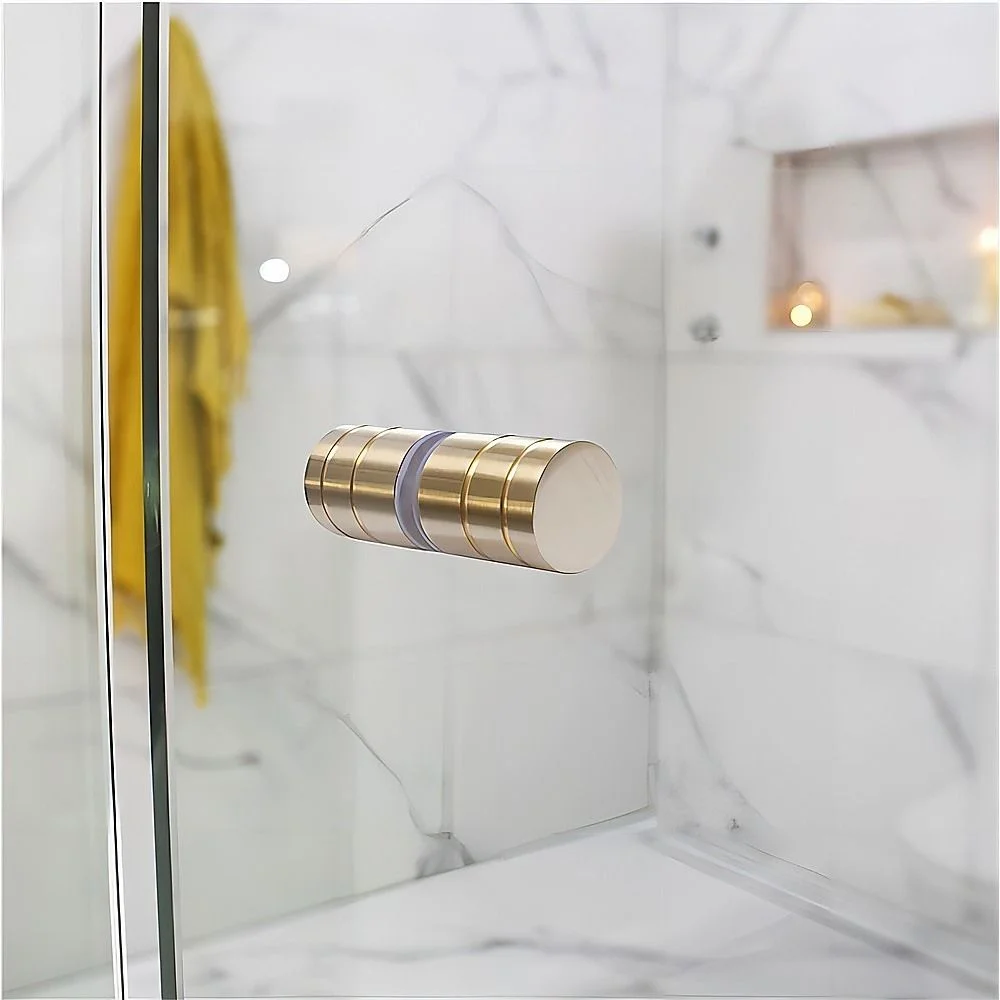

• Round knob handle with two circular grooves, comfortable to touch and resistant to rust and corrosion
• Plastic gaskets included with the handle for added glass protection
• Polished edges and seamless connections for a premium finish

Specifications

• Size: 100cm
• Colour: Gold
• Bracket type: U-Brackets
• Handle type: Round Knob
• Glass thickness: 10mm

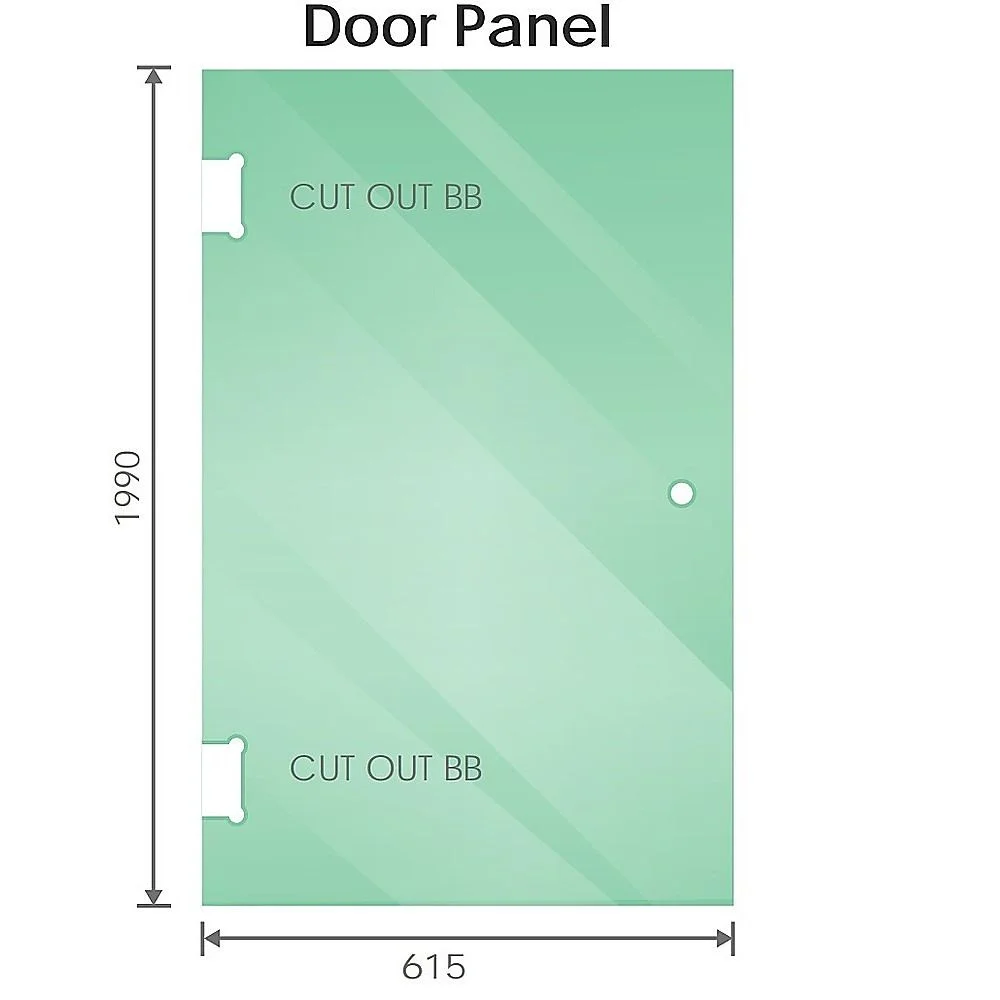

• Door panel: 615 x 1990mm

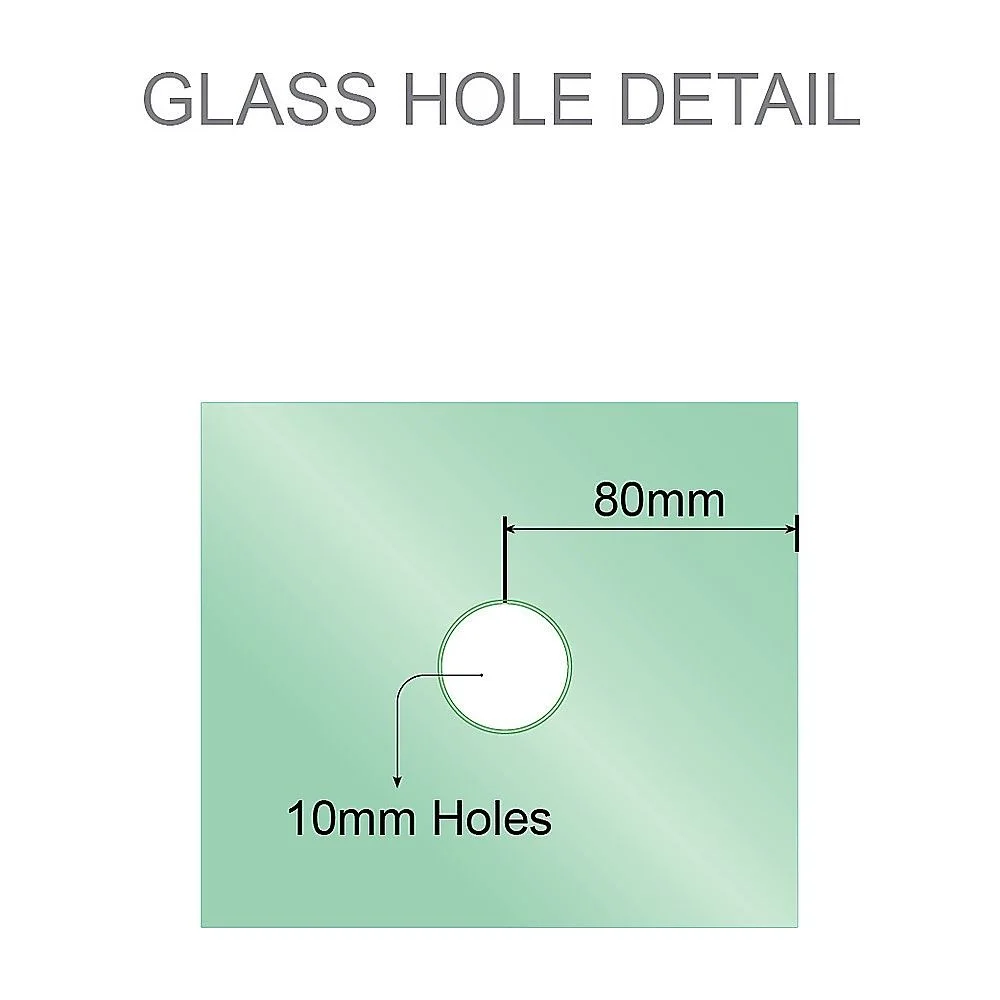

• Door handle hole: 10mm
• Hinged panel: 540 x 2000mm
• Fixed panel: 540 x 2000mm
• Hinge glass thickness: 10mm
• Hinge maximum weight: 45kg
• Hinge finish: Brushed gold

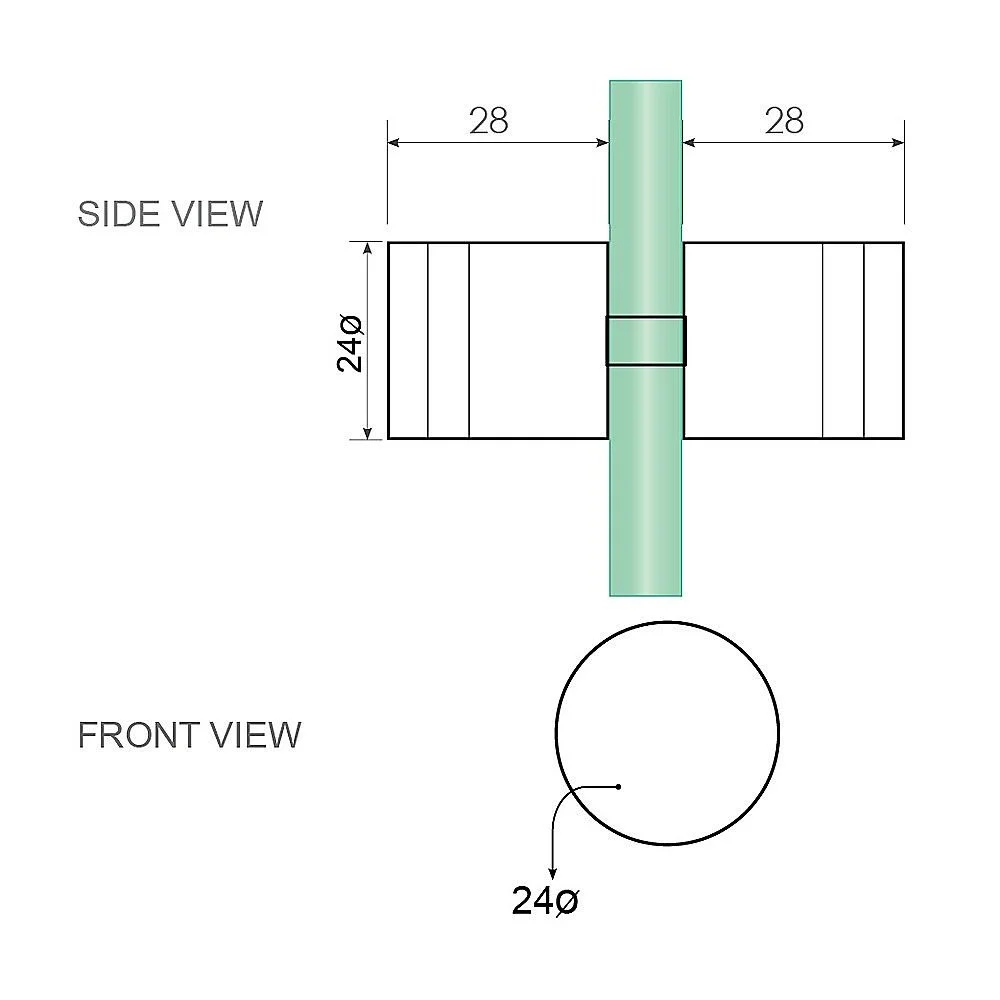

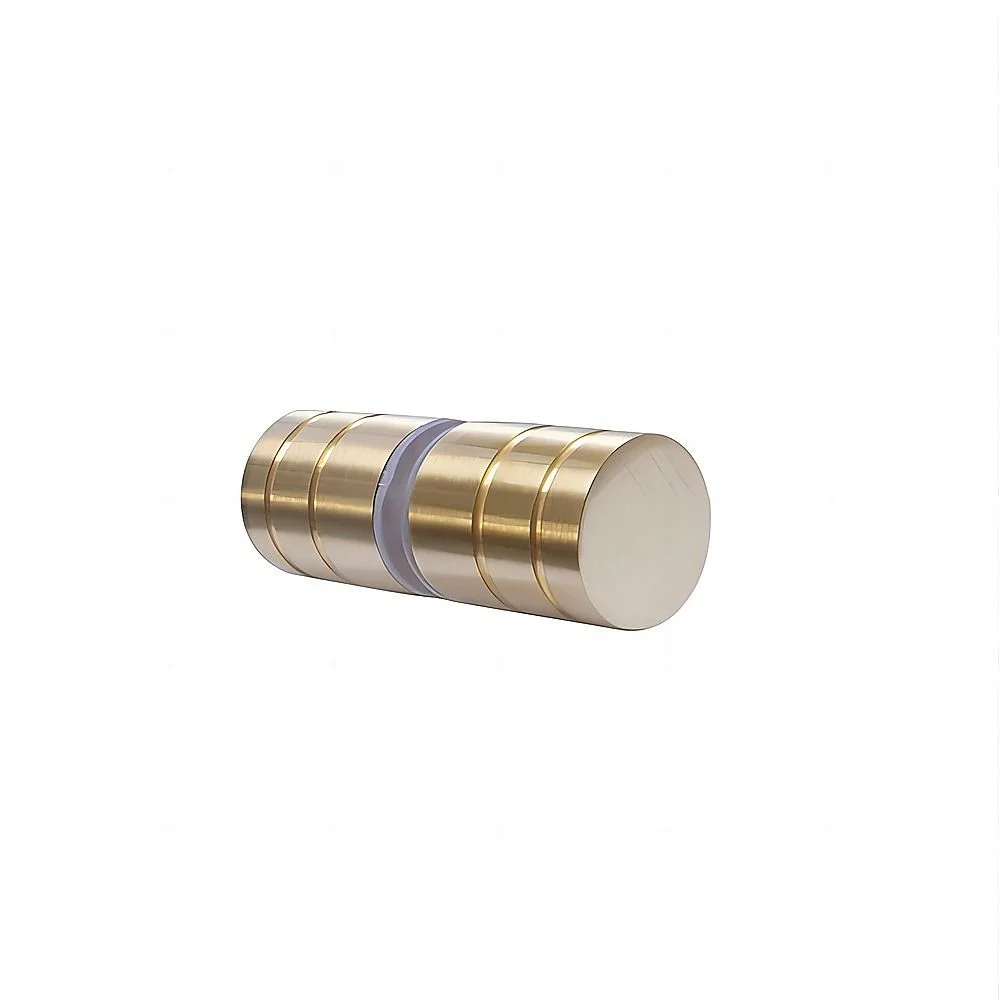

• Handle: Slimline 24mm double pull knob, solid brass, brushed gold finish
• Handle suits 6mm, 8mm, 10mm and 12mm thick glass
• U-bracket: Solid brass, brushed gold finish, suits 10mm glass, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen

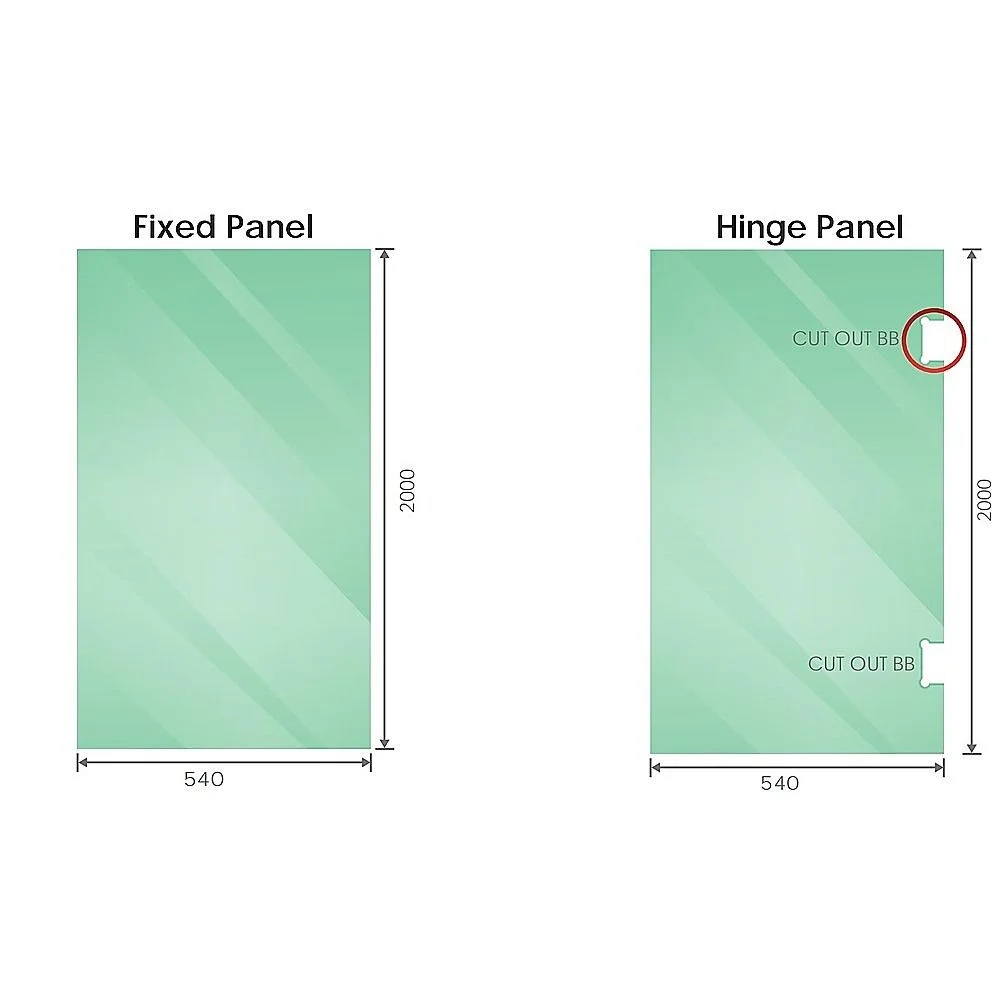

• 1 x 540mm clear glass fixed and hinged panel set for diamond shower screen (1 x hinged panel 540 x 2000mm, 1 x fixed panel 540 x 2000mm)

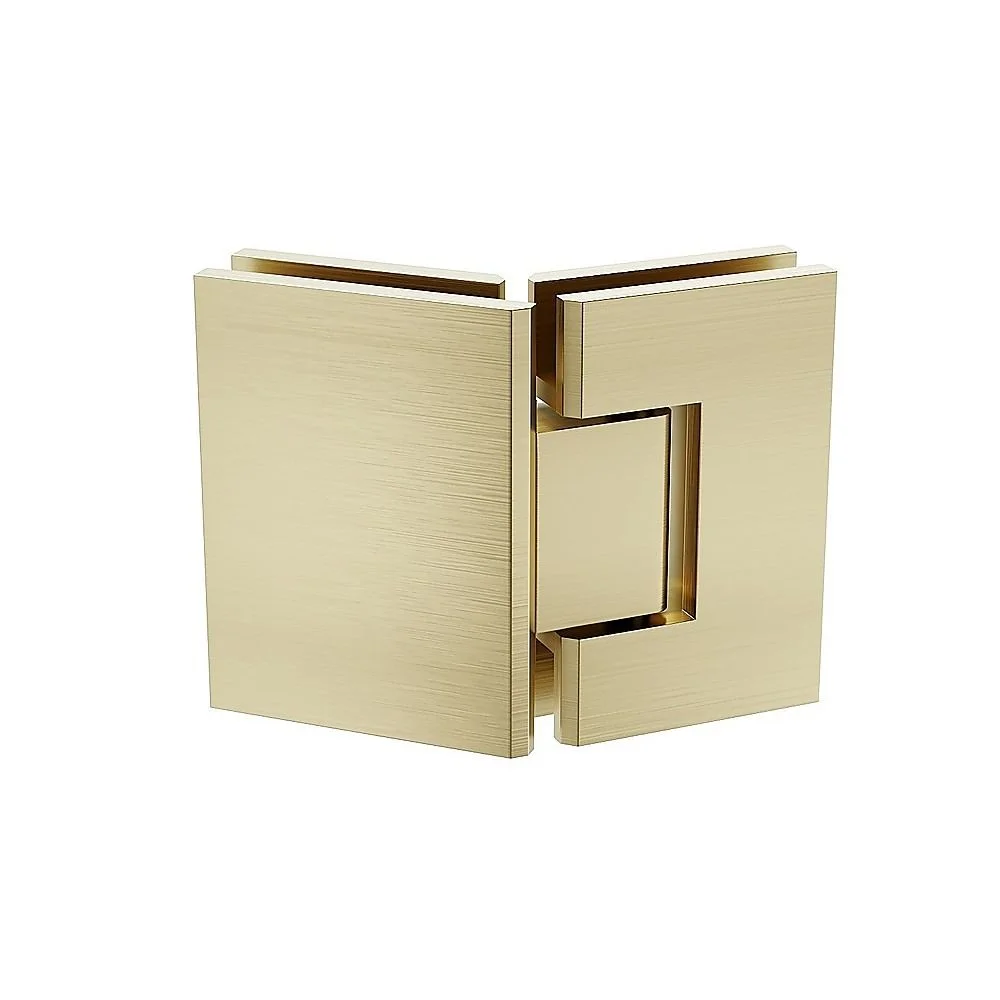

• 1 x 135-degree glass-to-glass brass square shower hinge, brushed gold
• 1 x 24mm brass shower door round handle, brushed gold
• 4 x 10mm glass-to-wall/floor U-brackets, brushed gold

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories in the specified colour as described are included.
