Della Francesca 100cm Frameless Diamond Shower Screen Gunmetal U-Brackets

The Della Francesca 100cm frameless diamond shower screen transforms a corner into a sleek, modern enclosure while maximising usable shower space. Its diamond configuration and 10mm tempered glass deliver a clean, open look with brushed gunmetal hardware to match.

Key Features

• Frameless diamond corner configuration creates an elegant centrepiece and optimises space
• 10mm tempered glass to AS-NZS2208 standard
• Stainless steel hinges with squared edges and dual action that opens inwards and outwards
• Hinges self-close from the 25-degree position and centre within 25 degrees

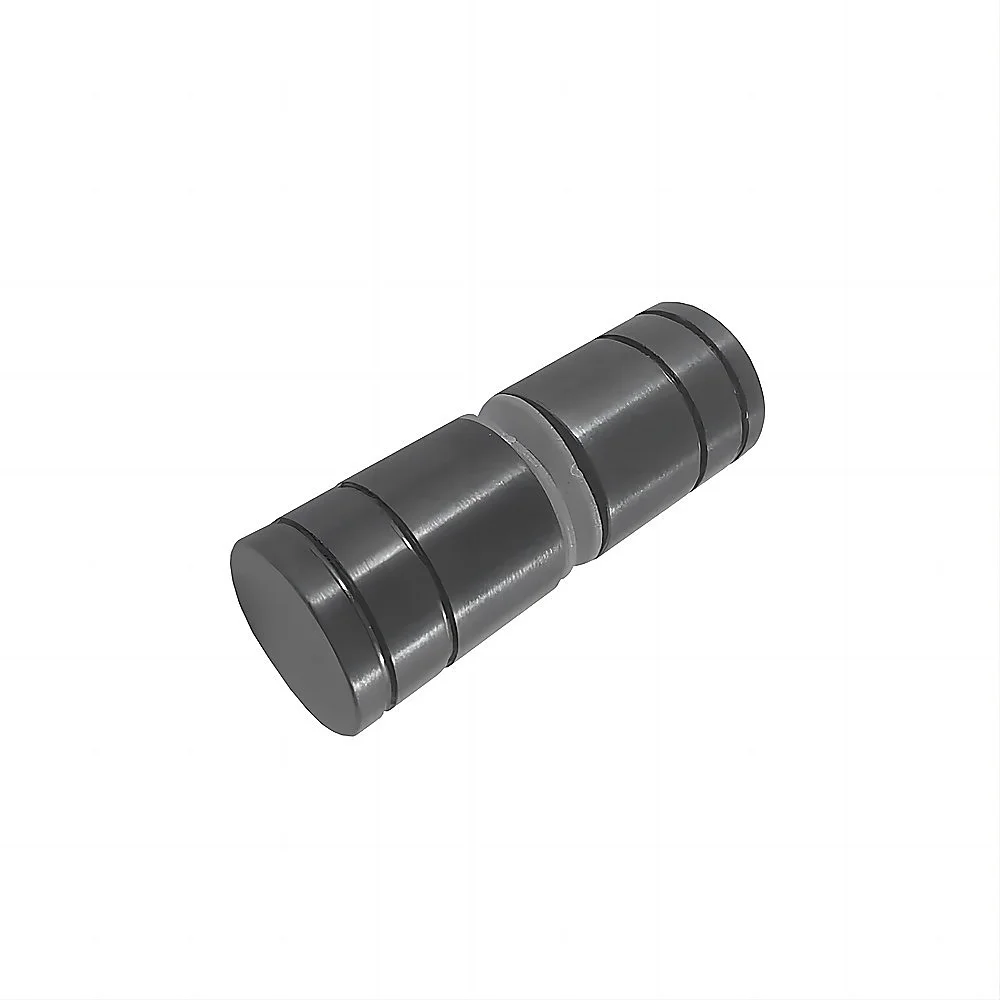

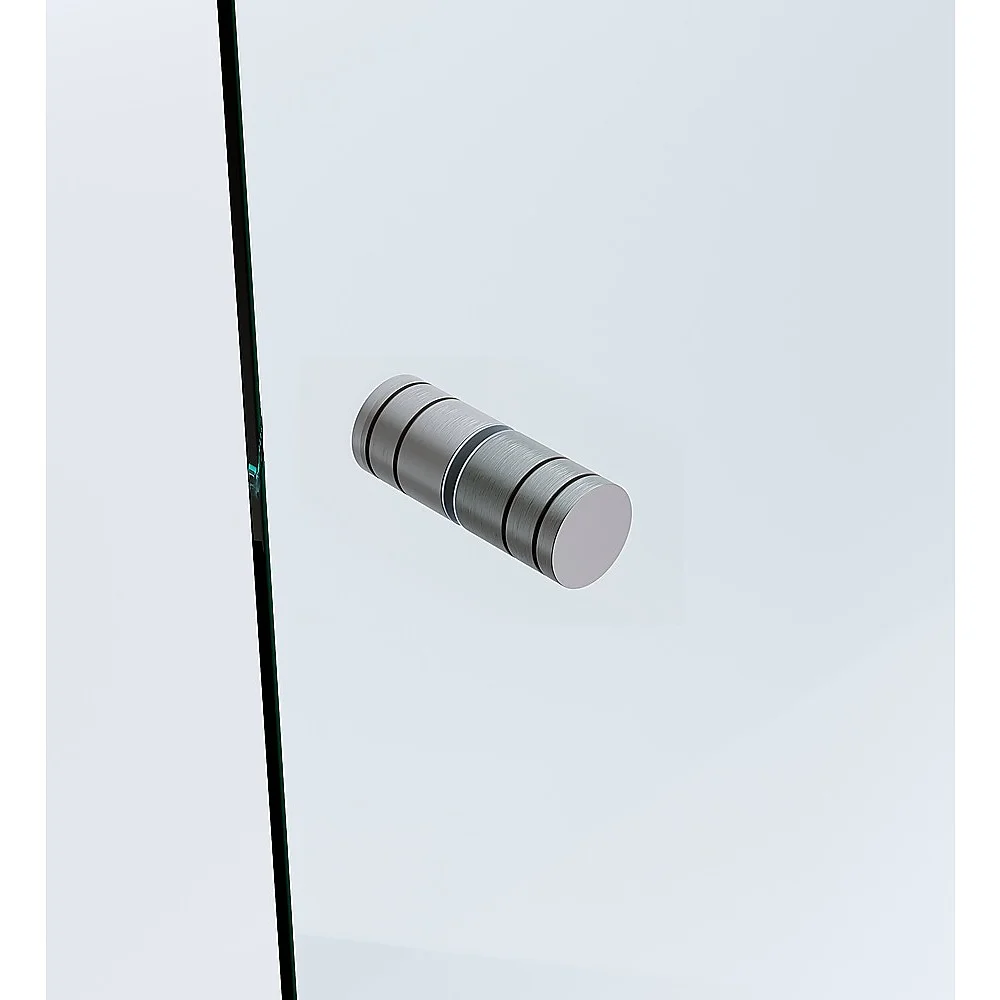

• Solid brass round knob handle with two circular grooves and a slimline 24mm double pull design

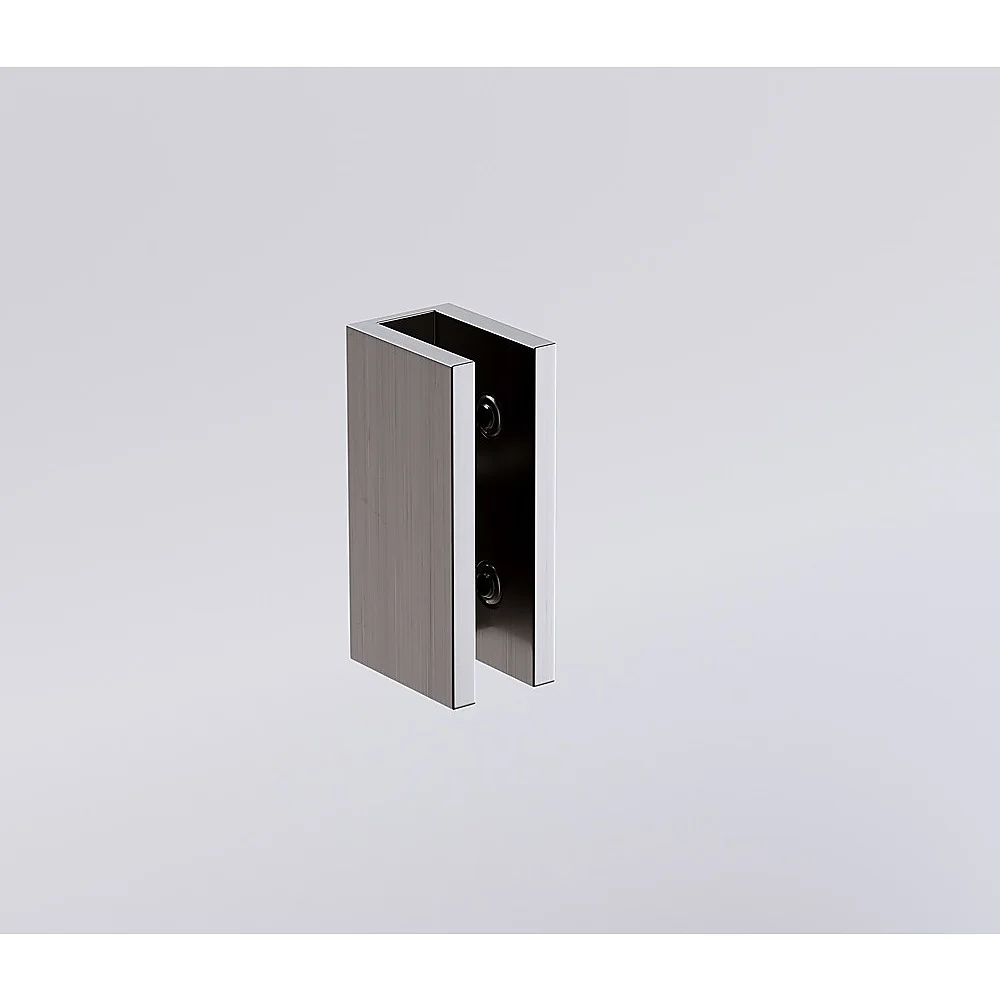

• Glass-to-wall or floor U-brackets with concealed fixing for a streamlined finish
• No glass drilling required for the U-brackets; two compression screws secure the glass

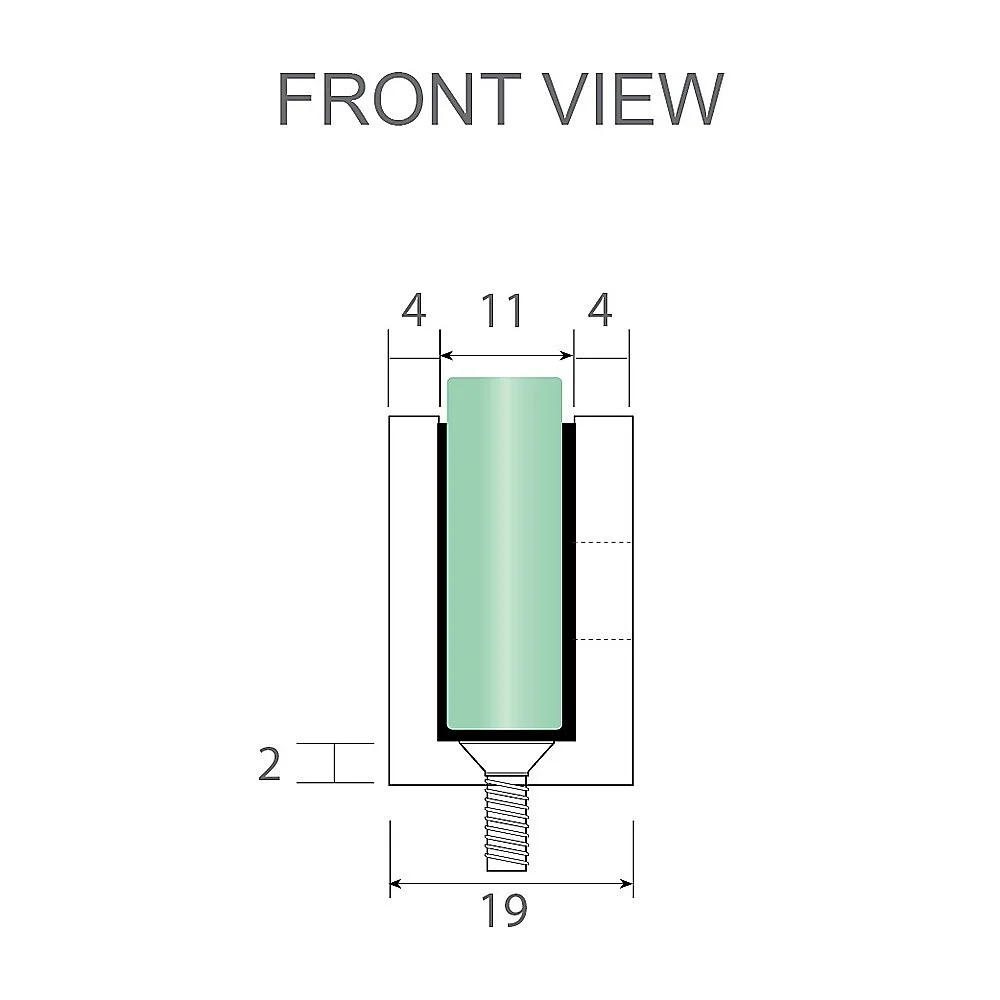

• U-brackets have a slimline 2mm rear wall to minimise the gap for a neater silicone joint
• Frameless design eliminates hard-to-clean channels and corners

Specifications

• Size: 100cm
• Colour: Gunmetal
• Bracket type: U-Brackets
• Handle type: Round Knob

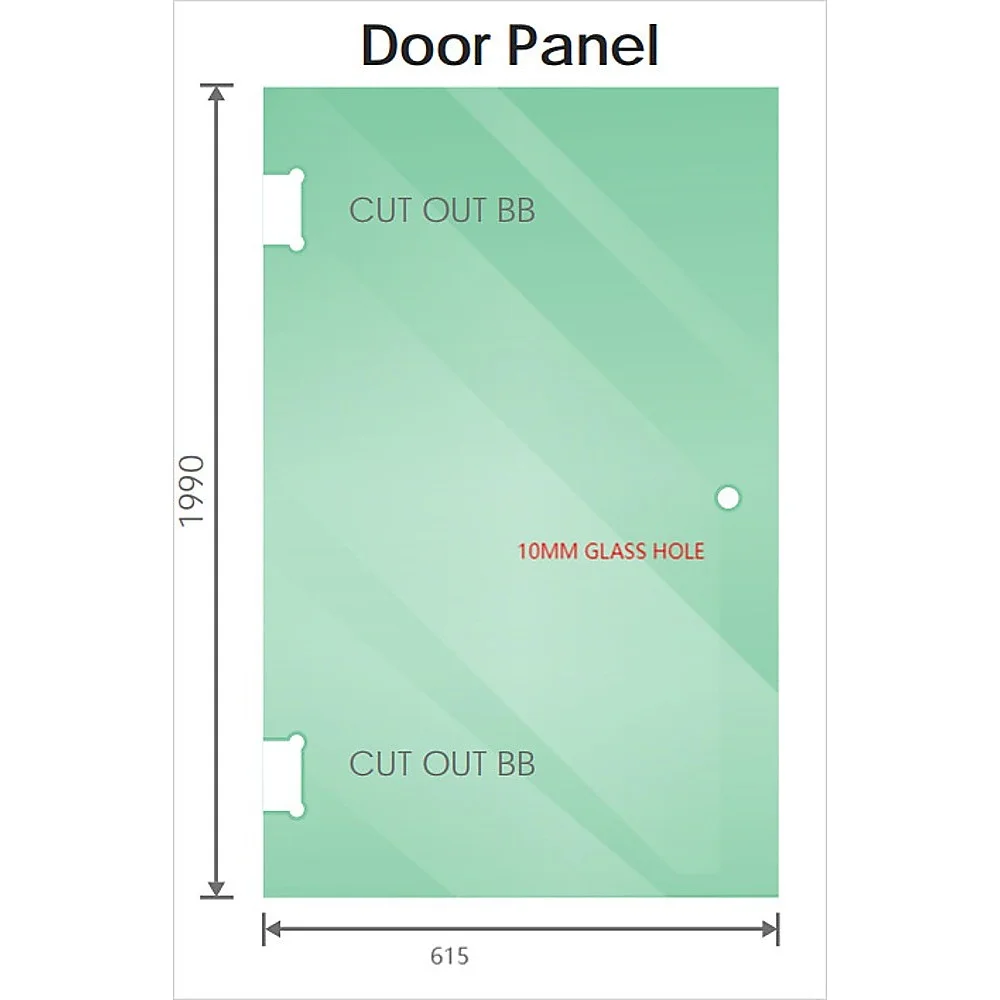

• Door panel: 615 x 1990mm, 10mm glass

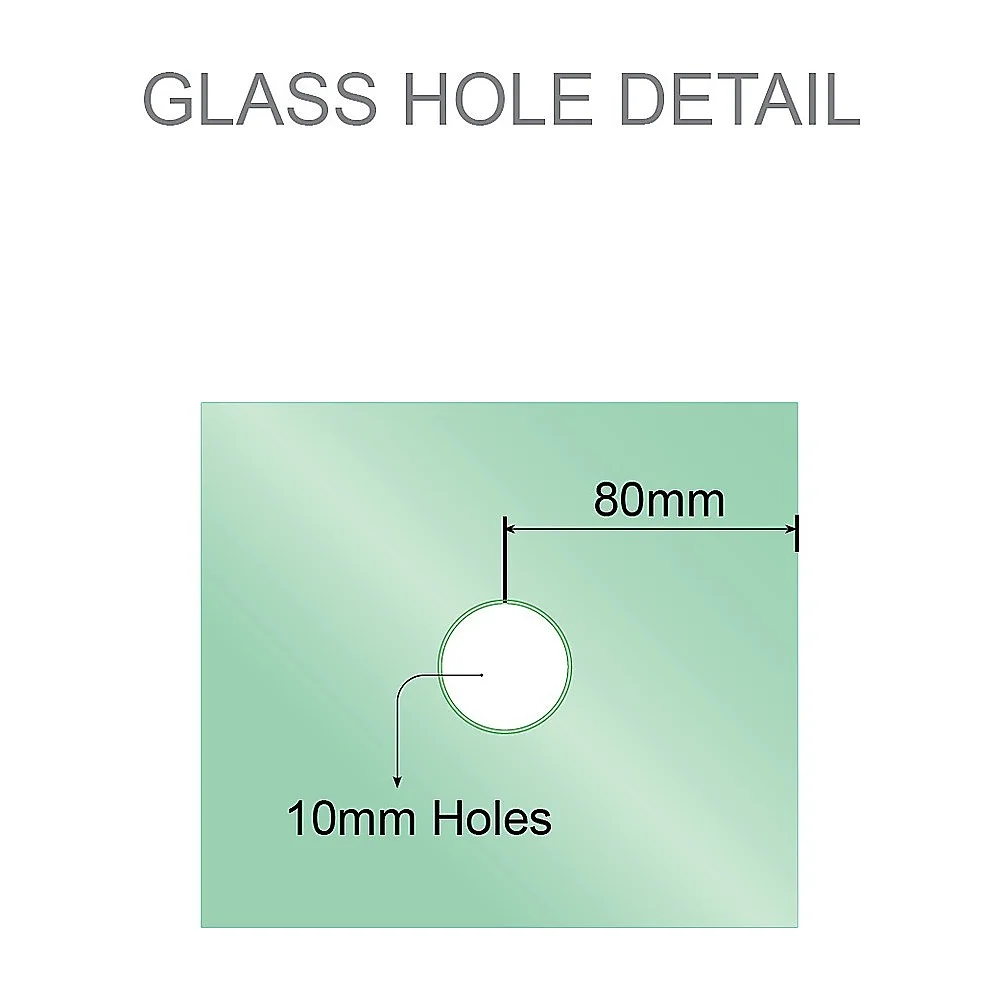

• Door handle hole: 10mm

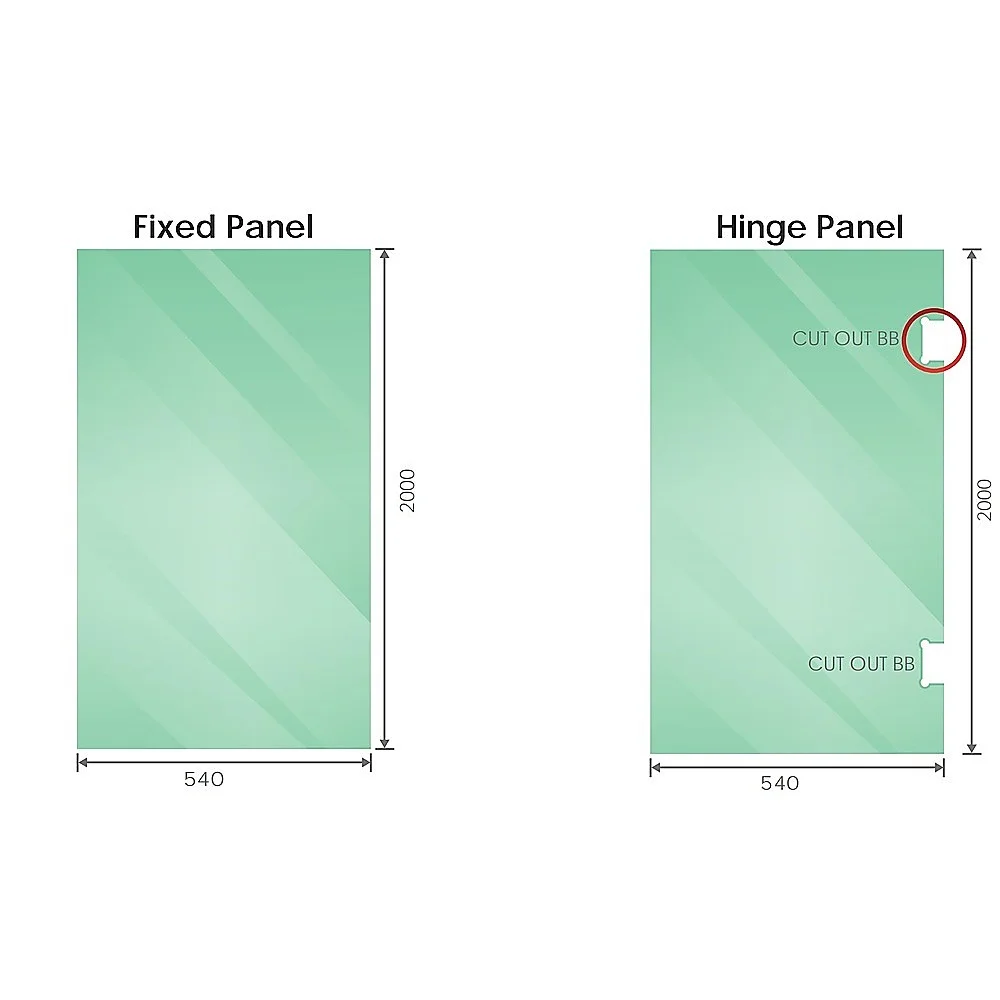

• Hinged panel: 540 x 2000mm, 10mm glass
• Fixed panel: 540 x 2000mm, 10mm glass

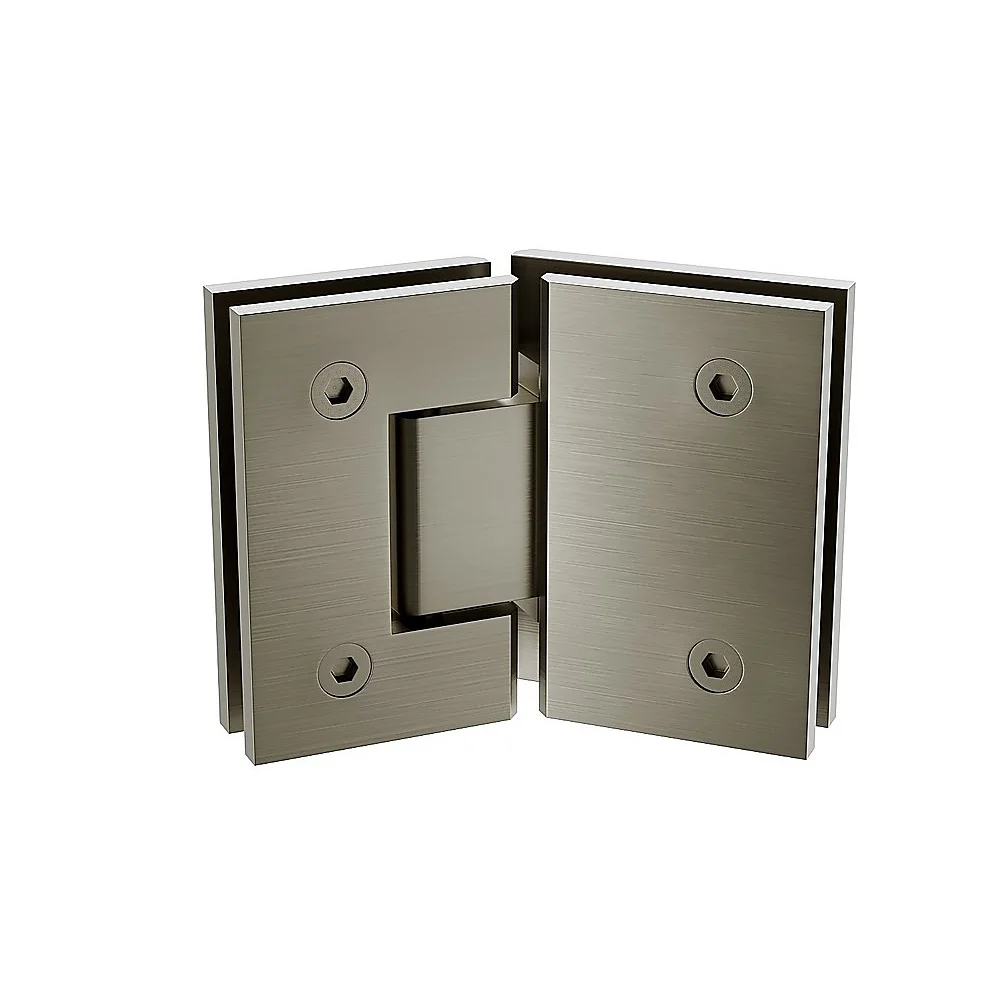

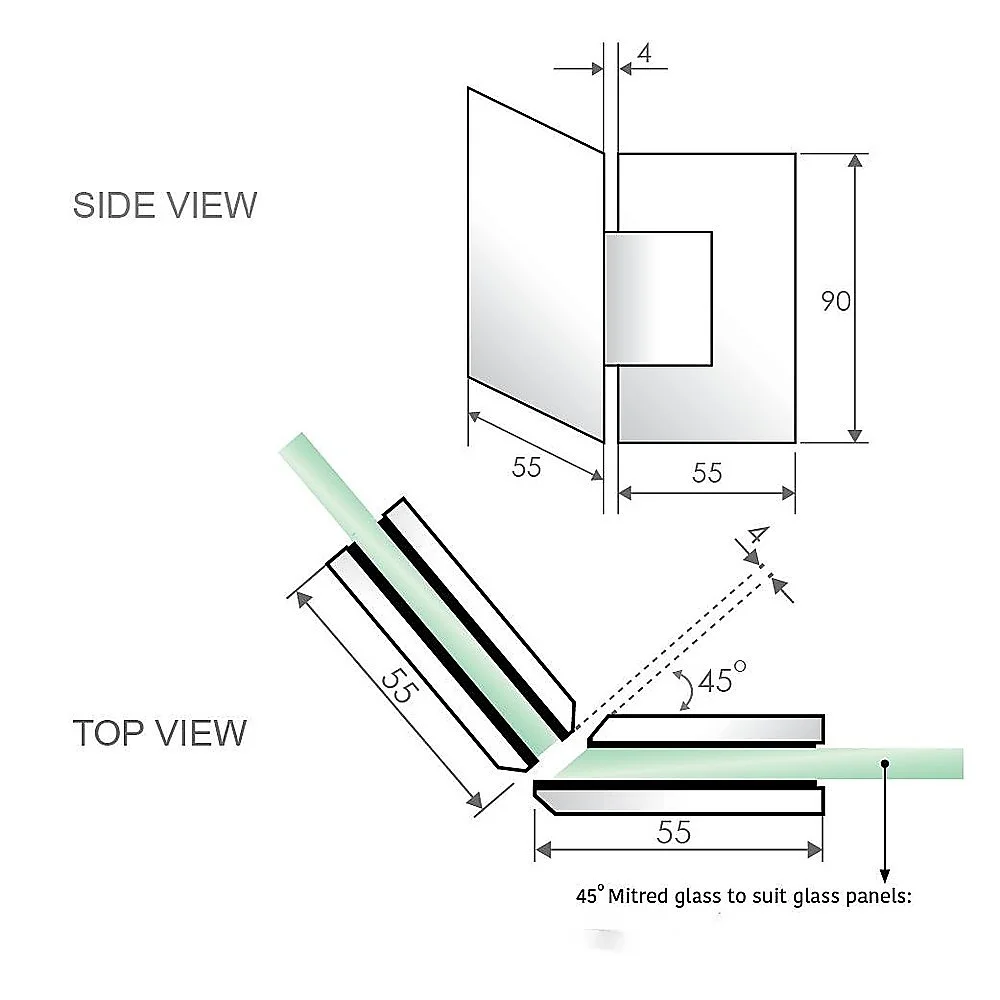

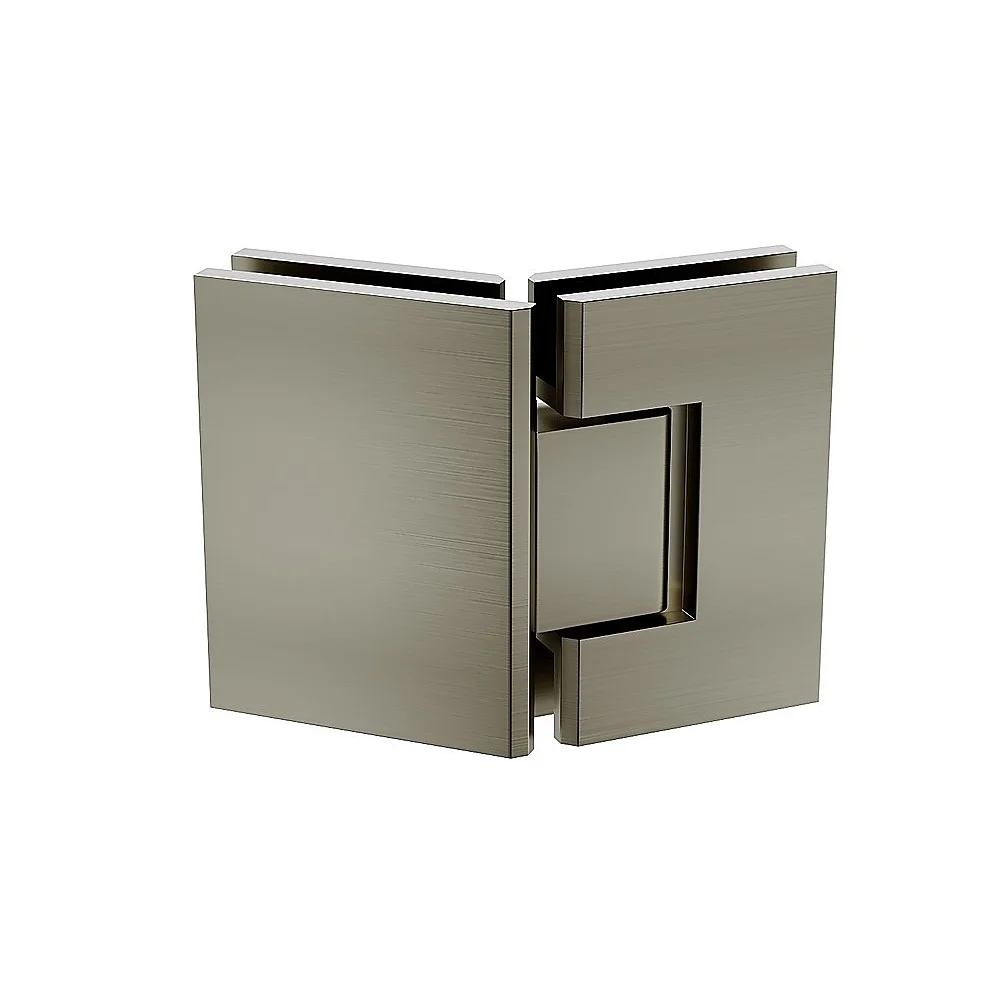

• Hinge: 135-degree glass-to-glass, stainless steel, brushed gunmetal, for 10mm glass, maximum weight 45kg
• Handle: solid brass, brushed gunmetal, suits 6mm, 8mm, 10mm and 12mm thick glass

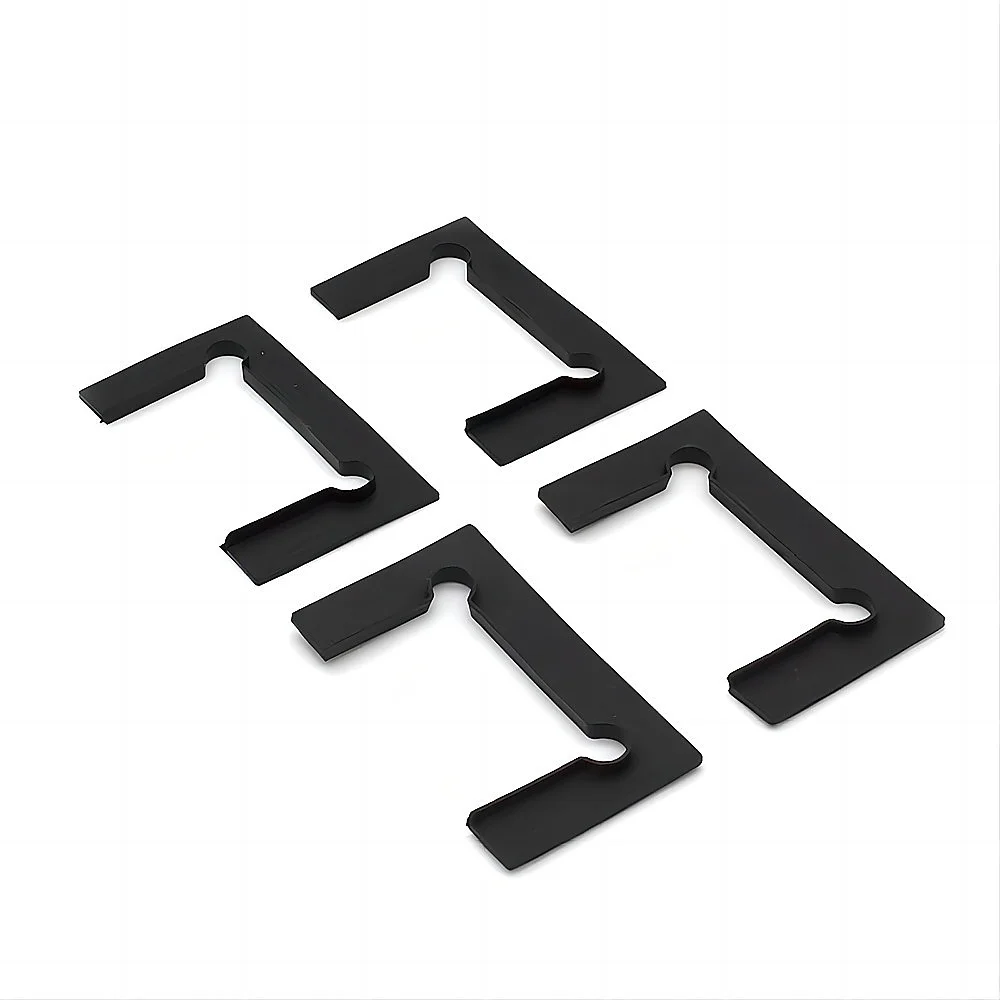

• U-bracket: solid brass, brushed gunmetal, for 10mm glass, supplied with 1 fixing screw and clear gaskets

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed panel for diamond shower screen
• 1 x 540mm clear glass hinged panel for diamond shower screen
• 1 x 135-degree glass-to-glass square shower hinge in brushed gunmetal
• 1 x 24mm brass shower door round handle in brushed gunmetal
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gunmetal

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories and are for illustrative purposes only; only the indicated accessories in the specified colour are included.
