Della Francesca 100cm Frameless Diamond Shower Screen with Brushed Gold U-Brackets

Create a striking focal point in your bathroom with the Della Francesca 100cm Frameless Diamond Shower Screen. The diamond corner configuration maximises usable shower space while the frameless tempered glass keeps the look open and modern, finished with brushed gold hardware for a warm, contemporary touch.

Key Features

• Frameless diamond corner configuration adds architectural flair and makes efficient use of space
• 10mm tempered glass to AS-NZS2208 standard
• Stainless steel glass-to-glass hinges with squared edges and dual-action swing that opens inwards and outwards
• Hinges self-close from the 25-degree position
• Solid brass double pull handle with a smooth, rust- and corrosion-resistant finish

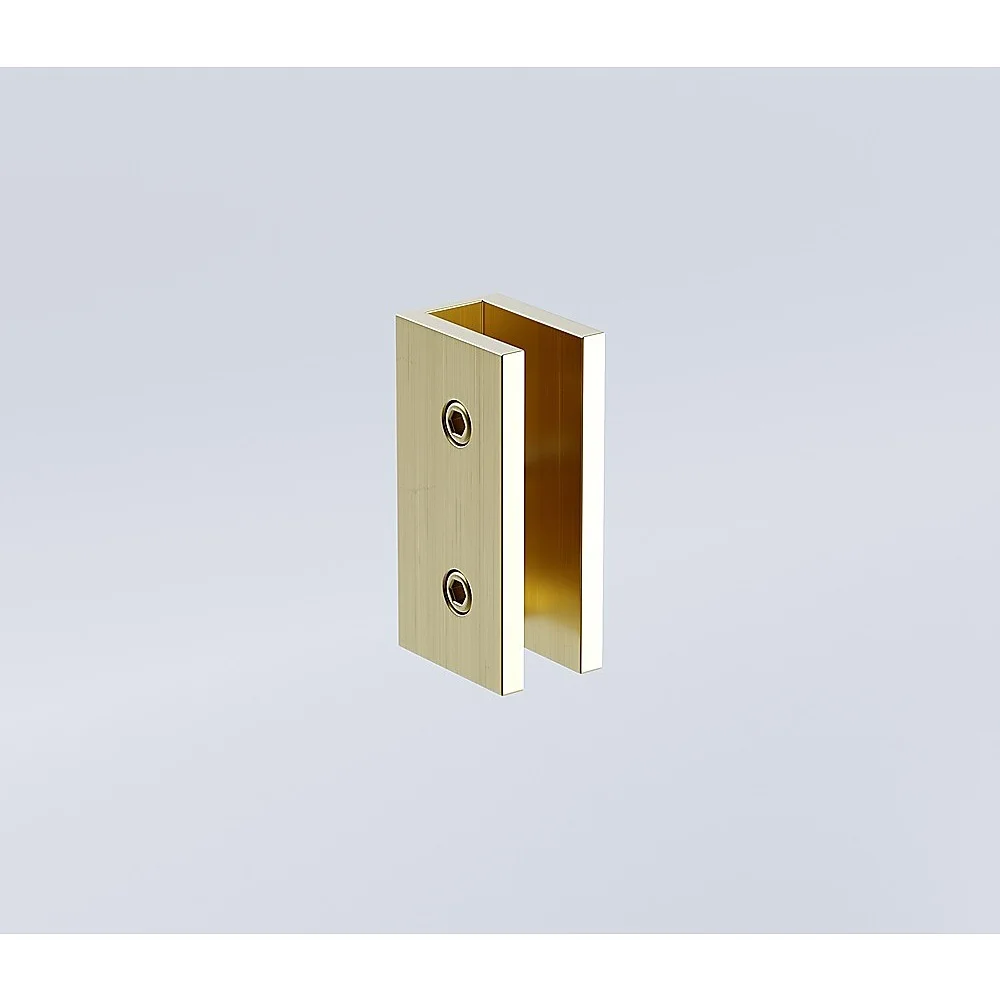

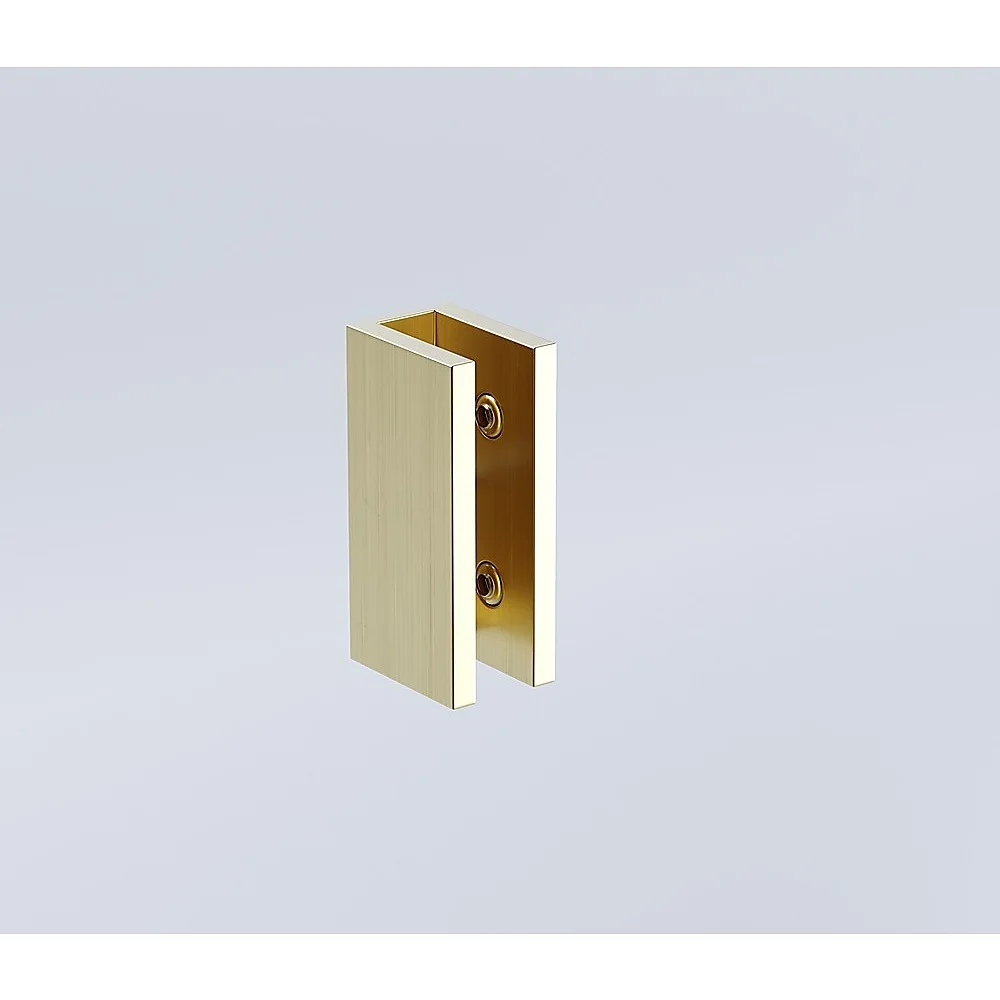

• Glass-to-wall or floor U-brackets with concealed fixings for a clean, streamlined look
• U-brackets secure the glass with compression screws, so no drilling of the glass panel is required
• Frameless design removes hard-to-clean channels and corners for easier maintenance

Specifications

• Size: 100cm
• Colour: Gold
• Bracket type: U-Brackets
• Handle type: Square Double Pull
• Door panel: 615 x 1990mm, 10mm glass, door handle hole 10mm

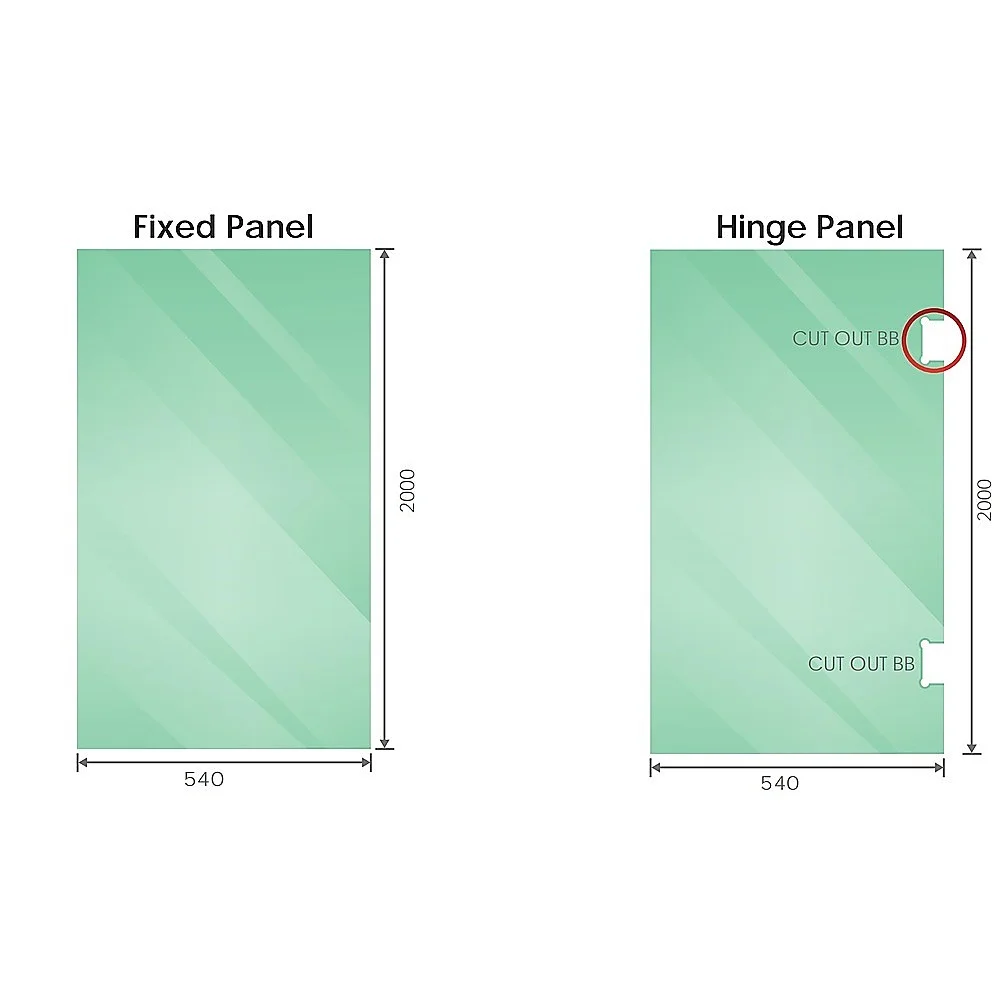

• Hinged panel: 540 x 2000mm, 10mm glass
• Fixed panel: 540 x 2000mm, 10mm glass

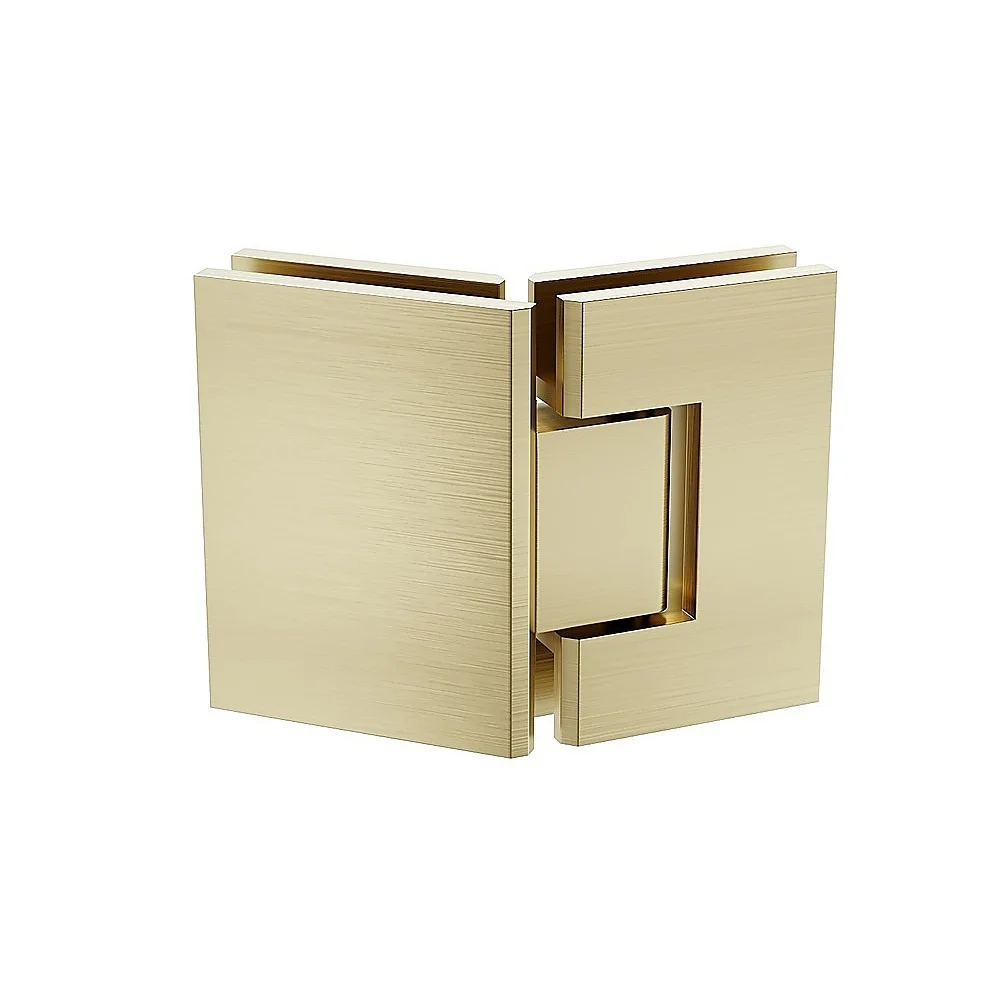

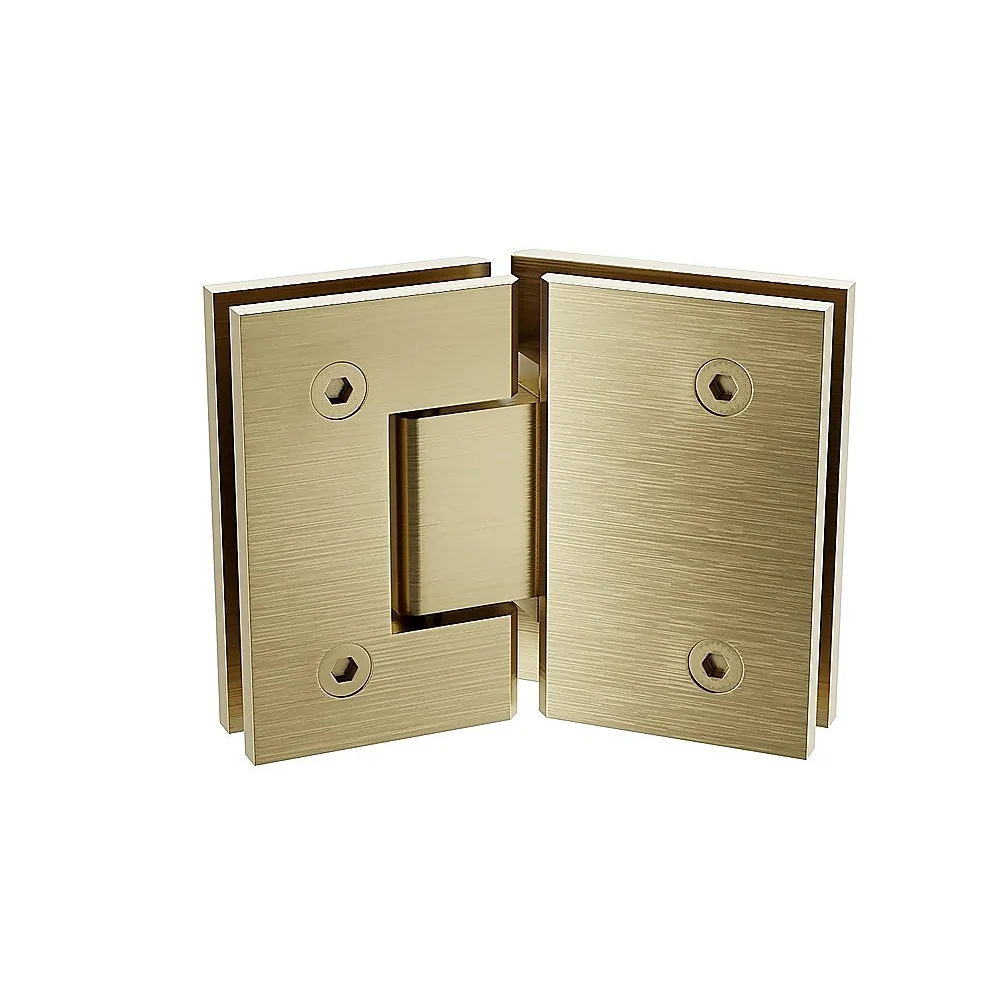

• Hinge: 135-degree glass-to-glass, stainless steel, brushed gold, for 10mm glass, maximum weight 45kg

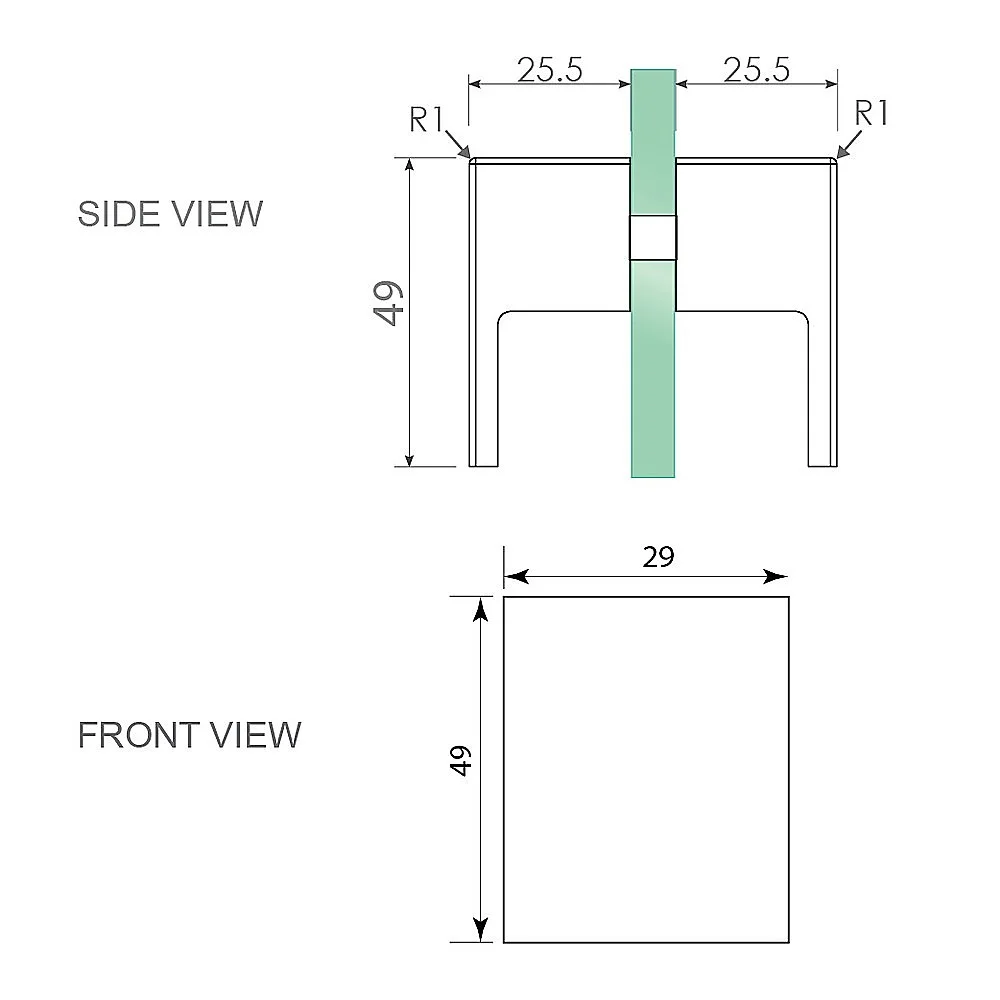

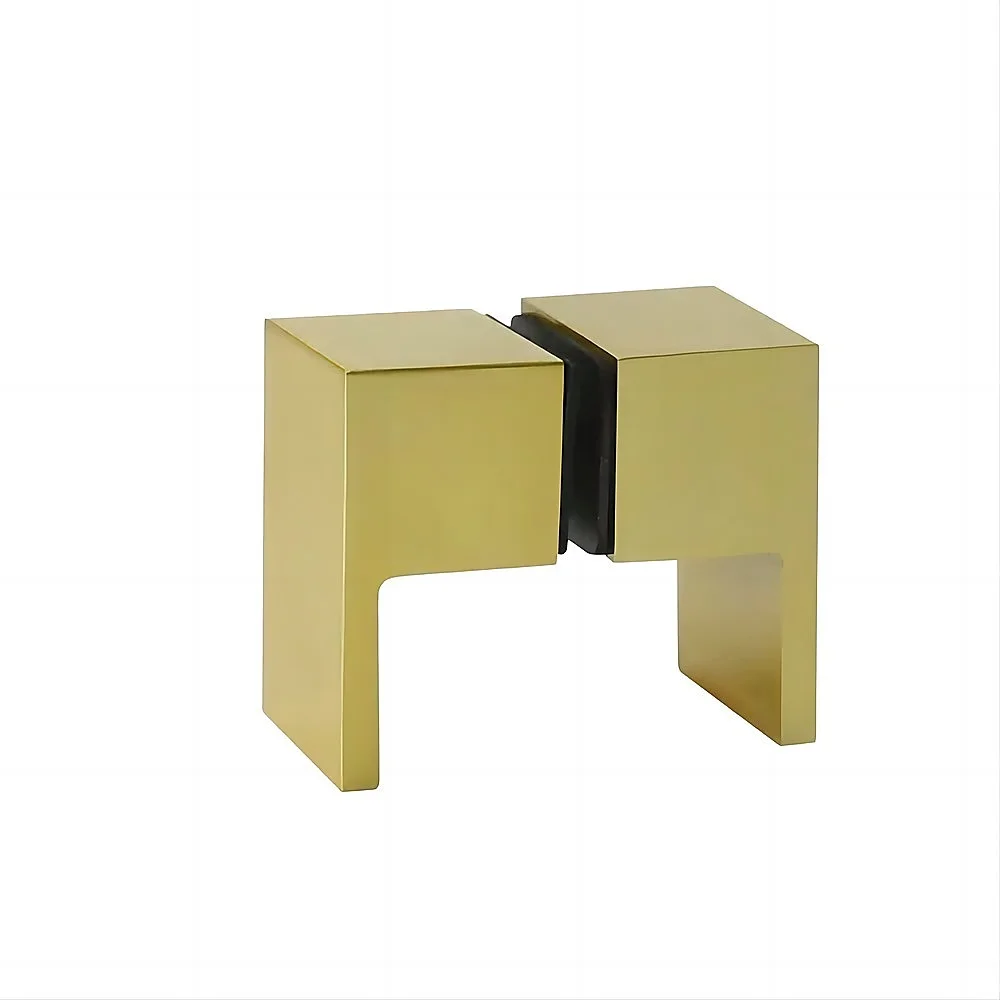

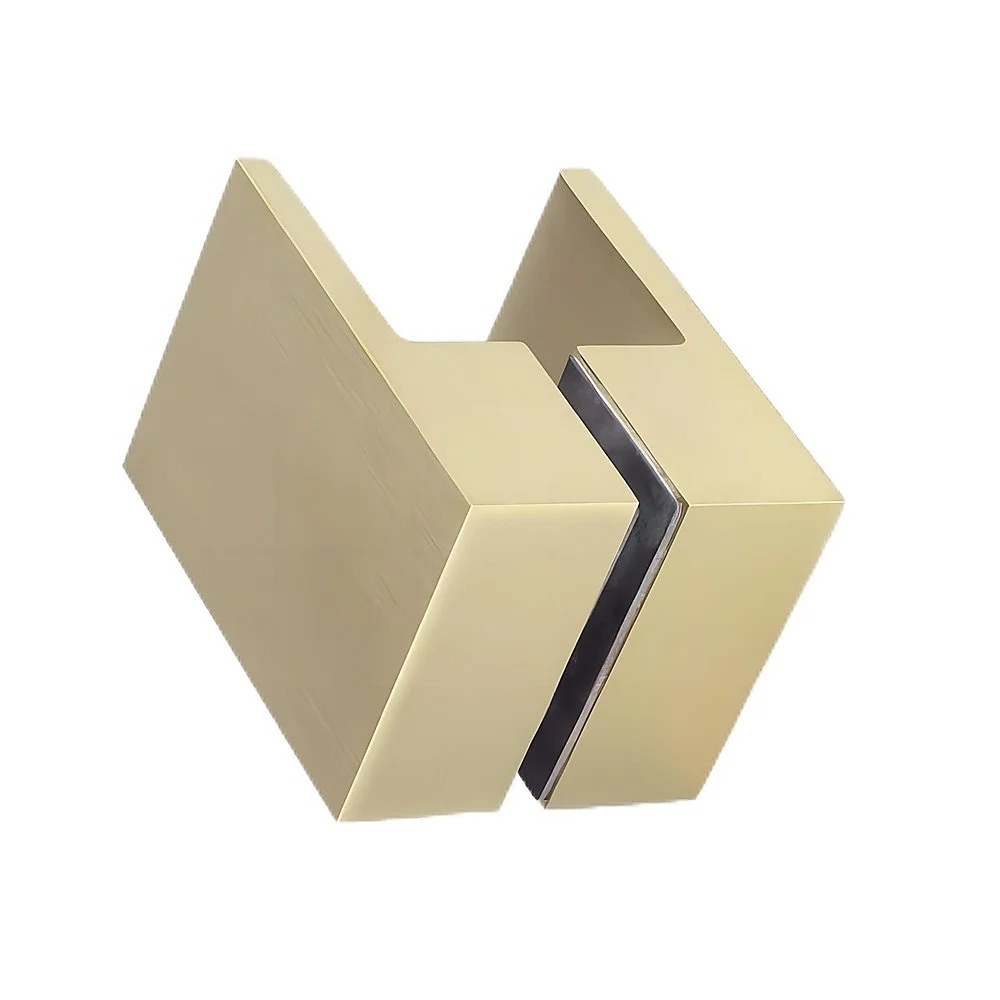

• Handle: 49mm x 25mm double pull knob, solid brass, brushed gold, suits 6mm, 8mm, 10mm and 12mm thick glass
• U-bracket: solid brass, brushed gold, for 10mm glass, slimline 2mm rear wall

What's in the Box

• 1 x 61 x 199cm frameless door panel for diamond corner shower screen
• 1 x 540mm clear glass fixed and hinged panel set for diamond shower screen (1 x hinged panel 540 x 2000mm, 1 x fixed panel 540 x 2000mm)
• 1 x 135-degree glass-to-glass stainless steel square shower hinge in brushed gold
• 1 x 25mm brass shower door double pull handle in brushed gold
• 4 x 10mm glass-to-wall/floor U-brackets in brushed gold, each supplied with 1 fixing screw and clear gaskets

Colour intensity may vary from actual due to different lighting conditions. Images may show optional accessories for illustrative purposes only; only the accessories and colours specified above are included.
