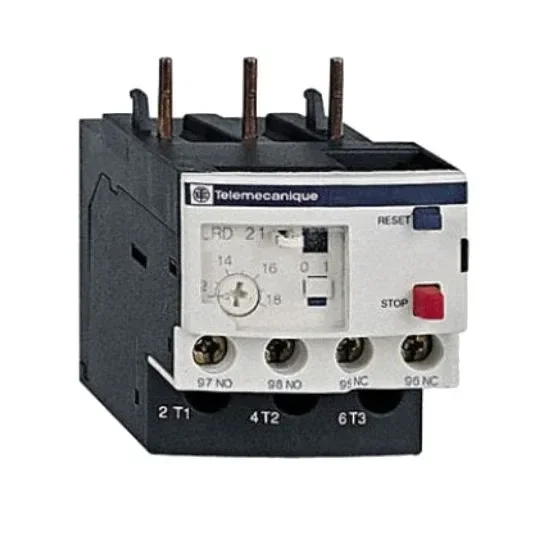

Schneider Thermal Overload Relay DIN Rail/Plate Mount 3 Pole 12-18A 690V 1NO-1NC Class 10A Blue Pushbutton IP20 | LRD-21

Thermal Overload Relay, 690 Volt Operational Voltage, Setting Range From (Amp): 12.0, Setting Range To (Amp): 18.0, 0-400 Hz, Class 10A, Red Pushbutton Stop/Blue Pushbutton Reset Control, 1 Normally Opened/1 Normally Closed Configuration, 3 Pole, 1.7 Nm Tightening Torque, DIN Rail/Plate Mounting, Screw/Clamp Terminal, For Use With LC1D09 to LC1D38 Contactors, IP20, -20 to 60 deg C, 66 mm Height, 45 mm Width, 70 mm Depth, 2 Phase

Brand: Schneider

Manufacturer Part Number: LRD-21

Barcode: 3389110346831
